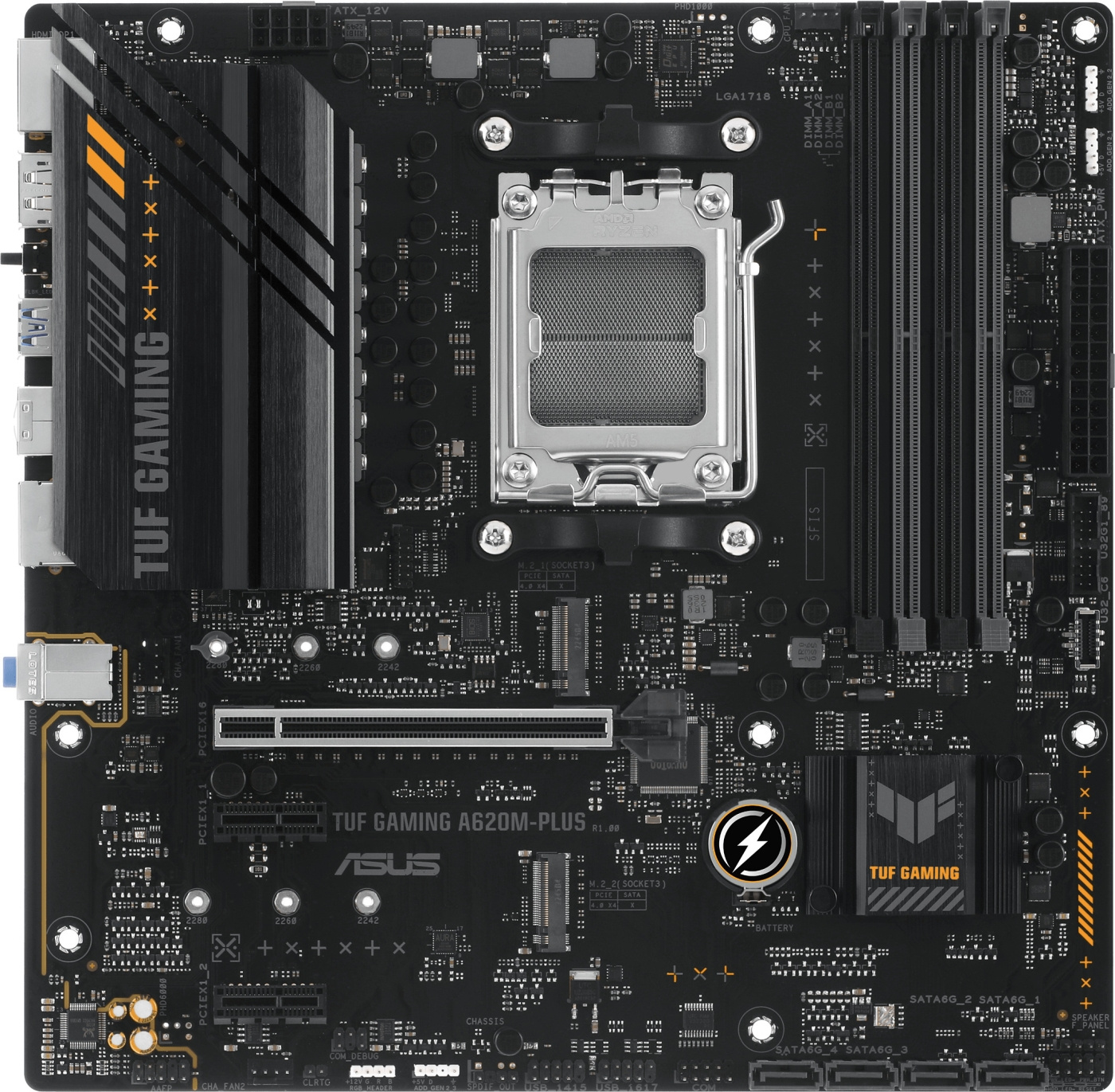

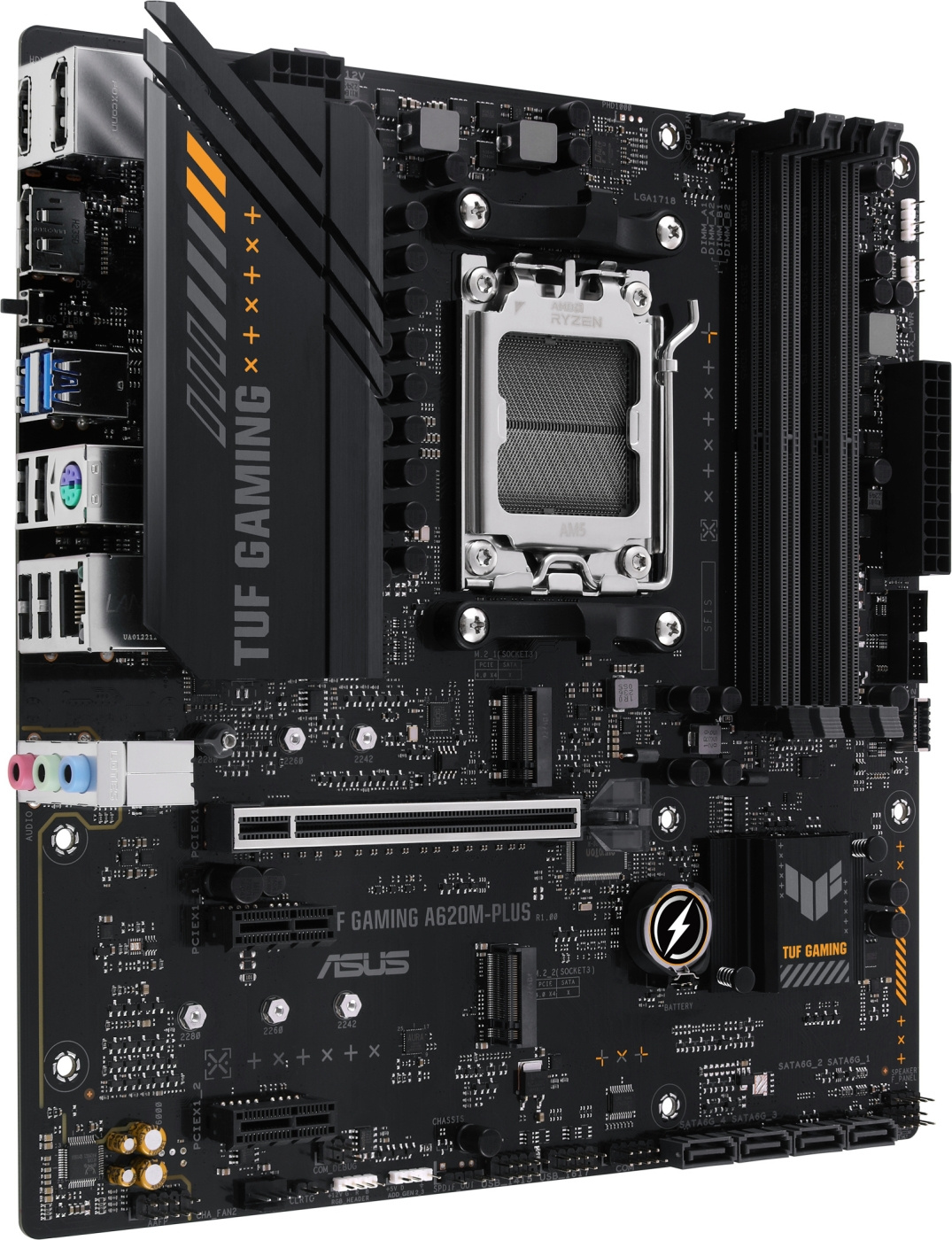

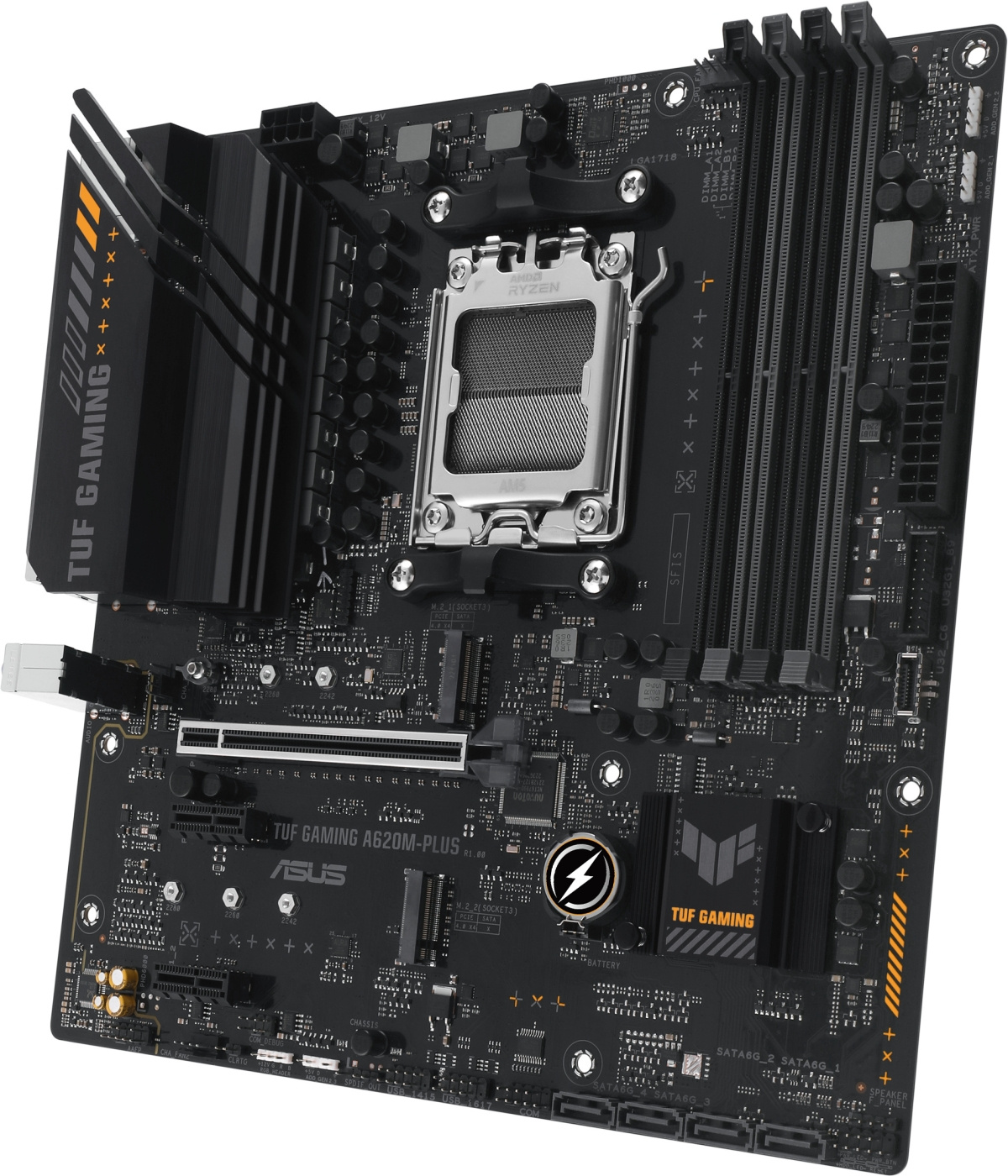

The ASUS TUF GAMING A620M-PLUS motherboard supports AMD Ryzen 7000 series CPUs and offers gaming-grade features and durability at an affordable price. Its power solution and cooling system provides stable performance for long gaming sessions. The motherboard supports DDR5 memory and includes high-speed PCIe 4.0 M.2 storage.
Comprehensive connectivity makes it easy to attach monitors and accessories. High-speed 2.5G network connectivity delivers smooth online gaming. The Realtek 7.1 audio chip delivers a rich, clean soundstage with a 98 dB signal-to-noise ratio. Three ARGB connectors allow you to connect lighting devices and control them with the Aura Sync app.
TUF GAMING motherboards undergo rigorous durability testing, so you can be confident in their quality.
Features:
- Chipset: AMD A620
- Processor core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: mATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network interfaces:Realtek 2.5Gb Ethernet
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 24.4 cm x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 4.0 x16 slot
- AMD A620 Chipset: 2 x PCIe 3.0 x1 slots
Graphics:
- 2 x DisplayPort, max 8K 60Hz
- 1 x HDMI, max 4K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 2 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Rear panel interfaces:
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports
- 2 x DisplayPort
- 1 x HDMI port
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
- 1 x BIOS FlashBack button
- 1 x PS/2 keyboard/mouse combo port
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 2 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (Type-C)
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x 10-1 pin System Panel header
- AMD AM5 mATX motherboard
- AMD A620 chipset
- Two M.2 slots
- DDR5 support, 2.5 Gb LAN
- Supports Ryzen 7000 series CPUs
