BIOS Features: BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
BIOS Type: AMI
Width: 30.5 cm
Bus Clock: 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz
Depth: 24.4 cm
Expansion Slots: 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 3 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) | 1 x M.2 socket (Key E)

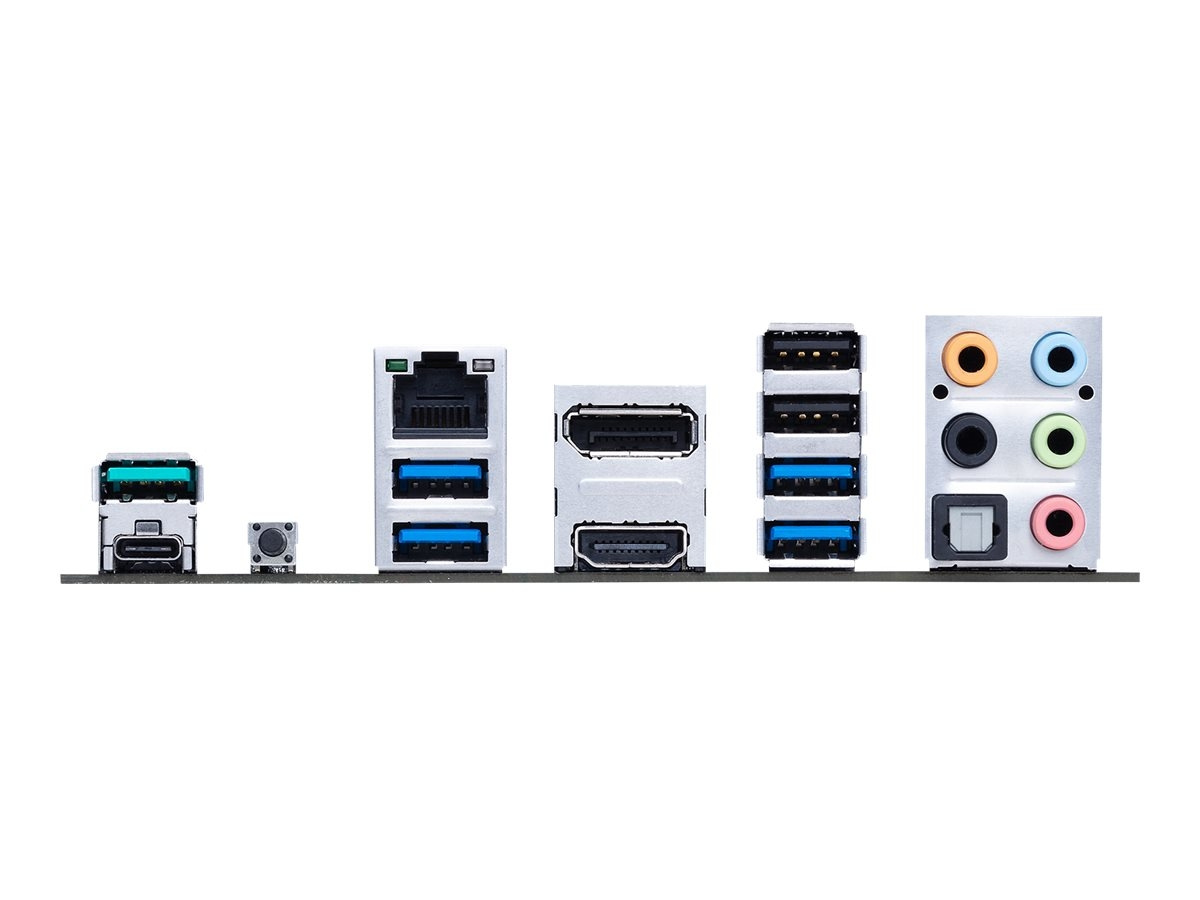

Interfaces: 1 x DisplayPort | 1 x HDMI | 1 x LAN (2.5 Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 1 x USB-C Gen2 | 2 x USB 2.0 | 1 x audio line-out (rear)
Hardware Features: Auto System Tuning, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection

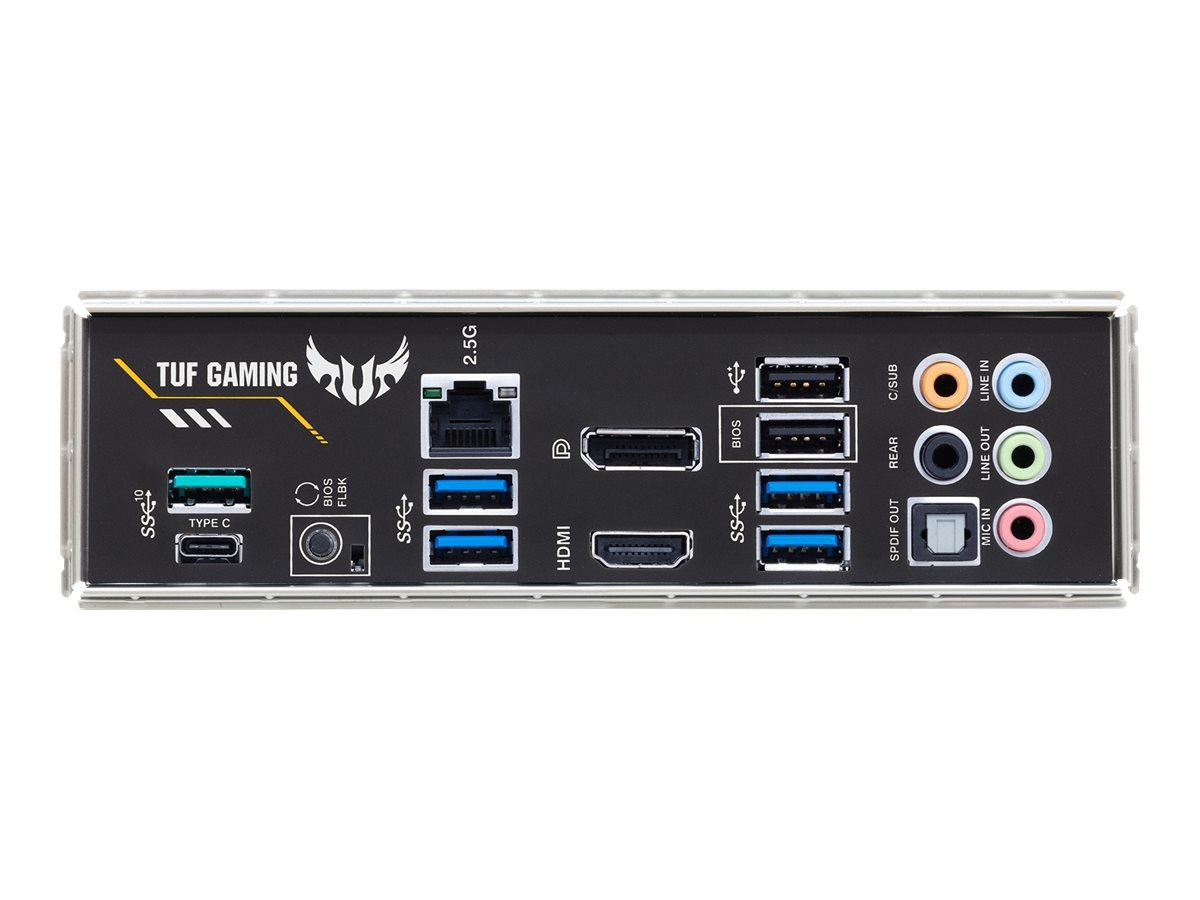

Included Accessories: 1 x M.2 screw, I/O shield, TUF stickers, rubber cushion
Internal Interfaces: 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header
Compatible Processors: Ryzen (supports 3rd Generation Ryzen)
Chipset Type: AMD B550
Storage Interfaces: SATA-600 - connectors: 6 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 - connectors: 1 x M.2 | SATA-600 / PCIe 3.0 - connectors: 1 x M.2
Max Supported Size: 128 GB
Max Processors Qty: 1
Included Cables: 2 x Serial ATA cable
Software Included: Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
Network Interfaces: 2.5 Gigabit Ethernet
Network Controller: Realtek RTL8125B
Processor Socket: Socket AM4
Registered or Buffered: Unbuffered
Compliant Standards: DisplayPort 1.4
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Technology: DDR4
Audio Output: HD Audio (8-channel)

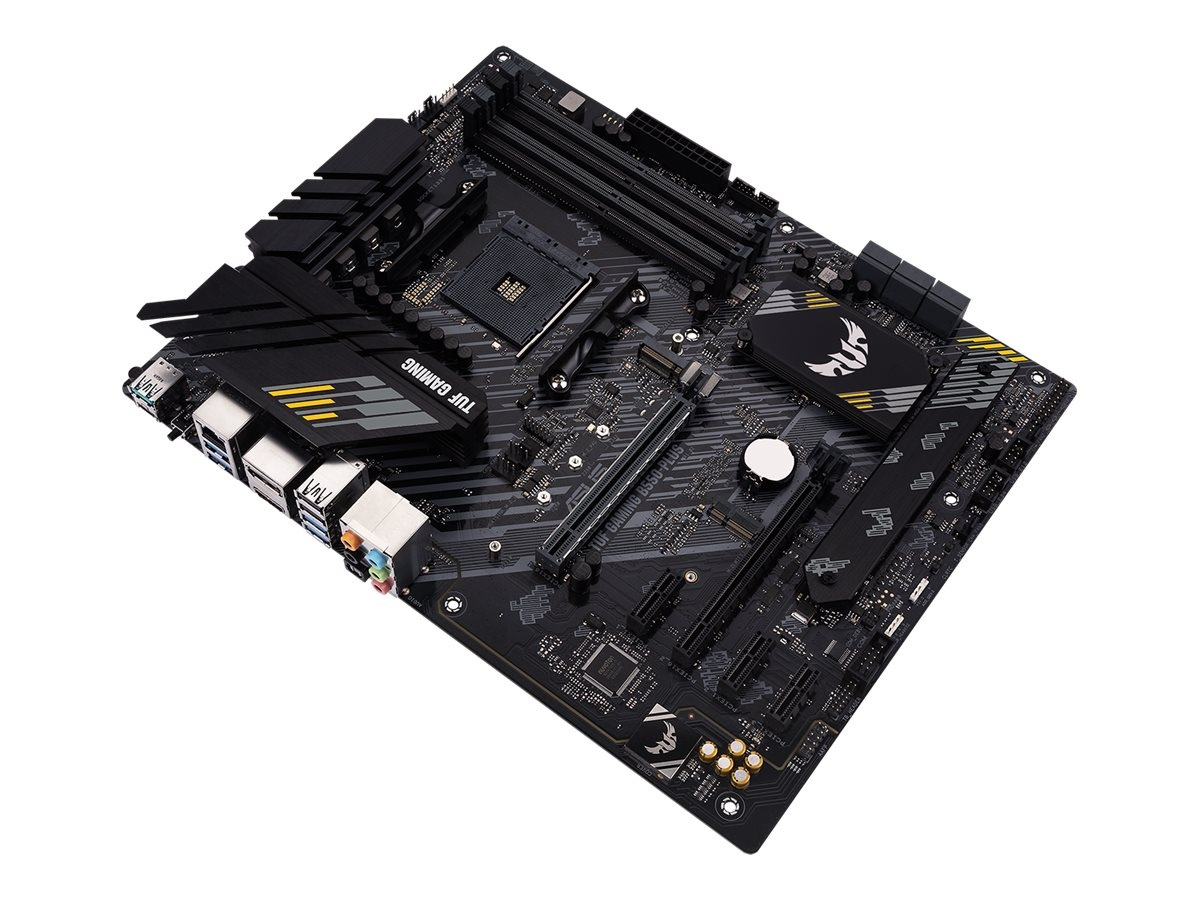

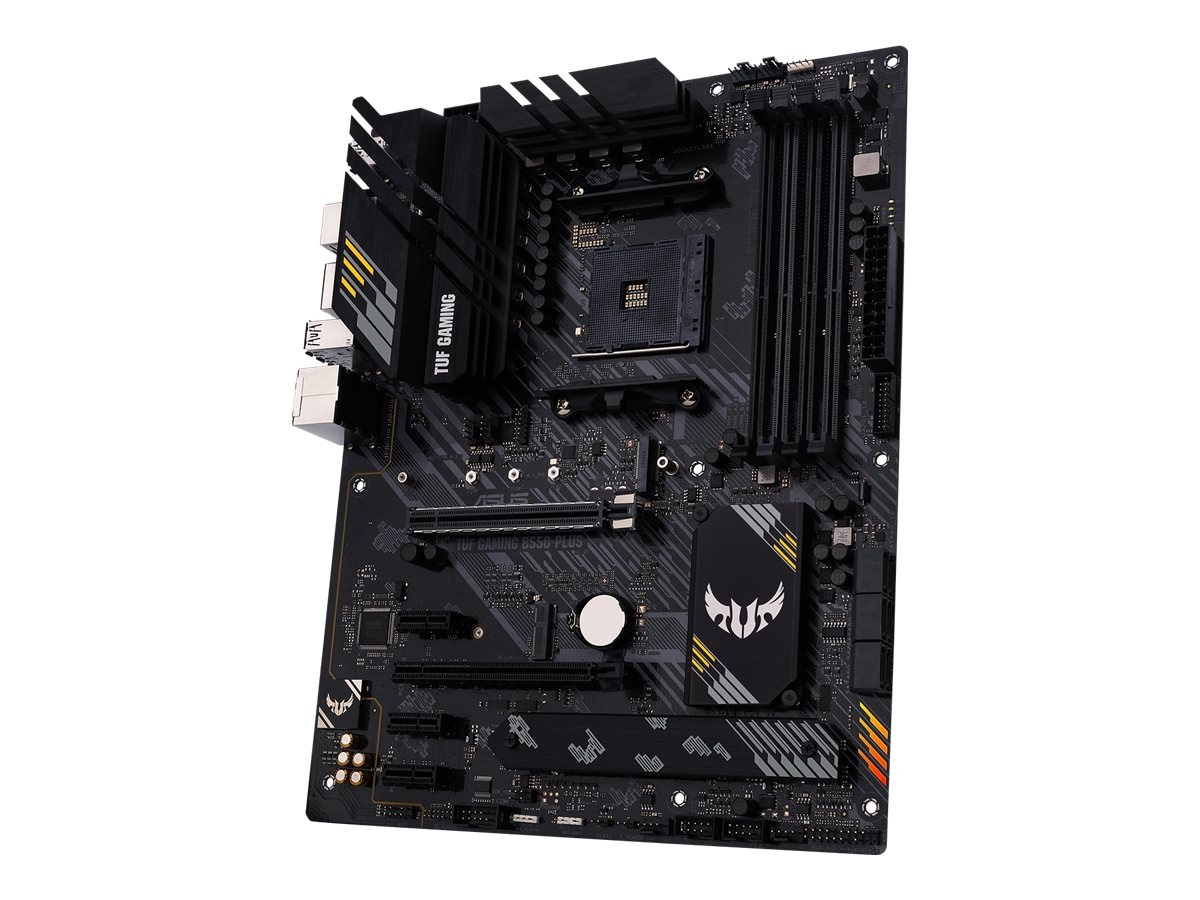

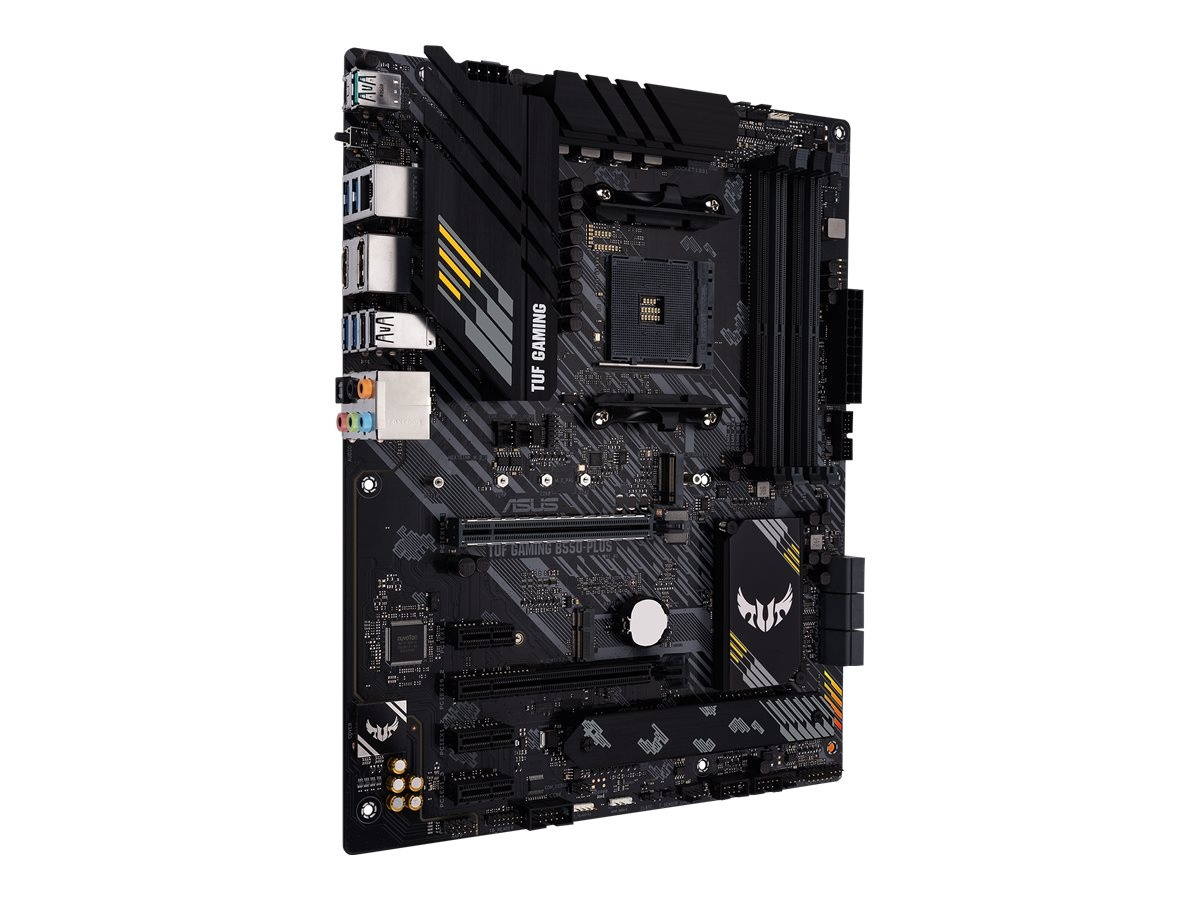

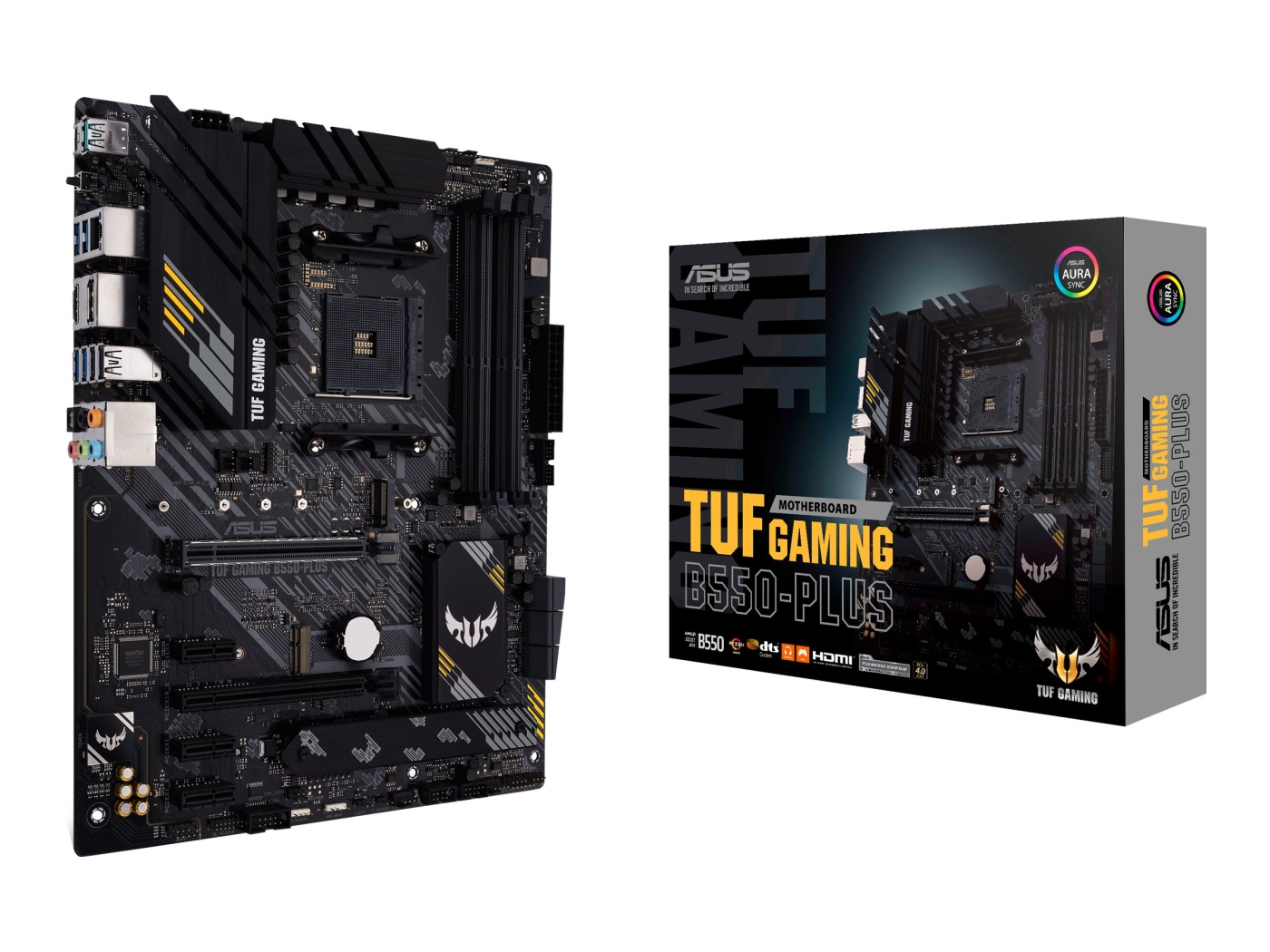

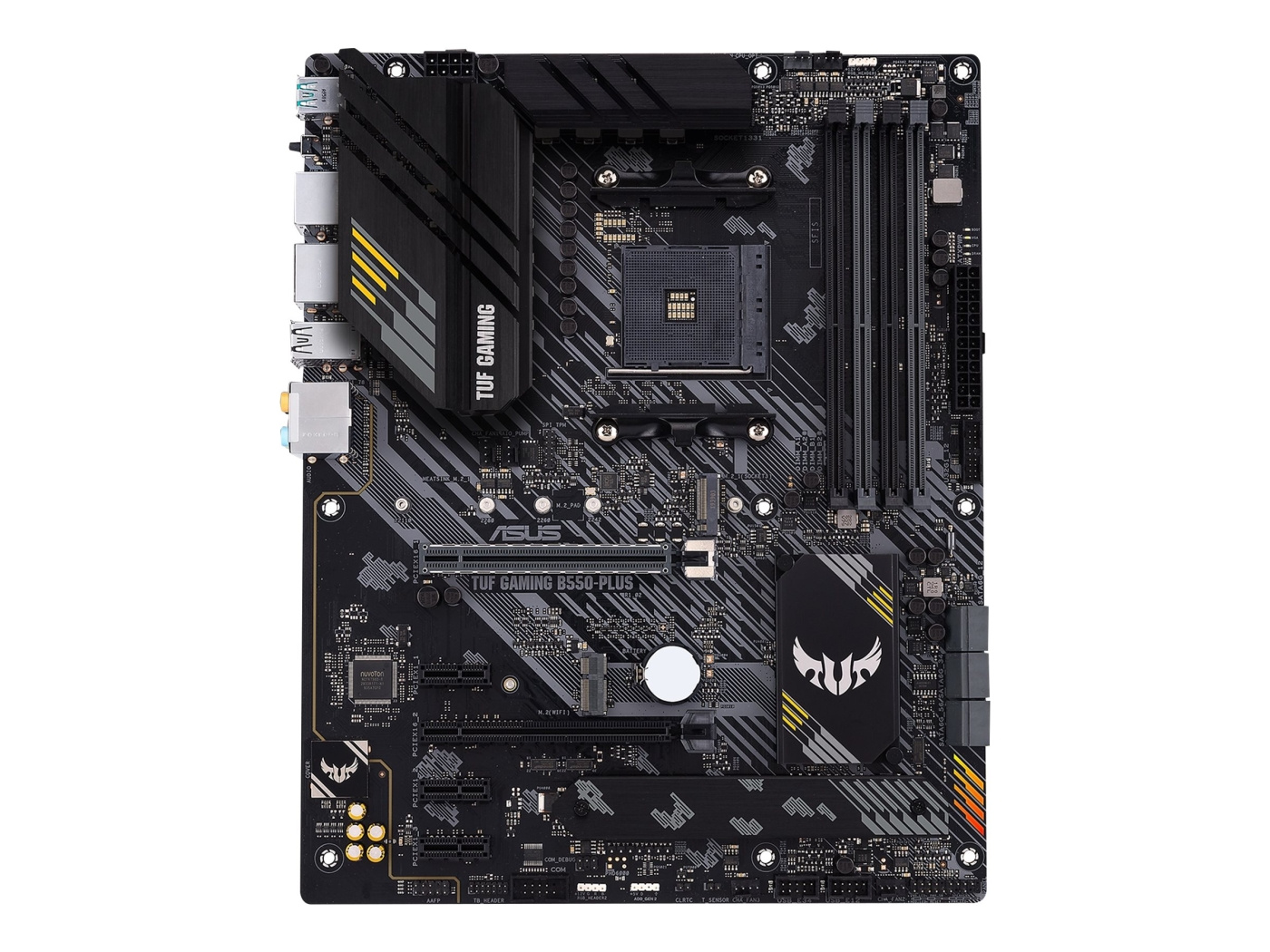

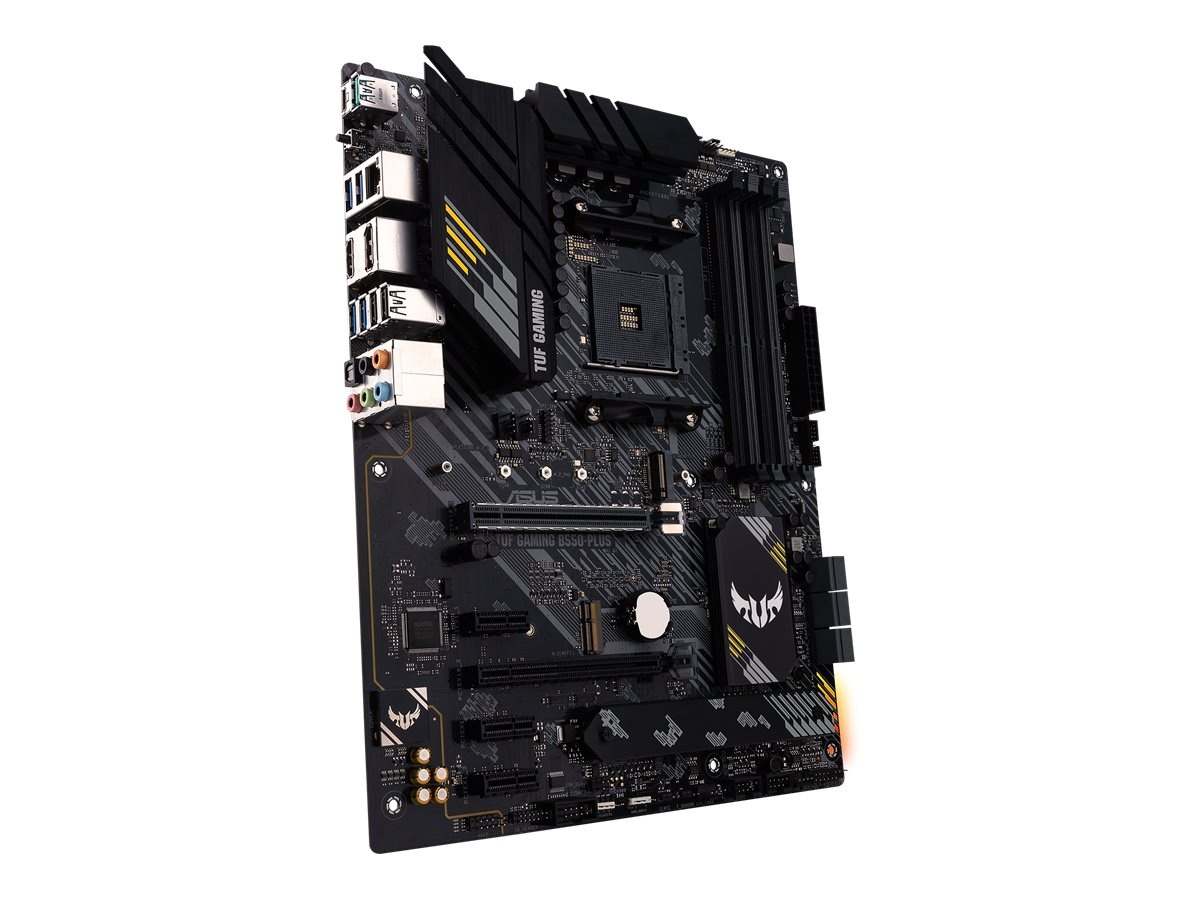

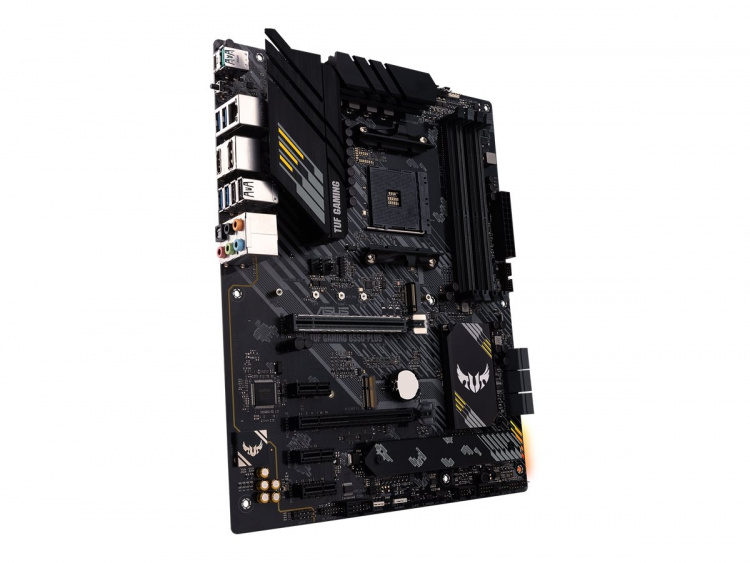

Product Type: Motherboard - ATX
Wake on LAN (WOL)
4718017749435EAN:
