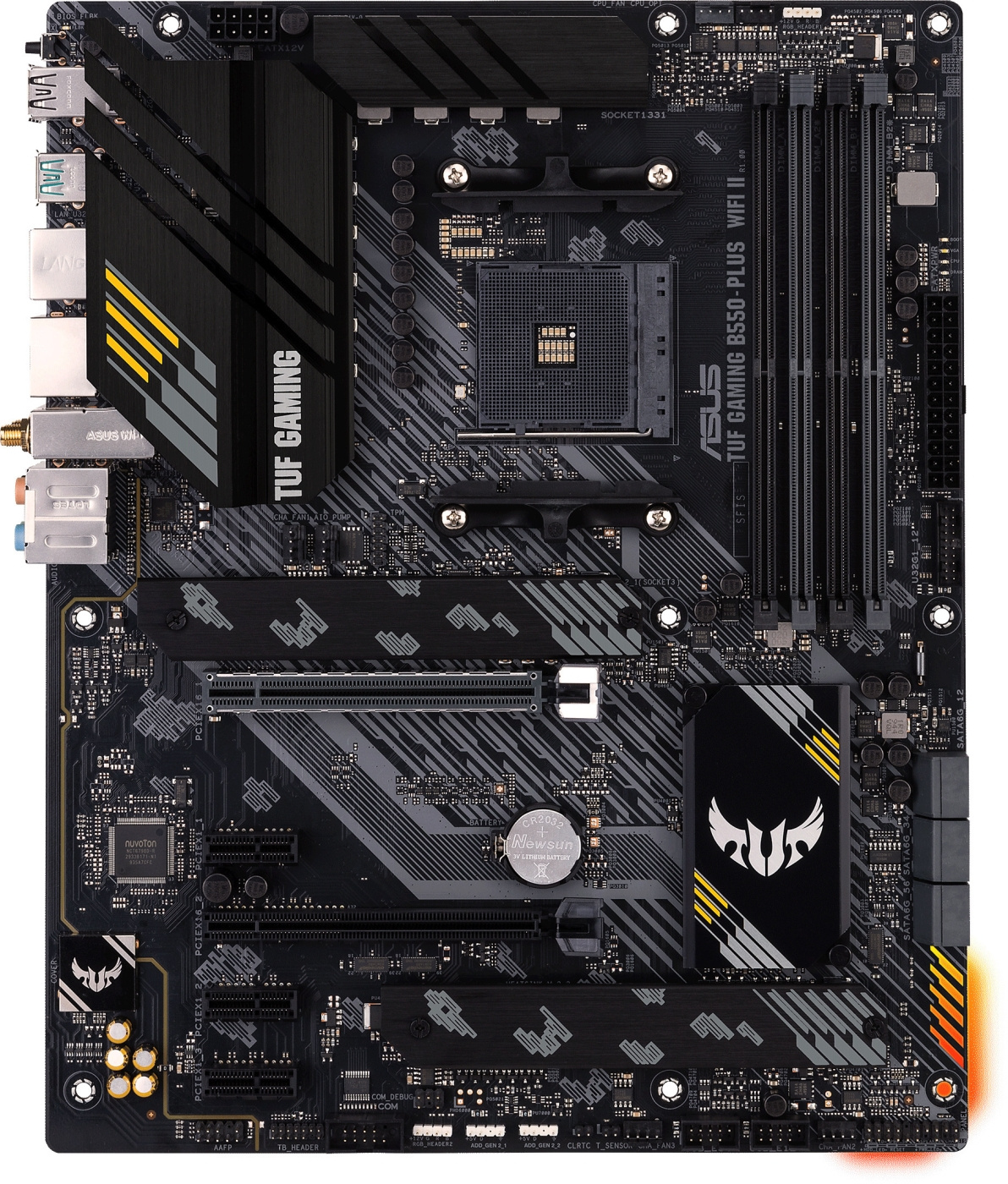

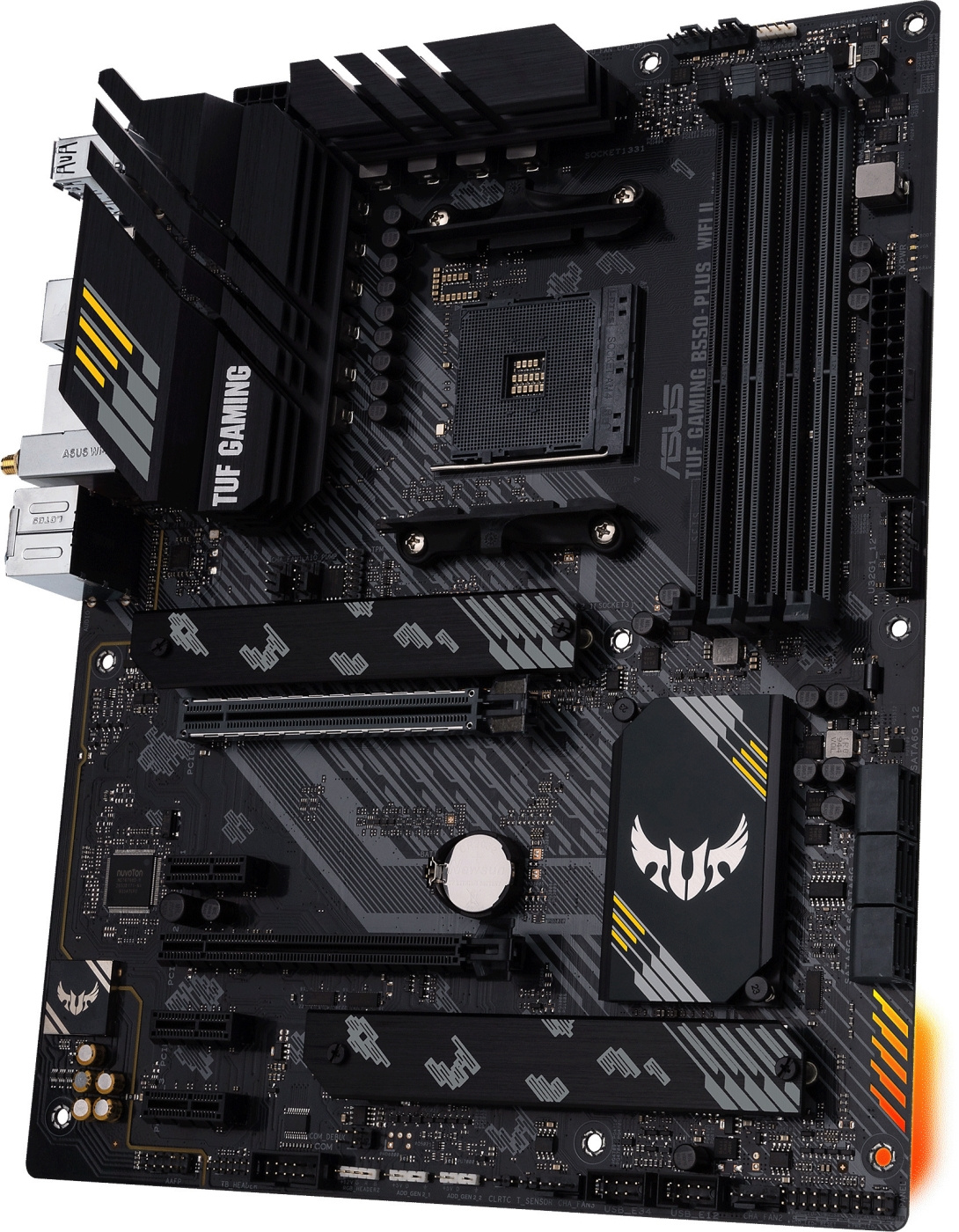

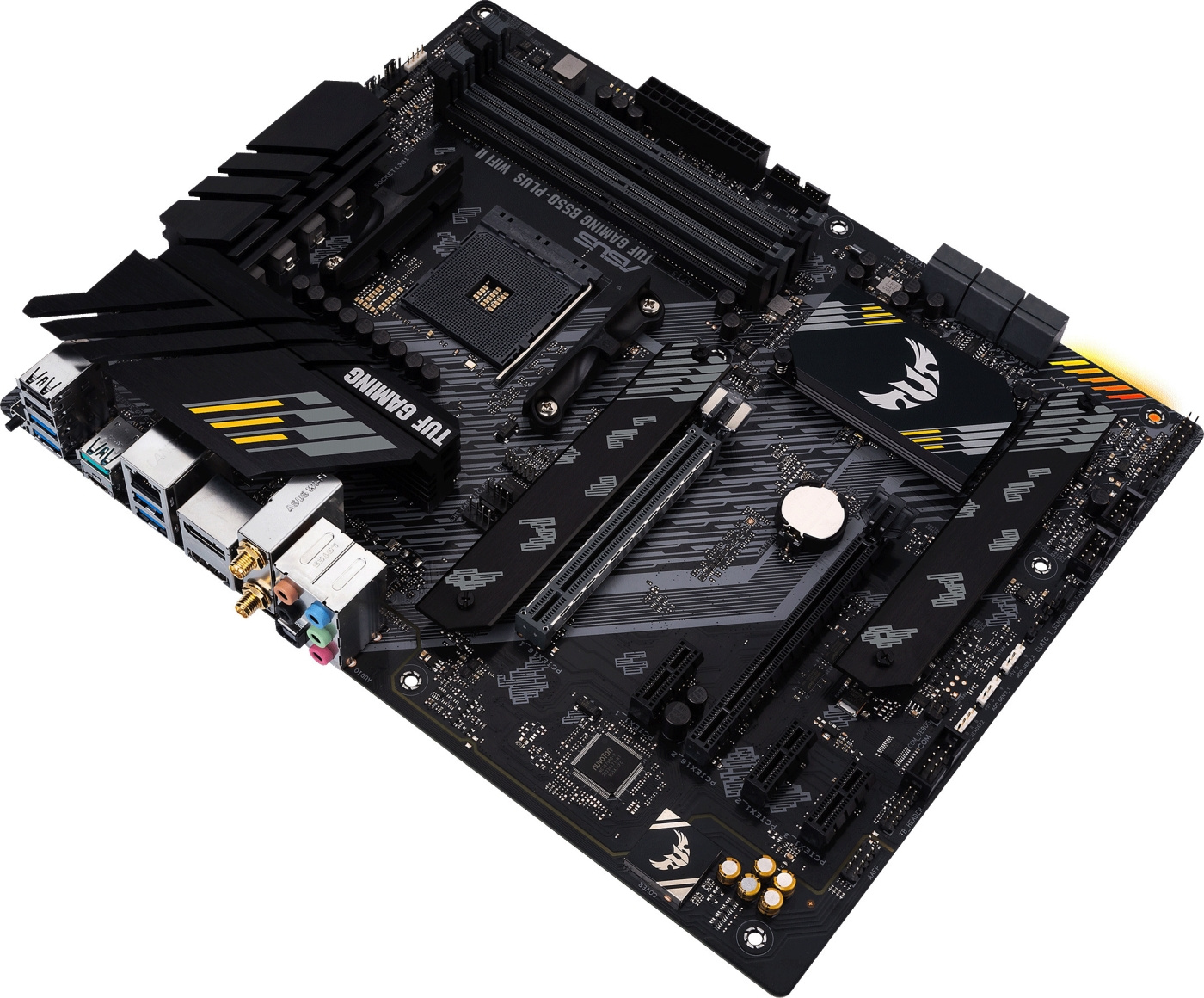

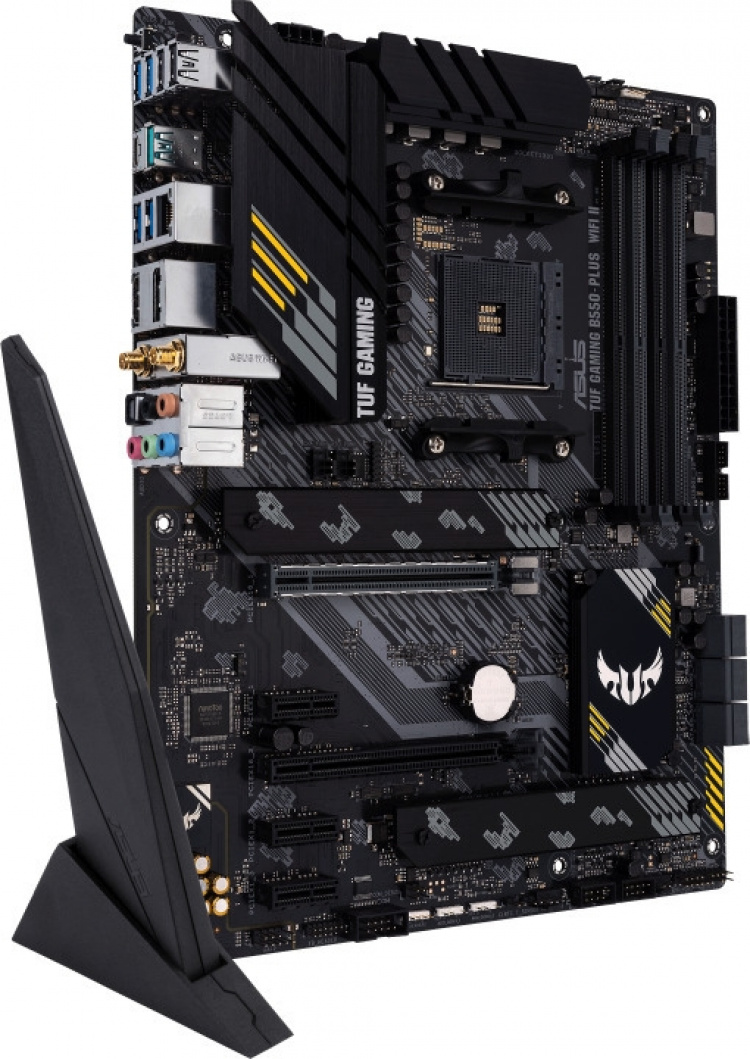

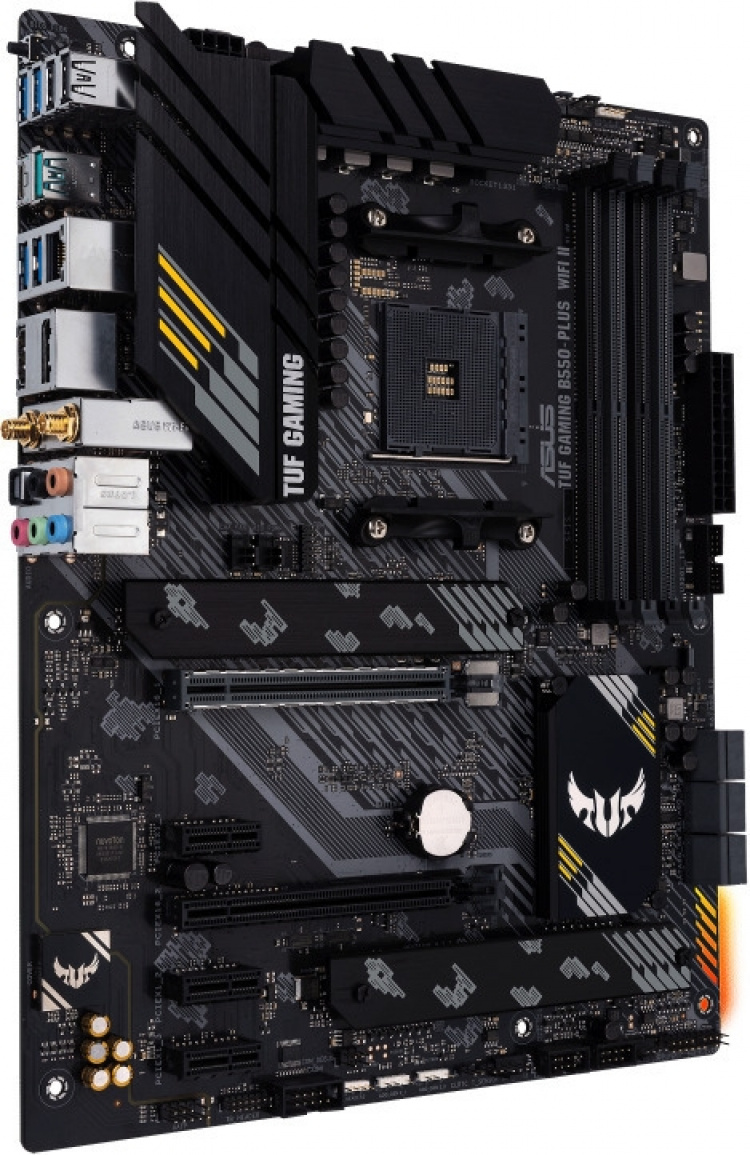

ASUS TUF GAMING B550-PLUS WIFI II AM4 ATX motherboard

The TUF GAMING B550-PLUS WIFI II takes all the key components of the latest Intel graphics cards and adds the features that gamers demand, plus proven durability. Military-grade components, upgraded power supply and a comprehensive cooling system ensure this motherboard delivers rock-solid, stable performance for long gaming sessions. Aesthetically, the TUF GAMING B550-PLUS WIFI II reflects the reliability and stability that defines the TUF Gaming series with its simple geometric design elements and new TUF Gaming logo exterior.

• AM4 base: for AMD Ryzen 5000 series / 5000 G series / 4000 G series / 3000 series processors


• Robust performance: 8+2 DrMOS DrMOS power, ProCool interfaces, military-grade TUF components


• Comprehensive cooling: VRM heat sink, fanless PCH heat sink, M.2 heat sink, support for hybrid fans and Fan Xpert 4 utility


• Next generation connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt 3 support


• Designed for online gaming: Wi-Fi 6, 2.5 Gb Ethernet and TUF LANGuard


• Two-way AI noise reduction: reduces background noise from the microphone and audio output and delivers clear audio for games and video calls


• Aura Sync RGB: enables synchronized LED lighting across a wide range of compatible PC devices

Features:

• Chipset: AMD B550
• Processor core: AM4
• Processor support: AMD Ryzen 5000 / 5000 G / 4000 G / 3000
• Motherboard size: ATX
• Memory slots (pcs): 4
• Memory type: DDR4
• Maximum memory capacity (GB): 128
• Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2x2, Bluetooth v5.2
• Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC

Expansion slots:

• AMD Ryzen 5000, 3000 Series
  1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen 5000 G, 4000 G Series
  1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset

  1 x PCIe 3.0 x16 slot (supports x4 mode)

  3 x PCIe 3.0 x1 slot

Hard disk interfaces:

• 6 x SATA 6Gb/s ports
• 2 x M.2 slots
• AMD Ryzen 5000, 3000 Series
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen 5000 G, 4000 G Series
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

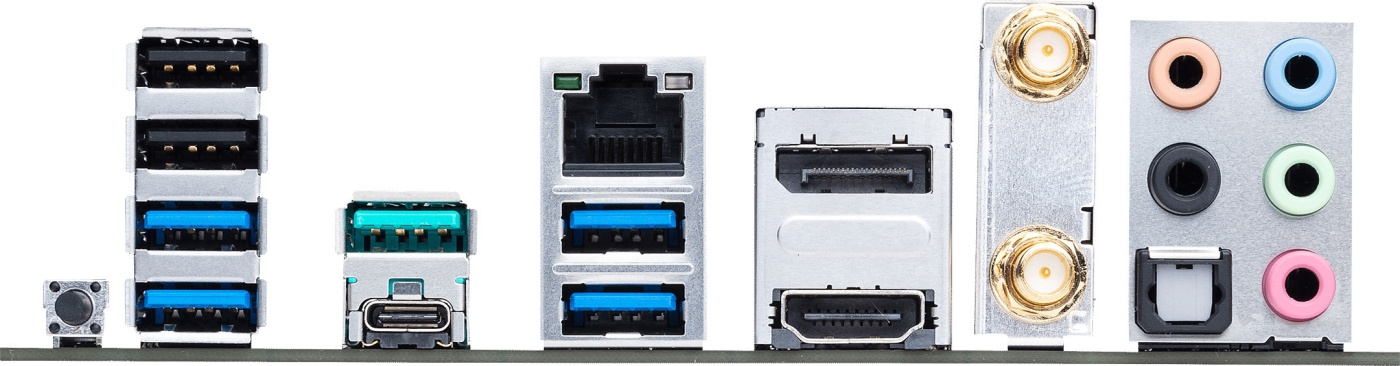

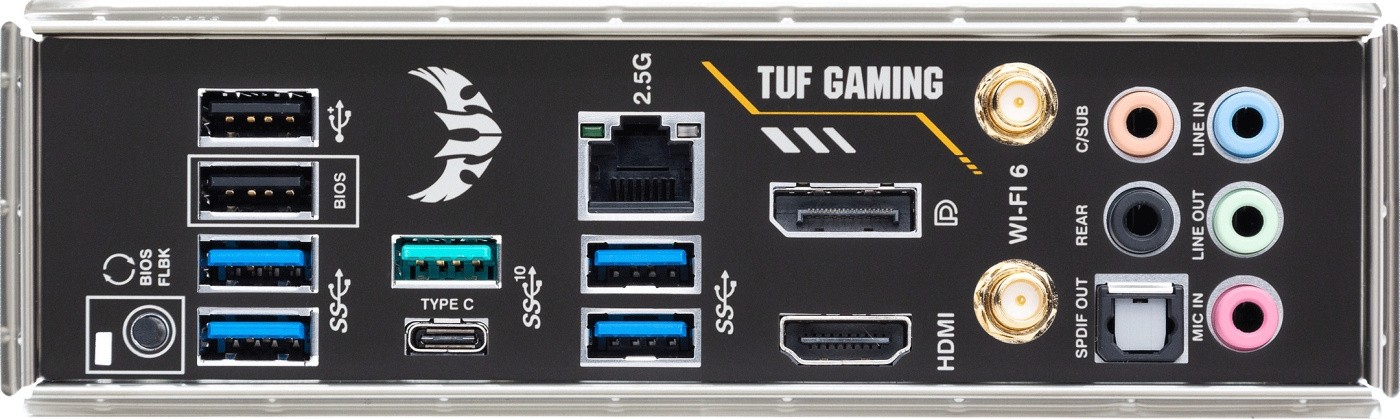

Rear panel interfaces:

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

Internal connections:

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

• AM4 ATX motherboard
• AMD B550 chipset
• Two M.2 slots
• Wi-Fi 6, Bluetooth 5.2, 2.5 Gb LAN
• Comprehensive connectivity
