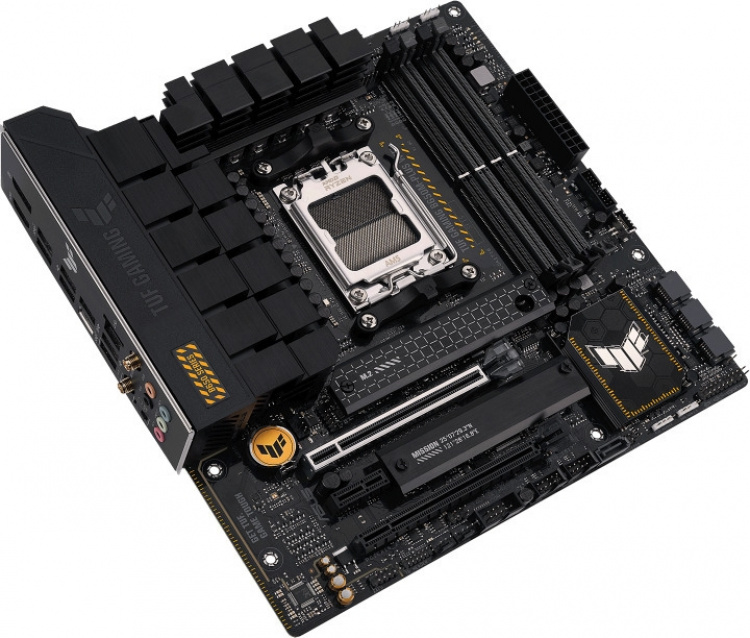

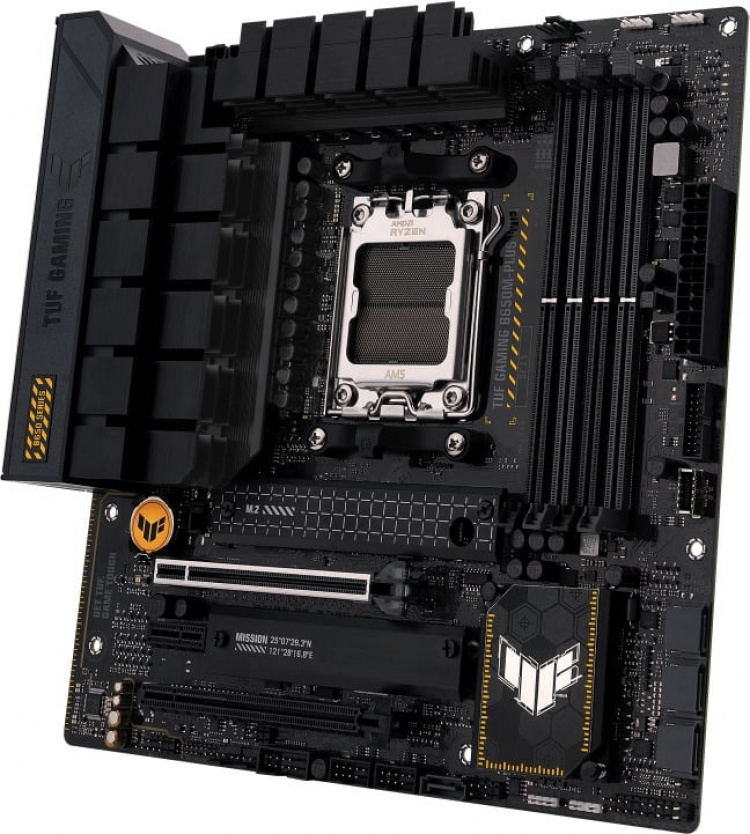

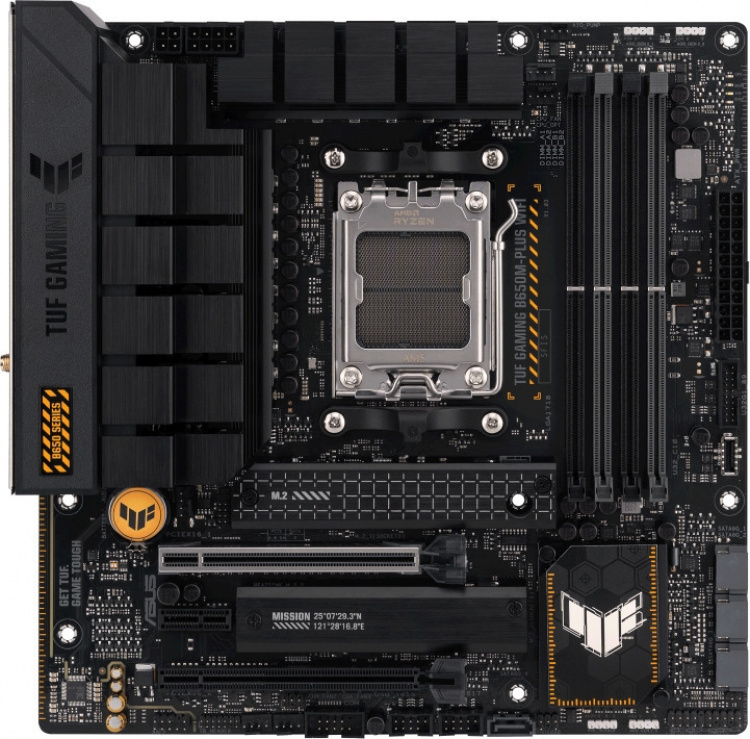

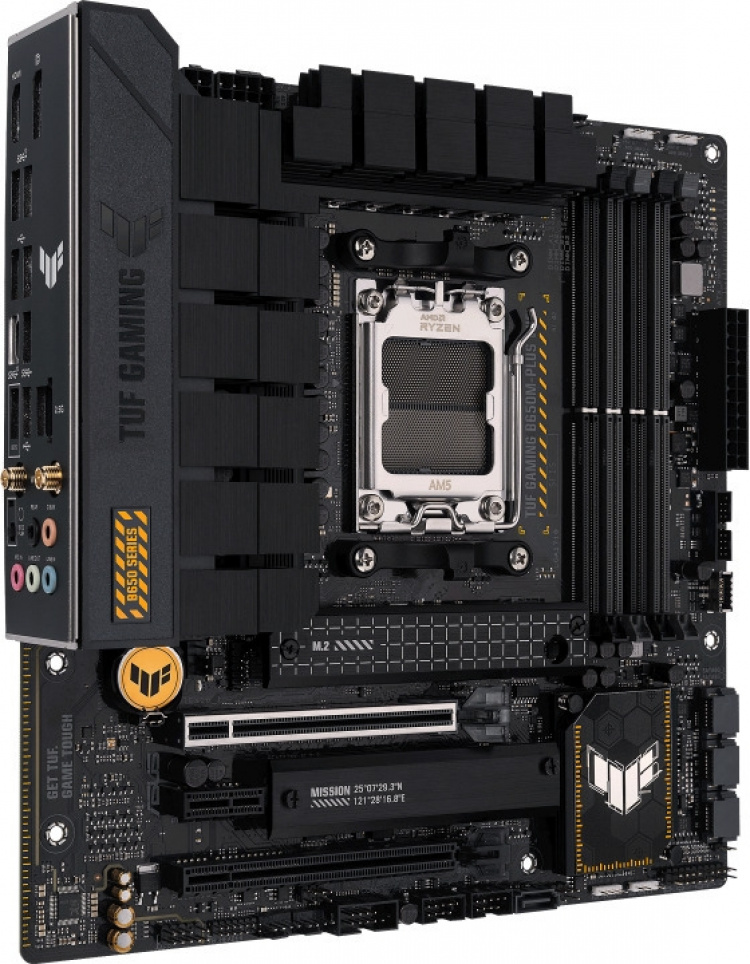

ASUS TUF GAMING B650M-PLUS WIFI is an AM5-based mATX gaming motherboard for Ryzen 7000 series processors with PCIe 5.0 M.2 support, two M.2 interfaces, 2.5 Gb LAN, high-speed Wi-Fi 6, DDR5 memory support, 12+2 power lanes and plenty of interfaces for various needs, not forgetting Asus Aura Sync RGB support.
ASUS TUF GAMING B650M-PLUS WIFI incorporates all the essential elements of the latest AMD Ryzen 7000 series processors, combining them with gaming-grade features and proven durability. Designed with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard exceeds expectations in marathon gaming with rock-solid, stable performance. TUF GAMING motherboards are also subjected to rigorous endurance testing to ensure they can withstand conditions where others might fail. Aesthetically, this model features black and geometric design elements that reflect the reliability and stability that characterise the TUF GAMING range.
Features:
- Chipset: AMD B650
- Processor core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: MicroATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network interfaces:Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2x2, Bluetooth 5.2
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 24.4 cm x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 4.0/3.0 x16 slot
- AMD B650 Chipset: 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode), 1 x PCIe 4.0/3.0 x1 slots
Graphics:
- 1 x DisplayPort, max 8K 60Hz
- 1 x HDMI, max 4K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 2 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280/ (supports PCIe 4.0 x4 mode)

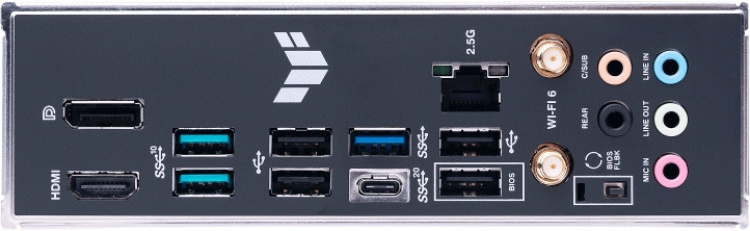

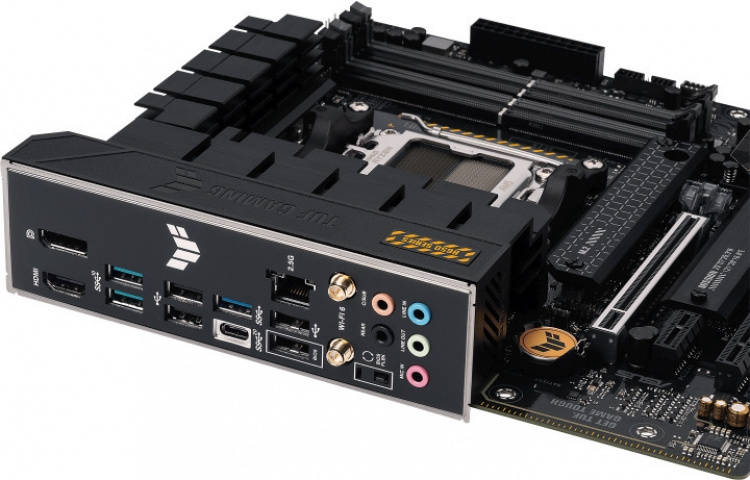

Rear panel interfaces:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 4 x USB 2.0 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x BIOS FlashBack button
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 1 x 4-pin AIO Pump header(s)
- 3 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (Type-C)
- 1 x USB 3.2 Gen 1 headers support additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt (USB4) header
- AMD AM5 Micro ATX motherboard
- AMD B650 chipset
- Two M.2 slots
- DDR5 support, Wi-Fi 6
- Supports Ryzen 7000 series CPUs
