TheTUF GAMING B760M-BTF WIFI incorporates all the essential elements of the latest Intel processors and combines them with gaming-grade features and proven durability.

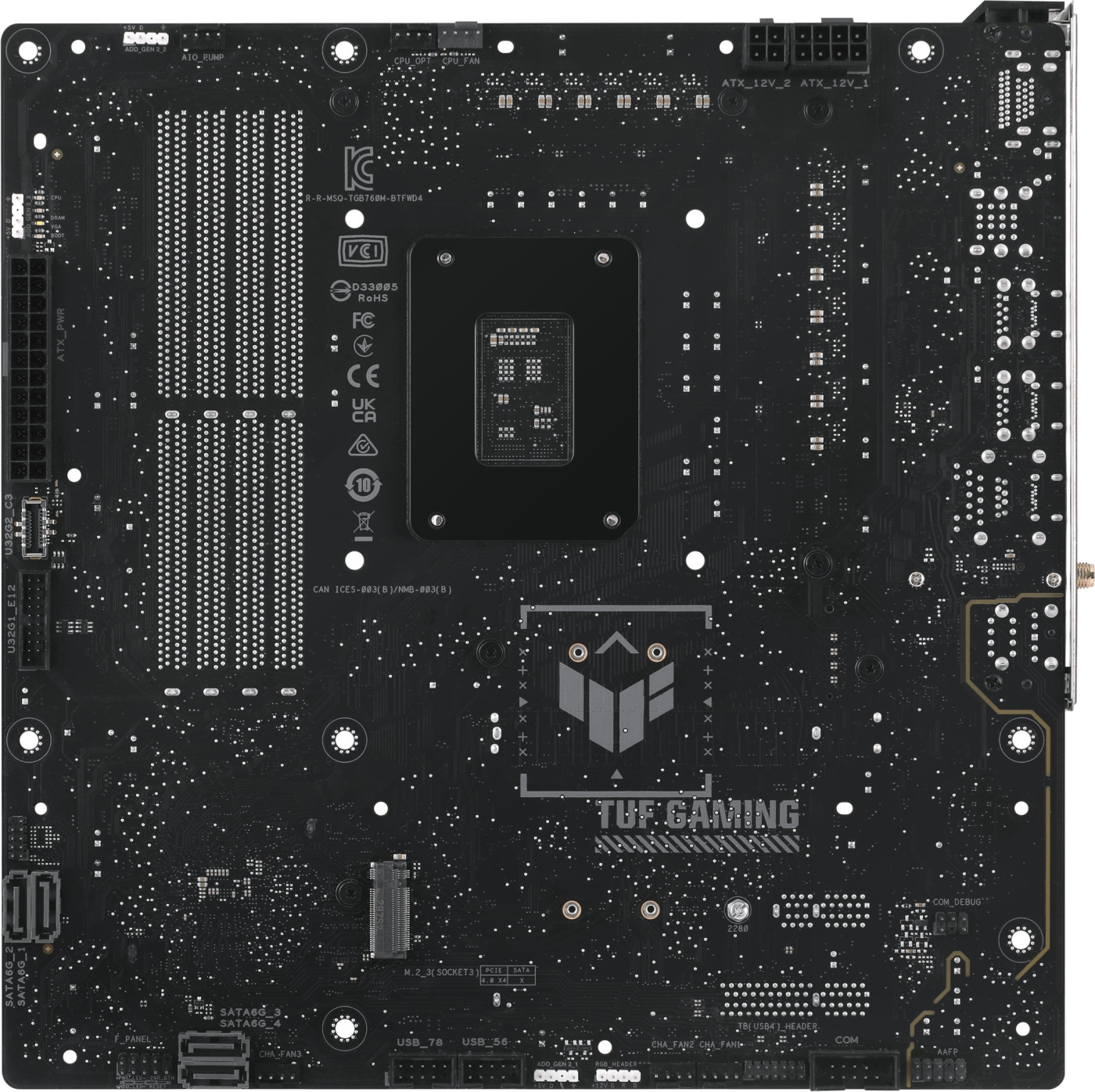

"BTF" stands for "Back To (the) Future", bringing a new era to all PC builders. The advanced BTF series not only hides all connectors underneath the motherboard, but also delivers up to 600 watts to BTF graphics cards via a high-power slot. This allows for neat cable management and a minimalist look for PC configurations.
Intel LGA 1700: Supports 14th and 13th generation Intel Core processors as well as 12th generation Intel Core, Pentium Gold and Celeron processors.
Next generation connectivity: hidden interfaces and PCIe 5.0 support.
Powerful network connectivity for gaming: Intel Wi-Fi 6, Intel 2.5 Gb Ethernet and TUF LANGuard.
NOTE: Please make sure your case is compatible with the BTF motherboard.
Features:
- Chipset: Intel B760
- Processor core: LGA1700
- Processor support: 12th/13th/14th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: mATX / Micro-ATX (24.4 cm x 24.4 cm)
- Memory slots (pcs): 4
- Memory type: DDR4 4 x DIMM (5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz), Non-ECC, Un-buffered Memory
- Maximum memory (GB): 128
- Network interfaces: Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), 1 x Intel 2.5Gb Ethernet
- Bluetooth: 5.2
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Extension sites
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x1 slot
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)

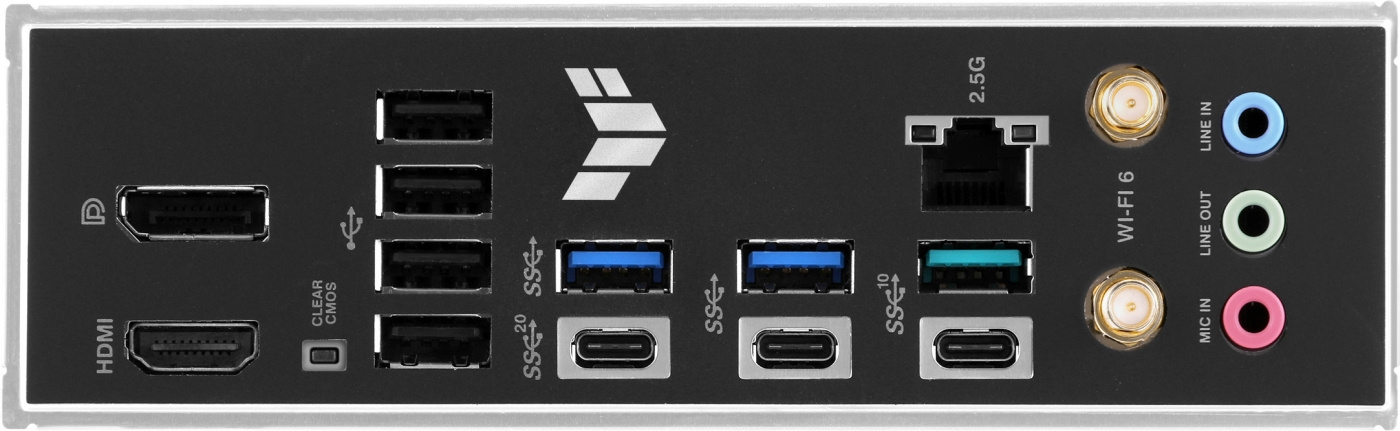

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
- 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C)
- 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
- 1 x Clear CMOS button
Internal connections
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers - Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector - Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
- LGA 1700 mATX motherboard, BTF model
- Intel B760 chipset
- 3 x M.2 slots, 4 x SATA
- 2.5G LAN, Wi-Fi 6, Bluetooth 5.2
- DDR4 memory
