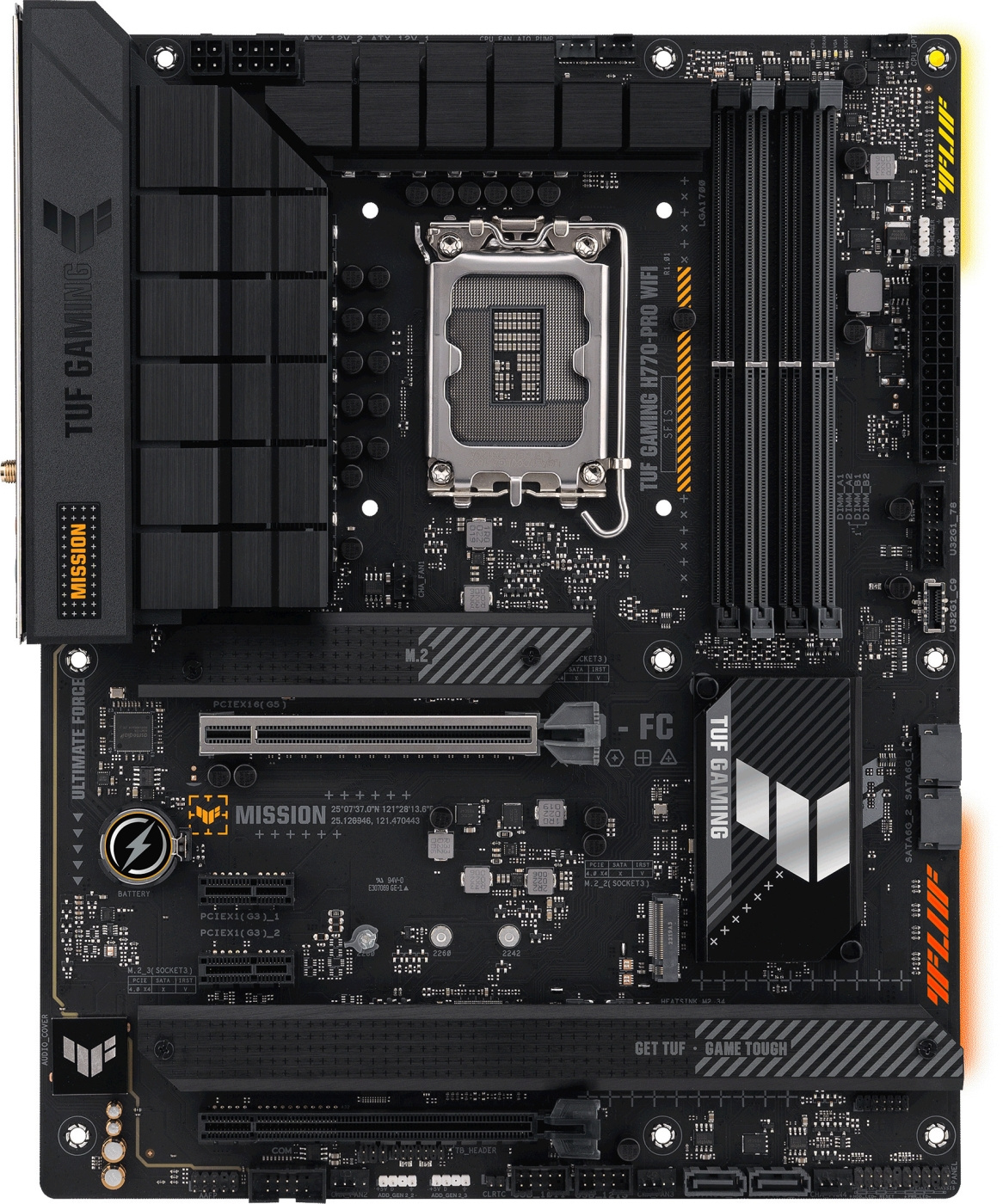

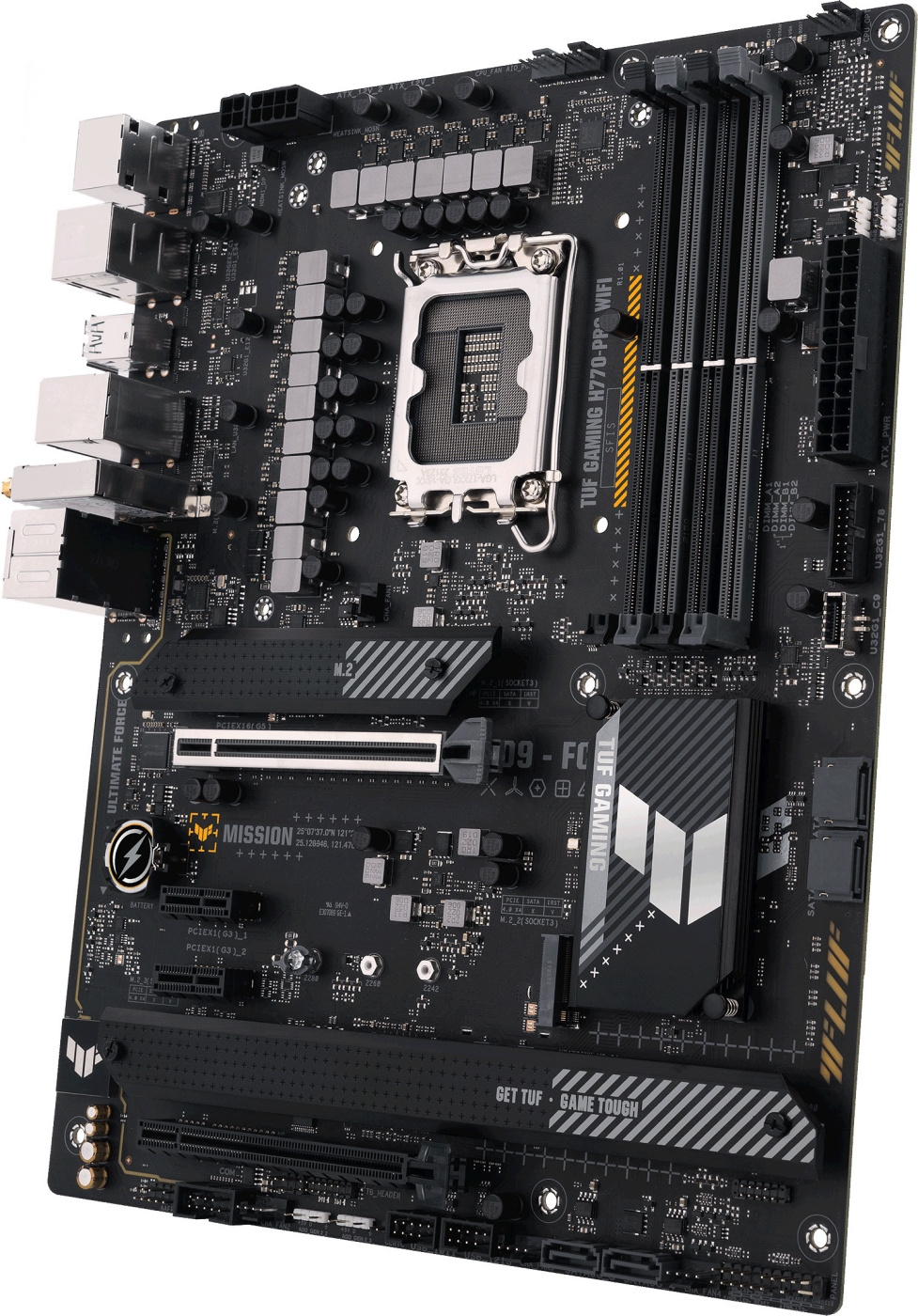

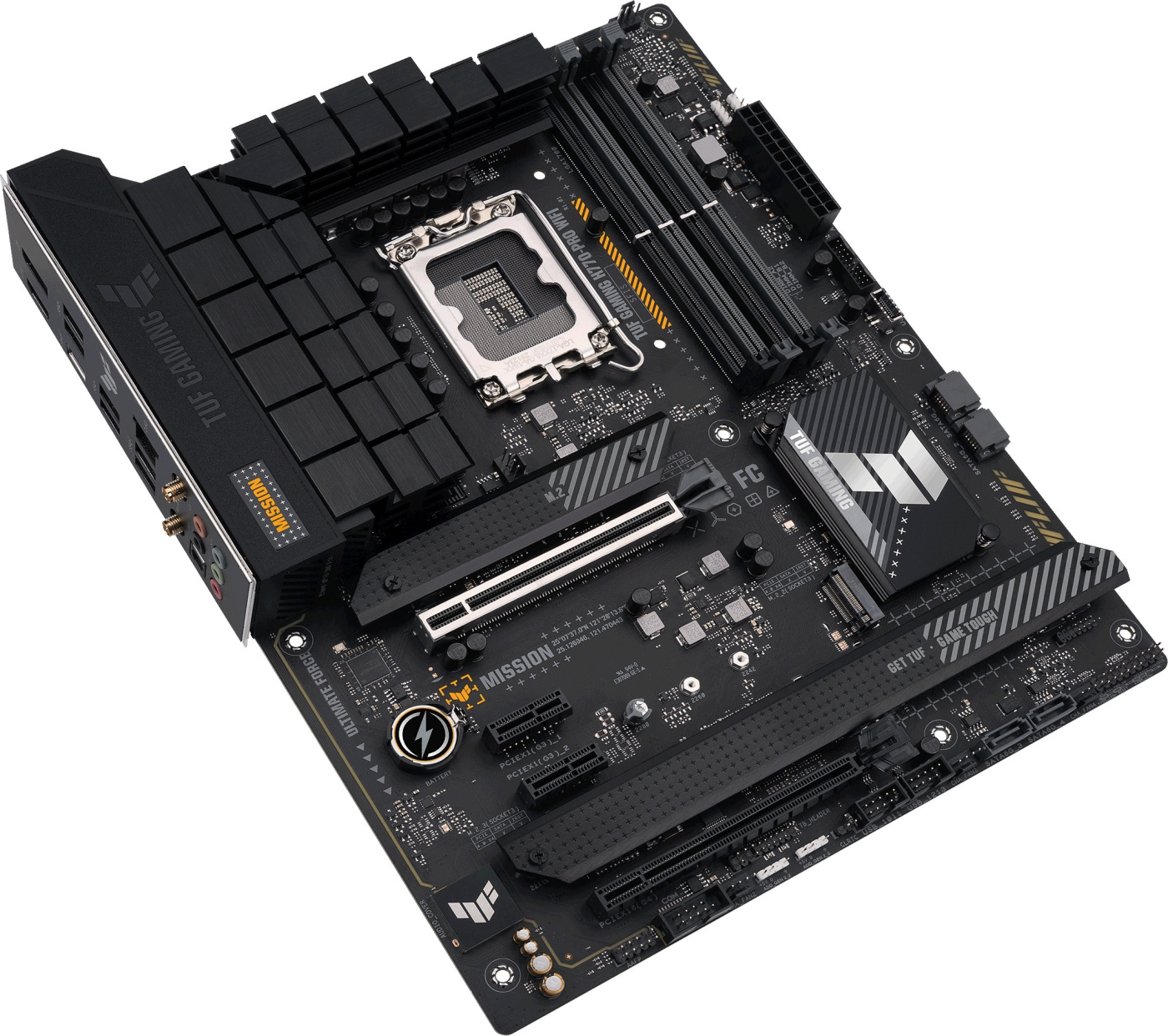

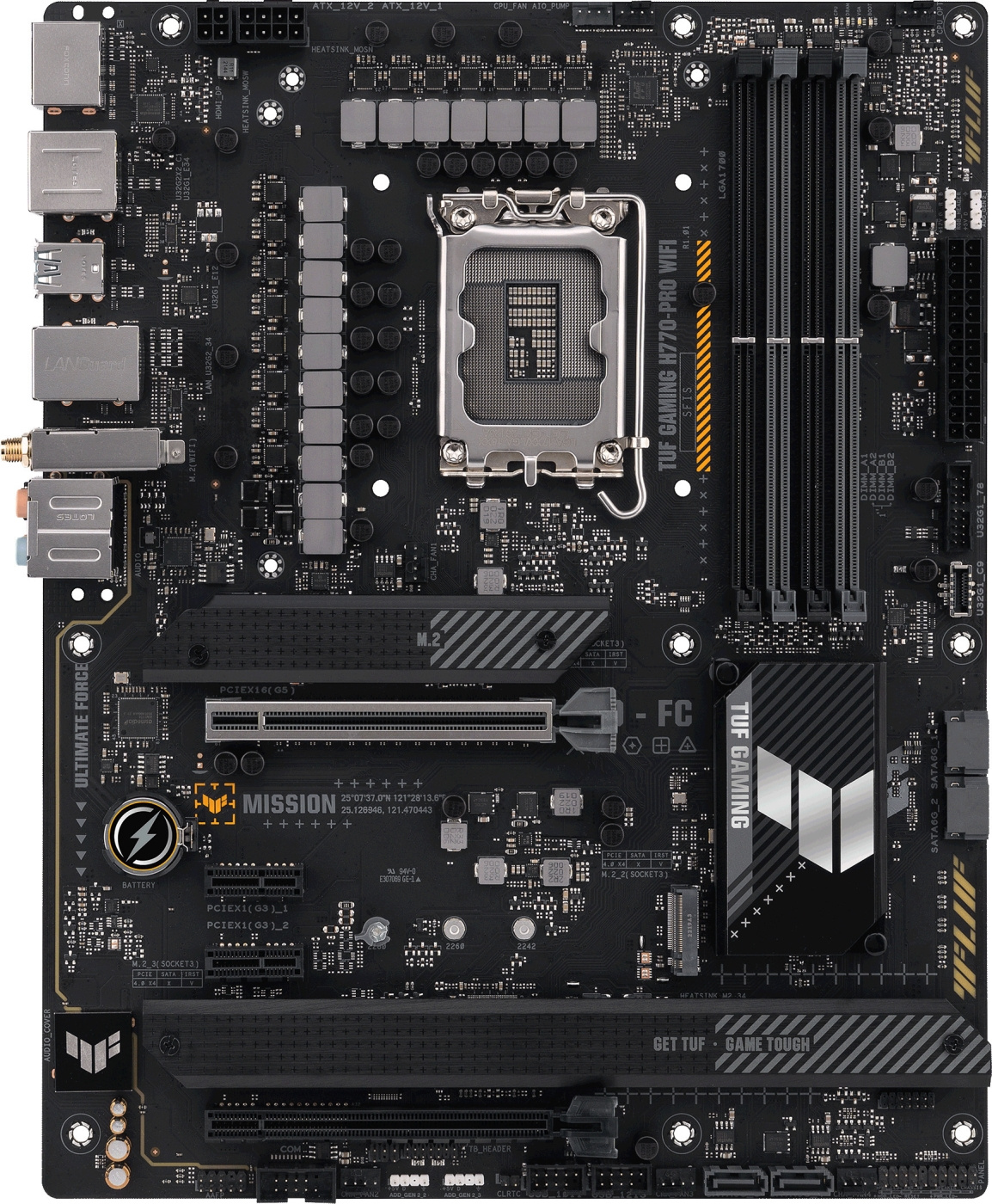

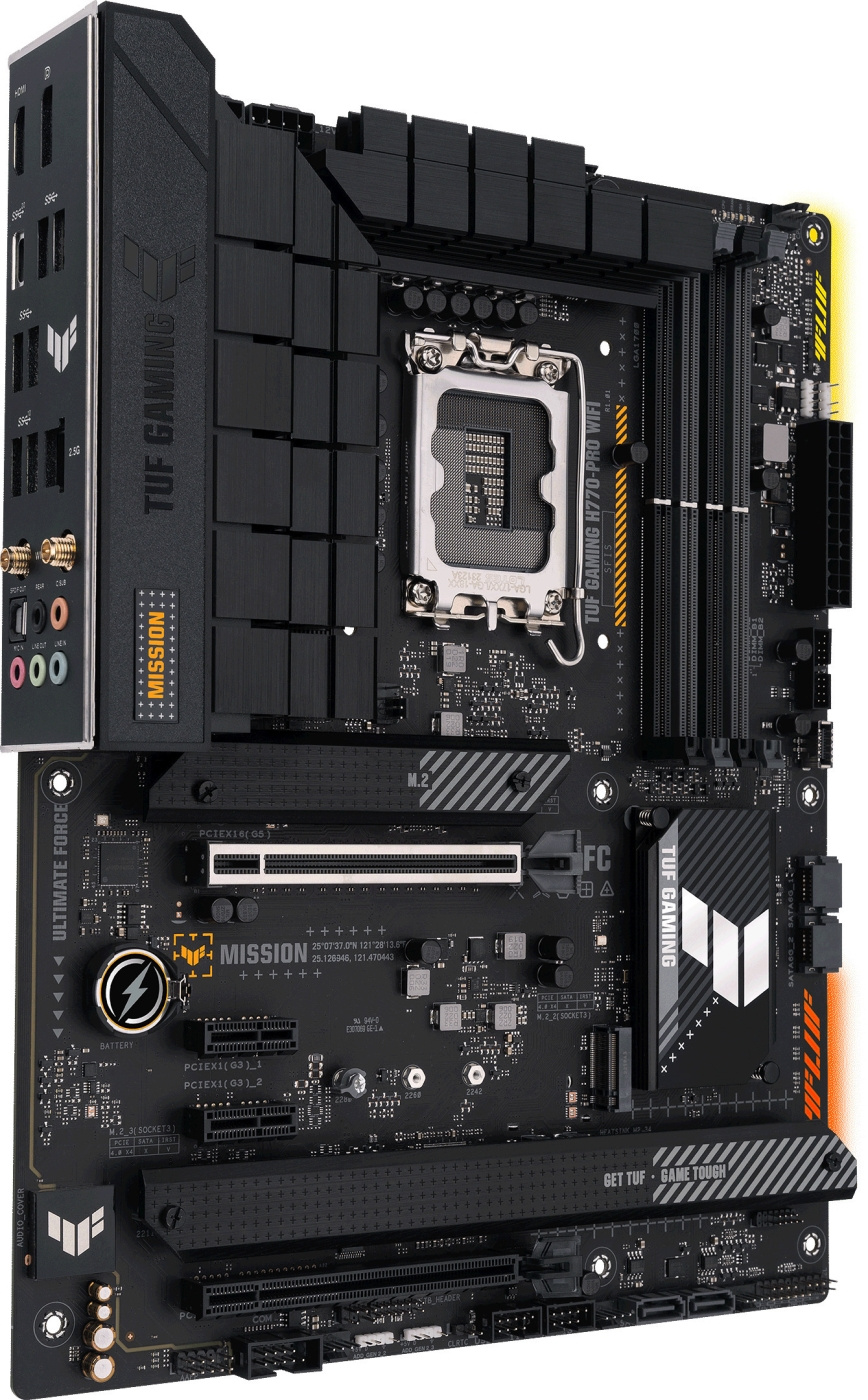

The TUF GAMING H770-PRO WIFI takes all the key components of the latest Intel processors and adds the features that gamers demand, along with proven durability. With military-grade components, upgraded power supply and a comprehensive cooling system, this motherboard delivers stable performance for long gaming sessions. Aesthetically, the TUF GAMING H770-PRO WIFI reflects the reliability and stability that define the TUF Gaming series with its simple geometric design elements and new TUF Gaming logo exterior.
14+1 stage DrMOS power supply with enlarged VRM heat sinks.
PCIe 5.0 and DDR5 support.
USB 3.2 Gen 2x2 Type-C on rear panel.

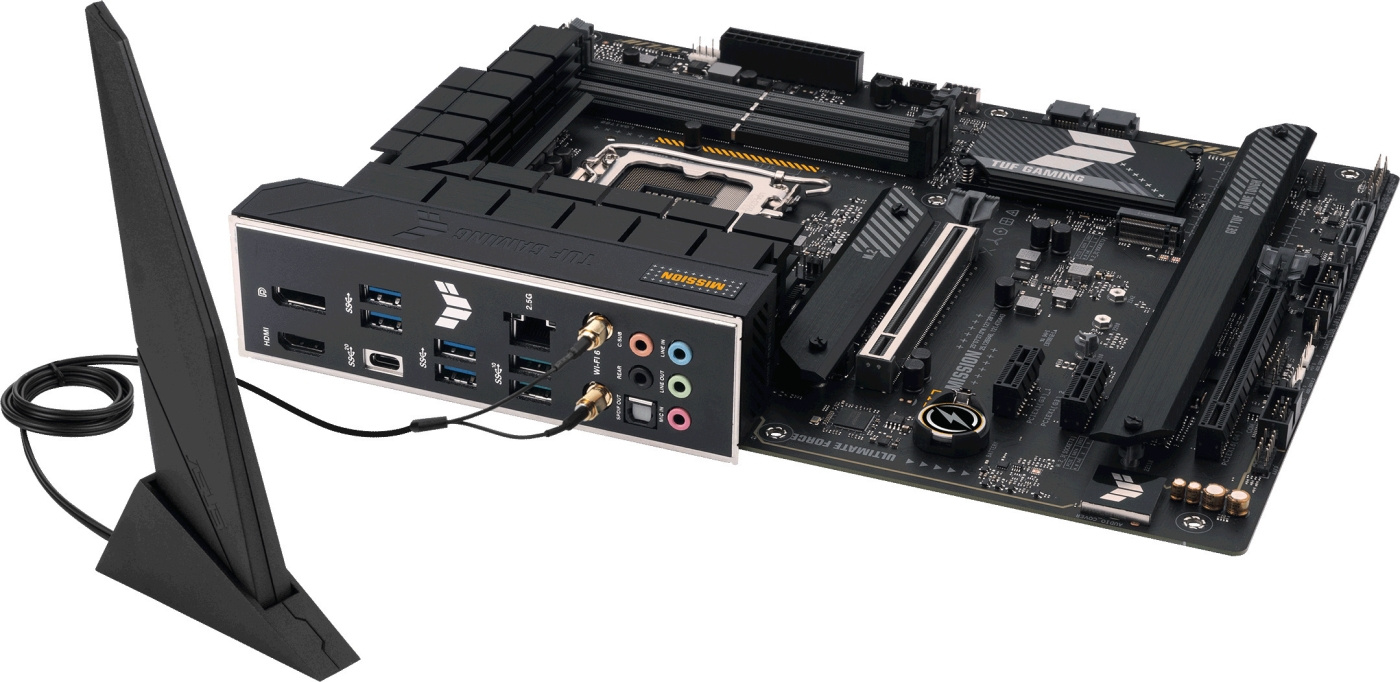

Intel 2.5 Gb Ethernet & WiFi 6 network connectivity.
Two-Way AI Noise Cancelation software for sound management.
Features:
- Intel H770 chipset
- Processor core: LGA 1700
- Processor support: 13th and 12th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: ATX (30.5 cm x 24.4 cm )
- Memory slots (pcs): 4
- Memory type: DDR5 (7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz), Non-ECC, Un-buffered, Dual Channel
- Maximum memory (GB): 128
- 1 x Intel 2.5Gb Ethernet, Wi-Fi 6 2x2 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion sites
- 1 x PCIe 5.0 x16 slot
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

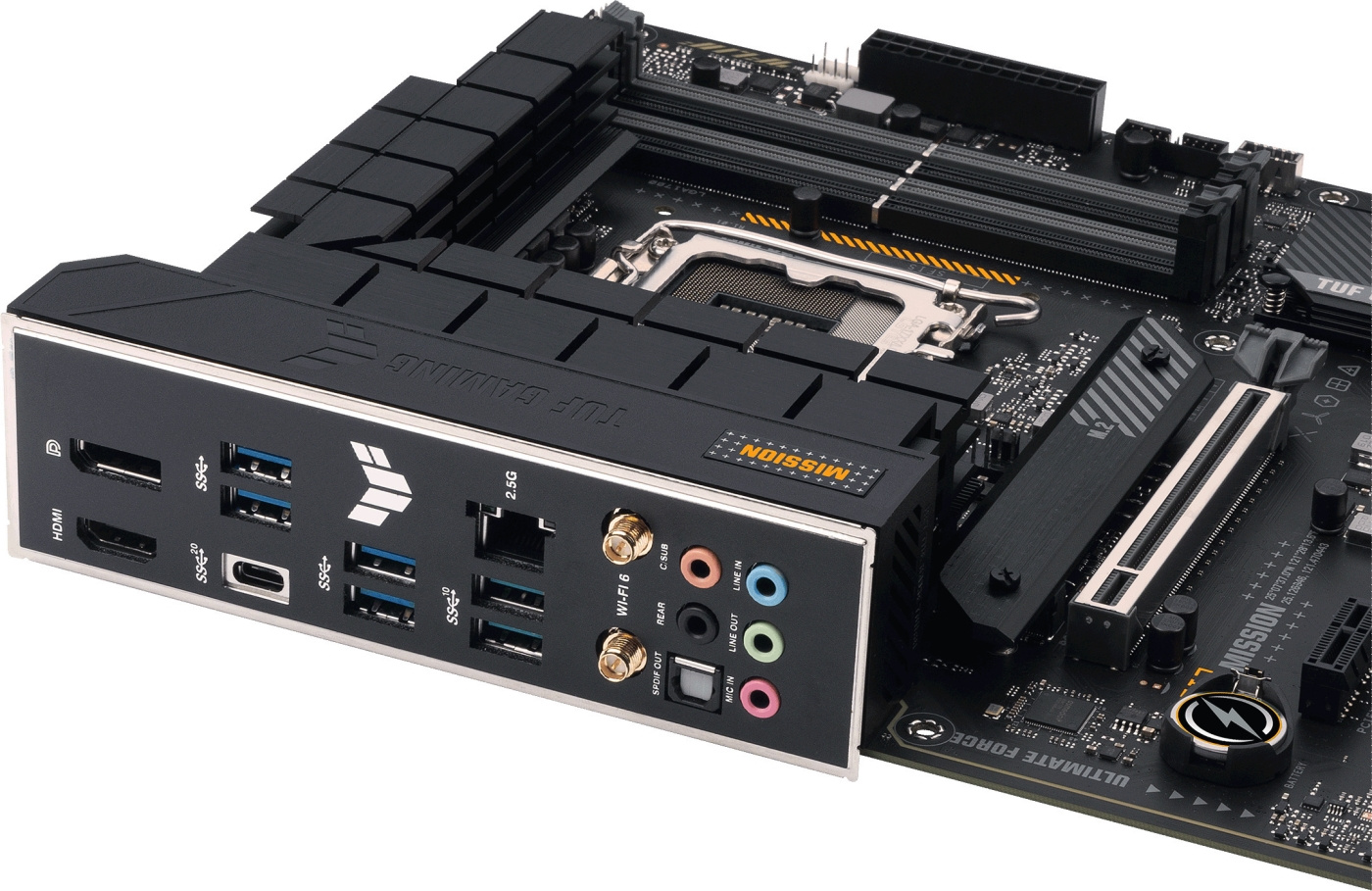

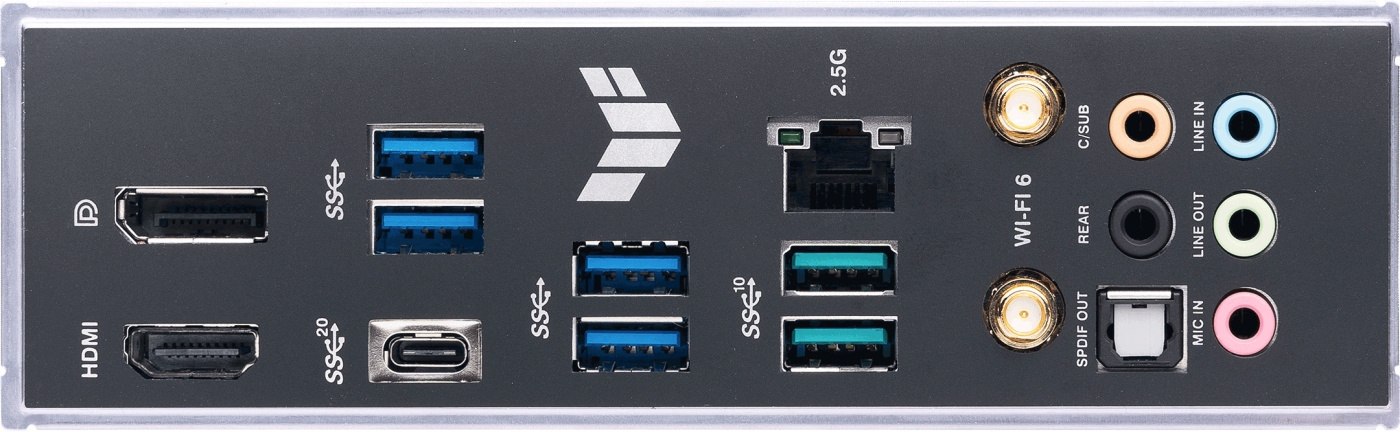

Rear panel interfaces
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x Optical S/PDIF out port
Internal connections
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thunderbolt header
- LGA 1700 ATX motherboard
- Intel H770 chipset
- Four M.2 interfaces
- 2.5Gb Ethernet, Wi-Fi 6, Bluetooth 5.2
- For Intel 13th generation CPUs
