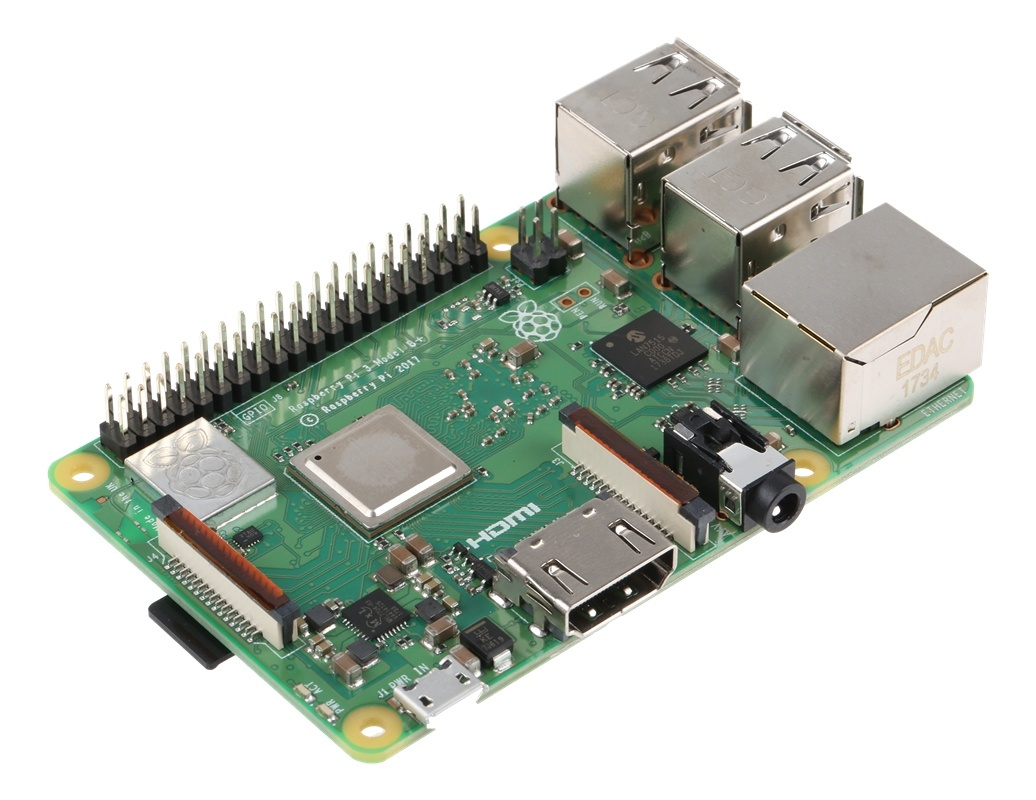

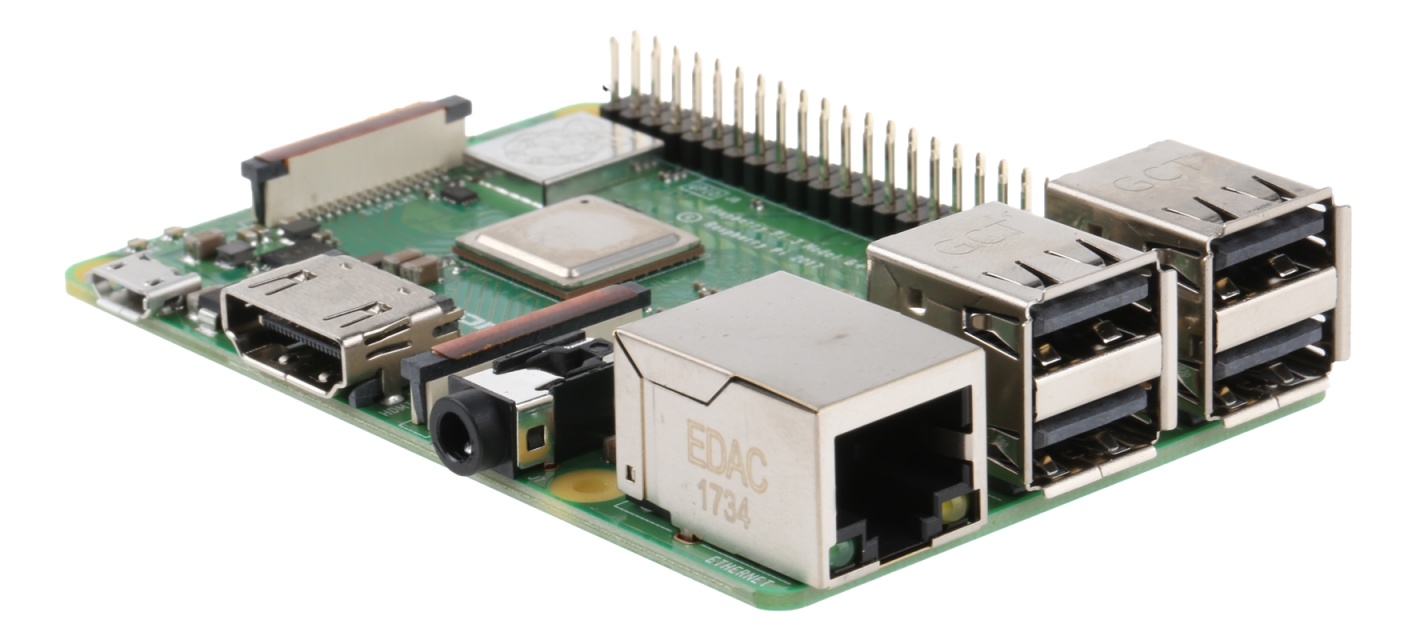

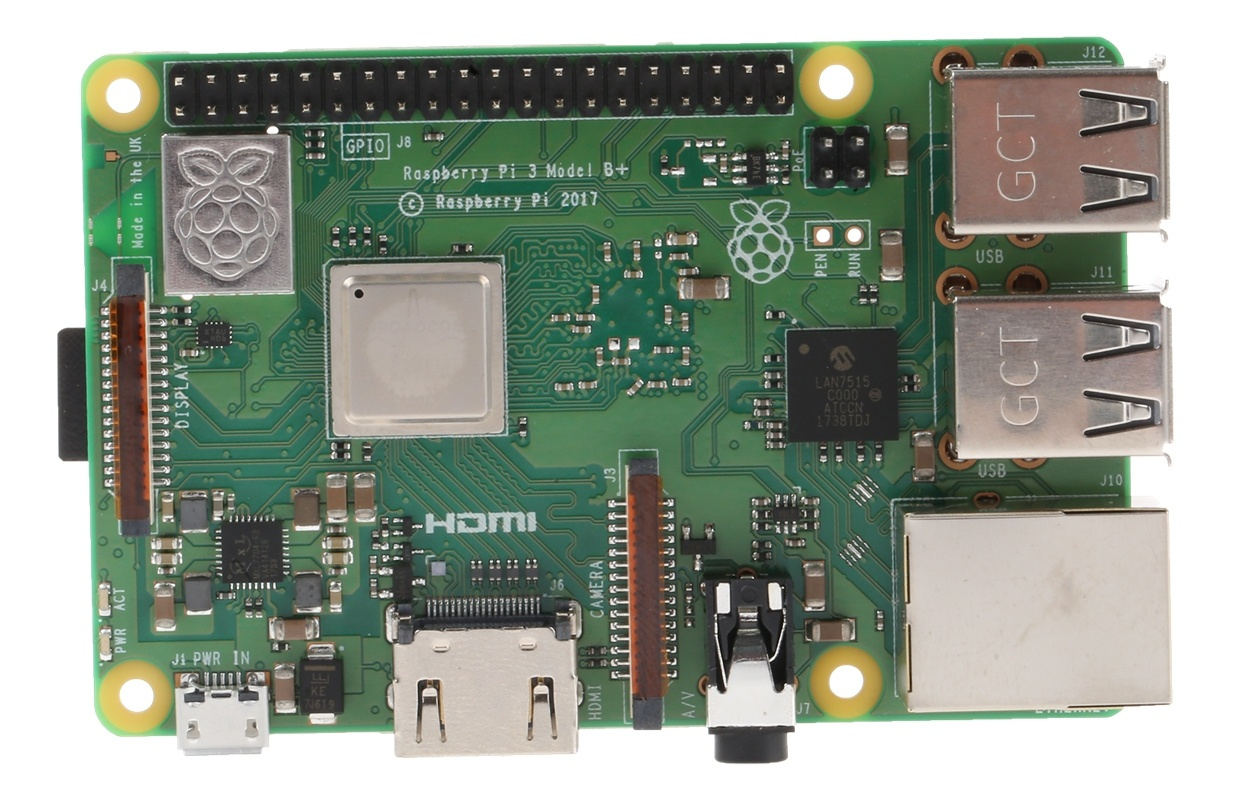

Raspberry Pi 3 Model B+, 1.4 GHz single-board computer, dual band wi-fi, Bluetooth 4.2, PoE capable
The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz
and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.
The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced
wireless LAN compliance testing, improving both cost and time to market.
The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B but there is a slight difference on the parts soldered on. This means, among other things, that you can use the same power supply as the Pi 3 but some cases does not fit well.
Specifications
. Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
. 1GB LPDDR2 SDRAM
. 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN
. Bluetooth 4.2, BLE
. Faster Ethernet (maximum throughput 300Mbps)
. 4 × USB 2.0 ports
. Extended 40-pin GPIO header
. 1 × full size HDMI
. MIPI DSI display port
. MIPI CSI camera port
. 4 pole stereo output and composite video port
. Micro SD format for loading operating system and data storage
. 5V/2.5A DC via micro USB connector
. 5V DC via GPIO header
. Power over Ethernet (PoE)-enabled (requires separate PoE HAT)
. Operating temperature, 0-50 °C
. H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics
Product size (WxDxH): 85x17x56mm
Product weight: around 60g
