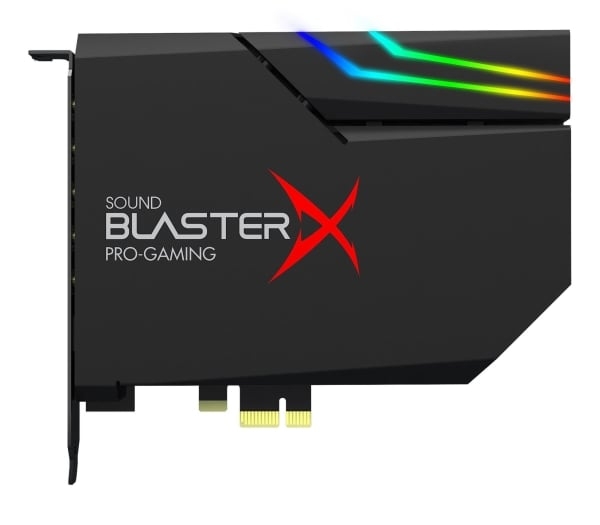

Creative - Sound BlasterX AE-5 Plus Black
UPGRADE PROGRAM FOR SOUND BLASTERX AE-5 CUSTOMERS
Customers who purchased the Sound BlasterX AE-5 (non-Plus version) directly from creative.com in the last 90 days now have the option of returning the product back to us. This option is only available to those who would like to upgrade to the Sound Blaster AE-5 Plus for additional Dolby Digital and DTS support.
Be one of the proud OPs showing off their gaming rigs on r/battlestations! The Sound BlasterX AE-5 Plus is a perfect convergence between aesthetics and performance that features a SABRE32 ultra-class hi-res PCI-e gaming sound card and DAC with customizable RGB LEDs on its body, and comes with an included RGB LED strip. It also features our award-winning Xamp discrete headphone amp that utilizes a bi-amplification technology, as well as our full suite of industry-leading audio processing technologies including Surround Virtualization.
SABRE-class DAC
The Sound BlasterX AE-5 Plus is a SABRE-class PCI-e DAC that is perfect for high resolution audio for games, music and movies. It delivers extremely clean 122 dB DNR audio stream at up to 32-bit / 384 kHz* playback with ultra-low distortion and jitter.
Aurora Reactive Lighting System
Enjoy a symphony of lights and sound with the Aurora Reactive Lighting System! The Sound BlasterX AE-5 Plus has customizable RGB LEDs on its body, and also features an included RGB LED strip. Program up to 16.8 million colors in different patterns with the free downloadable Sound Blaster Command software for PC.
Specifications:
Interface/Power
PCI-e bus power, +5V for Aurora lighting (requires 4-pin molex peripheral connector from PC power supply)
Audio Technology
Sound Core3D
Dynamic Range (DNR)
122 dB
Connectivity Options (Main)
1 x TOSLINK Optical Out, 1 x 1/8 (3.5mm) Mic In / Line In, 1 x 1/8 (3.5mm) Headphone / Headset Out, 1 x 1/8 Front Out, 1 x 1/8 Rear Out, 1 x 1/8 Center / Sub Out, 1 x Front Panel Header
Headphone Amp
Output Impedance: 1Ω, Low Gain: 16&mdash149 Ω (+0 dB), Supported Headphone Impedance: 16&mdash600Ω
Audio Technologies
CrystalVoice
Scout Mode
DTS Connect Encoding
Dolby Digital Live Encoding
Supported Operating Systems
Windows® 10
Dimensions
145 x 20 x 128 mm
ASIO
Playback & Recording
Platform
PCI-e
Recommended Usage
Gaming
Home Entertainment
DAC
Dynamic Range: 122 dB, THD+N (DAC): 0.00032[%]
PACKAGE CONTENTS
- Sound BlasterX AE-5 Plus
- 1 x LED Strip (30cm / 10 LEDs)
- 1 x Extension Cable
- Quick Start Leaflet
- Warranty Leaflets
