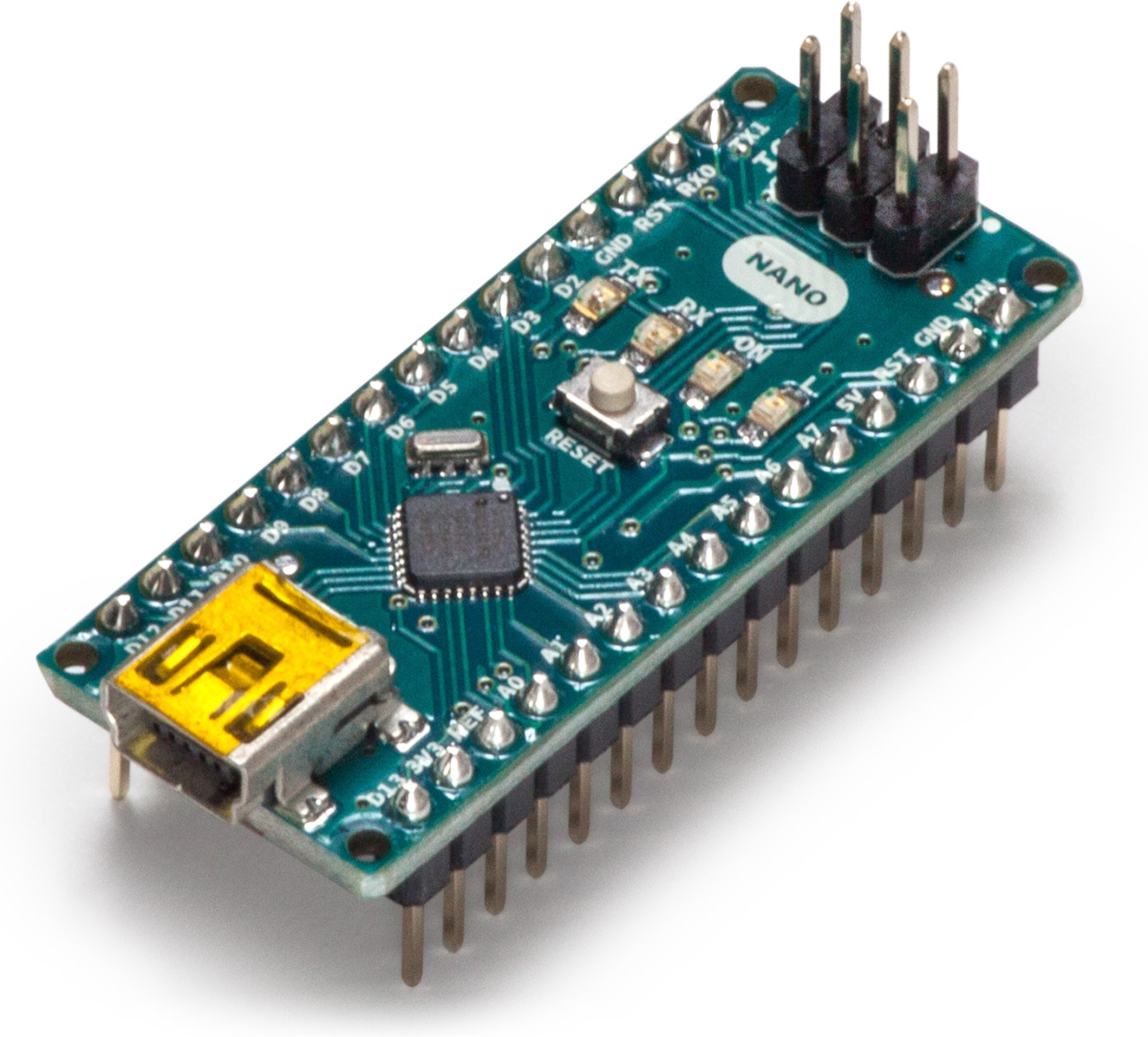

Arduino The Nano is a very compact development platform based on the ATmega328 processor. The board features 22 digital I/Os (6 of which can be used as PWM outputs and 8 as analog inputs), an ICSP header and a mini-B USB power interface. Arduino is a versatile open development platform. Getting started is easy: just download the ready-to-use development environment (Win, Mac, Linux) and plug the Arduino card into the USB port of your PC.
Technical specifications:
- Processor: ATmega328
- Operating voltage: 5 Vdc
- Digital outputs: 22, maximum current 40 mA per output
- Analog inputs: 8, maximum current 50 mA per input
- Flash memory: 32 kB, of which 2 kB reserved for bootloader
- SRAM: 2 kB
- EEPROM: 1 kB
- Clock frequency: 16 MHz
- Dimensions only 45 x 18 mm, weight 7 g
- Very compact development platform
- 22 digital inputs/outputs
- Processor: ATmega328
- Flash memory: 32 kB
- Clock frequency: 16 MHz
