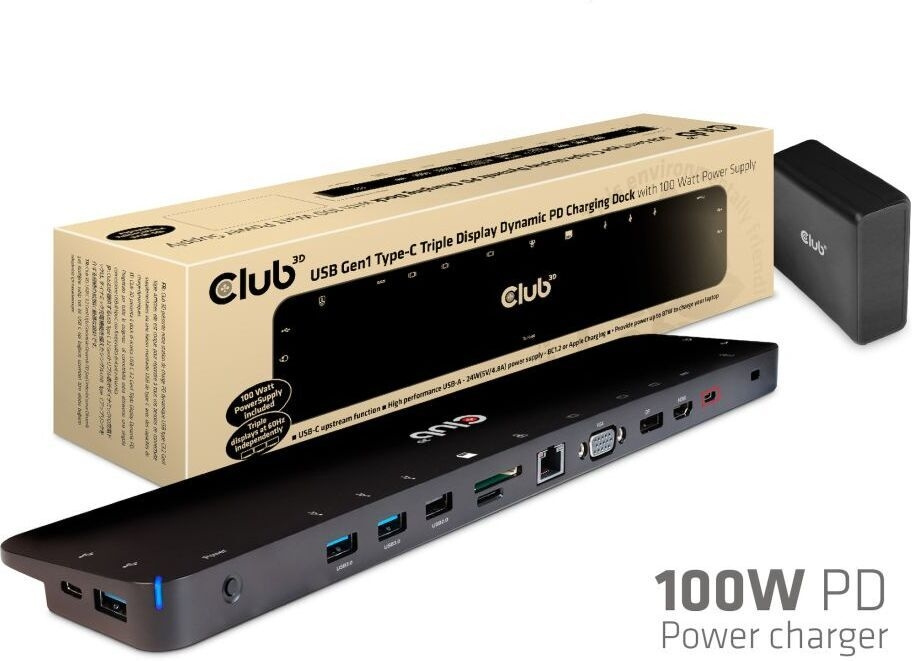

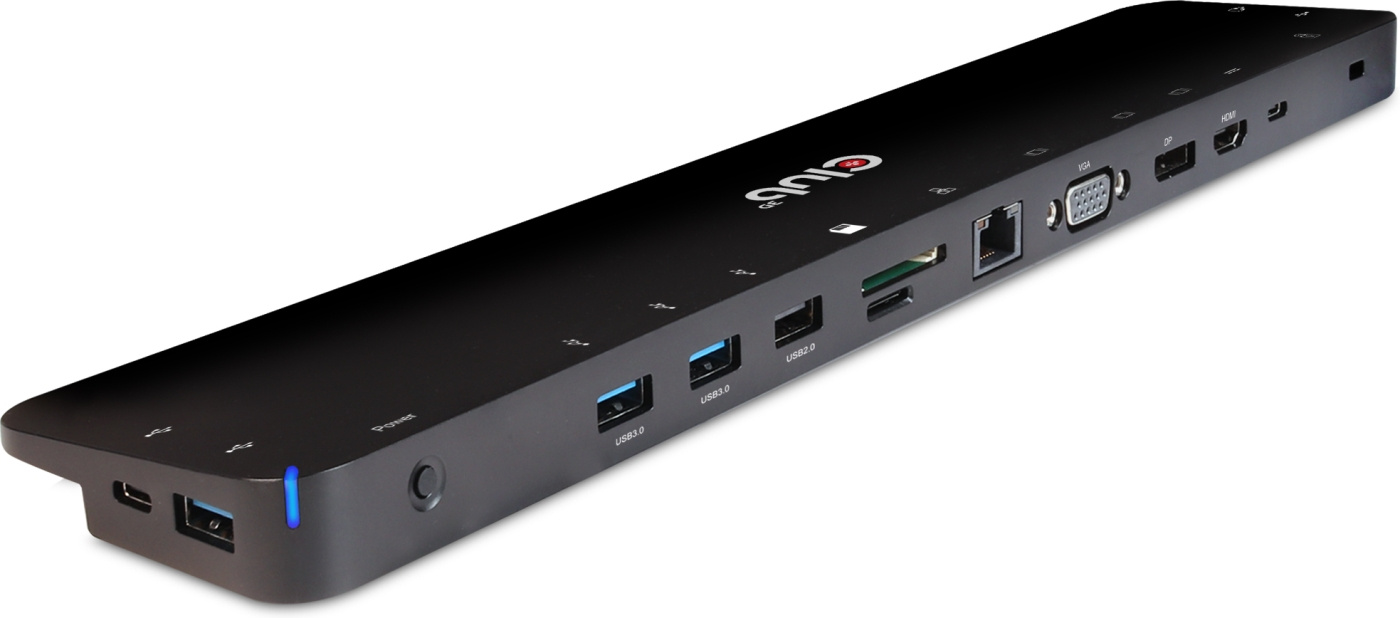

The Club 3D USB Type-C Triple Display docking station is an integrated solution that connects video, data, power, Ethernet and audio devices, especially for those who travel a lot. The convenient design allows the dock to be placed underneath your laptop. Three video ports (HDMI, DisplayPort, VGA) allow you to enjoy three different images or videos on three different screens simultaneously in MST mode.
USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the source. The USB Type-C charging port allows you to power the dock and charge your computer simultaneously by connecting a PD power supply, eliminating the need for a computer power supply. The dock also has Micro SD and SD/MMC ports for memory cards. A 3.5mm audio port allows you to enjoy music through headphones from the source. In addition, a Gigabit Ethernet port allows you to enjoy high-speed Ethernet. It supports all sources supported in DP Alt mode (PC, laptop, mobile phone, etc.)

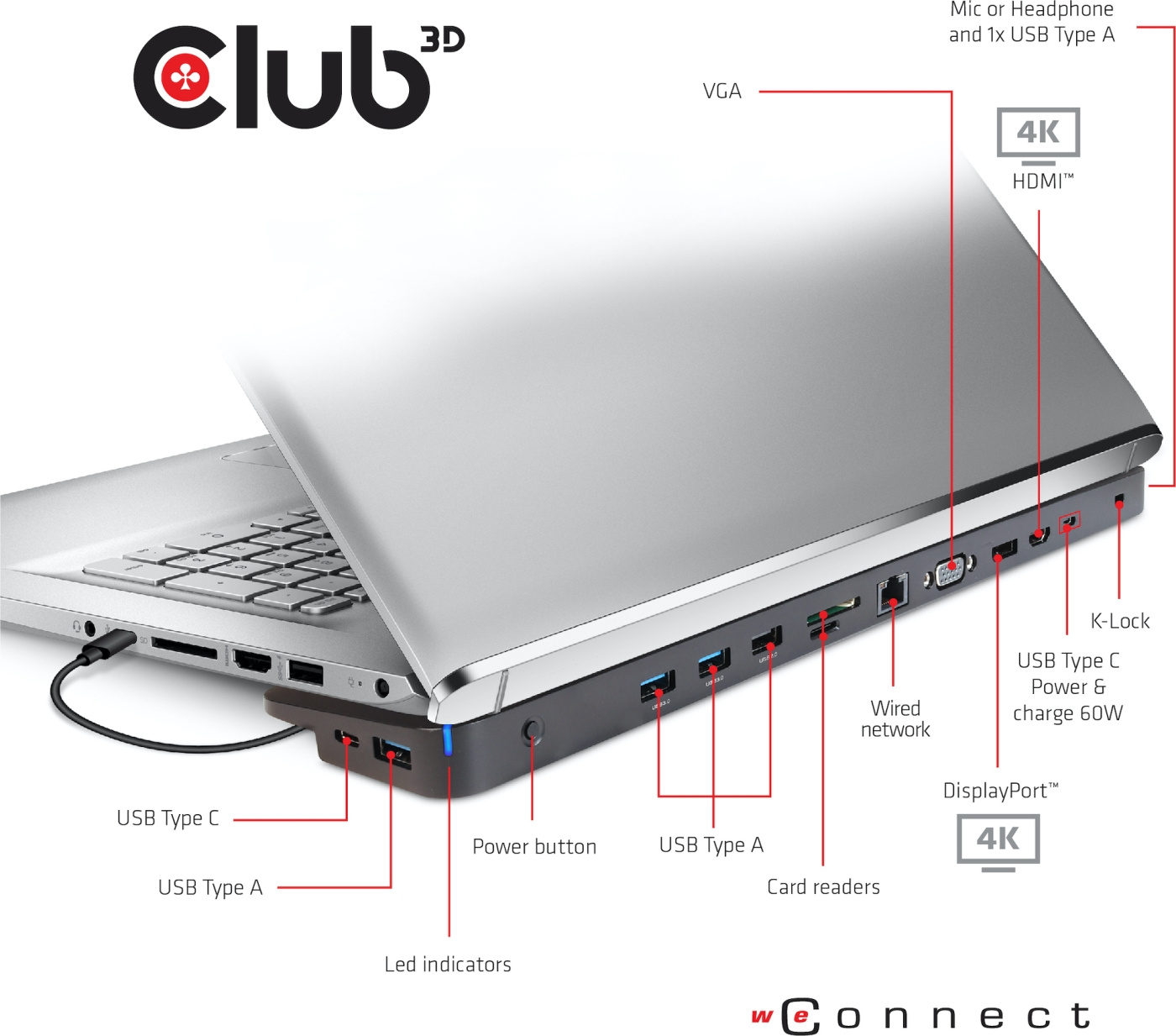

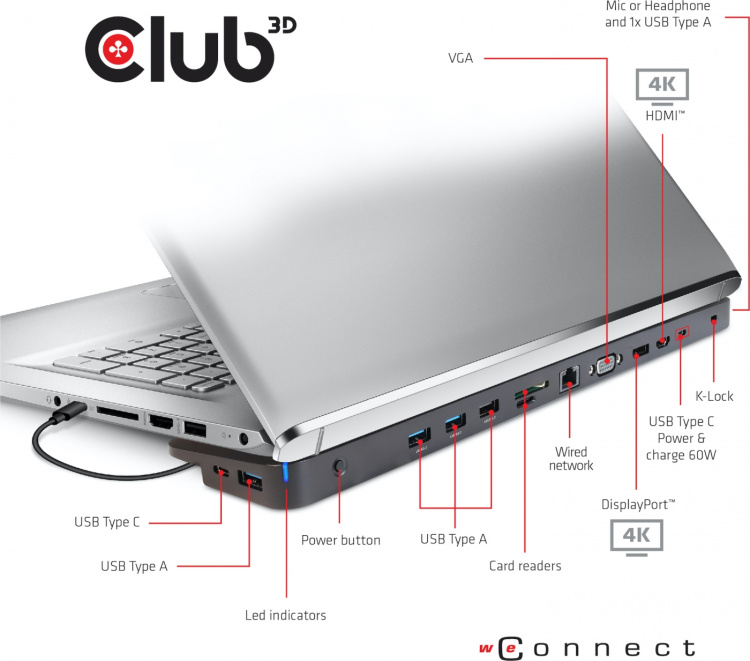

Features:
- Model: CSV-1564W100
- Support for 3 displays
- Supports Power Delivery 3.0 standard and DisplayPort Alt mode
- Supports max 5 Gb/s data transfer via USB Gen1 Type-C port
- 3 x USB Gen1 Type-C (1 x data, 1 x PD max 100W, 1 x source)
- 3 x USB Gen1 Type-A
- 2 x USB 2.0 Type-A
- 1 x HDMI max 4K/30 Hz
- 1 x DP max. 4K/30 Hz
- 1 x VGA max. 1920x1200 60 Hz
- 1 x RJ-45 Gigabit Ethernet
- 1 x SD card slot
- 1 x MicroSD card slot
- 1 x 3.5 mm audio jack, for microphone and headphones
- Kensington lock slot
- Weight 250 g

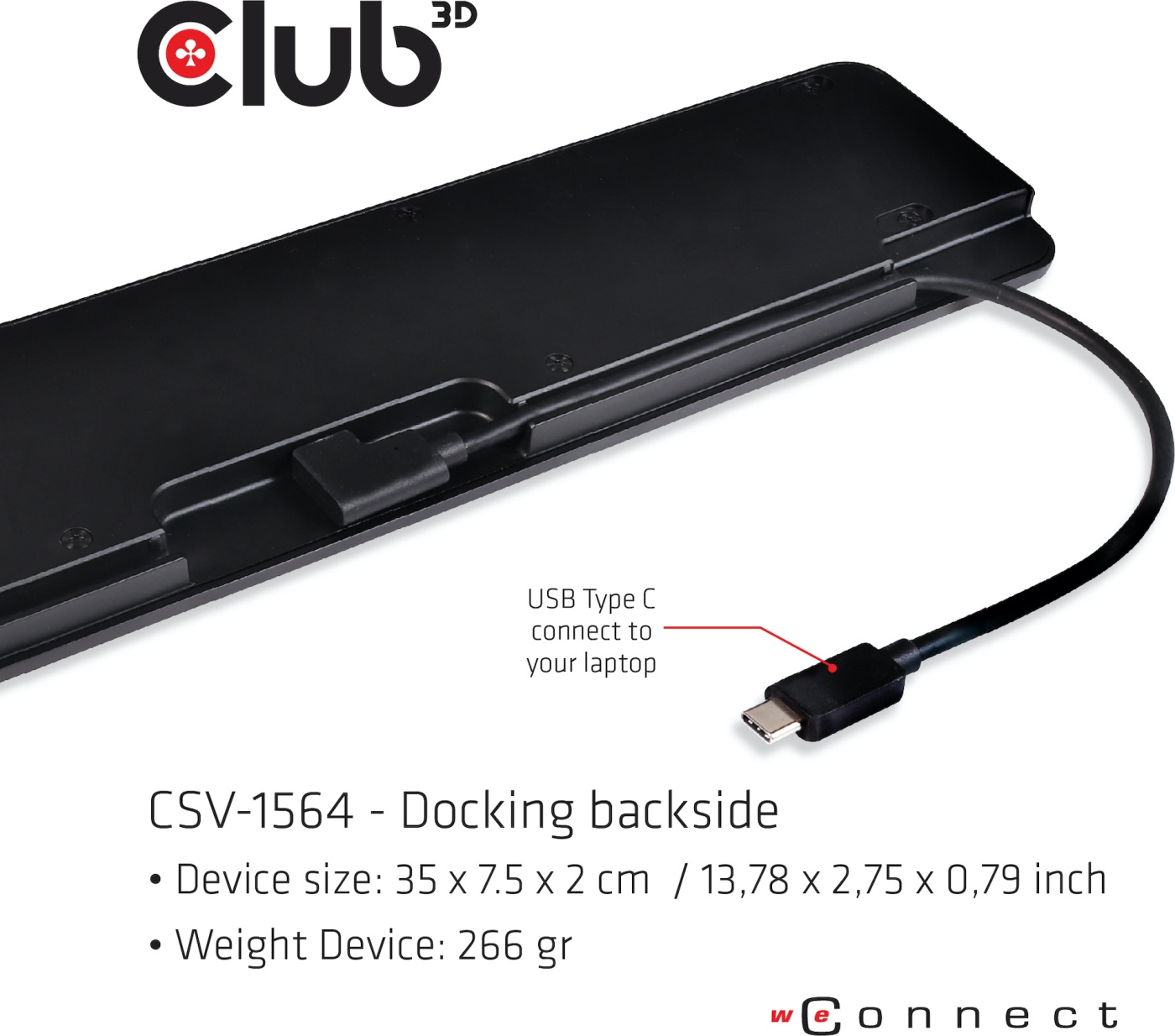

- Dimensions: 35 x 7.5 x 2 cm
- Windows, MacOS

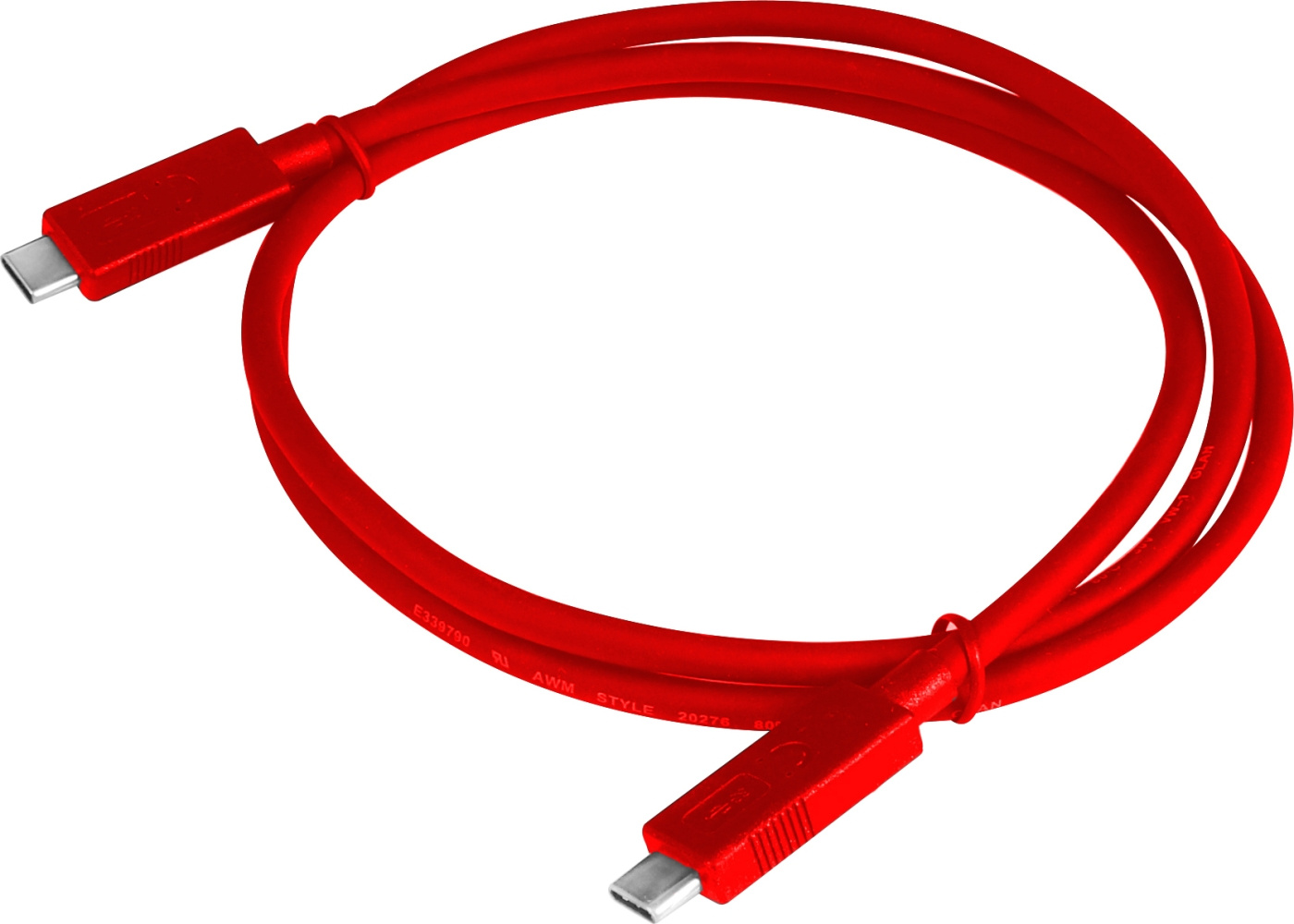

- Includes two USB-C cables and 100W power supply
- 3 x USB-C, 5 x USB-A
- 100W power supply included
- HDMI, DP, VGA
- 3.5 mm audio jack
- Gigabit Ethernet
