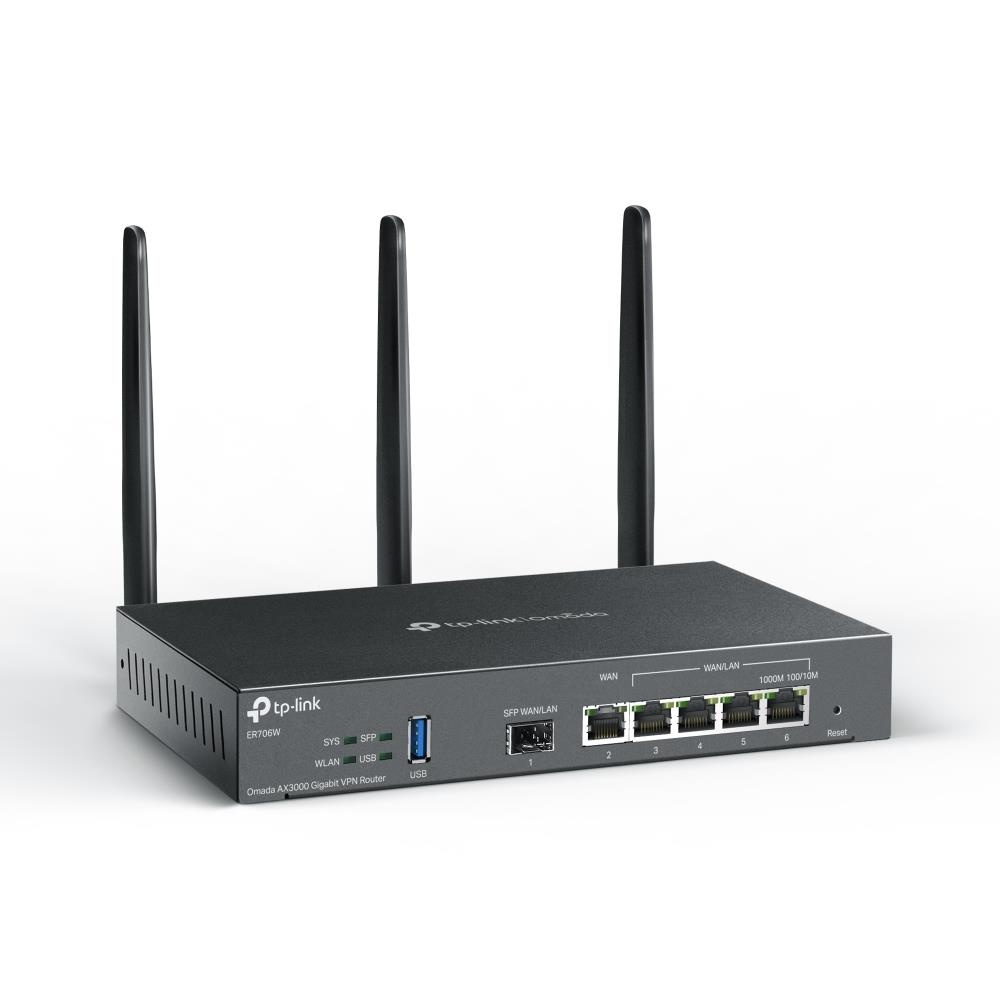

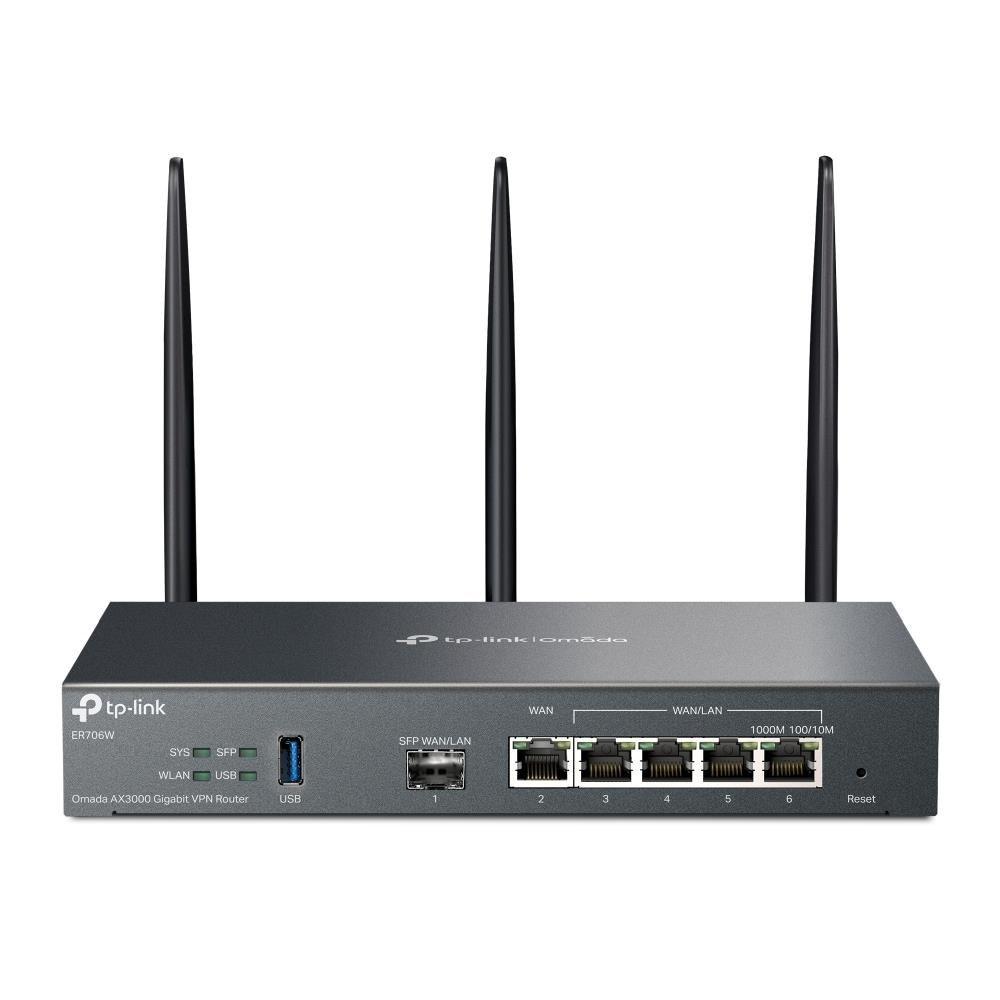

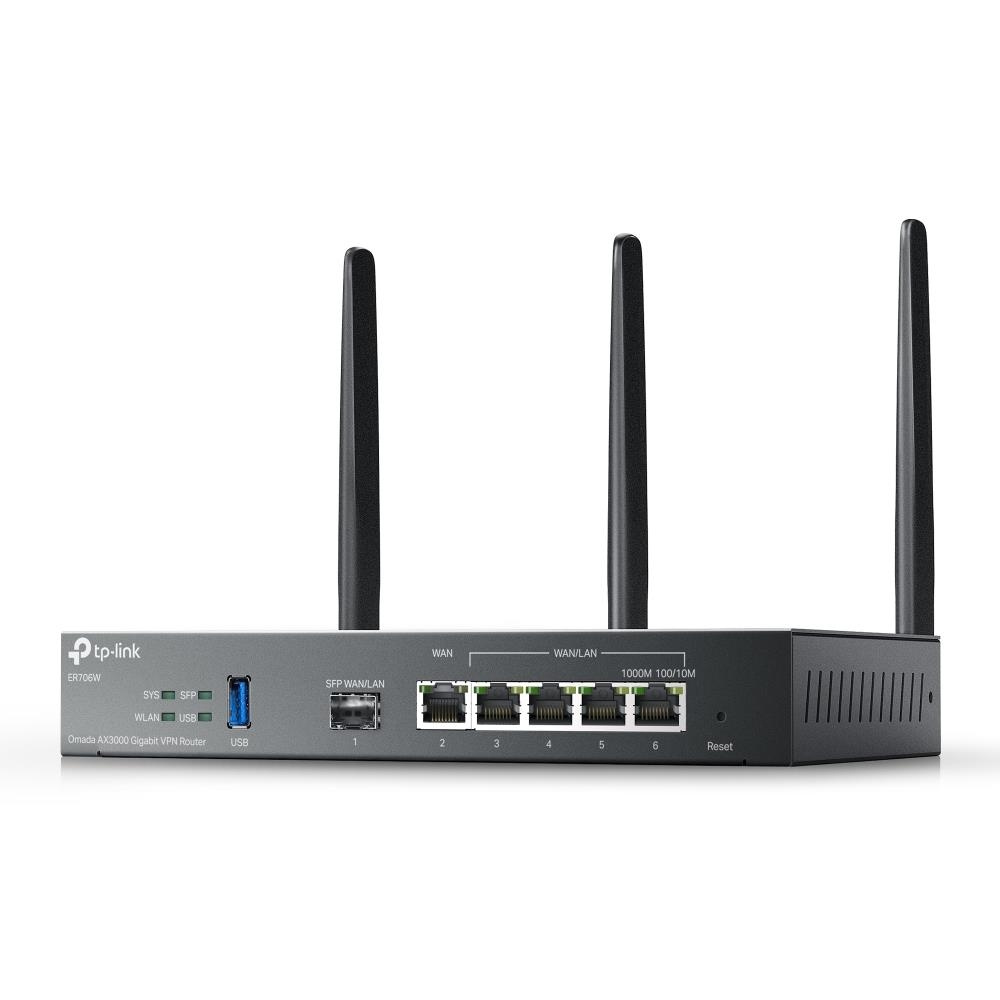

Omada AX3000 Gigabit VPN Router ER706W
AX3000 Dual-Band WiFi: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*
6 Gigabit Ethernet Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
Omada Mesh Technology: Seamlessly connects to EAPs that support mesh technology, ideal for large-scale scenarios.**
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Boosted Coverage: Triple external antennas extend and concentrate the Wi-Fi signals.
High-Security VPN: Supports multiple VPN protocols including IPSec / SSL / Wireguard / PPTP / L2TP VPN, helping users to establish remote connections more flexibly.△
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Ubiquitous Connectivity Starts with WiFi 6
ER706W is an enterprise-grade dual-band wireless router. It’s ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more.‡ Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W’s concurrent transmission rate reaches up to 3 Gbps.* Bufferless network experience is at your fingertips.

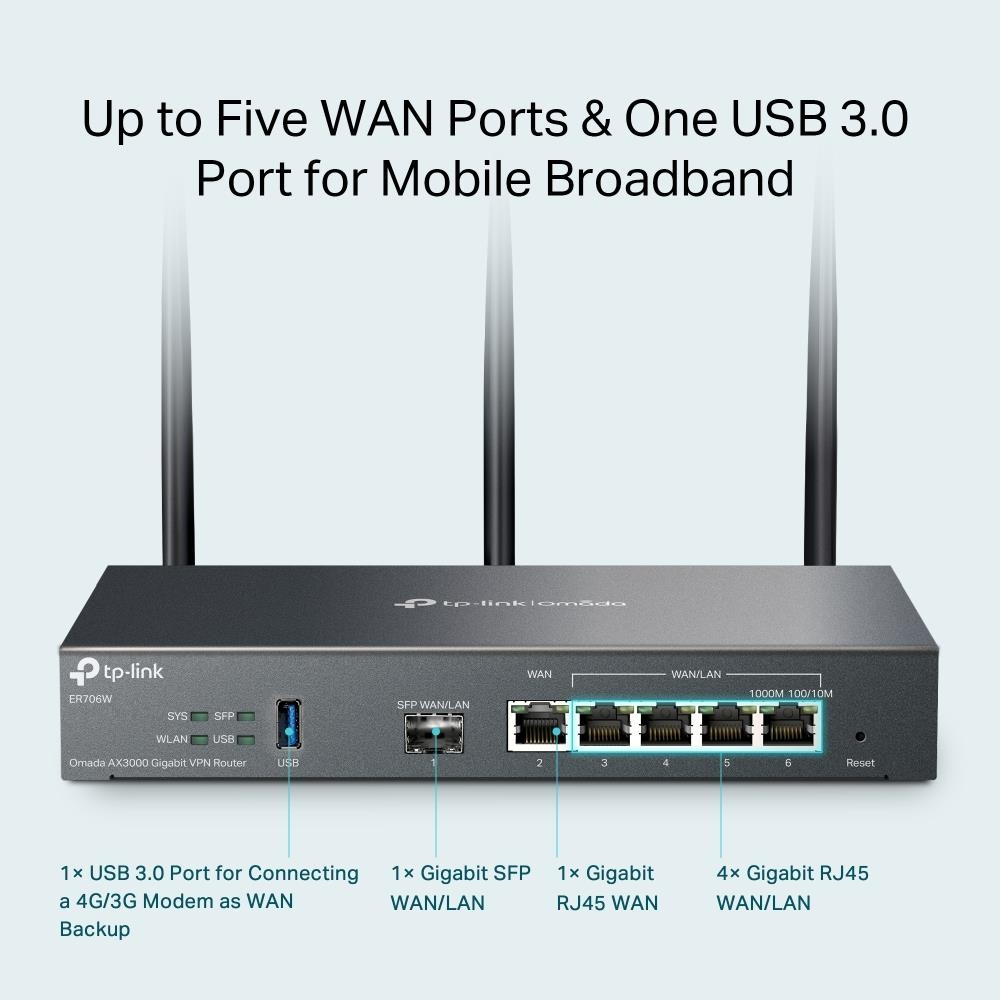

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband
Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.
Professional Hardware Empowers the Wireless Future

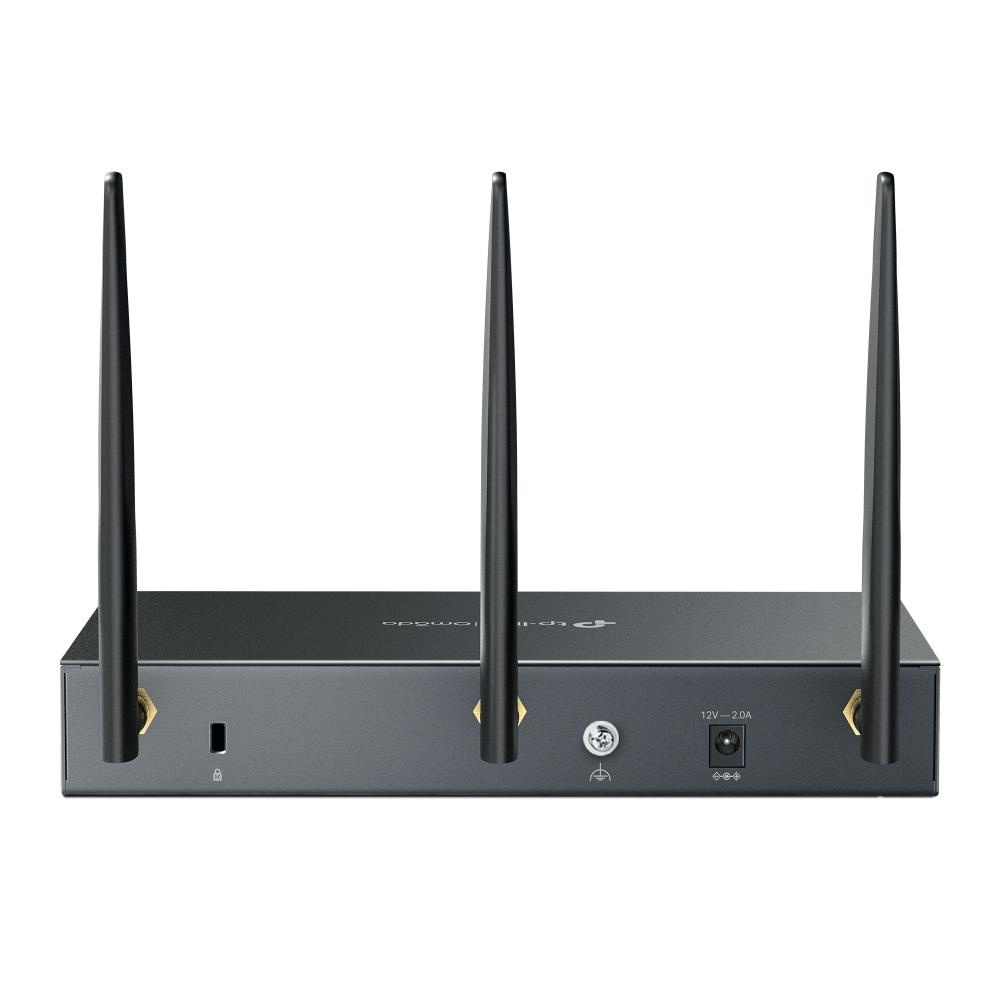

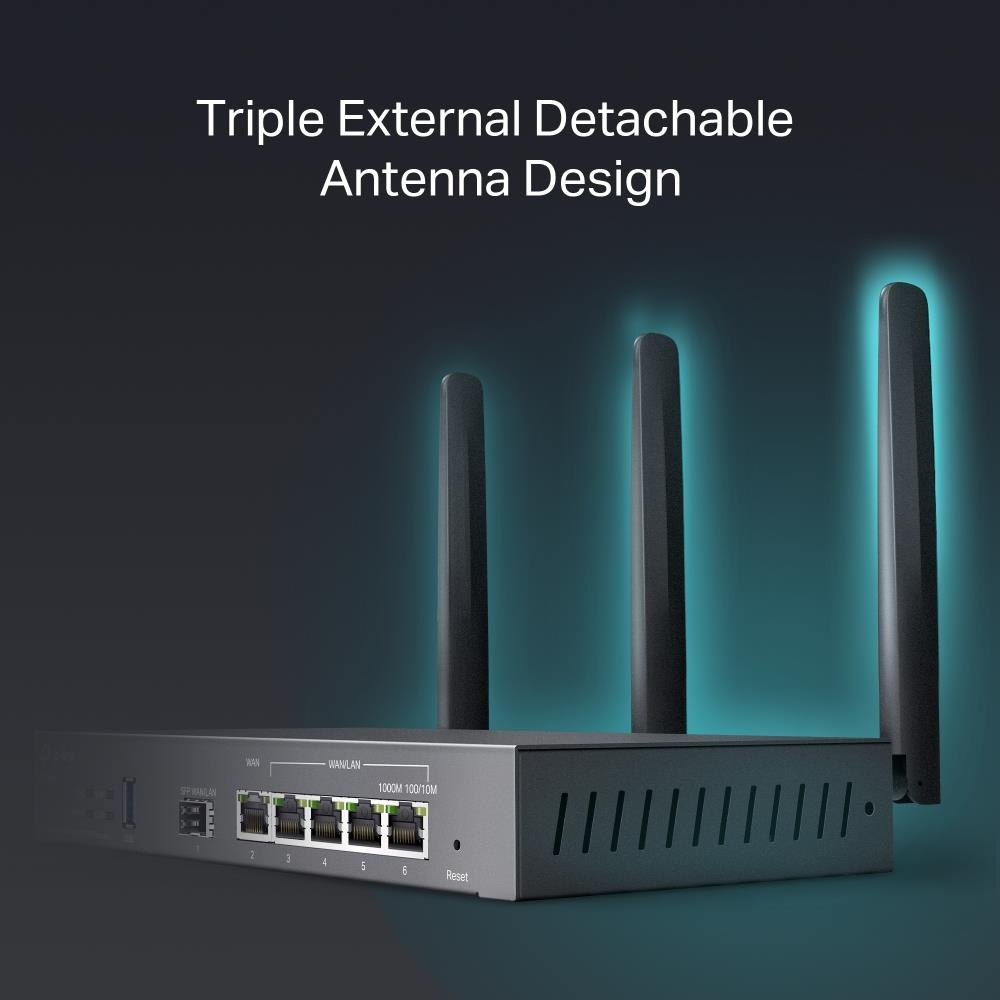

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It’s easier for users to adjust the quantity and angle of antennas to fit various network environments.
ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.

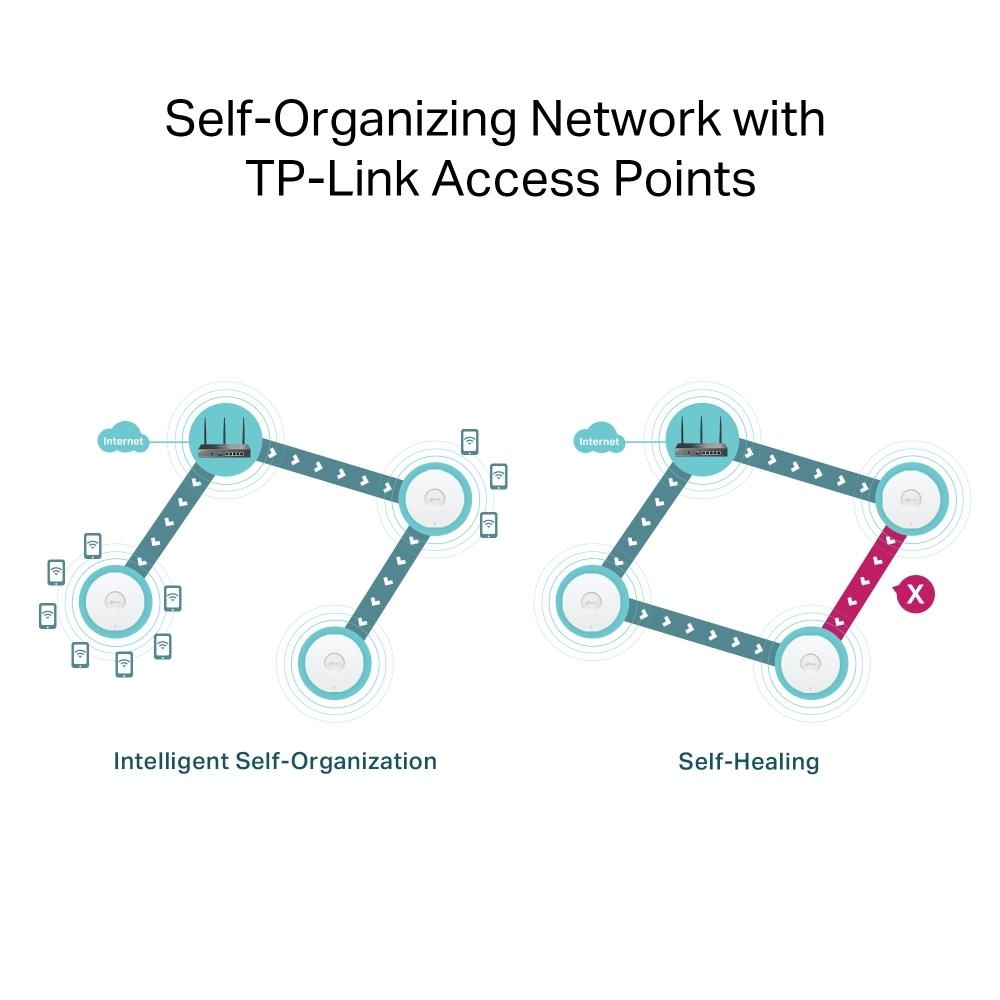

Self-Organizing Network with Omada Access Points
ER706W is able to seamlessly connect to Omada access points that support mesh technology,** ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.

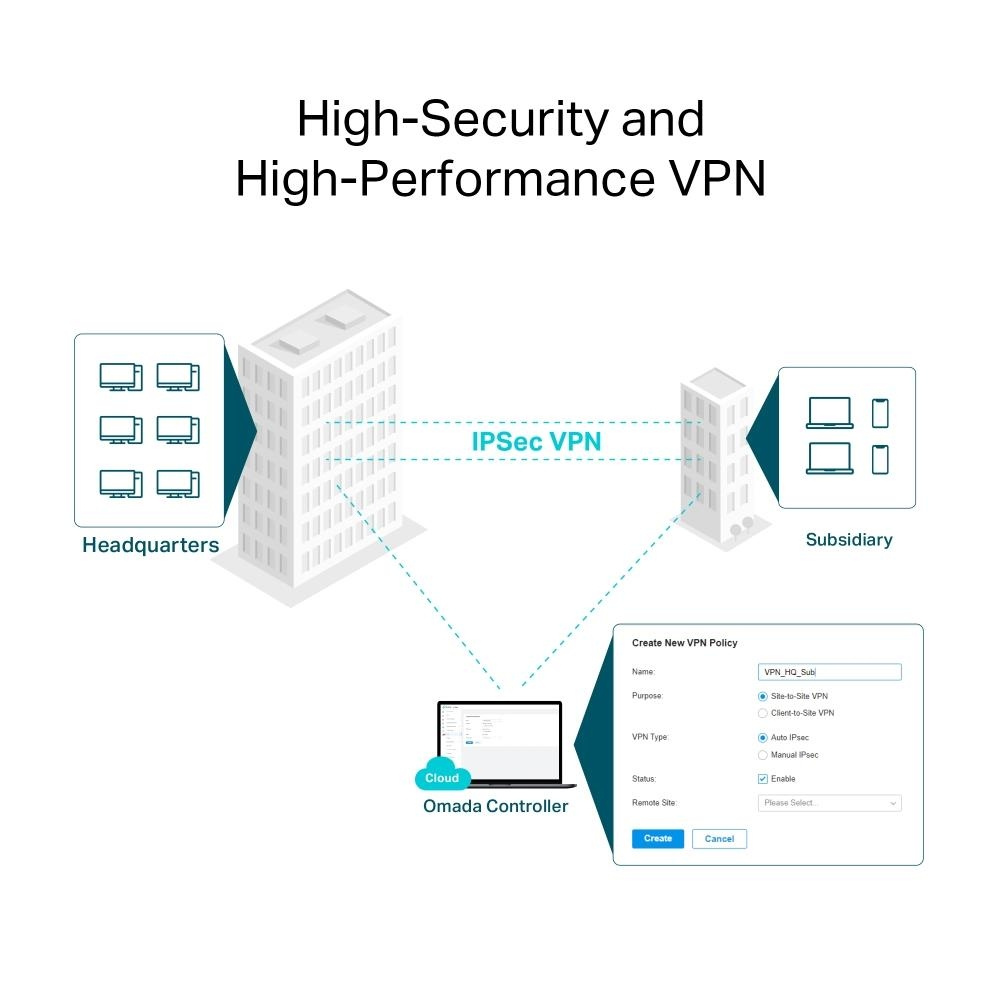

High-Security VPN
Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.△ The router also features a built-in hardware engine to boost VPN performance.

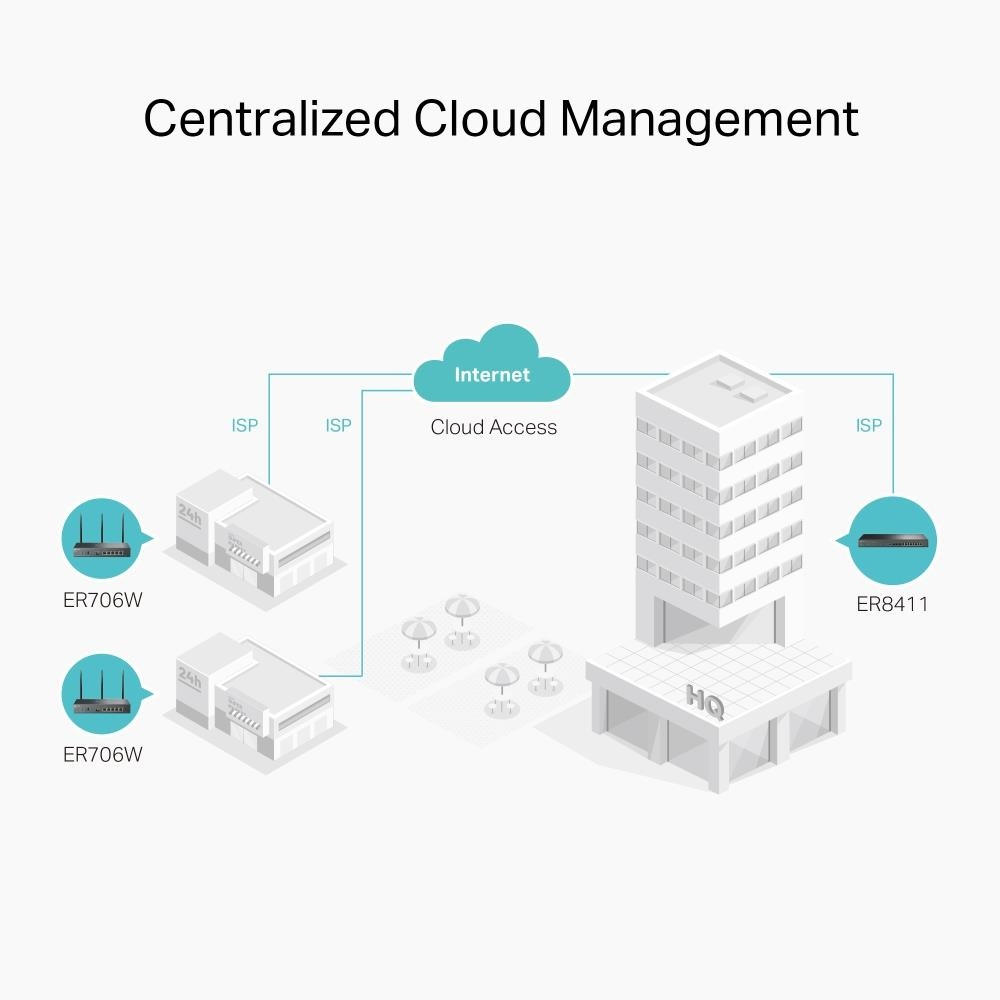

Omada SDN—The Smarter Cloud Solution for Business Networking
The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.
Easy Management with the Omada App
Users can configure ER706W in both the standalone and controller modes via the Omada app. Standalone management ensures max convenience. No need to set up additional controllers.
Follow the configuration instructions on the app to get set up in minutes. Multi-function configuration is ready to go, including network status monitoring and client management, all from the comfort of a smartphone or tablet.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and coverage are not guaranteed and will vary.
**Omada Mesh Technology requires the use of EAPs that support mesh functionality.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.
△For PPTP VPN and L2TP VPN, ER706W V1 can connect with up to 10 VPN servers. For OpenVPN, ER706W V 1 can connect withup to 5 VPN servers.
†These functions are supported only in Standalone Mode.
§These functions are supported only in Controller Mode.
- Warranty Type
- Limited Lifetime Warranty
General
- Model
- ER706W
- Form factor
- Desktop, Wall mount
- Data transfer speed
- 2,976 Mbit/s 2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps (HE160)
- Managed
- Yes Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- VPN Tunnels
- 50 pcs.
WiFi
- WiFi
- Yes
- WiFi Standard
- Wi-Fi 6
Ports
- WAN
- 1 pcs. Gigabit WAN Port
- LAN
- 4 pcs. Gigabit LAN/WAN Ports
- 4G
- No
- 5G
- No
- USB Ports
- 1 pcs. (supports USB LTE dongle and USB Storage)
- SFP Ports
- 1 pcs. WAN/LAN Port
Additional Information
- Security
- WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
Packaging info
- Packaging size
- 374 x 179 x 82 mm
- Packaging weight
- 1.51 kg
