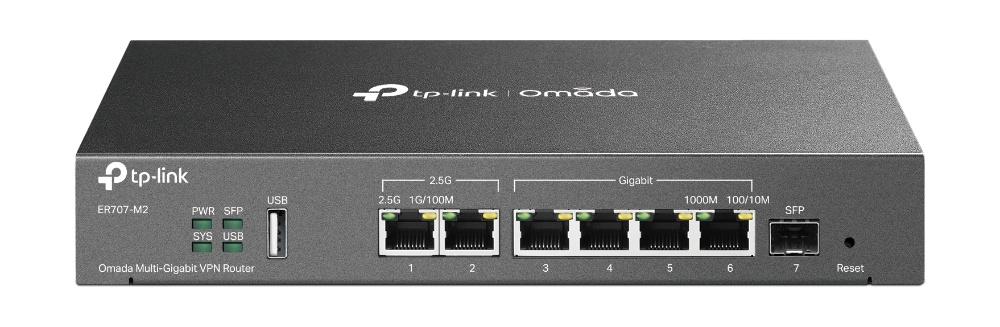

Omada Multi-Gigabit VPN Router ER707-M2
Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
*These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
† LAN MAC Address can be modified only in Standalone Mode.
§ These functions are supported only in Standalone Mode.
- Warranty Type
- Limited Lifetime Warranty
General
- Model
- ER707-M2
- Form factor
- Desktop, Wall mount
- Managed
- Yes Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Ports
- WAN
- 1 pcs. 2.5G RJ45 WAN Port
- LAN
- 5 pcs. 1× 2.5G RJ45 WAN/LAN Port, 4× Gigabit RJ45 WAN/LAN Ports
- 4G
- No
- 5G
- No
- USB Ports
- 1 pcs. USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- SFP Ports
- 1 pcs. Gigabit SFP WAN/LAN Port
Packaging info
- Packaging size
- 329 x 246 x 81 mm
- Packaging weight
- 1.39 kg
