| 4G LTE interface: | 3GPP UE Category 19 standard-compliant |
| 5G NR interface: | 3GPP Release 15 standard-compliant - Supports both NSA and SA modes - Supports Sub-6 NR DL 2xCA (TDD/FDD) |

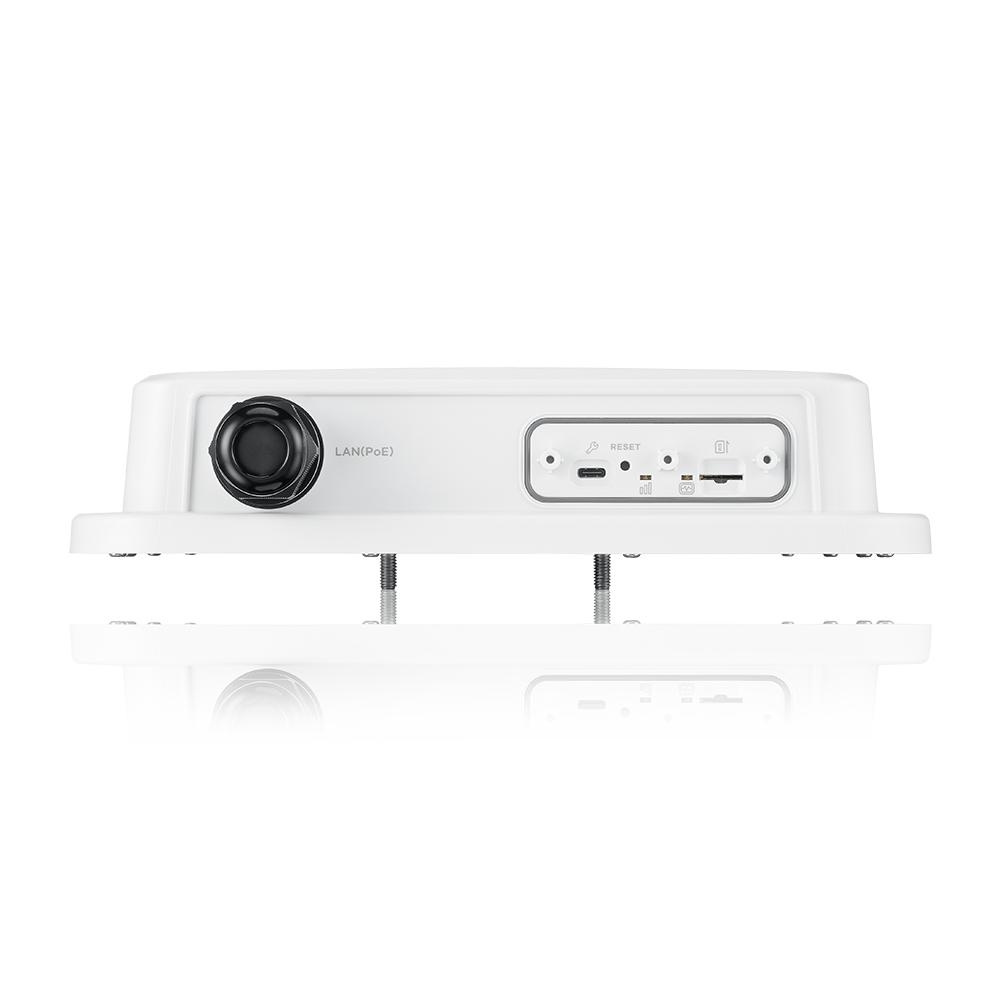

| Buttons: | One reset to default button |
| Card socket: | One 3FF micro SIM card socket |
| Certification: | CE, WEEE, RoHS, HSF, European Parliament and Council Directive 94/62/EC |
| Data rates 5G: | 5G SA: DL 4.67 Gbps; UL 2.5 Gbps - 5G NSA: DL 3.74 Gbps; UL 1.46 Gbps |
| Dimensions (WxDxH): | 255 x 256 x 58 mm |
| Hardware interface: | One 2.5GbE, 10/100/1000/2500 BaseT -TX Auto Rate, Auto Duplex |
| Ingress Protection rating: | IP68 |
| LED indicators: | 5G/4G signal strength & Device status |
| Lightning protection: | K.21 enhanced mode, 6 KV |
| Operating Environment: | -40°C to 60°C - 5% to 95% Humidity |
| Output power 5G: | Class 2 (26 dBm) for 5G NR n41/n78 - Class 3 (23 dBm) for all 5G NR bands |
| Package Contents: | Standard 802.3af/at Power of Ethernet (PoE) injector, 1.8 m Ethernet cable yellow 8P8C, PG19 thread (cable gland), Wall/pole mounting kit |
| Power consumption at PoE: | < 15 W (est.) |
| Supports frequencies 4G: | LTE-FDD: B1/B3/B5/B7/B8/B20/B28 - LTE-TDD: B38/B40/B41/B42/B43 |
| Weight: | 2517 g |
4718937629978EAN:
