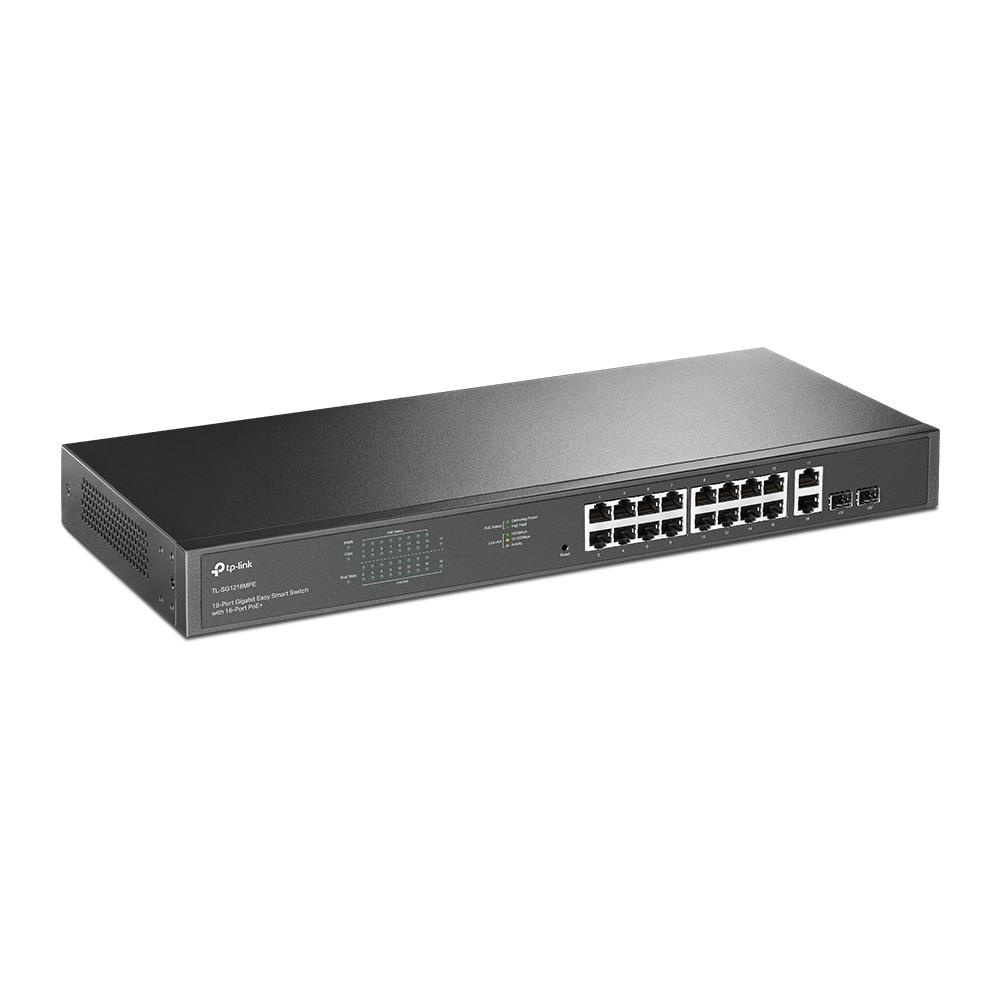

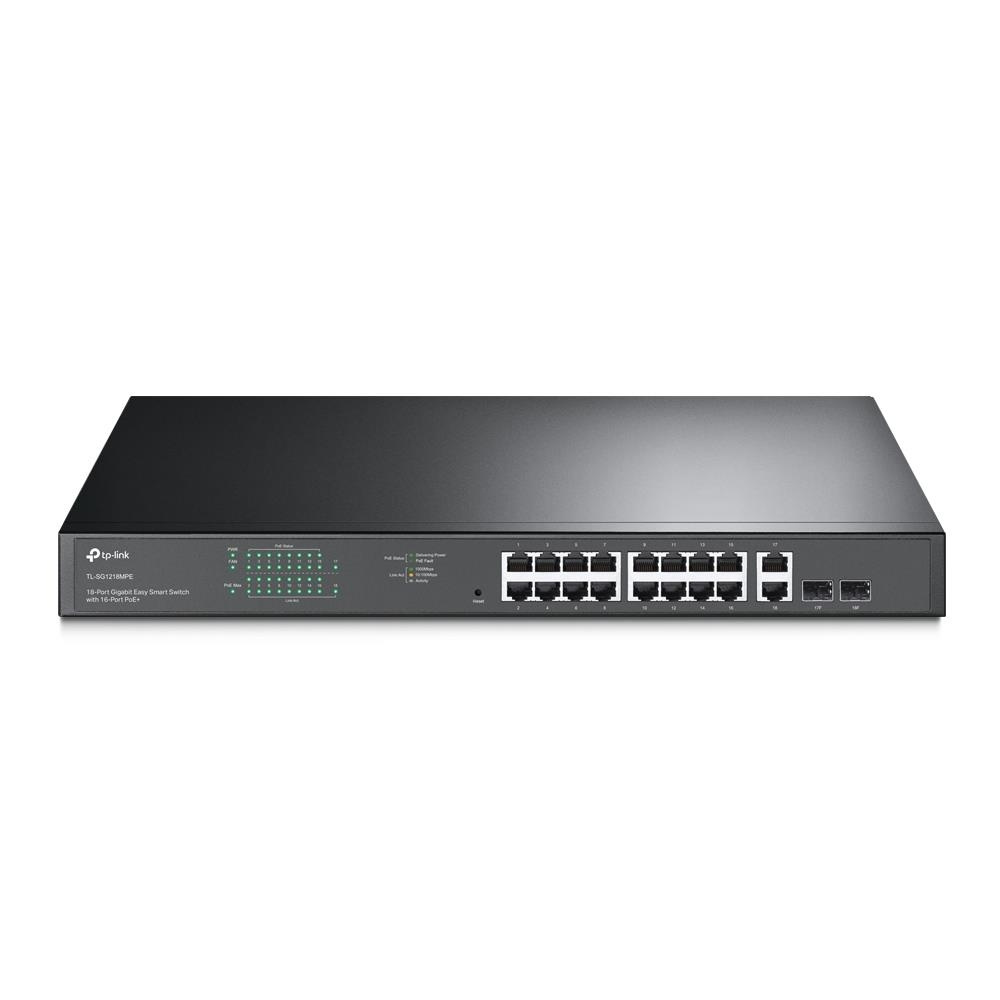

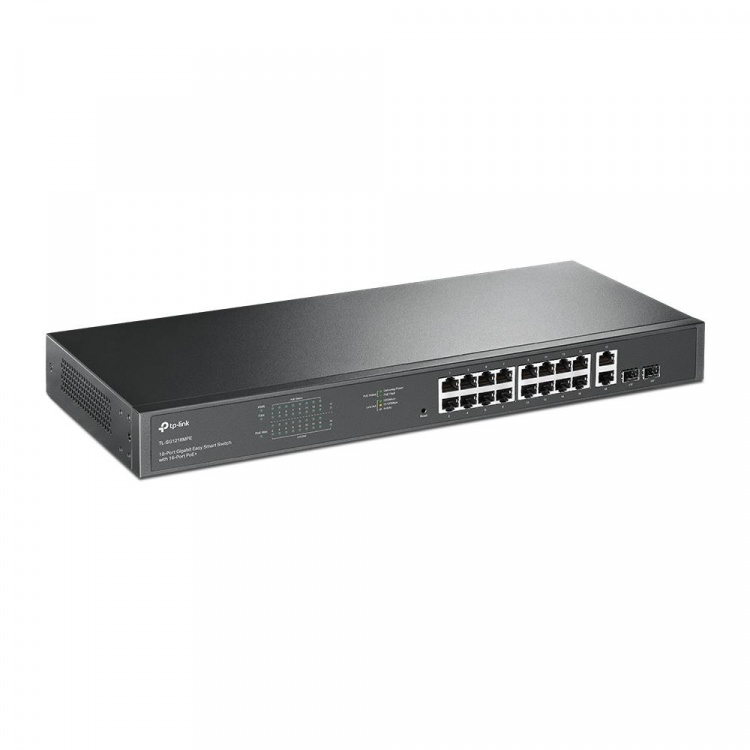

18-Port Gigabit Easy Smart Switch with 16-Port PoE+ TL-SG1218MPE
- 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
- PoE power budget is up to 192 W, making it ideal for small to medium business surveillance systems.*
- Port Priority is able to guarantee the quality of sensitive application like video monitor.
- PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
- Intelligent power management protects the switch from overload.
- QoS ensures smooth traffic for latency sensitive applications.
- IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.

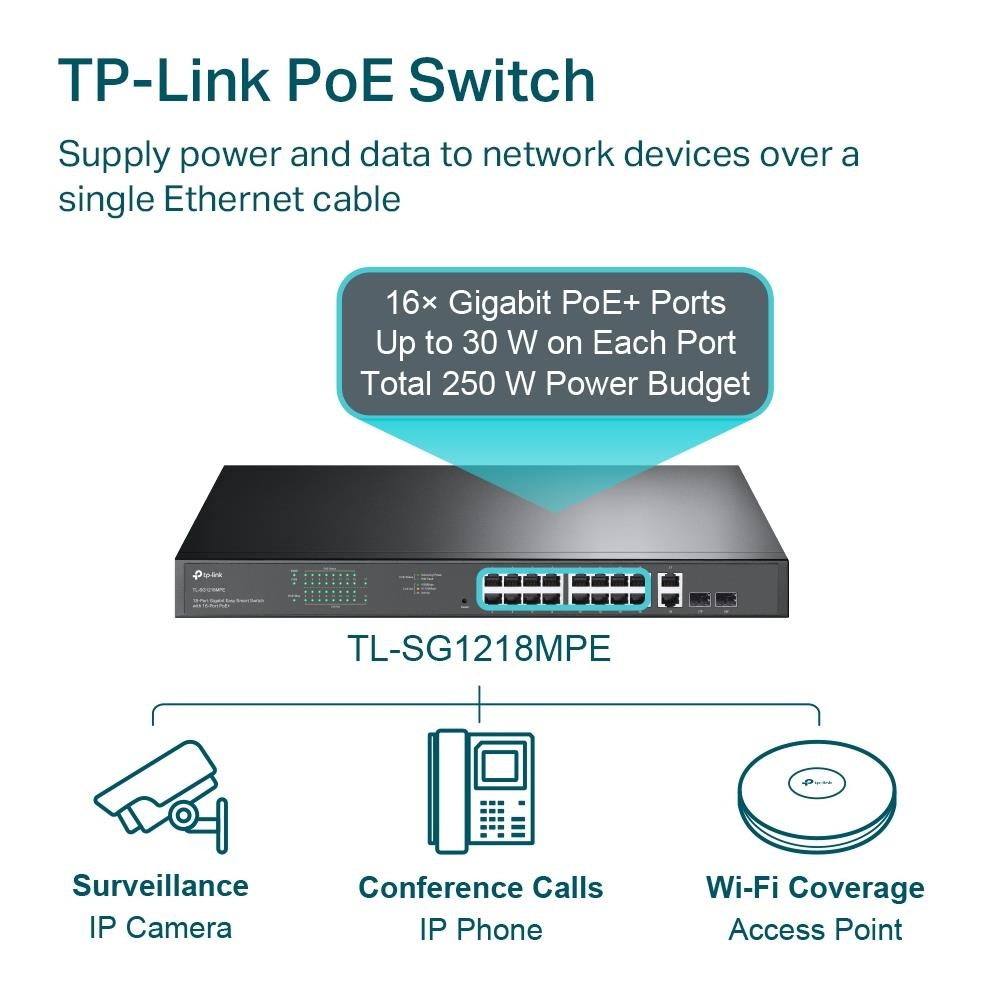

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

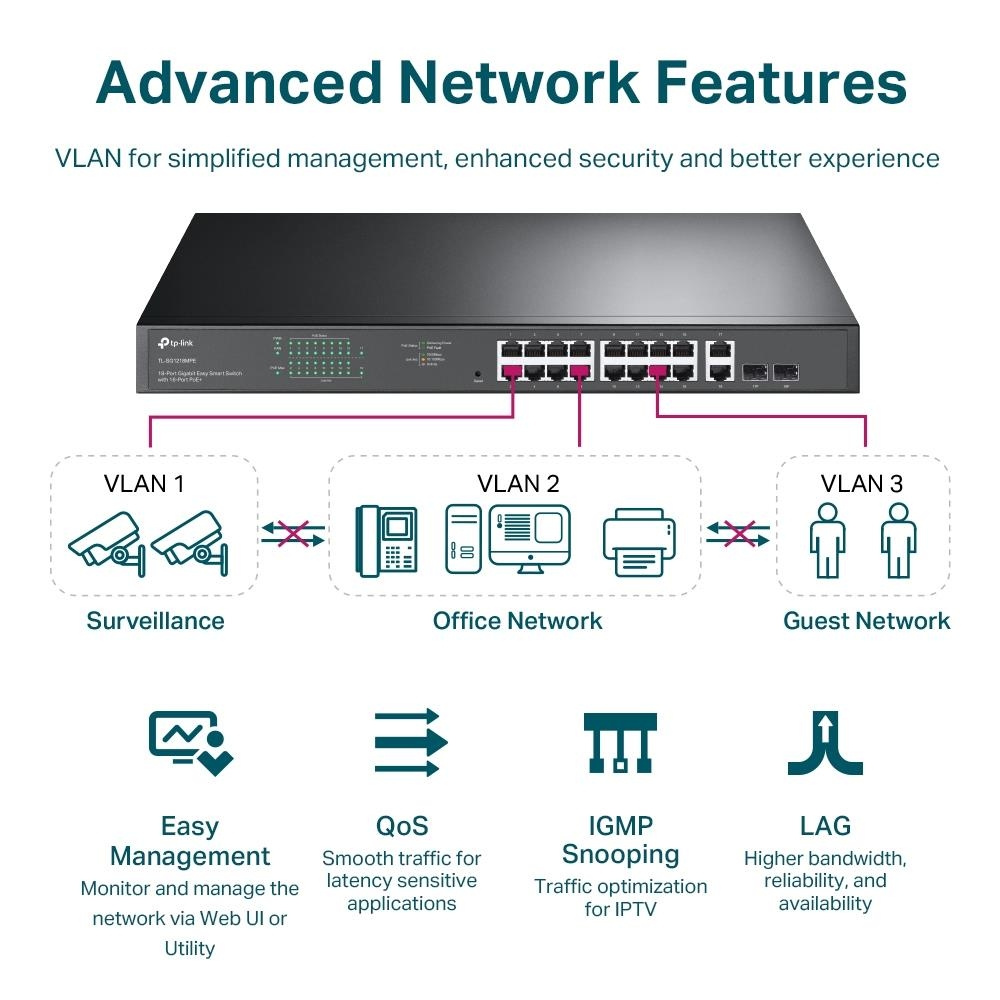

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

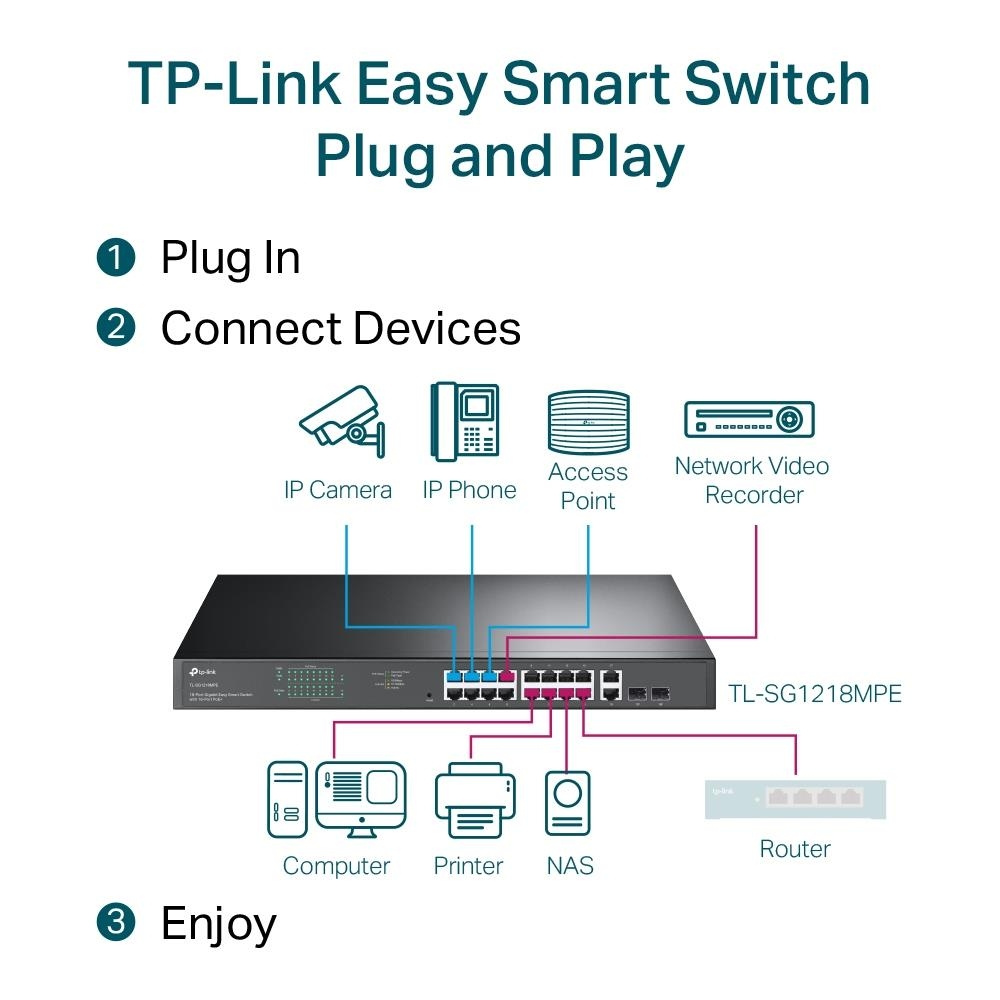

Multiple Application Scenarios
The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
- Warranty Type
- Limited Lifetime Warranty
General
- Switch Class
- Smart Managed
- Form factor
- 19" Rack, 1U
- Switching capacity
- 36 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 18 x 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX), 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- SFP Ports
- 2 x Combo Gigabit SFP Ports
Features
- PoE
- Yes
- PoE Ports
- 16 x PoE+ Ports 1–16
- PoE Effect/Port
- 30 W
- PoE Budget
- 192 W
- Manageable
- Webmanaged
- IGMP Support
- Yes
Additional Information
- Power consumption
- 296.3 W (220/50Hz. with 250 W PD connected)
Packaging info
- Packaging size
- 528 x 250 x 80 mm
- Packaging weight
- 2.90 kg
