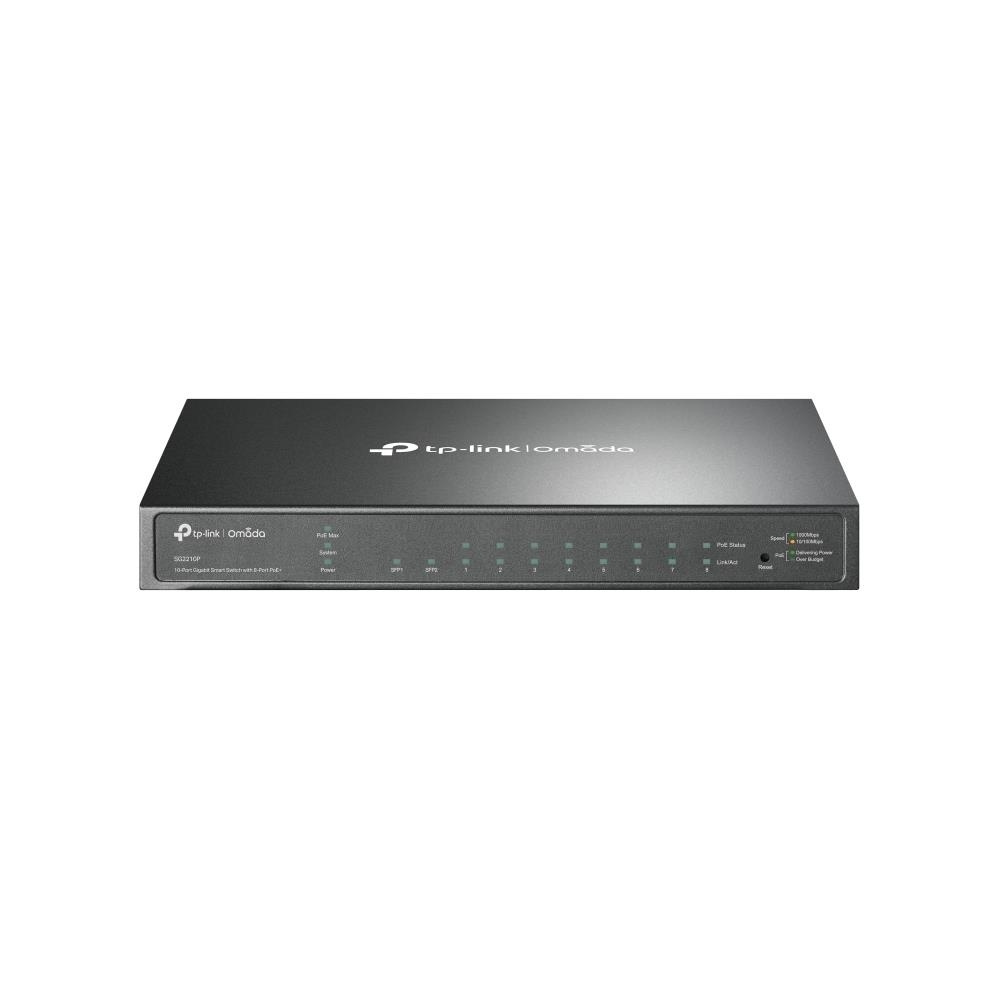

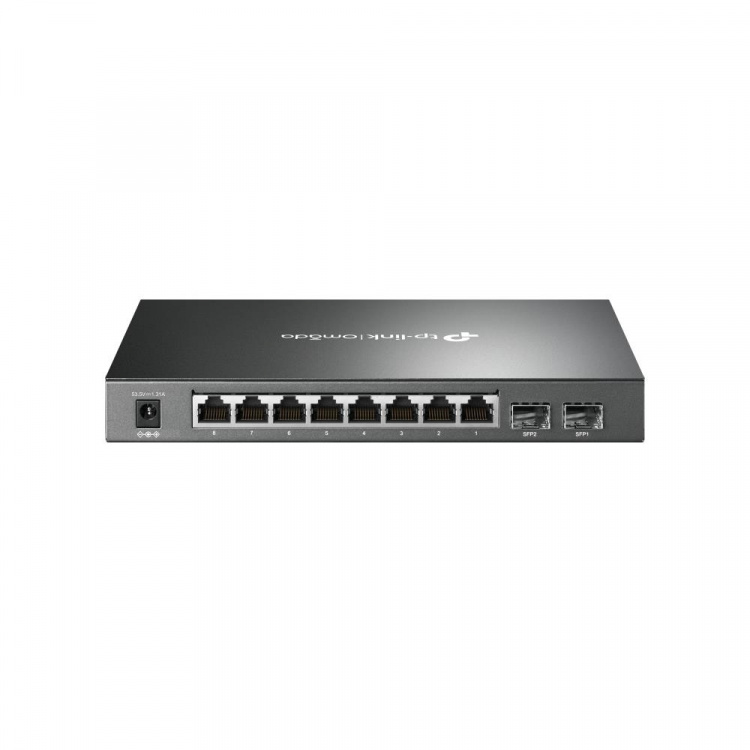

Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ SG2210P
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 61 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
- Warranty Type
- Limited Lifetime Warranty
General
- Switch Class
- Form factor
- Desktop
- Switching capacity
- 20 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 8 x 10/100/1000Mbps RJ45 Ports
- SFP Ports
- 2 x 1000Mbps SFP Slots
Features
- PoE
- Yes Standard: 802.3af/at compliant
- PoE Ports
- 8 x
- PoE Effect/Port
- 30 W up to 30 W
- PoE Budget
- 61 W
- Manageable
- Cloud Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Manageable
- Standalone, Webmanaged
- IGMP Support
- Yes
Additional Information
- Power consumption
- 77.8 W (110 V/60 Hz) (with 61 W PD connected)
Packaging info
- Packaging size
- 315 x 70 x 240 mm
- Packaging weight
- 1.28 kg
6935364030698EAN:
