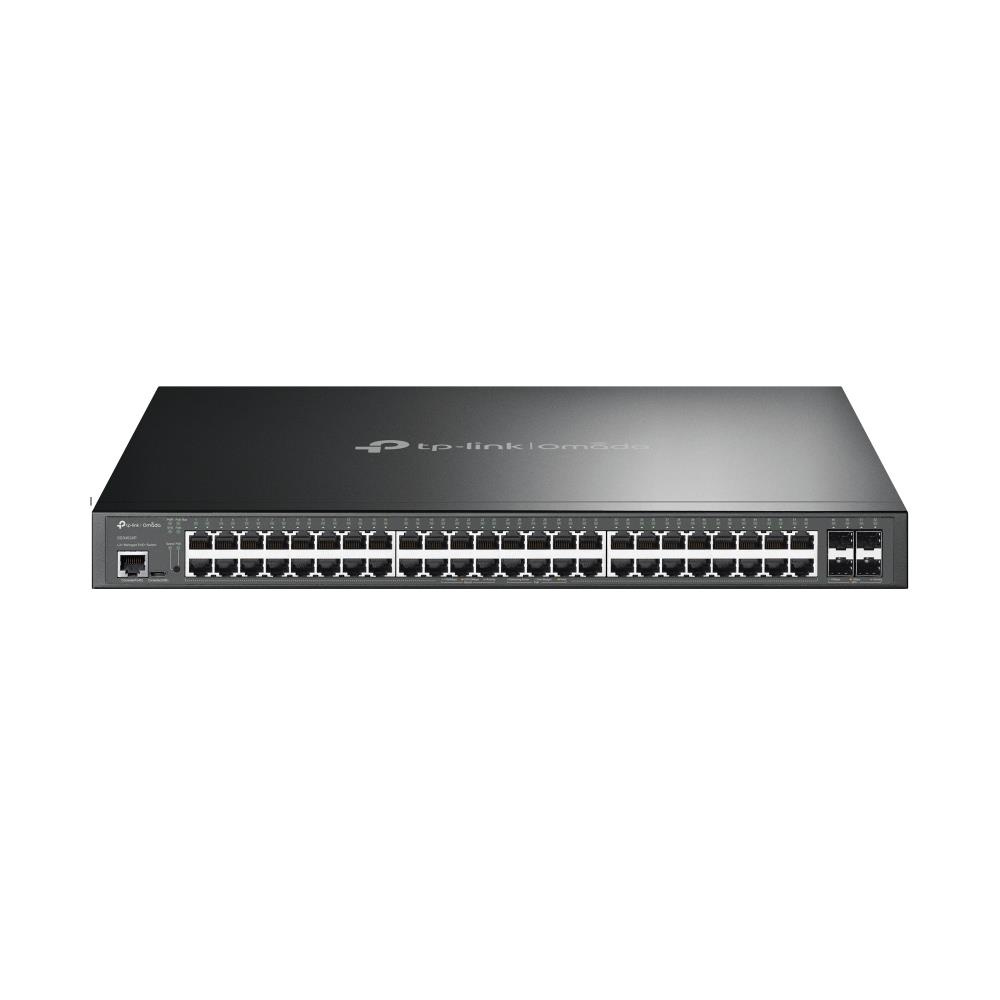

Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+ SG3452XP
- 4× 10 Gbps SFP+ slots
- 48× Gigabit 802.3af/at PoE+ ports
- 500 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
†These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**ISP features can only be configured in standalone mode.
Attention: It is recommended to use only one SM5310-T (TL-SM5310-T) module for the SG3452XP.
- Warranty Type
- Limited Lifetime Warranty
General
- Switch Class
- L2+
- Form factor
- 19" Rack, 1U
- Switching capacity
- 176 Gbit/s
- Primary Port Speed
- 1 Gbit/s
- Primary Ports
- 48 x 10/100/1000 Mbps RJ45 PoE+ Ports
- SFP Ports
- 4 x 10G SFP+ Slots
Features
- PoE
- Yes Standard: 802.3at/af compliant
- PoE Ports
- 48 x PoE+ Ports
- PoE Effect/Port
- 30 W
- PoE Budget
- 500 W
- Manageable
- Cloud Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
- Manageable
- Standalone, Webmanaged
- IGMP Support
- Yes
Additional Information
- Power consumption
- 635.7 W (110V/60Hz) ( with 500 W PD device connected)
- Included Accessories
- Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet
Packaging info
- Packaging size
- 528 x 440 x 100 mm
- Packaging weight
- 6.50 kg
6935364006495EAN:
