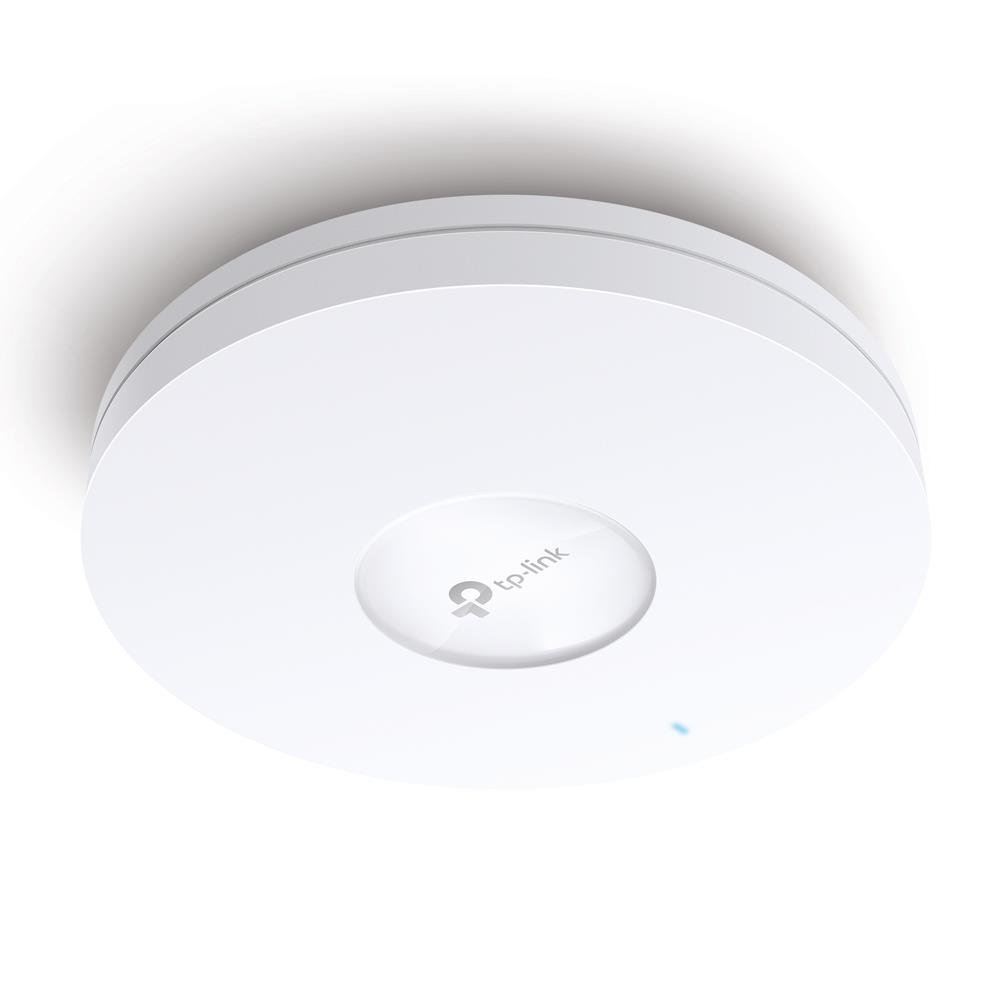

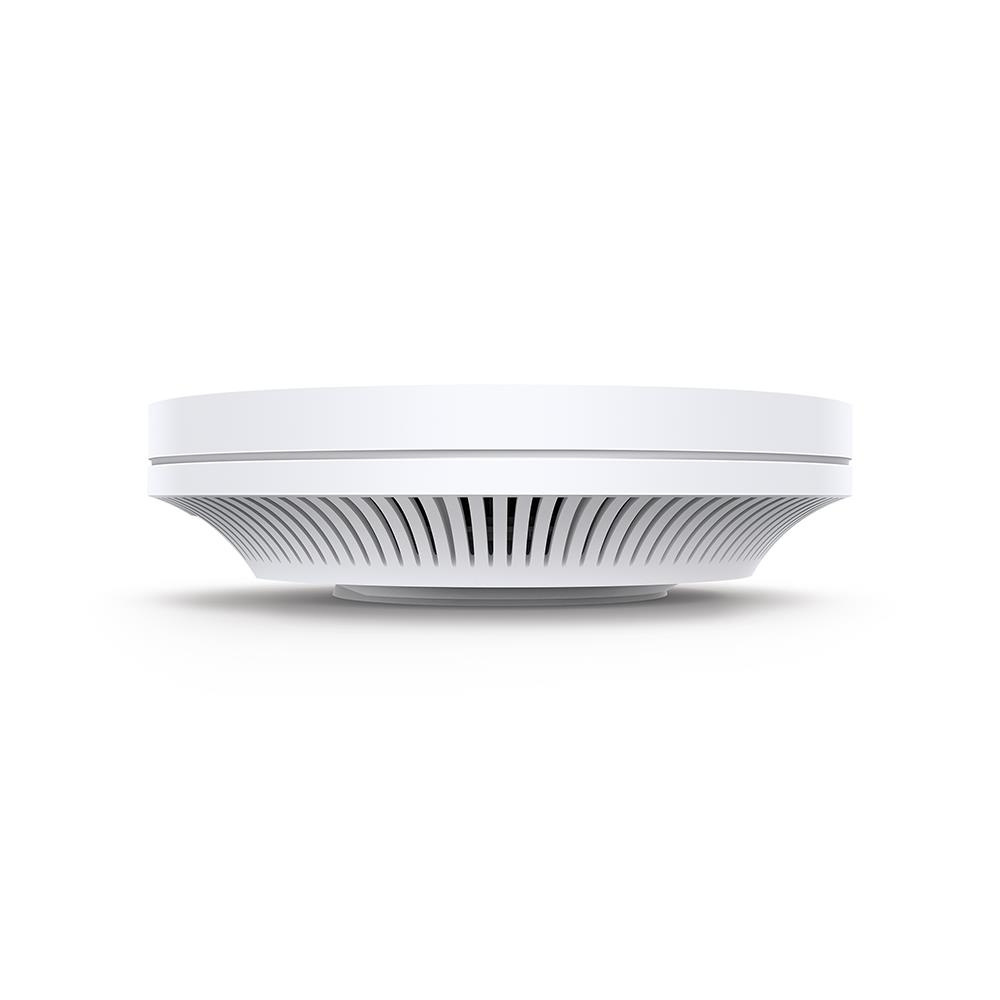

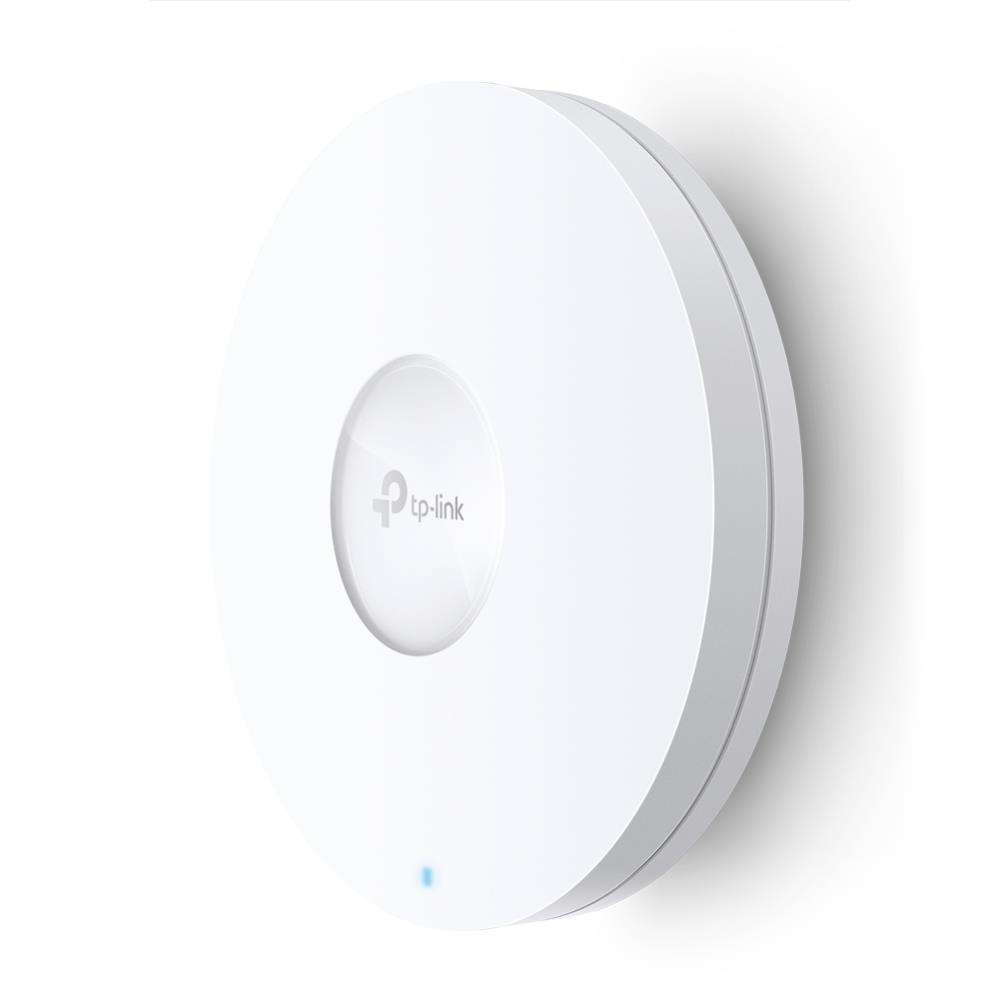

AX1800 Wireless Dual Band Ceiling Mount Access Point EAP620 HD
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band)†. With 4 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡4× Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.
§Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to Omada Cloud-Based Controller Product List to find all the models supported by Omada Cloud-Based Controller.
△Omada mesh may require upgrading the firmware. Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*Use of OFDMA requires clients to also support OFDMA.
- Warranty Type
- Limited Lifetime Warranty
General
- Model
- EAP620 HD
- Form factor
- Ceiling mount
- Form factor
- Wall mount (Kits included)
- Data transfer speed
- 1,775 Mbit/s 5 GHz: Up to 1201 Mbps, 2.4 GHz: Up to 574 Mbps
- Managed
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
WiFi
- WiFi
- Yes IEEE 802.11ax/ac/n/g/b/a
- WiFi Standard
- Wi-Fi 6
Ports
- LAN

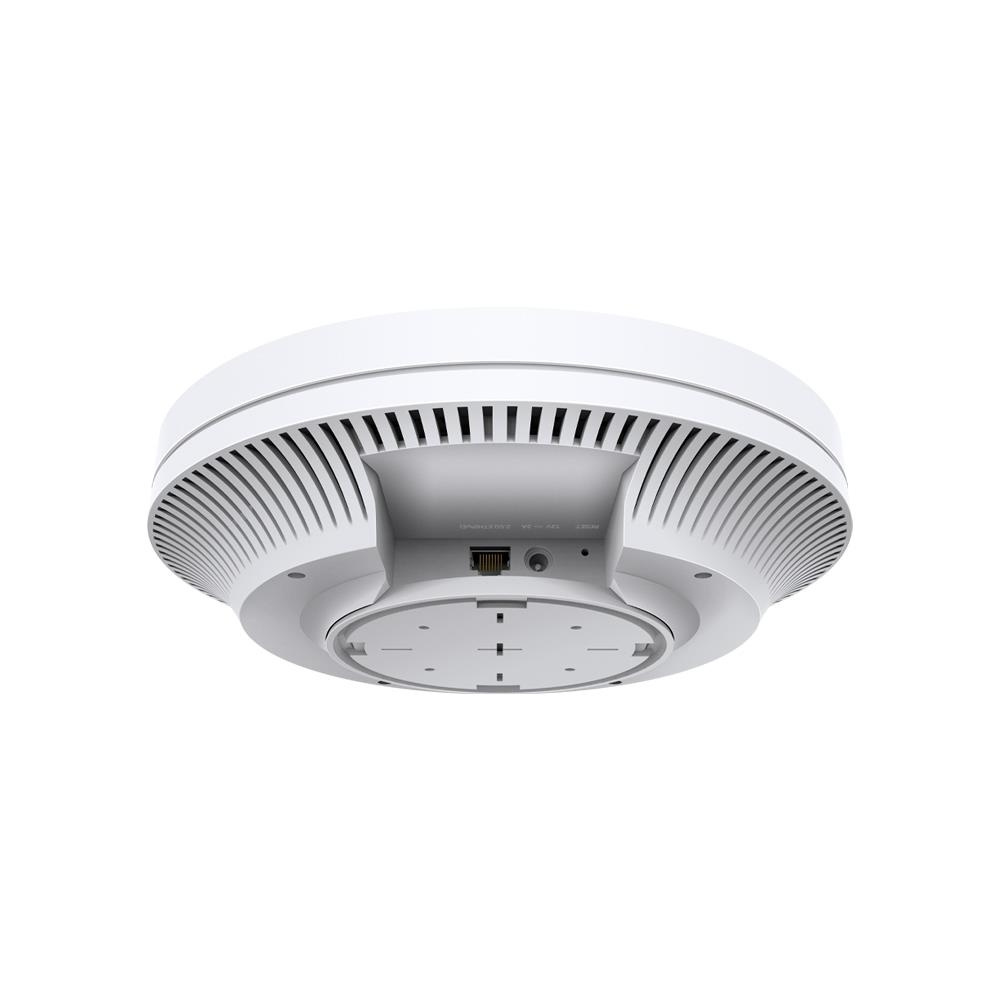

- 1 pcs. Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- 4G
- No
- 5G
- No
Additional Information
- Security
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Packaging info
- Packaging size
- 306 x 305 x 87 mm
- Packaging weight
- 867 g
