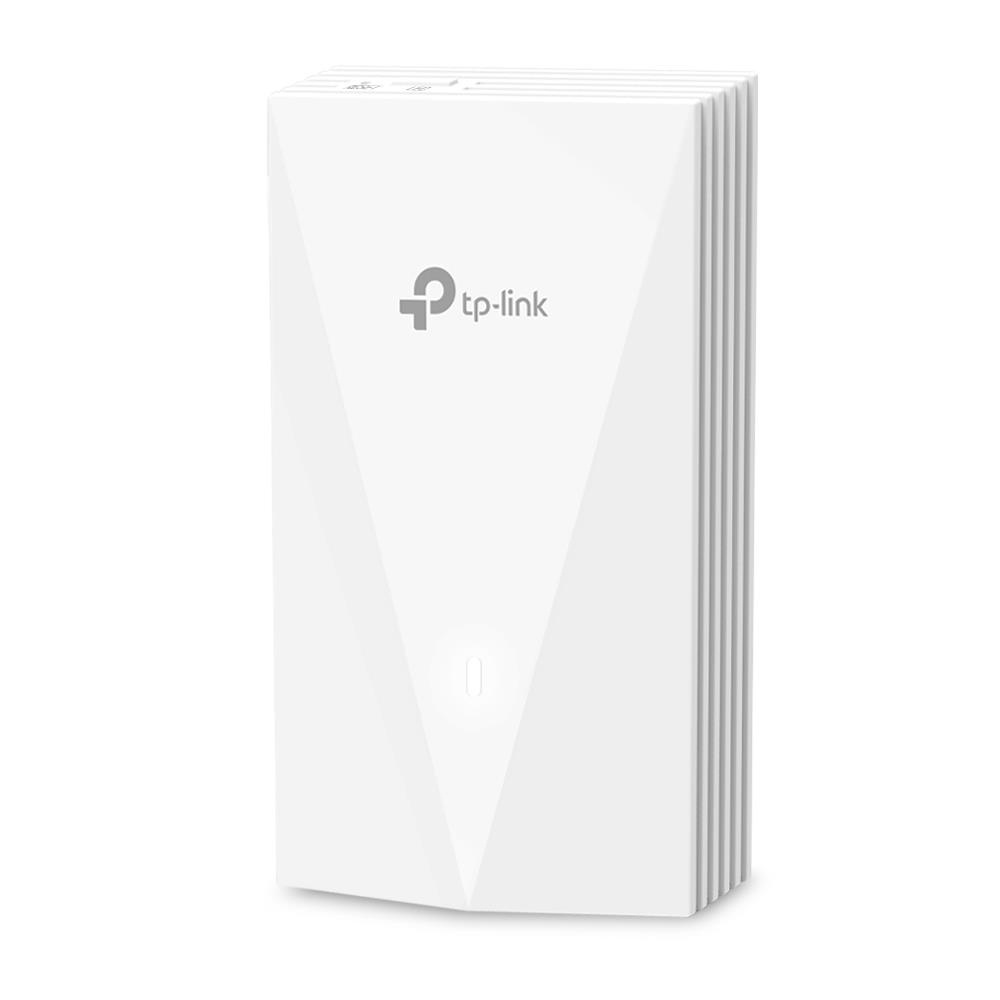

AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
- Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.‡
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.§
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency. ‡
Full Gigabit Ports to Bridge Network

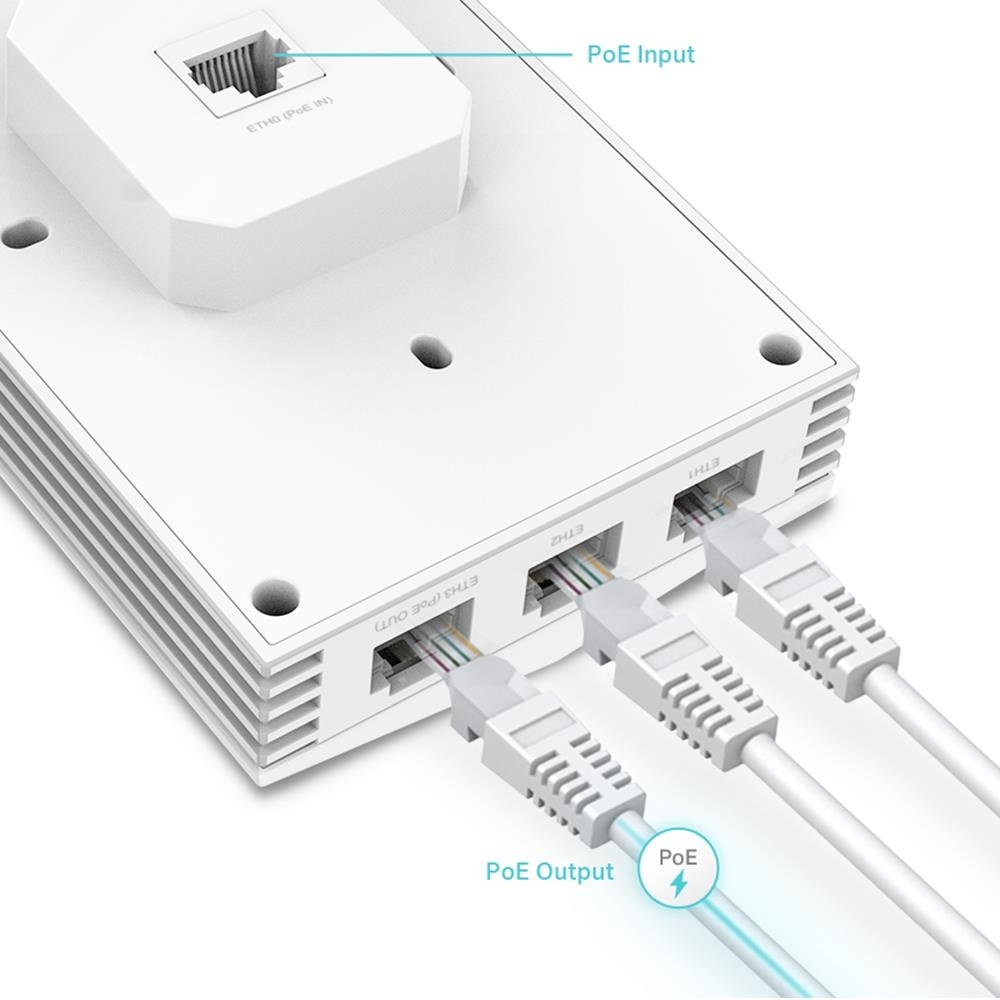

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.*
Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.

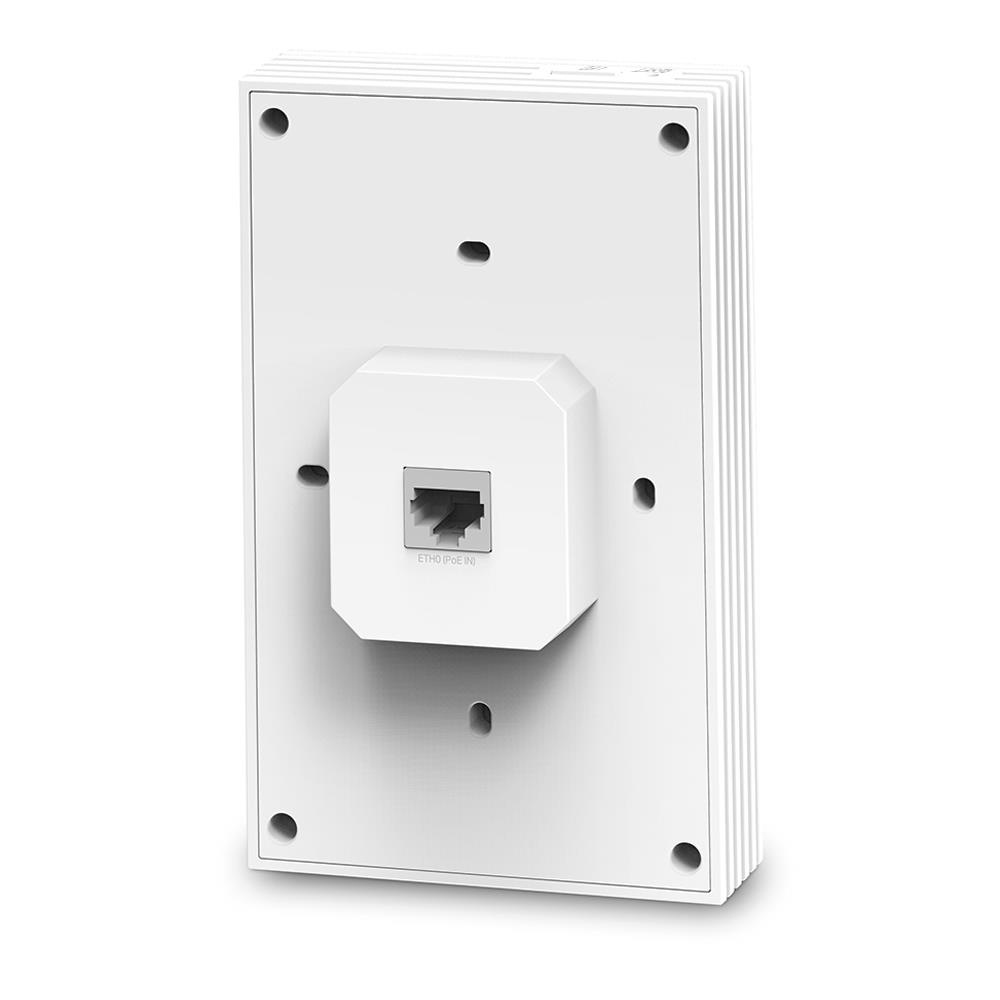

Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
*Fits three kinds of wall junctions
Auto Channel Selection and Power Adjustment to Optimize Overall Performance**
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

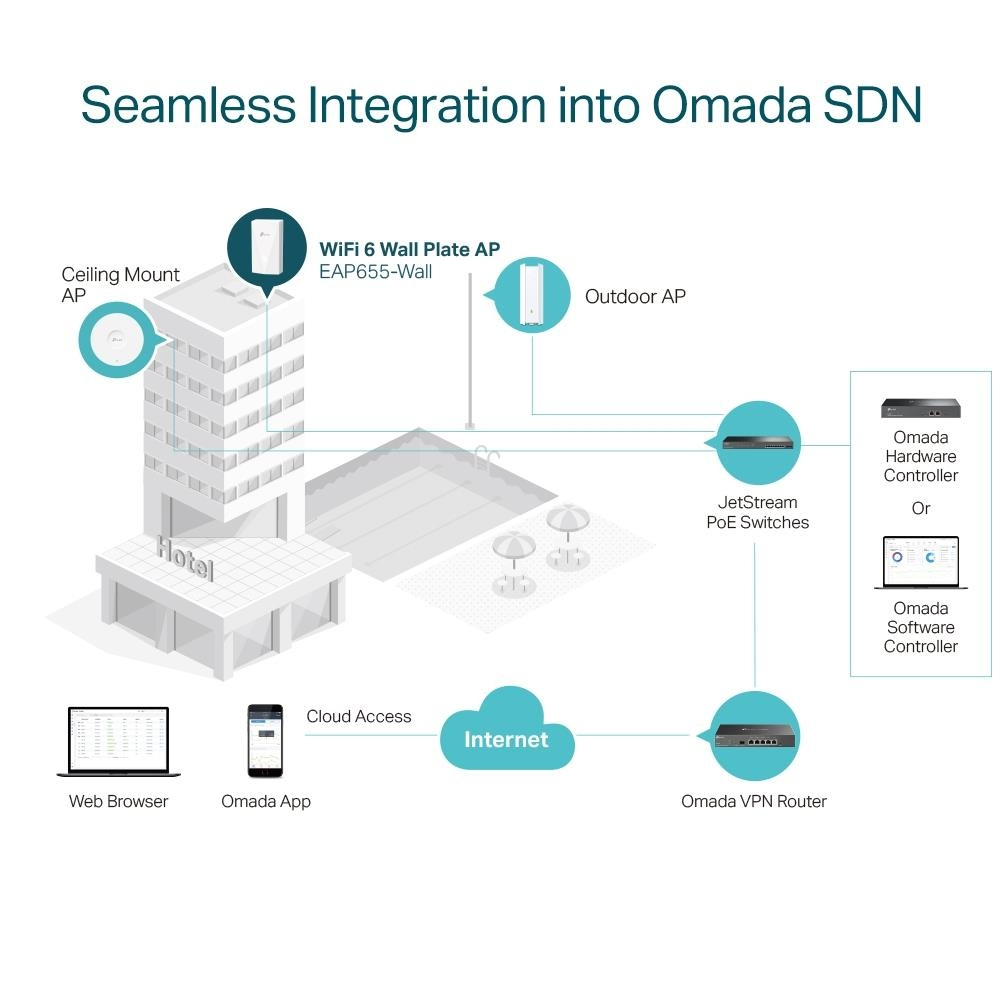

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of WiFi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.
§Omada Mesh, Seamless Roaming, and Captive Portal require Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
*PoE pass-through is only available when 802.3at powers the device.
**Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
- Warranty Type
- Limited Lifetime Warranty
- Form factor
- Wall Plate Mounting (Kits included)
General
- Model
- EAP655-Wall
- Data transfer speed
- 2,976 Mbit/s 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
- Managed
- Yes Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
WiFi
- WiFi
- Yes IEEE 802.11ax/ac/n/g/b/a
- WiFi Standard
- Wi-Fi 6
Ports
- LAN
- 4 pcs. Uplink: 1× 10/100/1000 Mbps Ethernet Port, Downlink: 3× 10/100/1000 Mbps Ethernet Ports
- 4G
- No
- 5G
- No
Additional Information
- Security
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Packaging info
- Packaging size
- 184 x 117 x 56 mm
- Packaging weight
- 429 g
