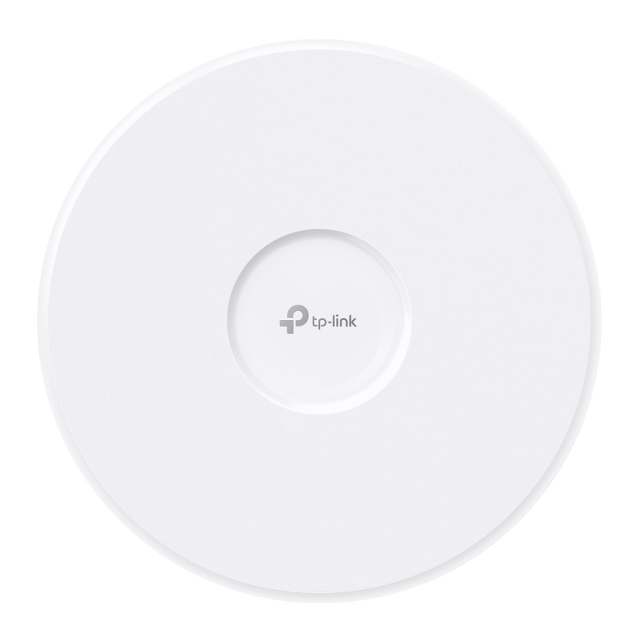

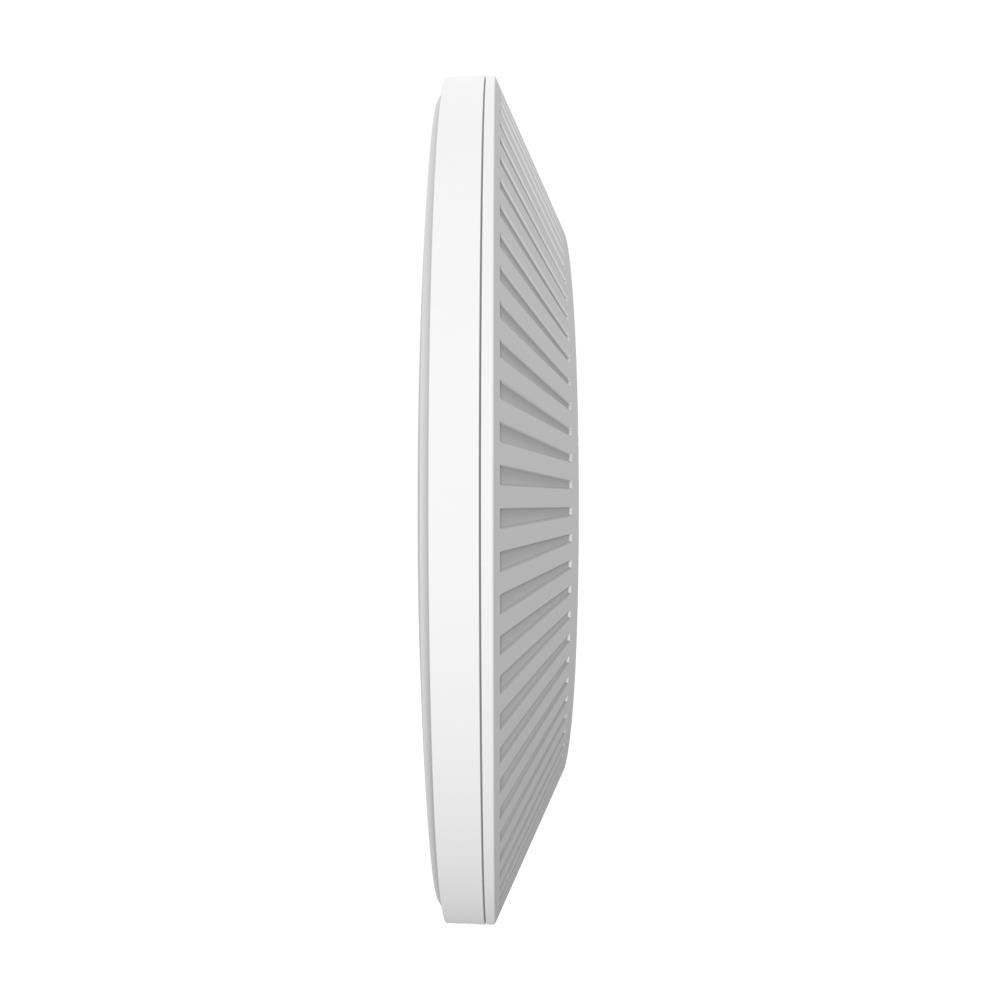

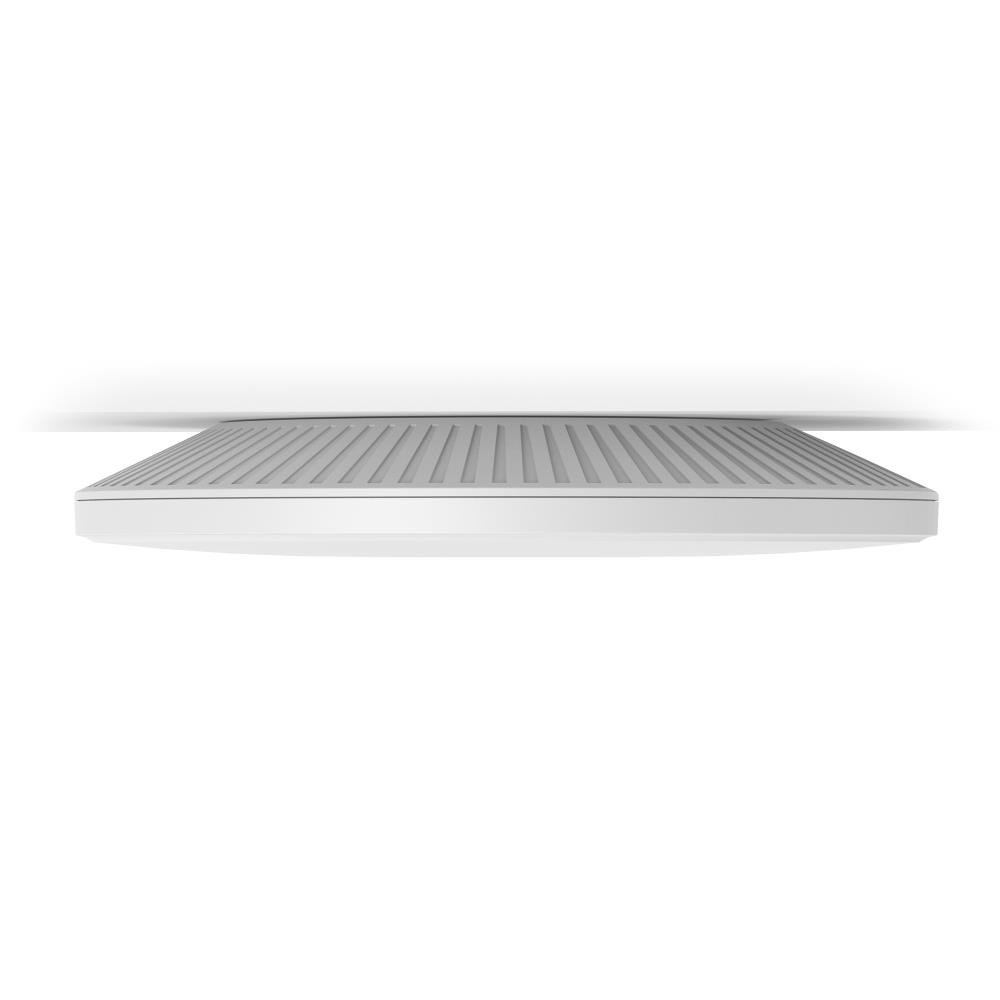

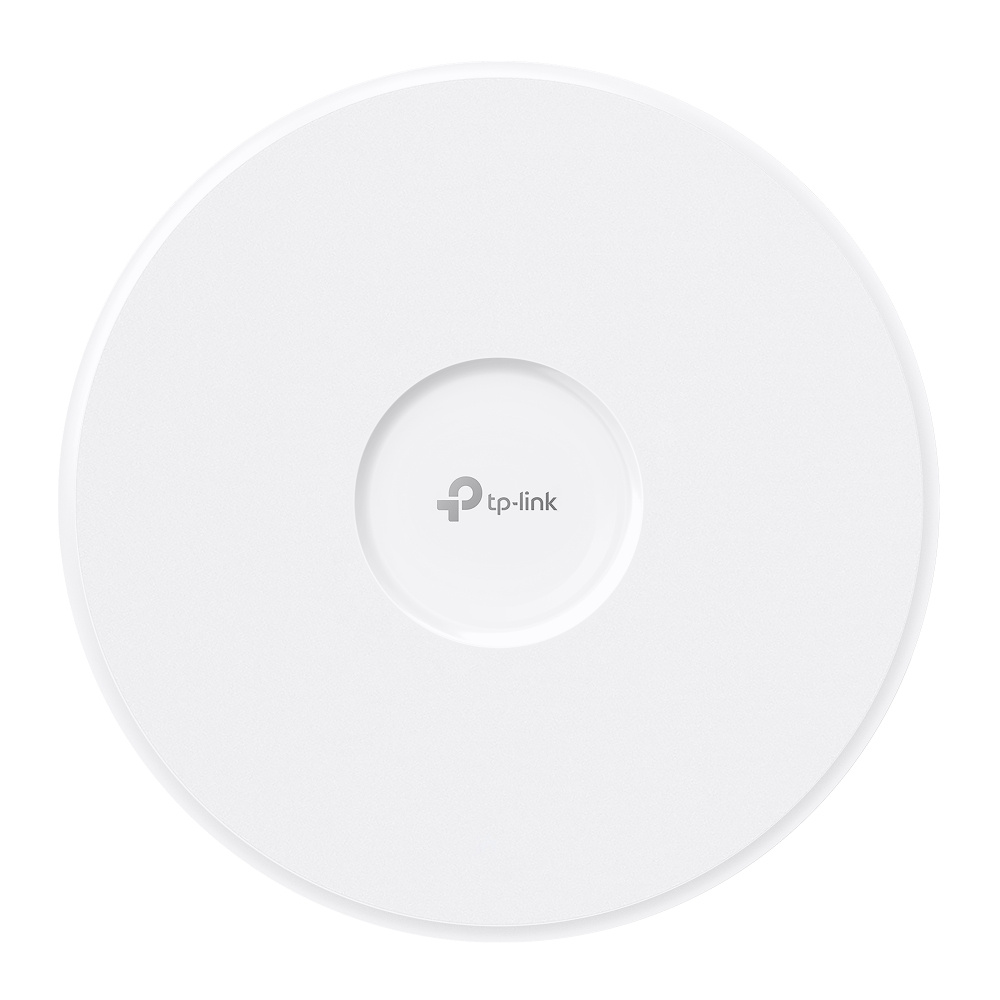

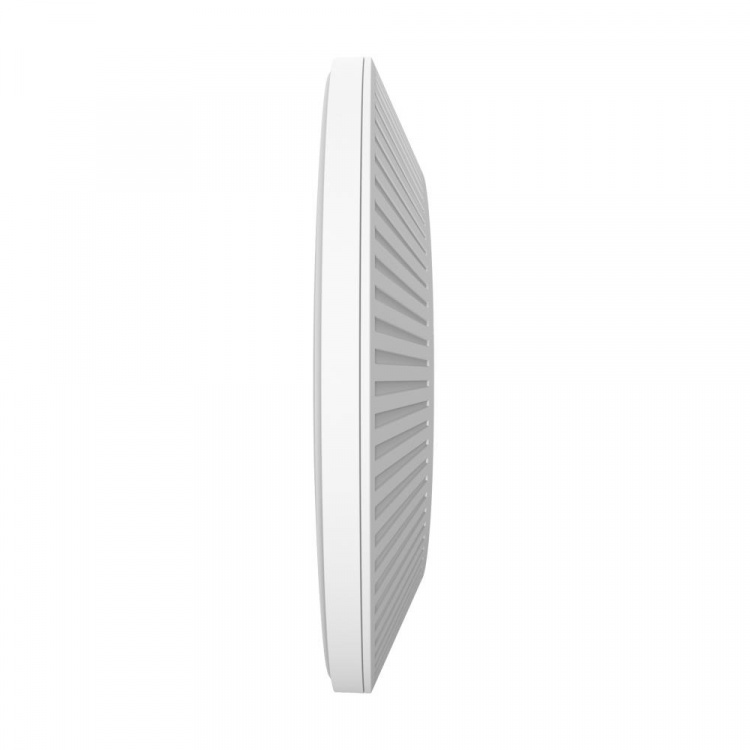

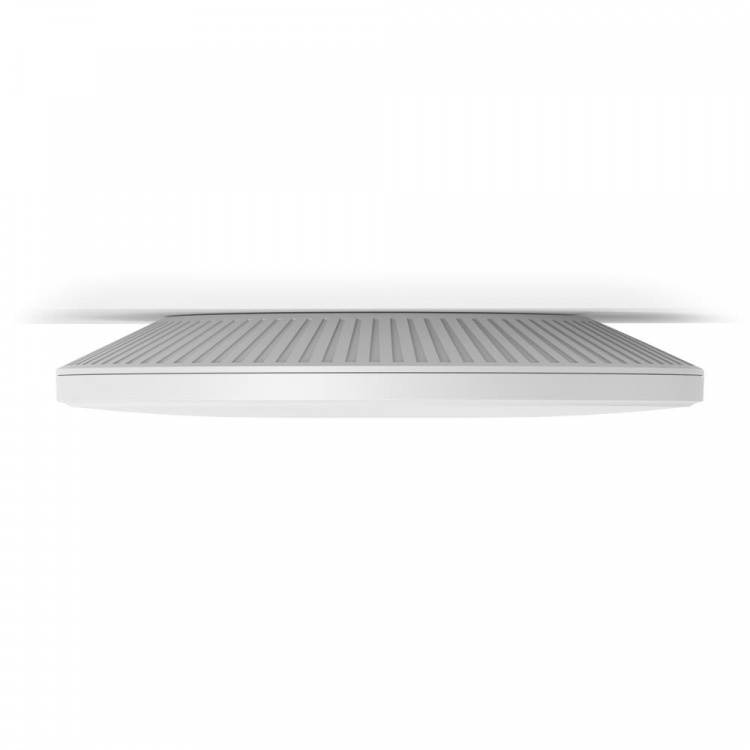

BE19000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP783
- BE19000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz). †
- A clear 6 GHz band brings cleaner and wider band resources.‡
- 2× 10G ports unlock the full potential of Wi-Fi 7.
- 320 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-Link Operation and Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, mesh, and AI roaming.△
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 routers. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 6 GHz, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color require clients to also support the corresponding features.
*Zero-Touch Provisioning, Auto Channel Selection and Power Adjustment require the use of the Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with the Omada Cloud-Based Controller.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada Mesh, AI Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Note：Power adapter is not included.
- Warranty Type
- Limited Lifetime Warranty
General
- Model
- EAP783
- Form factor
- Ceiling mount
- Form factor

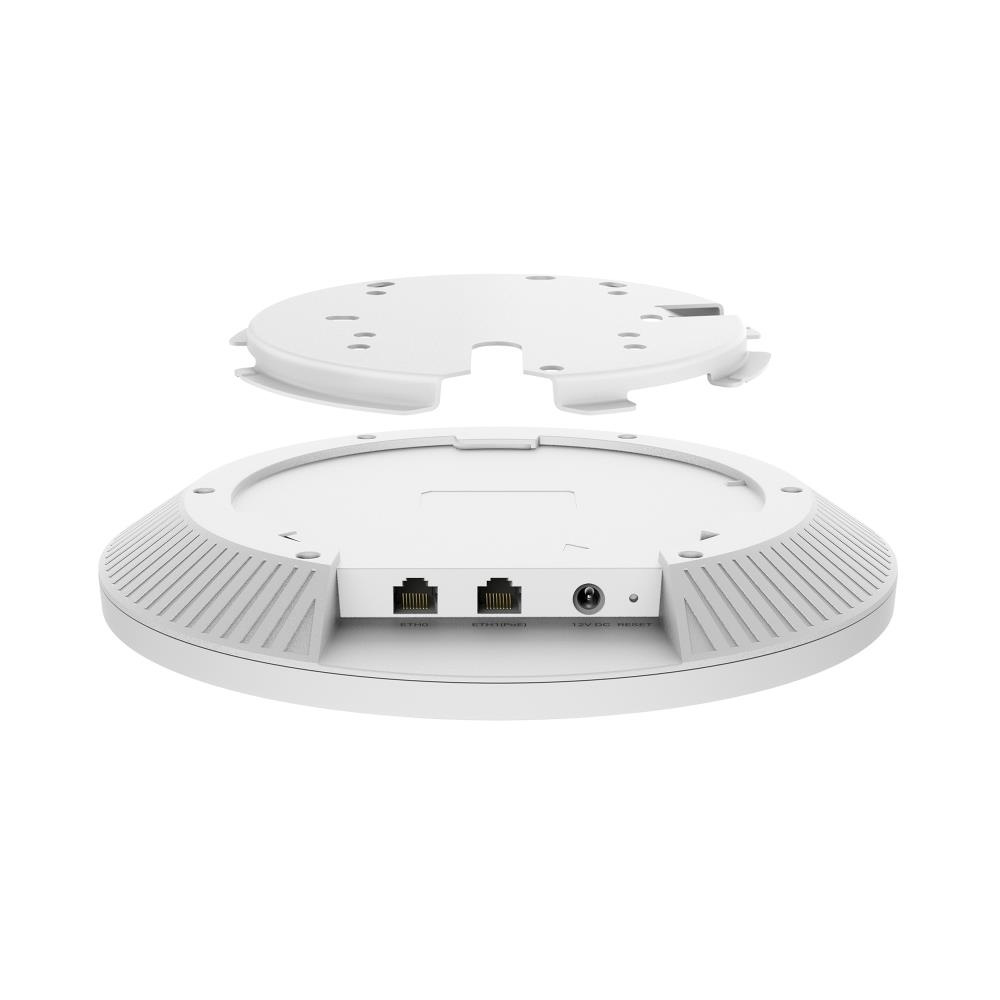

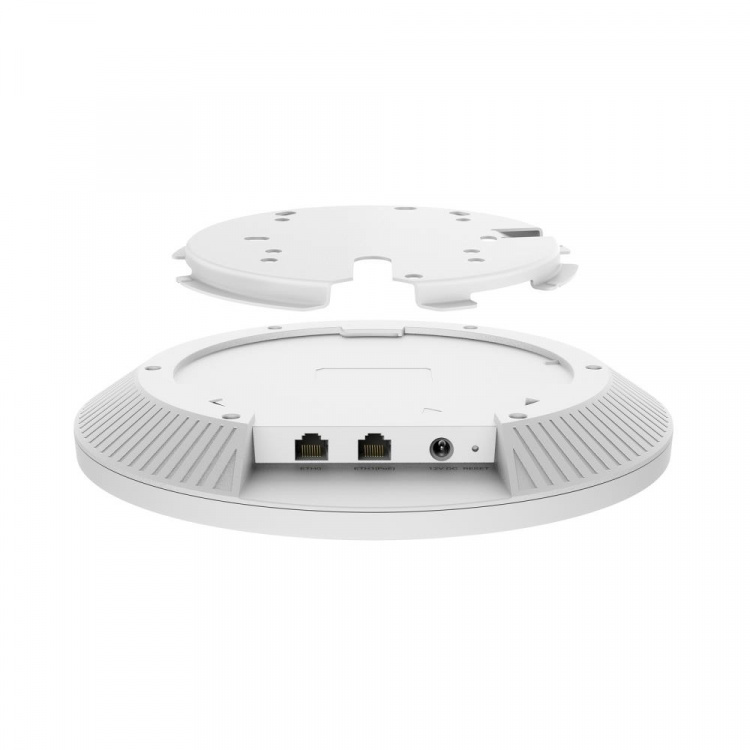

- Wall mount (Kits Included)
- Data transfer speed
- 18,656 Mbit/s 11520 Mbps on 6 GHz + 5760 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz
- Managed
- Yes Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
WiFi
- WiFi
- Yes IEEE 802.11 a/b/g/n/ac/ax/be
- WiFi Standard
- Wi-Fi 7
Ports
- LAN
- 2 pcs. 10G Ethernet Ports
- 4G
- No
- 5G
- No
Additional Information
- Security
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Packaging info
- Packaging size
- 350 x 322 x 95 mm
- Packaging weight
- 2.35 kg
