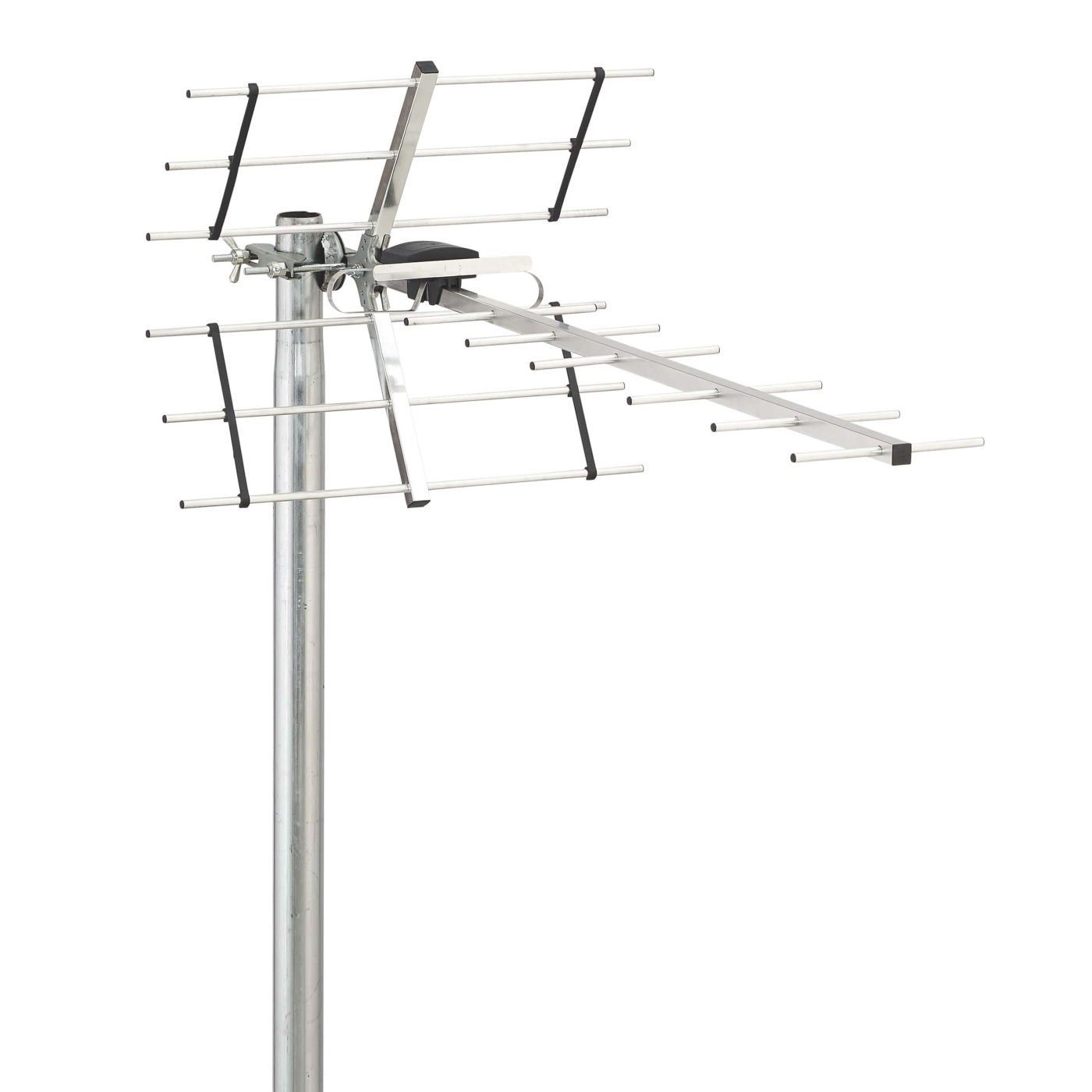

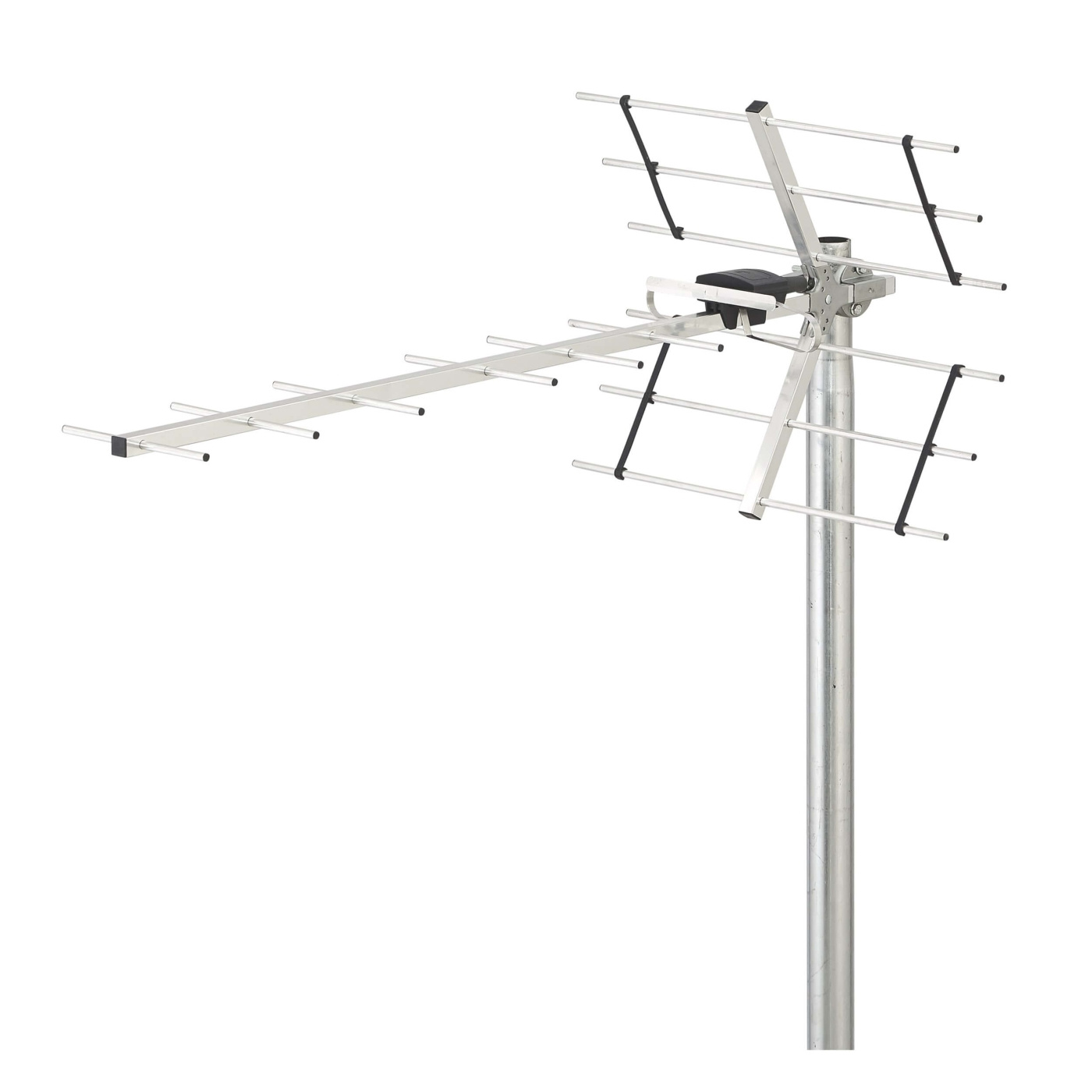

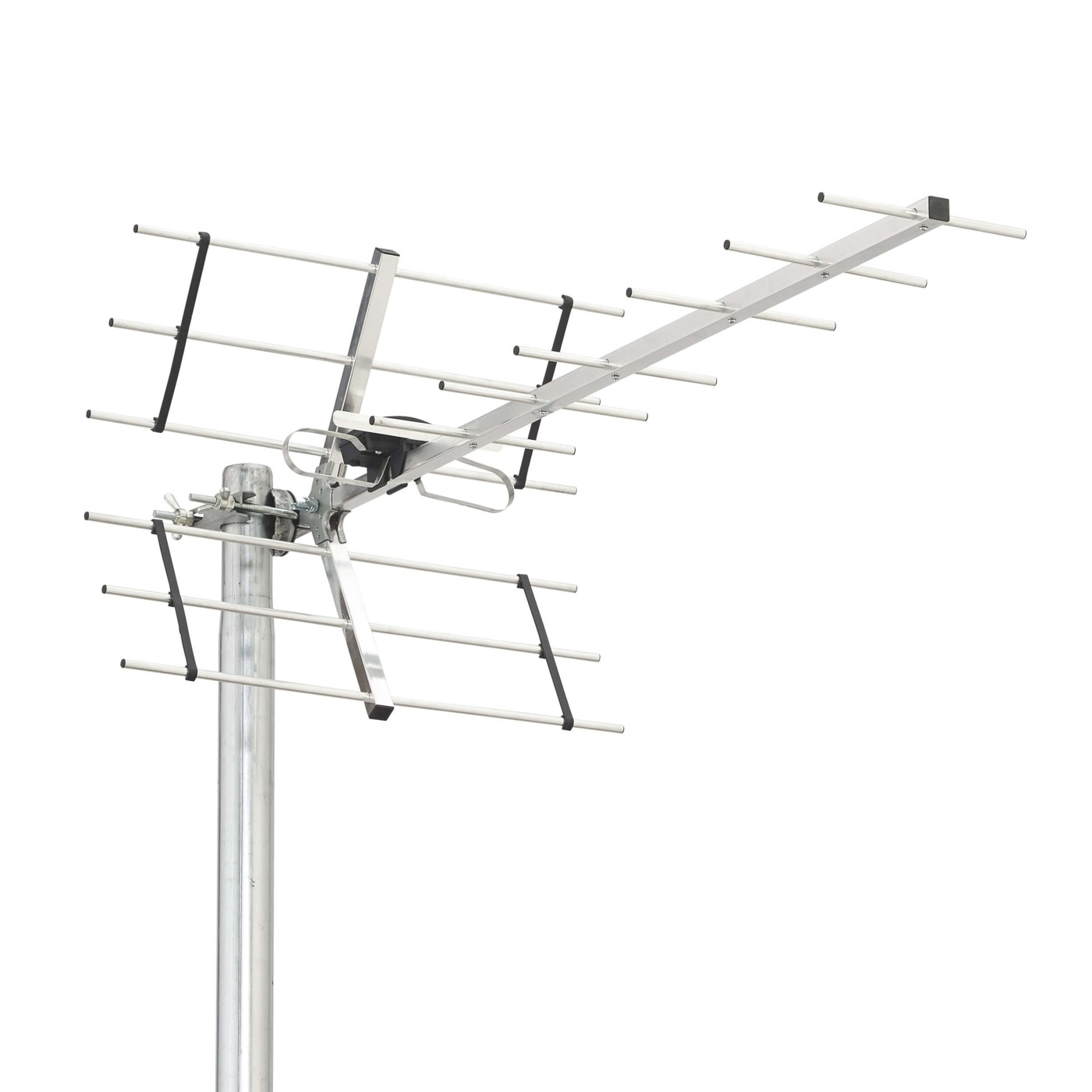

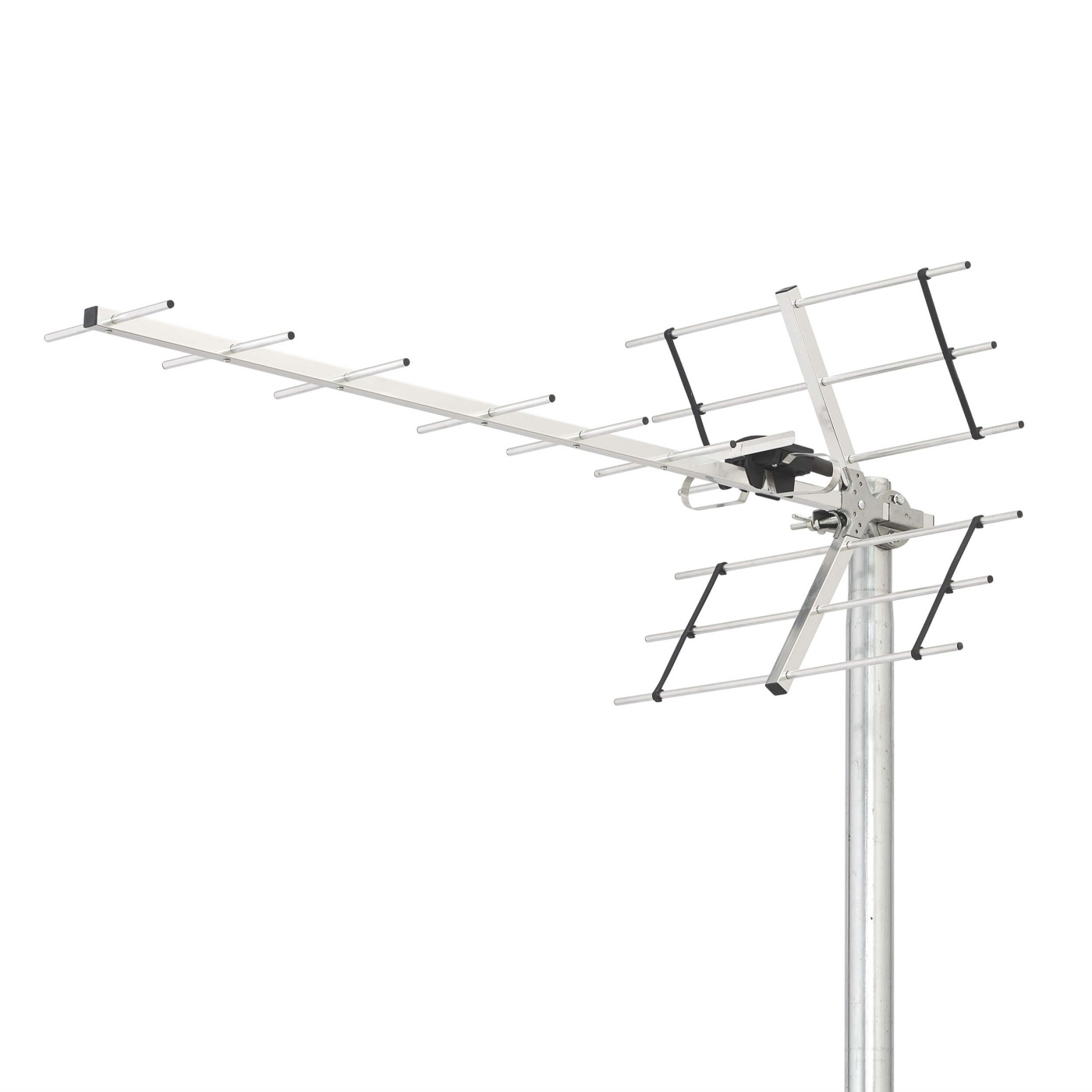

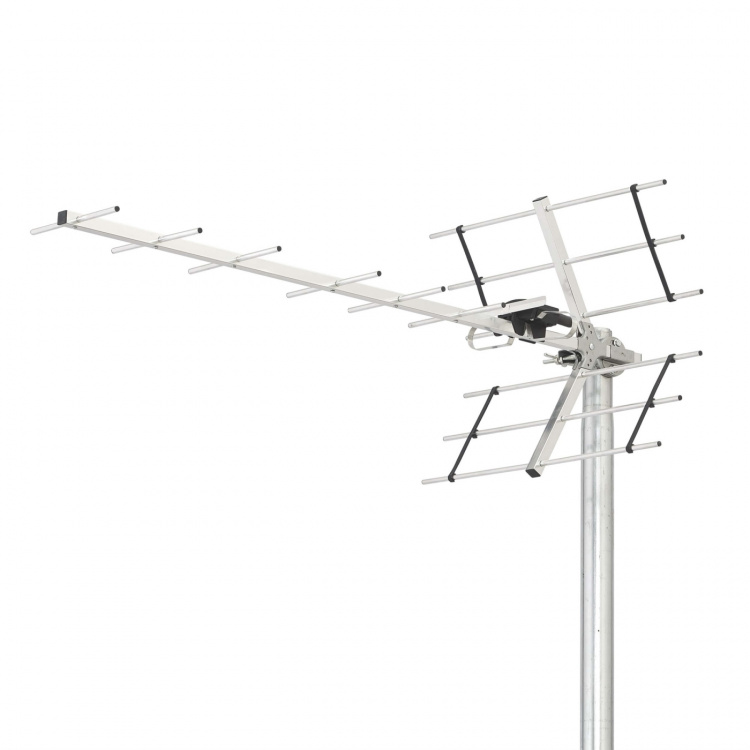

TRIAX Antenna Digi 14 LTE700 Channel 21-48 SE / FI
- Noise-free installation from ceiling to socket
- Interference protection against LTE 700 and 800 signals

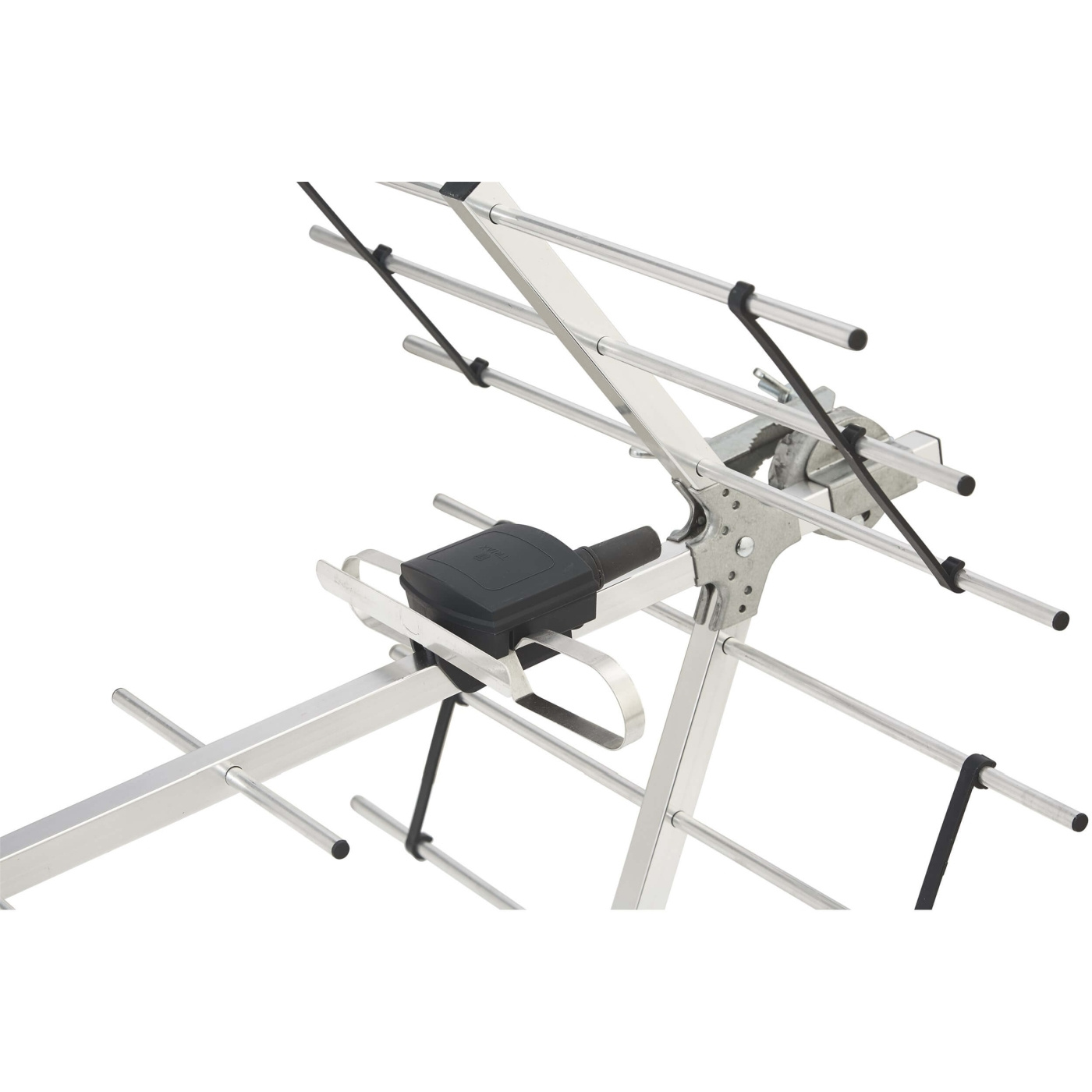

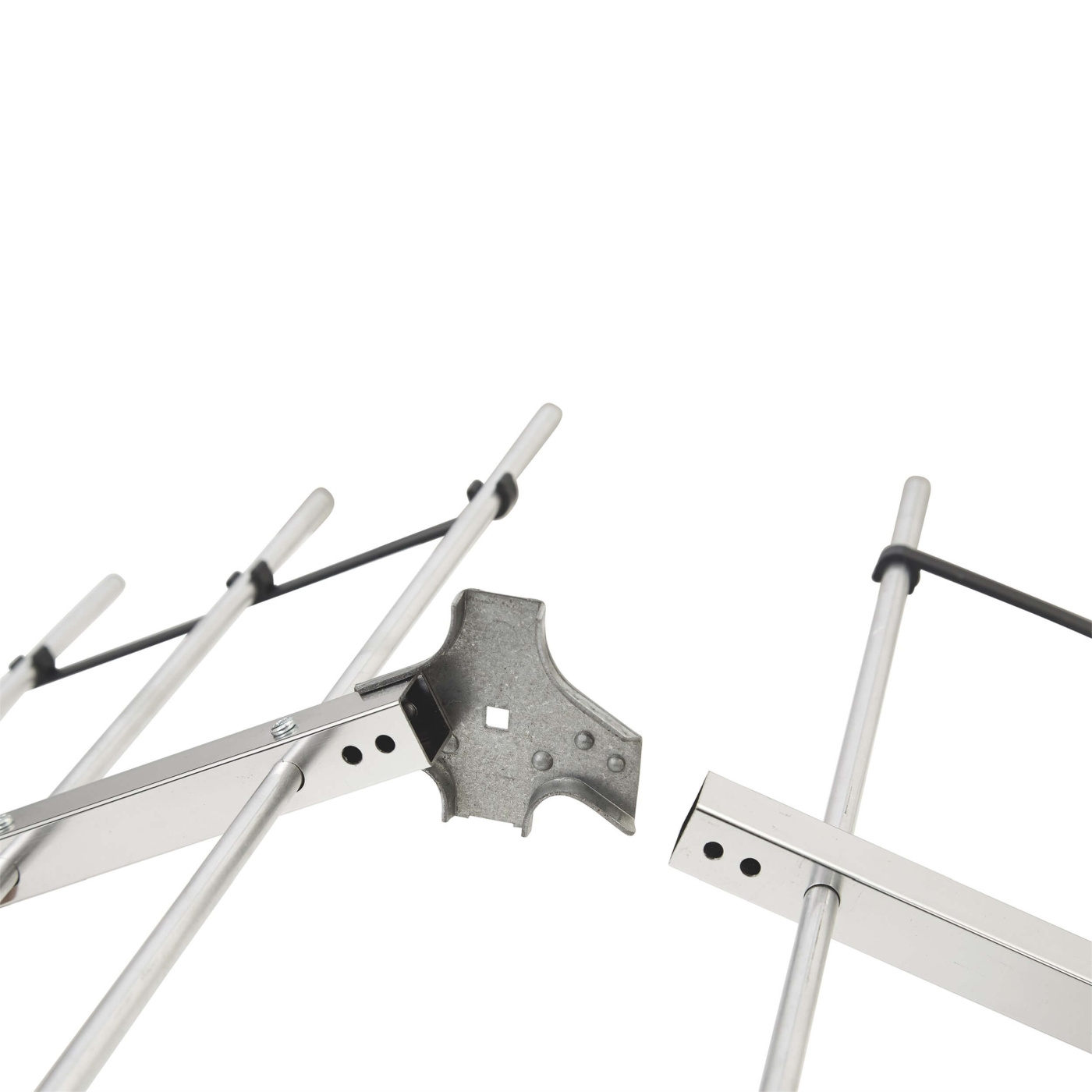

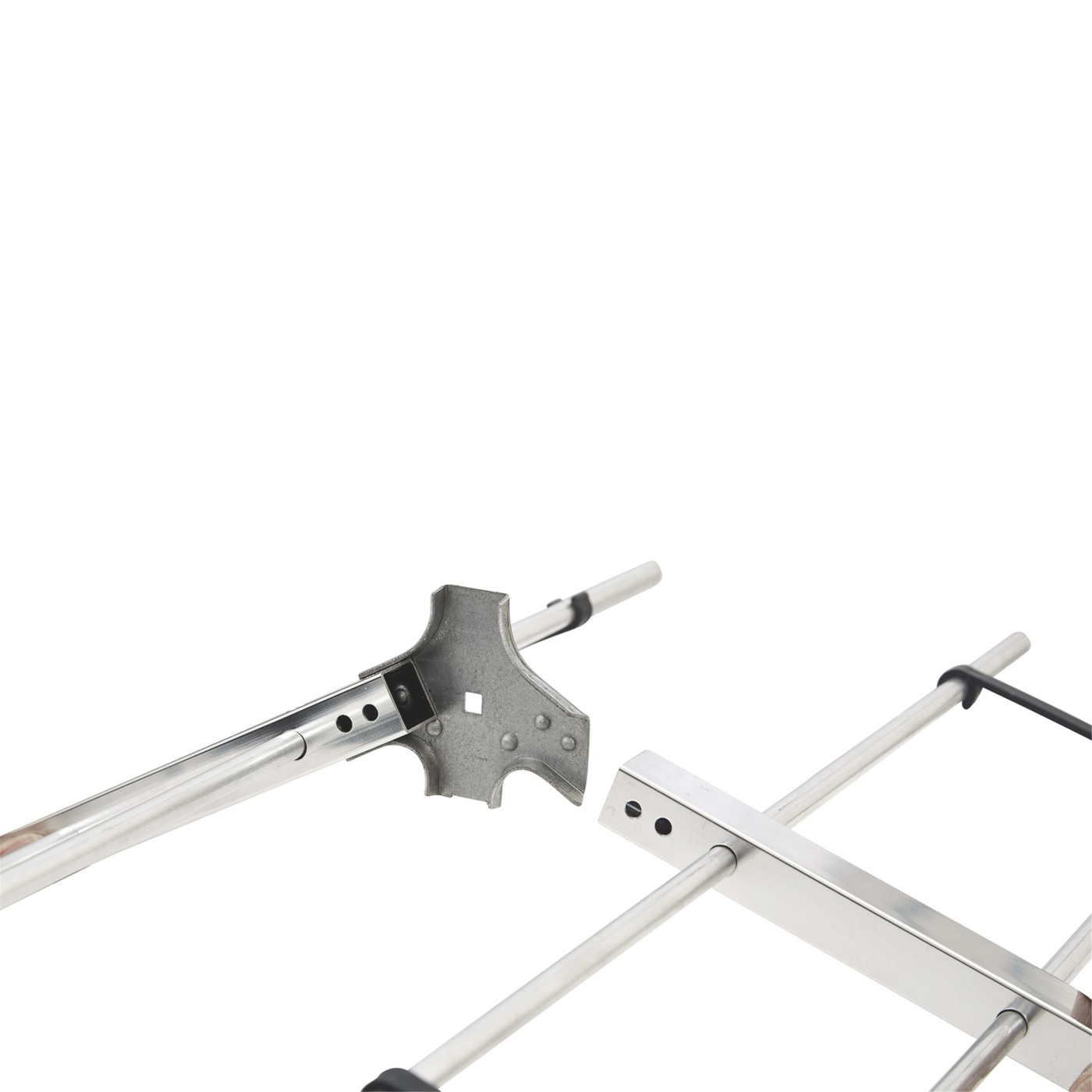

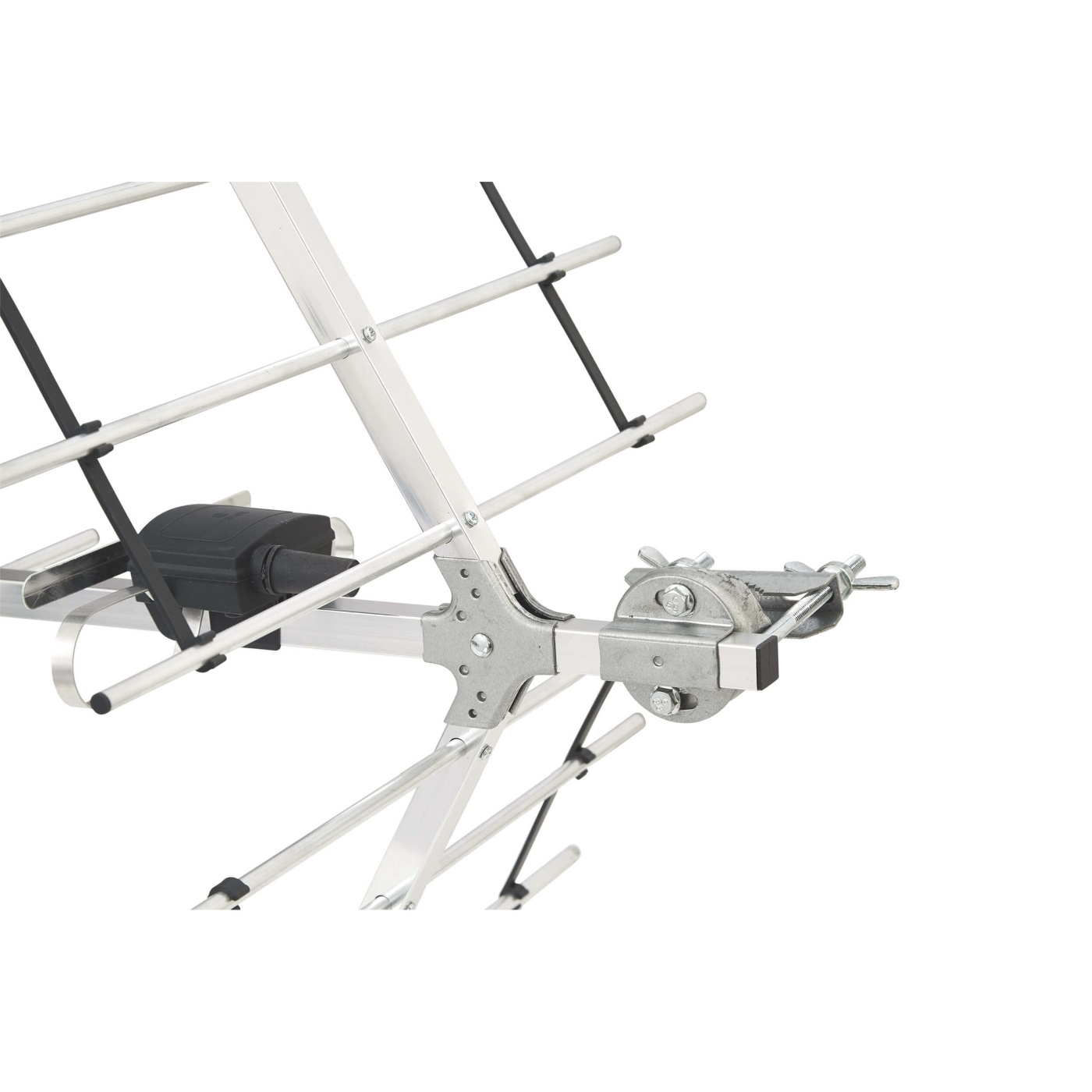

- Quick and easy installation with pre-assembled elements
- Mechanical filtration without signal loss
- Corrosion protected and weatherproof dipole housing
Reliable, high quality antenna that guarantees satisfied end customers. Designed to receive DVB-T2 HD signals in the 470-694 MHz range.
CHARACTERISTICS
Type Digi 14
FREQUENCY RANGE
Band B IV / V UHF
Channels 21 ... 48
Frequency range UHF 470 ... 694 MHz
LTE protection @ 700Mhz
GAIN
Gain 13.5 max dBi
Amplification @ 474 MHz Ch 21 10.9 dBi
Gain @ 602 MHz (Ch. 37) 11.1 dBi
Amplification @ 694 MHz (Ch. 48) 11.5 dBi
LOSS
Rejection @ 758 MHz (Ch. 56) 3.8 dB
Rejection @ 788 MHz (Ch. 60) 8.3 dB
ELECTRICAL DATA
Front and rear ratio Horizontal 23 dB
FITTINGS
Connector F-female
MECHANICAL DATA
element 14
Wind load 54 N
Opening angle Horizontal ± 30 °
material Aluminum
Length 1085 mm
Width 480 mm
5061038080049EAN:
