ClickTronic Koaxialkabel Premiumkabel | Koaxialkontakt Koaxialkoppling | 20,0 m | > 95 dB

Article nr: C43378
€52.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information

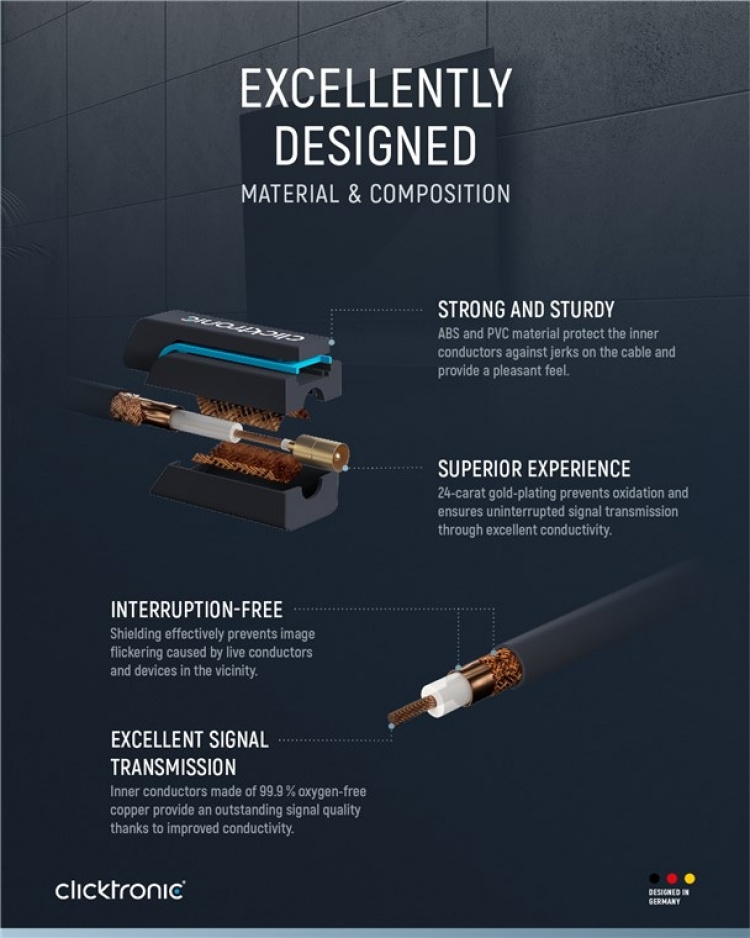

Clicktronic attaches great importance to durability and stability. Our quality promise: 10-year warranty on our antenna cables. The proprietary construction of our connection cables makes them extremely robust. The three-part connector construction made of PVC and ABS components compensates for jerky pulling on the cable, making it ideally protected against cable breaks. High-quality, gold-plated contacts and pure copper conductors guarantee fast data transmission. The durable PVC jacket protects the coaxial cable and ensures a long-lasting, stable connection.

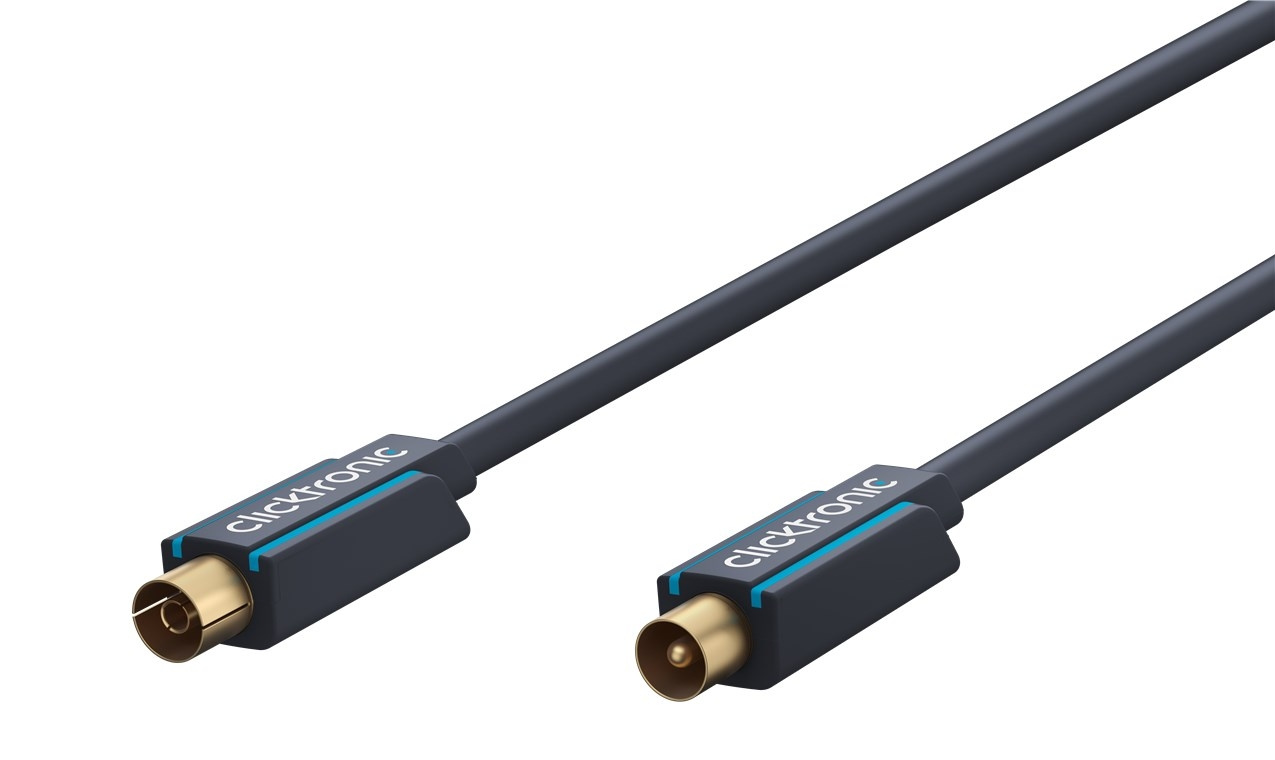

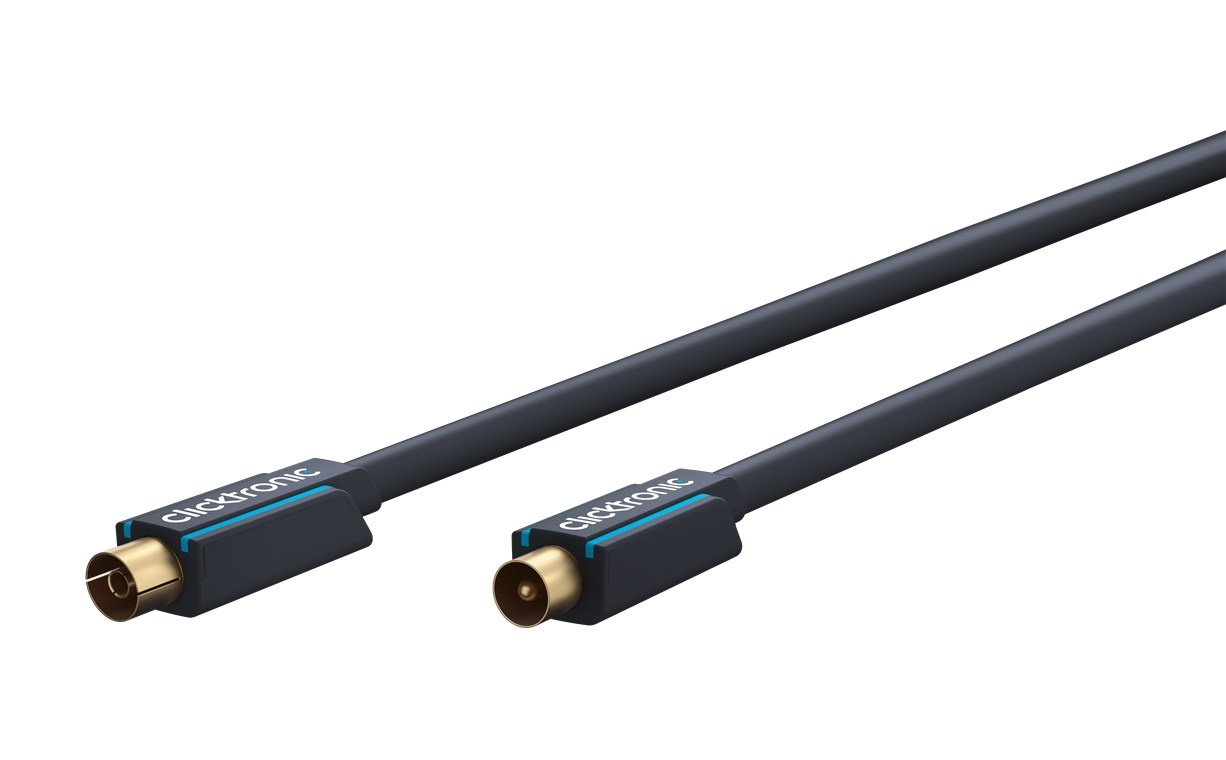

Premium cable | Coaxial plug Coaxial coupling | 20.0 m | > 95 dB Cable length 20 m

Förpackning: Retail Box

  • TV aerial cable transmits HDTV and DVB signals loss-free from the cable network connection or a satellite system to the TV, SAT receiver or radio.
  • Interference-free TV reception thanks to 2-fold signal shielding of the antenna cable of > 95 dB
  • The TV cable is especially suitable for upmarket requirements with high-definition TV formats.
  • 24-carat gold-plated coaxial connectors for minimal transmission resistance and smooth antenna or cable TV without delays
  • Flexible, robust PVC cable sheathing enables easy bending and laying of the antenna cable without damage.
  • To avoid transmission losses, the sat coaxial cable has a characteristic impedance of 75 ohm.
  • The SAT connection cable is characterised by durability and brilliant signal quality thanks to inner conductors made of 99.9 % oxygen-free copper.
AWG: 22
Cable sheath diameter (approx.): 6 mm
Diameter ferrite core: 14 mm
Number of shieldings: 2 x
Markings: WEEE, CE
Operating temperature up to: 80 °C
Operating temperature from: -10 °C
Warranty: 10 years
CAS no.: 7439-92-1
chemical substance: Pb
Impedance: 75 Ω
Shielding efficiency: 95 dB
Cable type: round cable
Ferrite core: yes
Material cable sheath: PVC
4040849704086EAN:
  • Specifications
  • Length: 20 m
