Goobay Antenna Cable (Class A, >85 dB), Double Shielded coaxial plug > coaxial socket (fully shielded), 1 m

Article nr: C43180
€4.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information

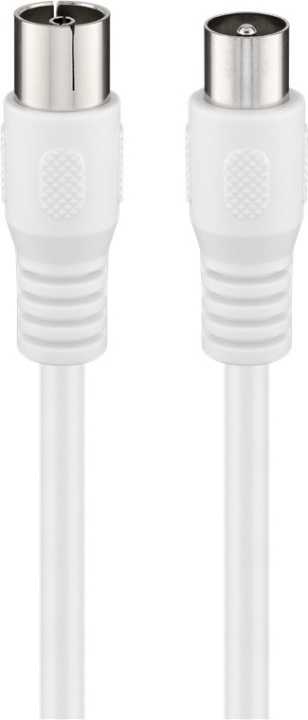

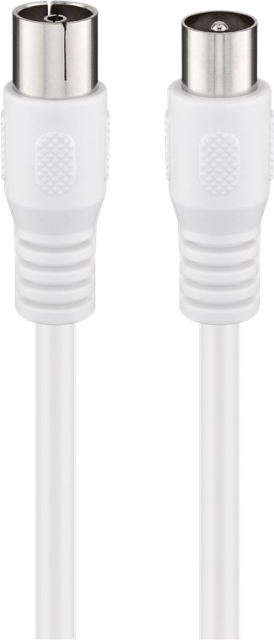

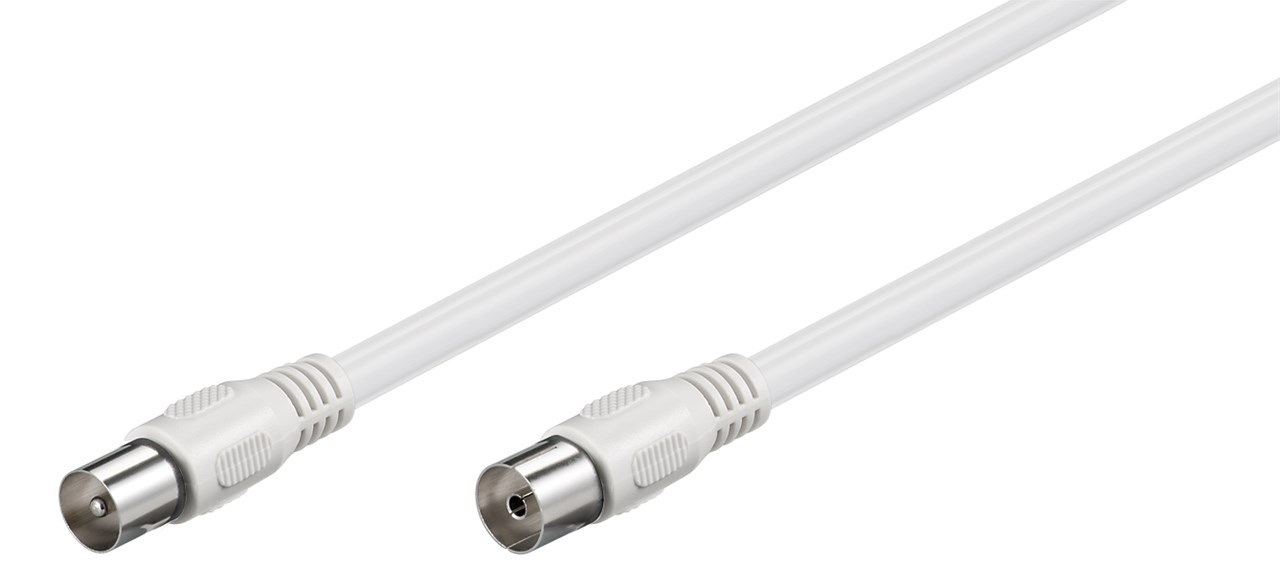

coaxial plug > coaxial socket (fully shielded) Cable length 1 m

Förpackning: Bulk

  • Double shielded satellite cable for interference-free transmission
  • Molded plug on both sides to protect against dust, dirt and mechanical stresses

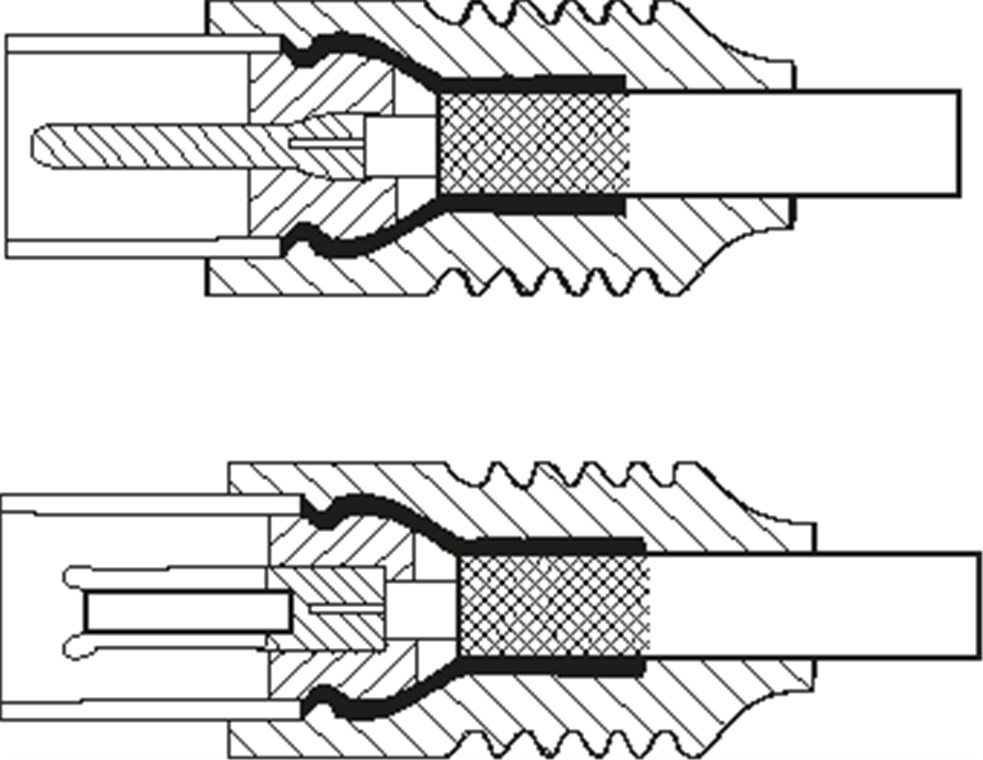

  • Coaxial cable with nickel-plated, precision-fit contacts
  • TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Cable sheath diameter (approx.): 5 mm
inner conductor, core diameter: 0.5 mm
Dielectric diameter: 2.9
Shielding class: Class A
Number of shieldings: 2 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 85 dB
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CCS
Type 1, shielding: double foil (aluminium)
Type 2, shielding: braid (aluminium) 96x
Connection, shielding: yes
Connection, type: Coaxial male (plug)
4040849666124EAN:
  • Specifications
  • Length: 1 m
  • Manuals & Datasheets
  • Reviews & Questions/Answers
