Förpackning: Bulk

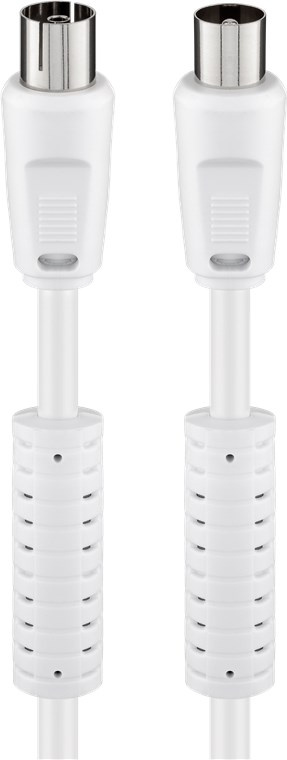

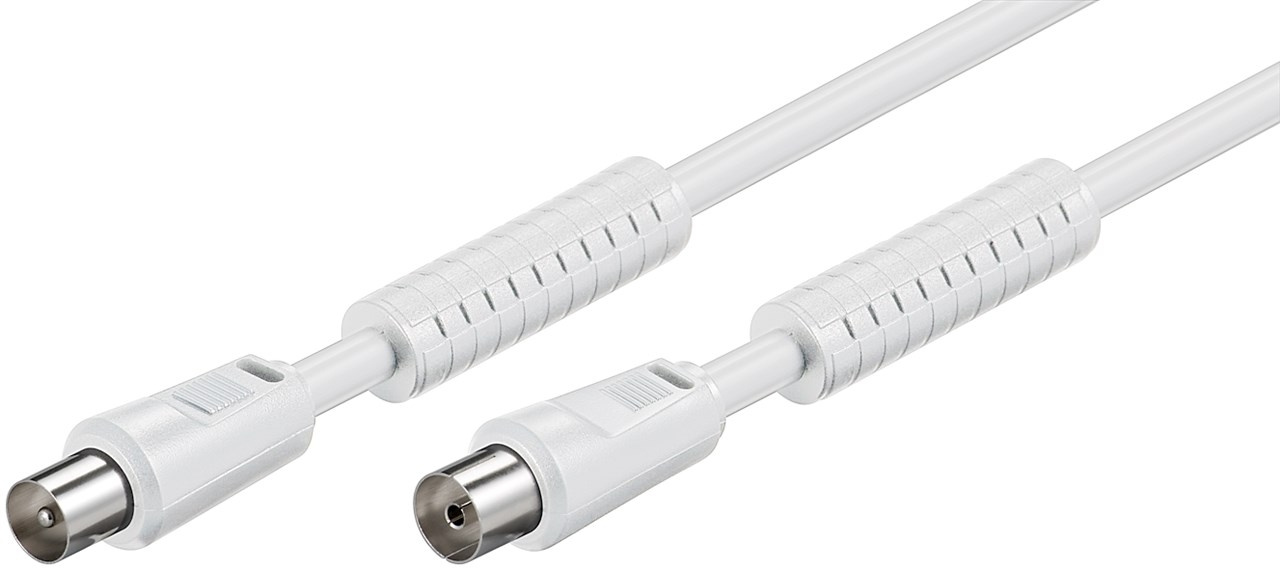

- Double-shielded antenna connection cable with ferrite core for interference-free transmission
- Suitable for Sat & BK systems
- Molded plug on both sides to protect against dust, dirt and mechanical stresses
- Coaxial cable with nickel-plated, precision-fit contacts
- Coax cable with sheath current filter to avoid interference noise.
- TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
inner conductor, core diameter: 0.5 mm
Number of shieldings: 2 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 80 dB
Cable type: coaxial cable
Ferrite core: yes
Material cable sheath: PVC
Inner conductor material: CCS
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 112x
Connection, contact material: nickel-plated
Connection, shielding: yes
Connection, type: Coaxial male (plug)
4040849507250EAN:
