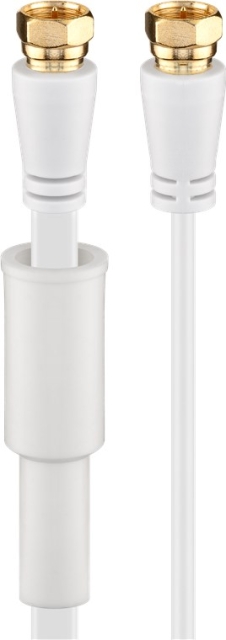

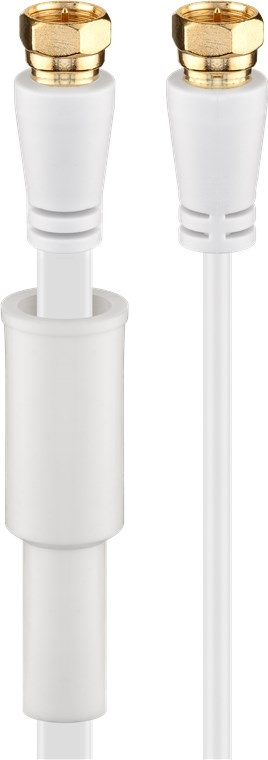

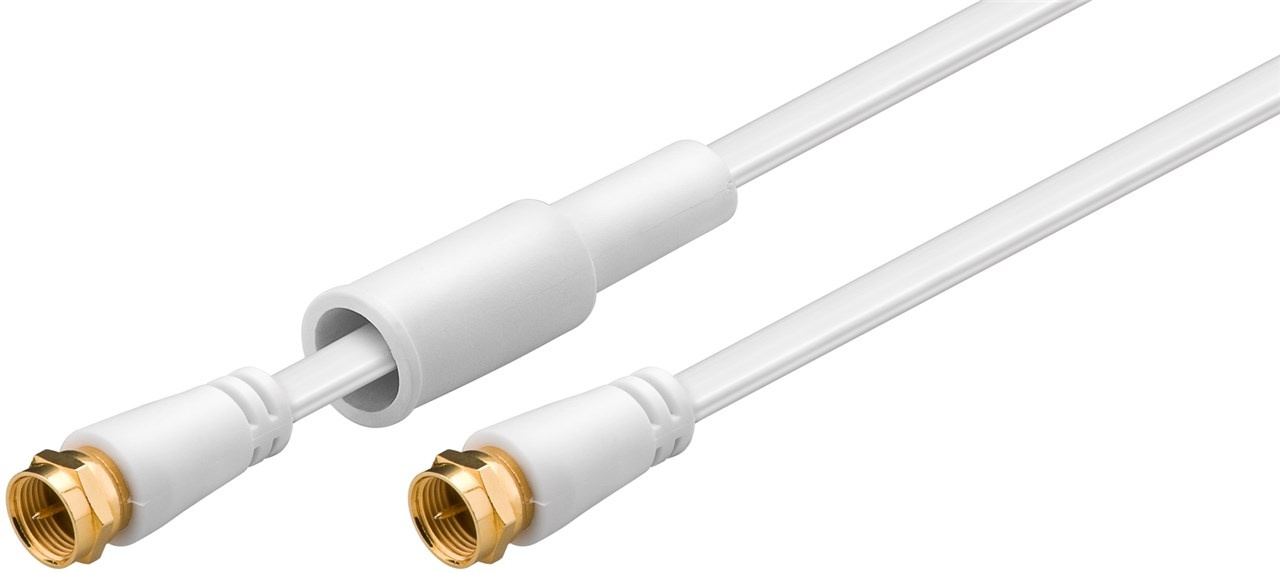

Goobay Flat SAT Antenna Cable (80 dB), Double Shielded, Weather Protected gold-plated, F-plug > F-plug (fully shielded), 1.5 m

Article nr: C43212
€6.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
gold-plated, F-plug > F-plug (fully shielded) Cable length 1.5 m

Förpackning: Bulk

  • Double shielded satellite cable for interference-free transmission
  • Weather protection cover protects against dust, dirt and mechanical stress.
  • Long-term conductivity of the coaxial cable is guaranteed as gold-plated contacts do not corrode.
  • Flat coax cable with low bending radius, ideal for laying under laminate or behind skirting boards
  • TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Cable sheath diameter (approx.): 3.8 mm
width of cable sheath: 7.2 mm
height of cable sheath: 3.8 mm
inner conductor, core diameter: 0.4 mm
Number of shieldings: 2 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 80 dB
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 112x
Connection, contact material: gold-plated
Connection, shielding: yes
4040849672873EAN:
  • Specifications
  • Length: 1.5 m
  • Manuals & Datasheets
  • Reviews & Questions/Answers
