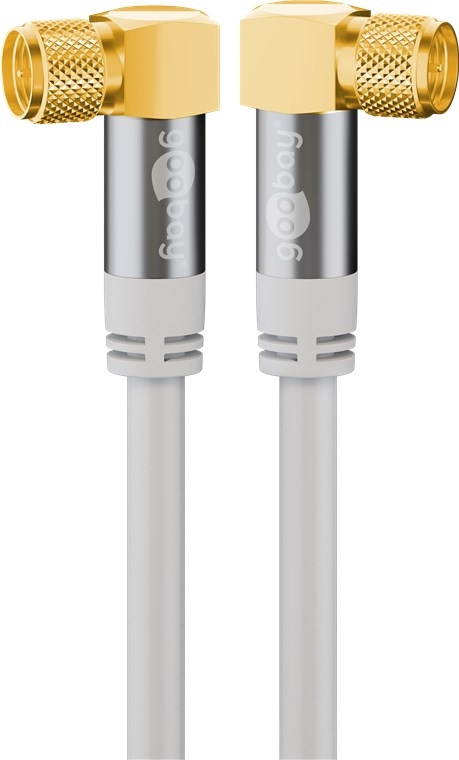

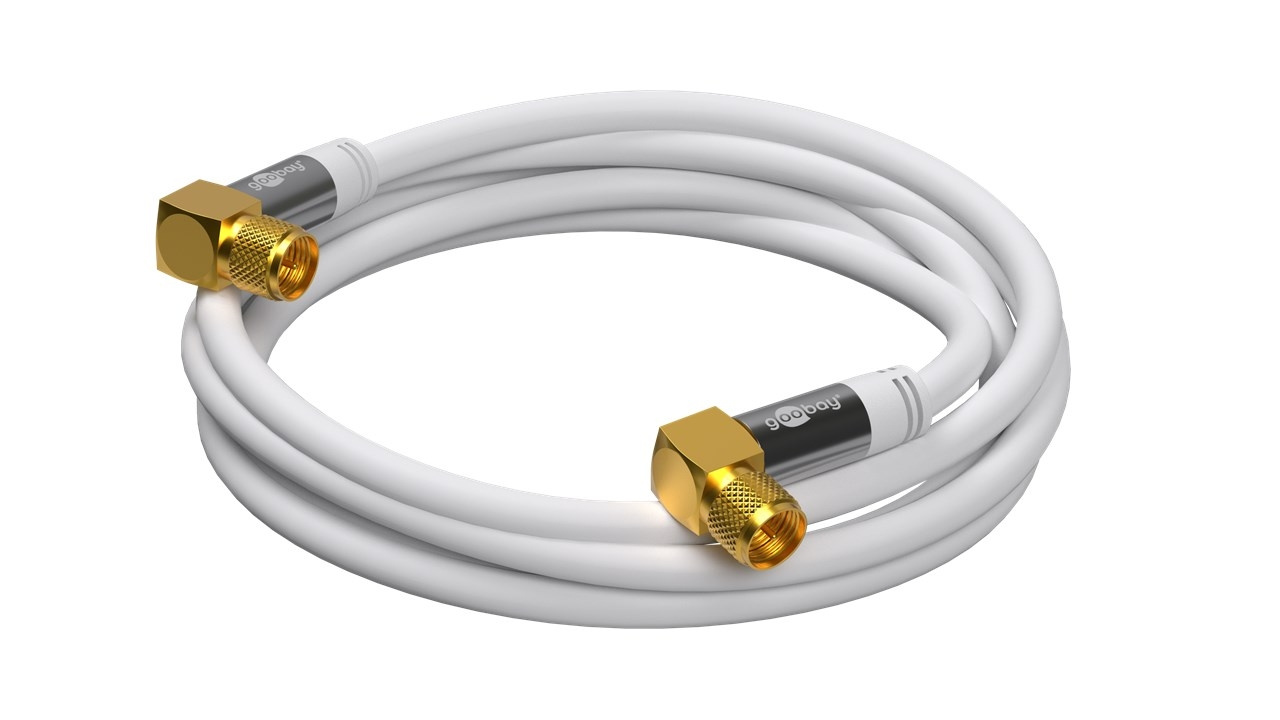

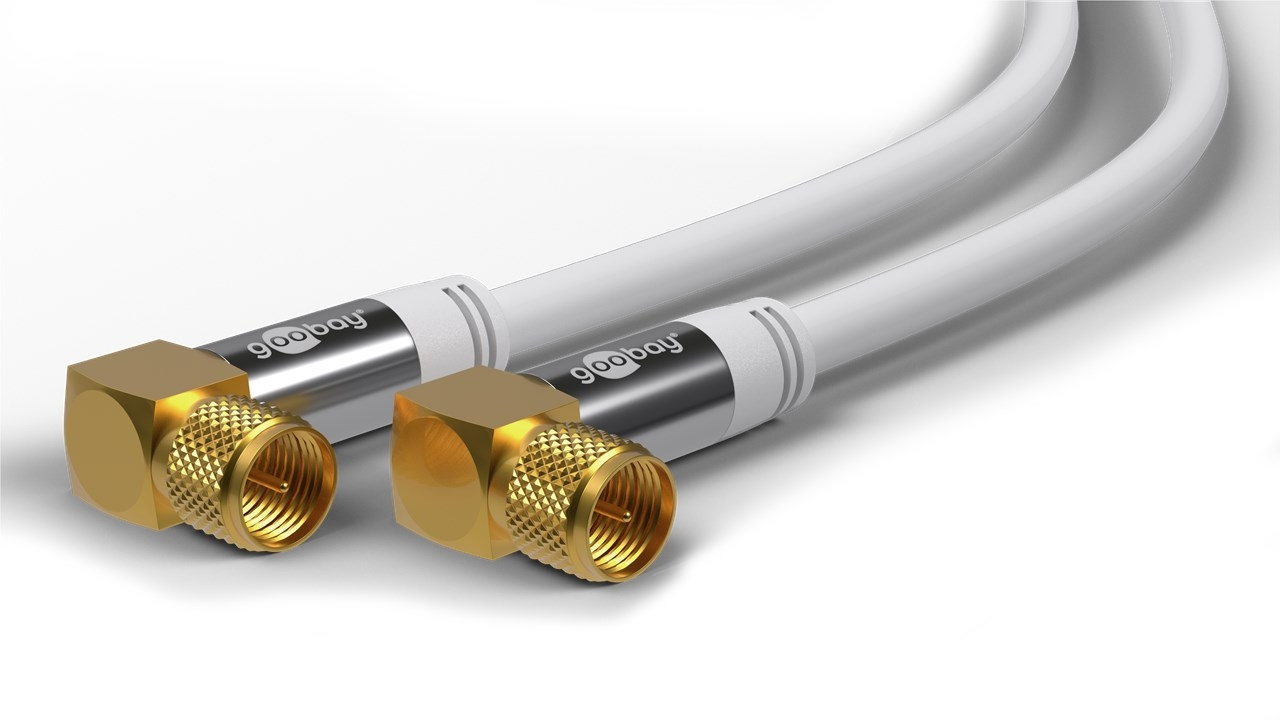

Goobay SAT Antenna Cable (135 dB), 4x Shielded gold-plated, F plug 90° > F plug 90°, 3 m

Article nr: C43409
€13.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
ideal for high-resolution transmissions (HDTV, Full HD, Ultra HD (UHD/4K and higher)) for both digital SAT signals such as DVB-S and DVB-S2. Reliable connection between the wall/multimedia outlet and the receiving device, such as a TV/SAT receiver, cable modem, cable router etc.

gold-plated, F plug 90° > F plug 90° Cable length 3 m

Förpackning: Retail Polybag

  • 4-fold shielded satellite cable for interference-free transmission
  • Inner conductor made of pure OFC full copper for ideal conduction and transmission properties
  • Particularly conductive and durable coaxial cable due to full metal plug with gold-plated contacts
  • Optimised bend protection and flexible cable sheathing protect against exceeding the maximum bending radius of the TV aerial cable.
  • Wide, easy-grip metal caps for effortless screwing on without tools
  • Angled plugs simplify laying the coax cable even in tight spaces
  • For transmitting digital SD/HDTV signals, e. g. from SAT systems to TV sets or receivers
Cable sheath diameter (approx.): 8 mm
inner conductor, core diameter: 1.02 mm
Dielectric diameter: 5
Number of shieldings: 4 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 135 dB
Kink protection: both sides
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: foil (aluminium)
Type 4, shielding: braid (aluminium) 128x
4040849704840EAN:
