ideal for high-resolution transmissions (HDTV, Full HD, Ultra HD (UHD/4K and higher)) for both digital SAT signals such as DVB-S and DVB-S2. Reliable connection between the wall/multimedia outlet and the receiving device, such as a TV/SAT receiver, cable modem, cable router etc.

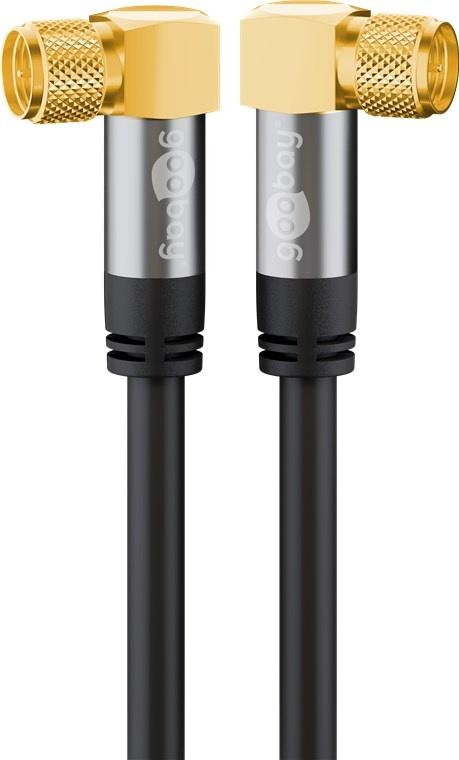

gold-plated, F plug 90° > F plug 90° Cable length 2 m

Förpackning: Retail Polybag

4-fold shielded satellite cable for interference-free transmission
Inner conductor made of pure OFC full copper for ideal conduction and transmission properties
Particularly conductive and durable coaxial cable due to full metal plug with gold-plated contacts
Optimised bend protection and flexible cable sheathing protect against exceeding the maximum bending radius of the TV aerial cable.
Wide, easy-grip metal caps for effortless screwing on without tools

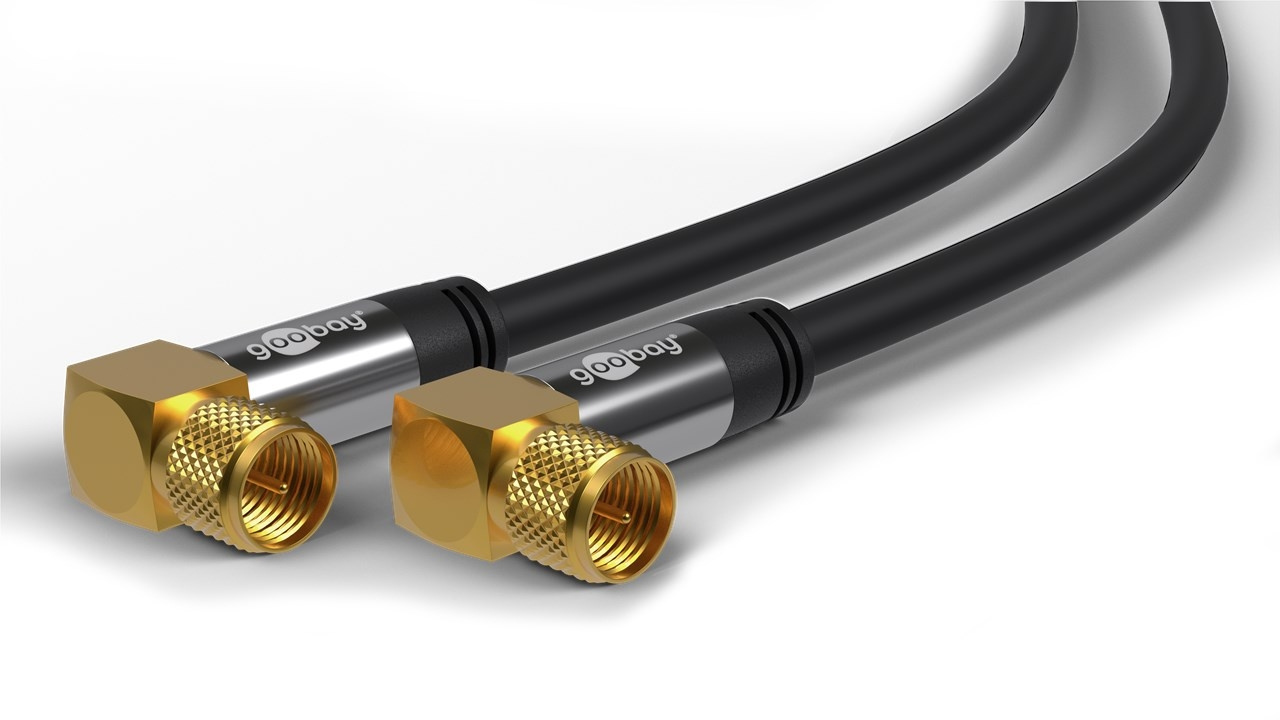

Angled plugs simplify laying the coax cable even in tight spaces
For transmitting digital SD/HDTV signals, e. g. from SAT systems to TV sets or receivers

Cable sheath diameter (approx.): 8 mm
inner conductor, core diameter: 1.02 mm
Dielectric diameter: 5
Number of shieldings: 4 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 135 dB
Kink protection: both sides
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: foil (aluminium)
Type 4, shielding: braid (aluminium) 128x

4040849705731EAN:

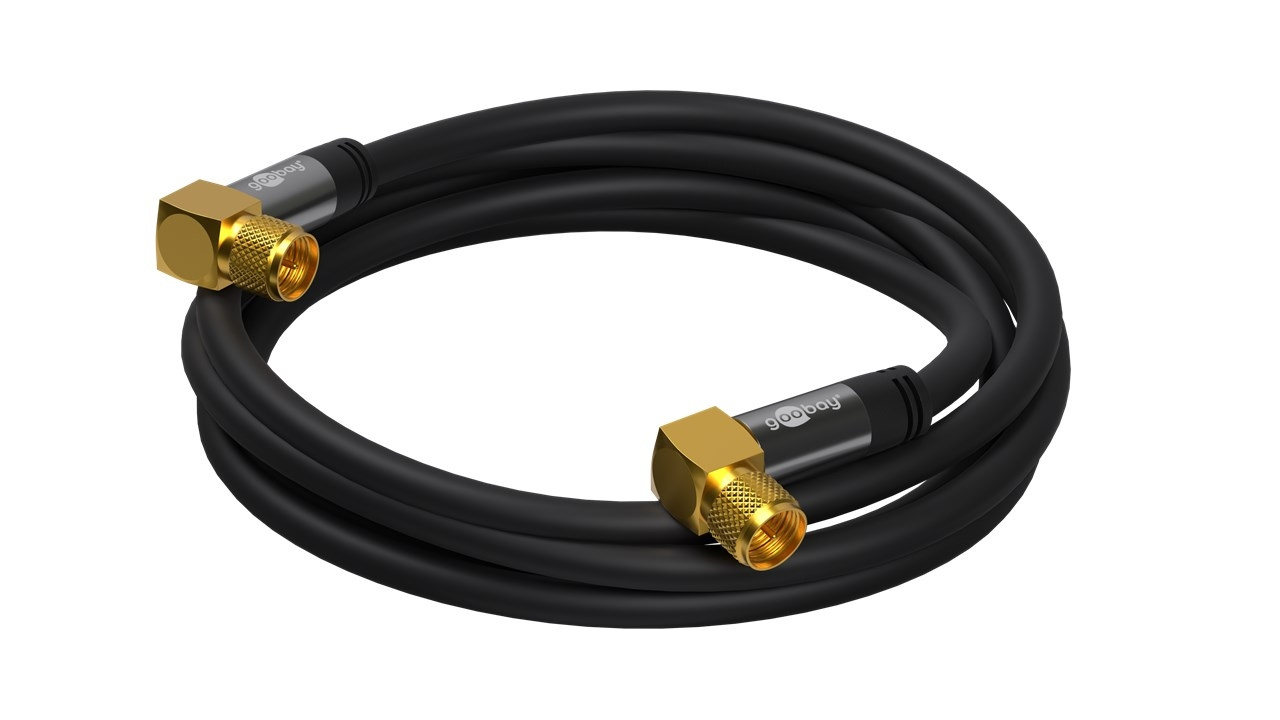

Goobay SAT Antenna Cable (135 dB), 4x Shielded gold-plated, F plug 90° > F plug 90°, 2 m
