Ideal for high-resolution transmissions of digital satellite signals such as DVB-S and DVB-S2, e.g. HD TV, Full HD, Ultra HD (4K and higher). The cable provides a reliable connection between the connection/multimedia socket and the reception device such as TV, satellite receiver, cable modem, cable router, etc.

gold-plated, F plug > F plug Cable length 1 m

Förpackning: Retail Polybag

4-way shielded satellite connection cable for interference-free transmission
Inner conductor made of pure OFC full copper for ideal conduction and transmission properties

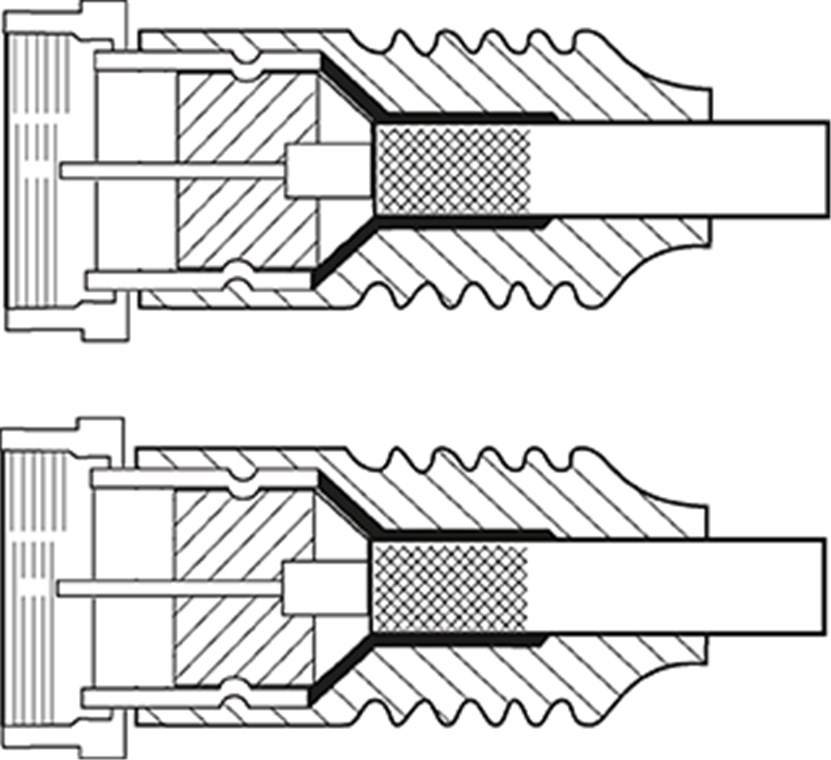

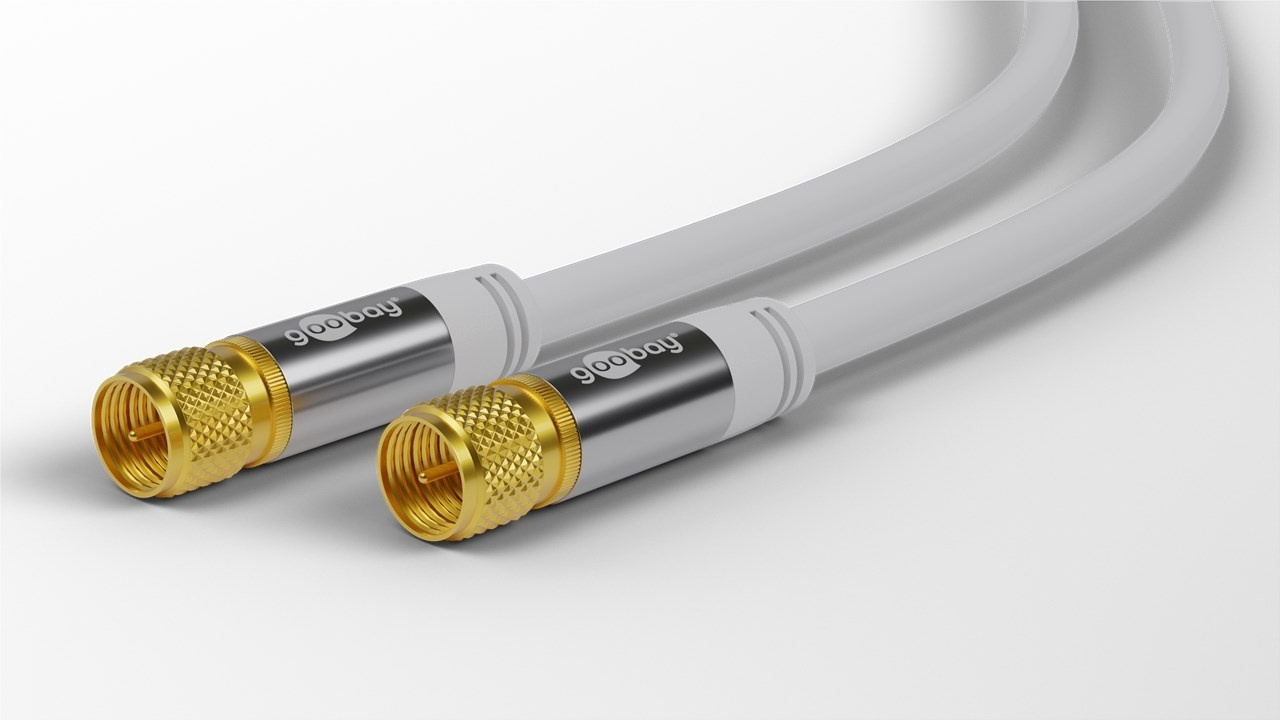

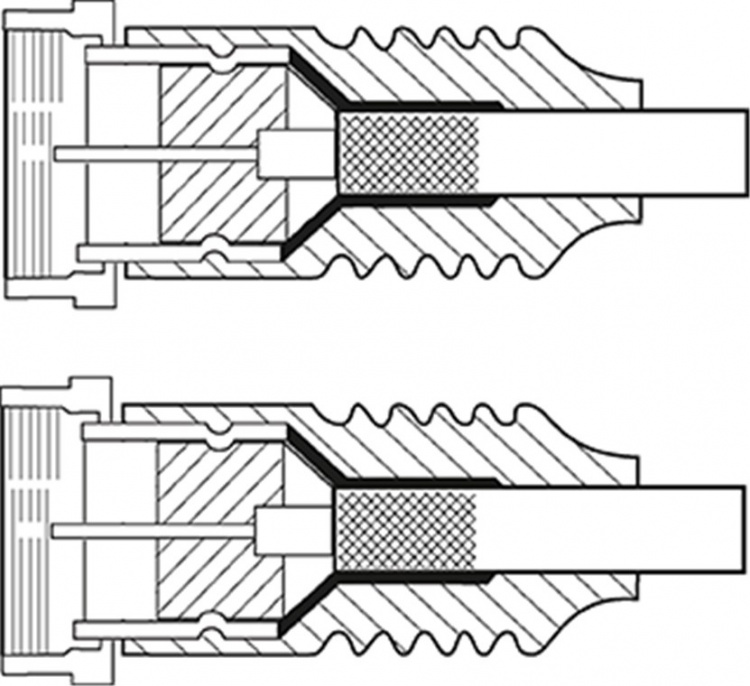

Particularly conductive and durable coaxial cable due to full metal plug with gold-plated contacts
Optimised bend protection and flexible cable sheathing protect against exceeding the maximum bending radius of the TV aerial cable
Wide, easy-grip metal caps for effortless screwing on without tools
Coaxial cable for transmitting digital SD/HDTV signals to TV sets or receivers, e.g. from satellite systems

Cable sheath diameter (approx.): 8 mm
inner conductor, core diameter: 1.02 mm
Dielectric diameter: 5
Number of shieldings: 4 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 135 dB
Kink protection: both sides
Cable type: coaxial cable
Material cable sheath: PVC

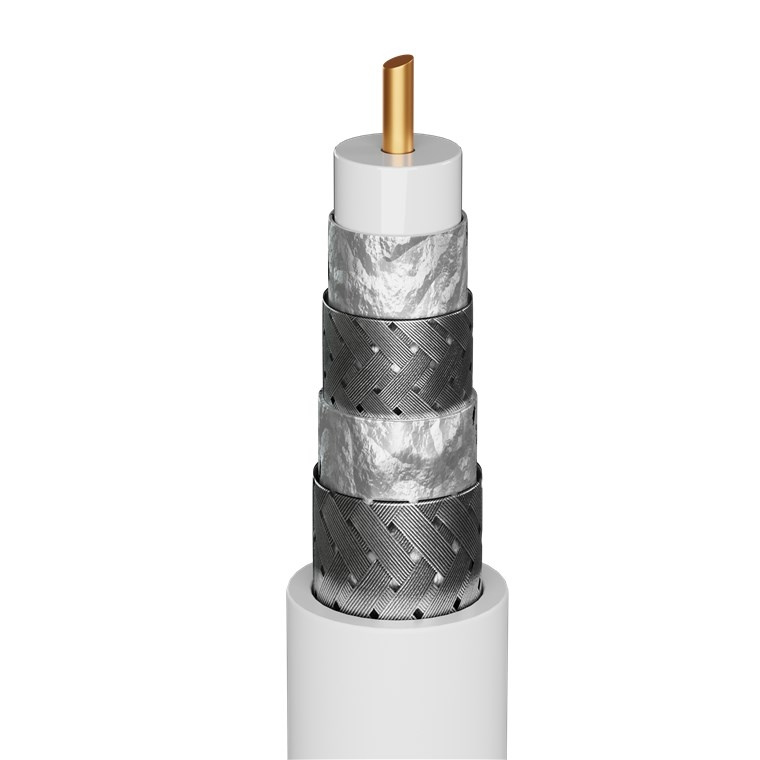

Inner conductor material: CU (copper)
Type 1, shielding: foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: foil (aluminium)
Type 4, shielding: braid (aluminium) 128x

4040849705984EAN:

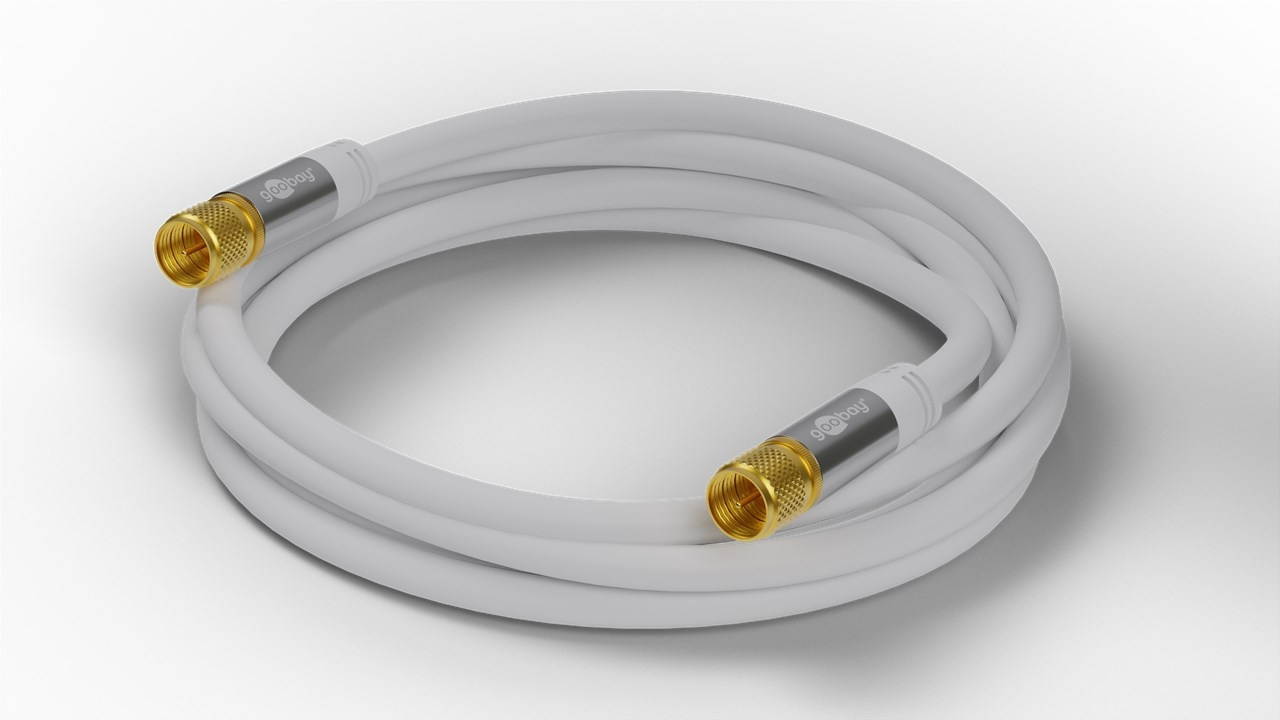

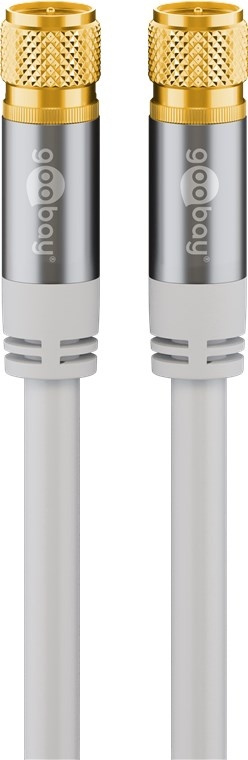

Goobay SAT Antenna Cable (135 dB), 4x Shielded gold-plated, F plug > F plug, 1 m
