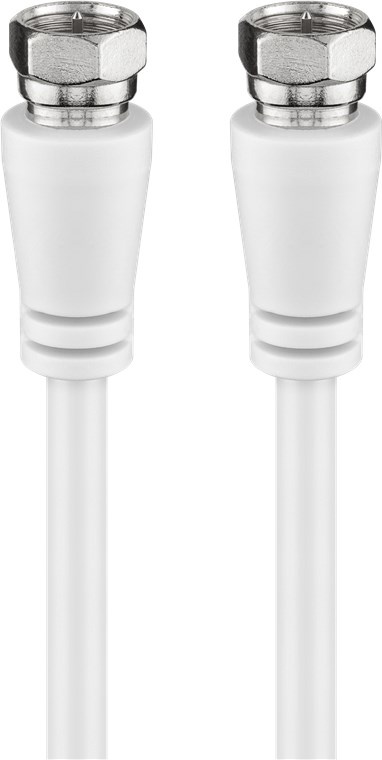

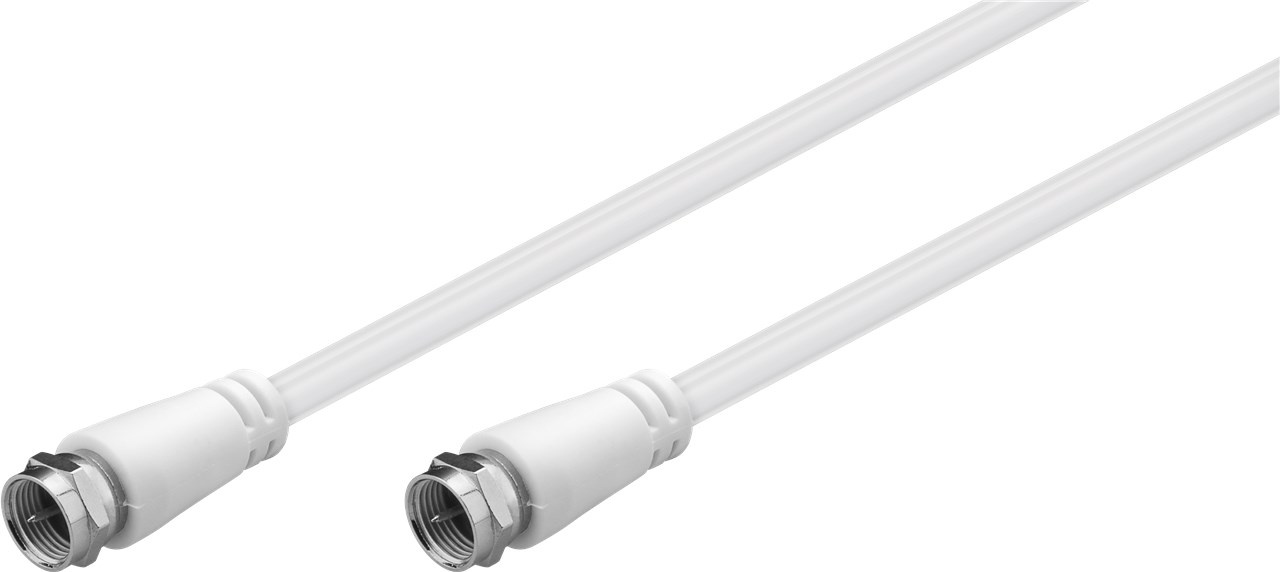

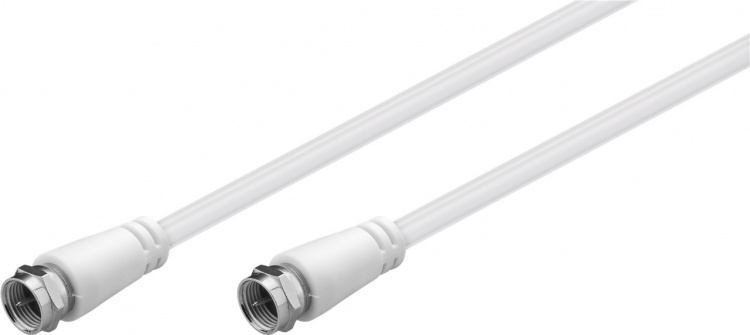

Goobay SAT Antenna Cable (Class A+, >95 dB), 3x Shielded F plug > F plug (fully shielded), 5 m

Article nr: C42974
€8.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
F plug > F plug (fully shielded) Cable length 5 m

Förpackning: Bulk

  • 3-fold shielded satellite cable for interference-free transmission

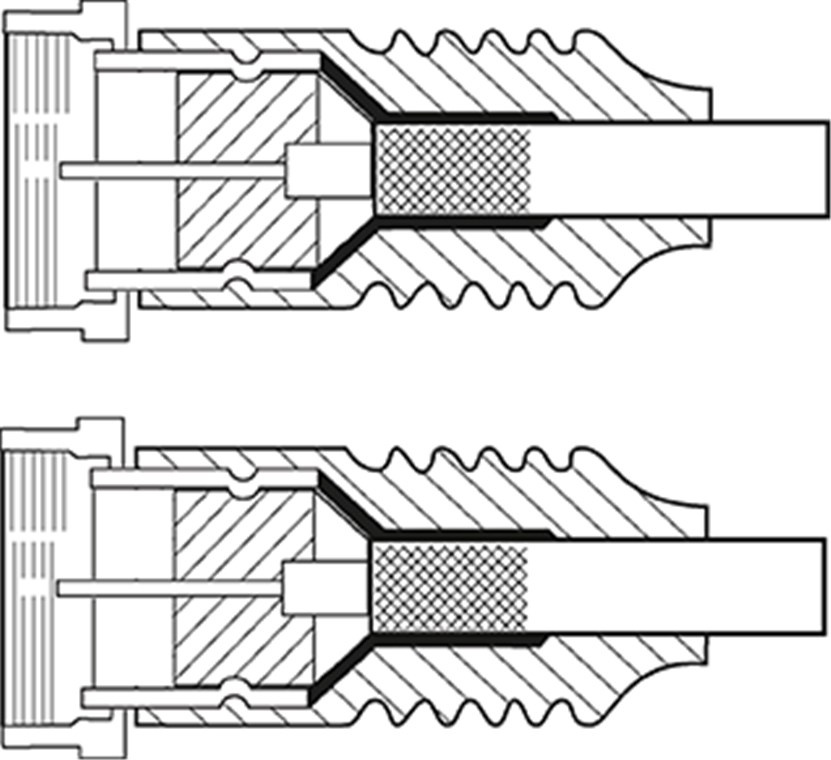

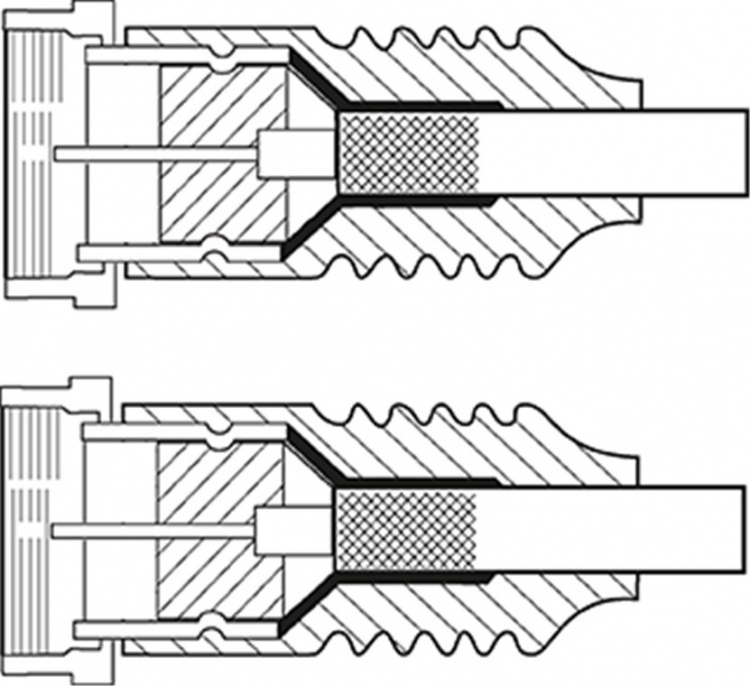

  • Molded plug on both sides to protect against dust, dirt and mechanical stresses
  • Coaxial cable with nickel-plated, precision-fit contacts
  • TV aerial cable for transmitting digital SD/HDTV signals, e. g. from SAT systems to TV sets or receivers
Cable sheath diameter (approx.): 5.4 mm
inner conductor, core diameter: 0.5 mm
Dielectric diameter: 2.9
Shielding class: Class A+
Number of shieldings: 3 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 95 dB
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CCS
Type 1, shielding: bonded foil (aluminium)
Type 2, shielding: braid (aluminium) 128x
Type 3, shielding: double foil (aluminium)
Connection, shielding: yes
4040849588181EAN:
  • Specifications
  • Length: 5 m
