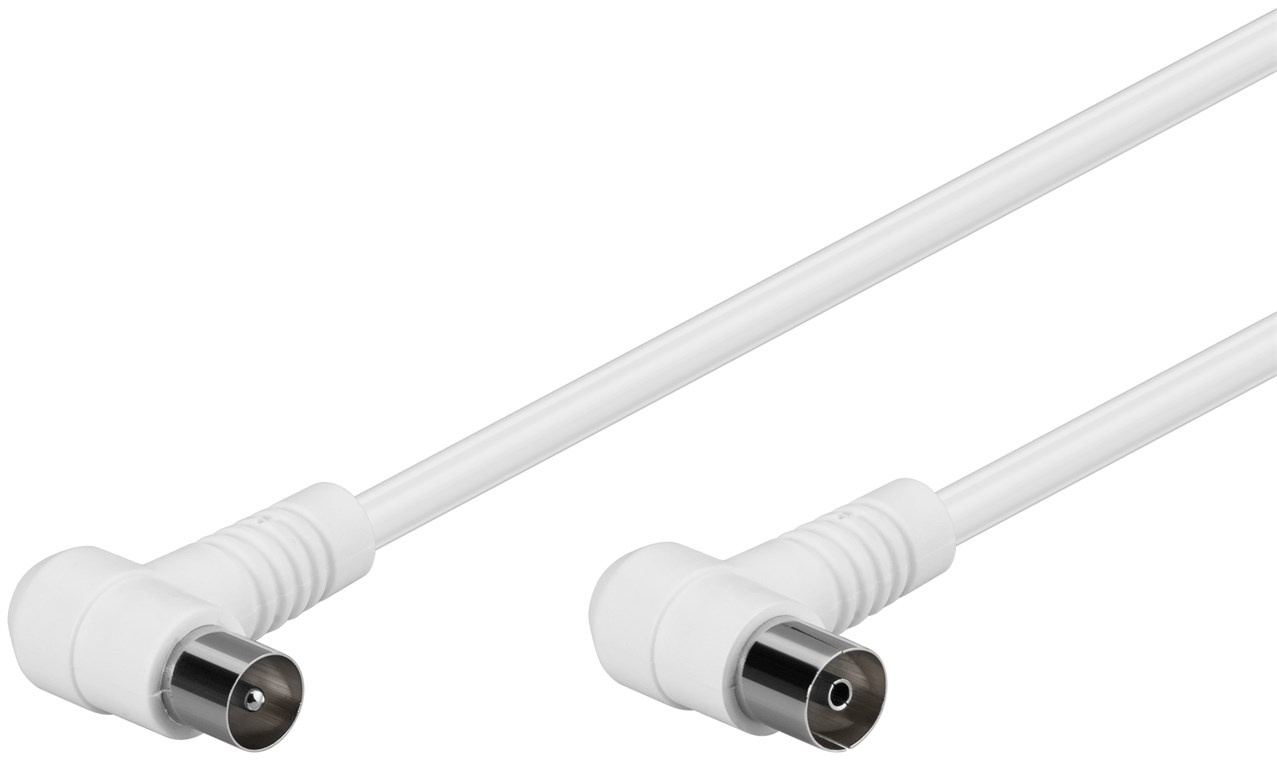

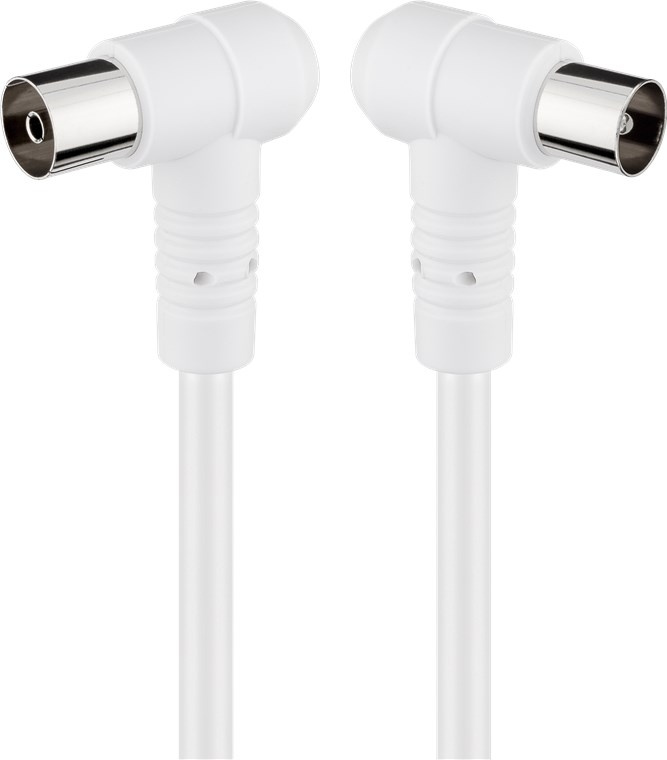

Goobay Angled Antenna Cable (80 dB), Double Shielded coaxial plug 90° > coaxial socket 90° (fully shielded), 1.5 m

Article nr: C43231
€5.99

Add to cart
Delivery time:  4-7 working days
  • Qliro Checkout
  • 50.000+ products
  • Great service
Information
coaxial plug 90° > coaxial socket 90° (fully shielded) Cable length 1.5 m

Förpackning: Bulk

  • Double shielded satellite cable for interference-free transmission
  • Molded plug on both sides to protect against dust, dirt and mechanical stresses
  • Long-term conductivity of the coaxial cable is guaranteed as gold-plated contacts do not corrode.
  • Angled plugs simplify laying the coax cable even in tight spaces.
  • TV aerial cable for connecting devices with a coaxial connection such as televisions, receivers and radios
Cable sheath diameter (approx.): 5.3 mm
inner conductor, core diameter: 0.5 mm
Number of shieldings: 2 x
Markings: WEEE, CE
Impedance: 75 Ω
Shielding efficiency: 80 dB
Cable type: coaxial cable
Material cable sheath: PVC
Inner conductor material: CCS
Type 2, shielding: braid (aluminium) 112x
Connection, contact material: nickel-plated
Connection, shielding: yes
Connection, type: Coaxial male 90°
Connection 2, type: Coaxial female 90°
Color: white
4040849673535EAN:
  • Specifications
  • Length: 1.5 m
  • Manuals & Datasheets
