The motion detector adapts perfectly to your lighting requirements: You can customise the sensitivity and switch-off delay with the slide control to make the connected light always switch on at the right time. For an increased sense of security and increased convenience.

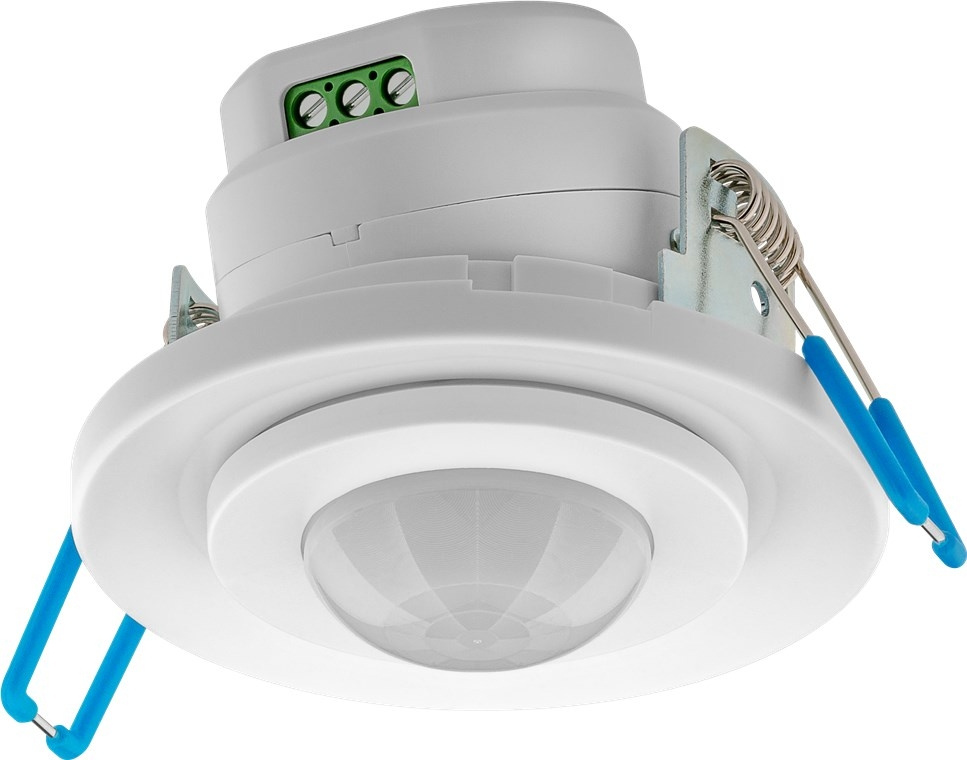

for flush ceiling mounting, 360° detection, 8 m range, for indoor use (IP20), suitable for LEDs

Förpackning: Retail Box

The 360° motion detector is ideal for automatic LED lighting systems or indoor security systems

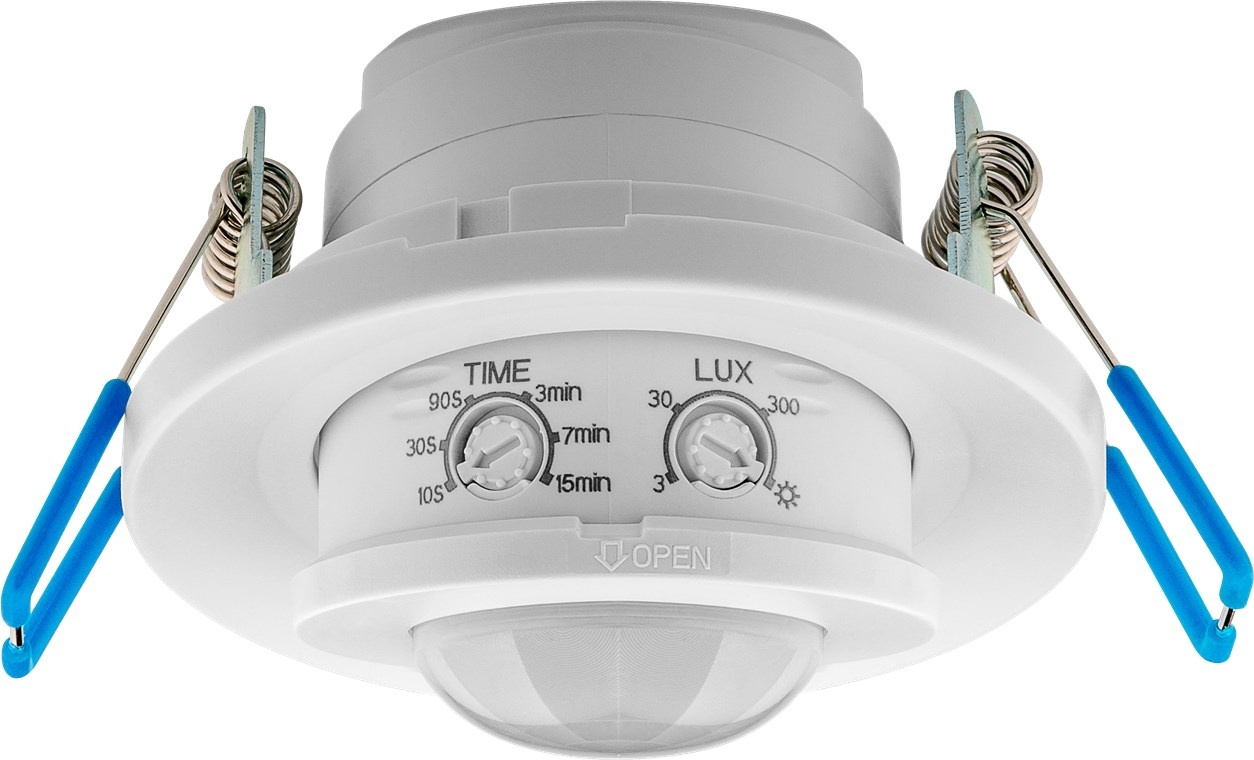

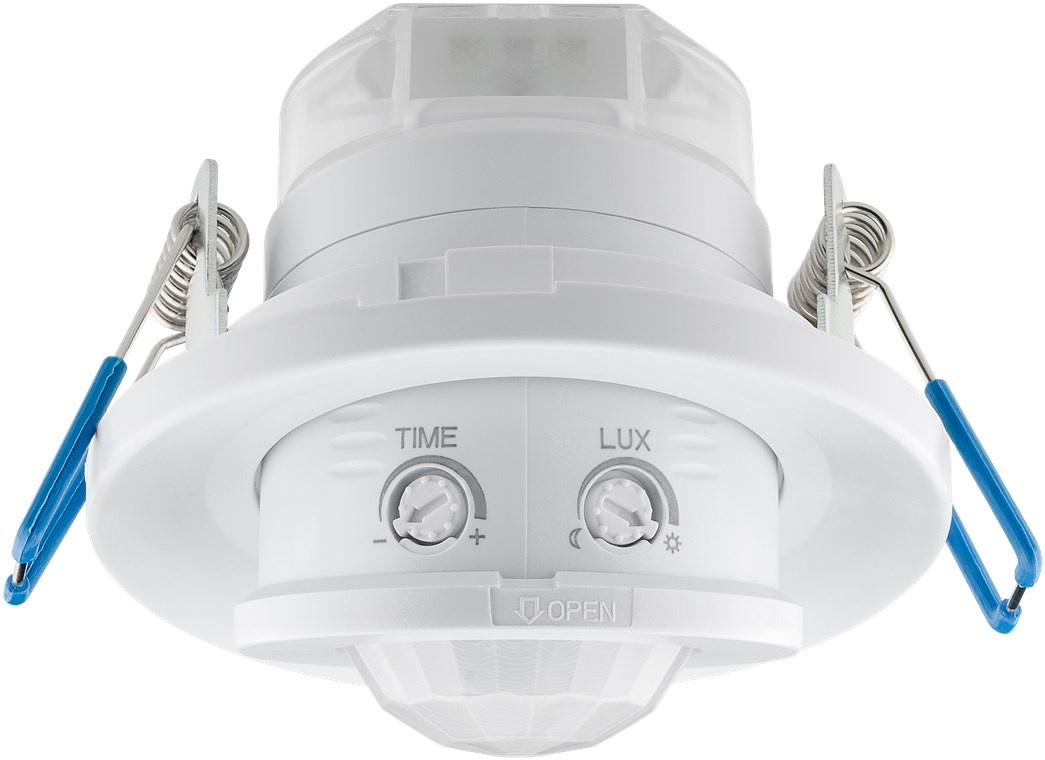

With four levels of sensitivity, the PIR sensor can be individually adjusted to the lighting conditions at the installation site using the slider
Designed for quick and easy flush-mounted ceiling installation
With a range of up to 8 m, the heat sensor precisely detects the movement of people and animals in the dark or in twilight
Designed for quick and easy flush-mounted installation in ceilings at a height of 2.2 m to 4 m
The switch-off delay after motion detection can be variably set between 10 s and 15 min
Max. rated power of the infrared detector: 800 W for incandescent lamps, 400 W for energy-saving lamps

Markings: CE, WEEE, Haus
Length: 61.4 mm
protection class: IP20
Weight: 94 g
Width: 80 mm
max view angle: 360 °
recommended installation height: 2.2 - 4 m
Installation height from: 2.2 m
Installation Height up to: 4 m
Light sensitivity from: 3 lx
light sensitivity up to: 2000 lx
minimum load: 1
max. detection range: 8 m
operating voltage: 230 V (AC)
Power consumption: 800 W

4040849713620EAN:

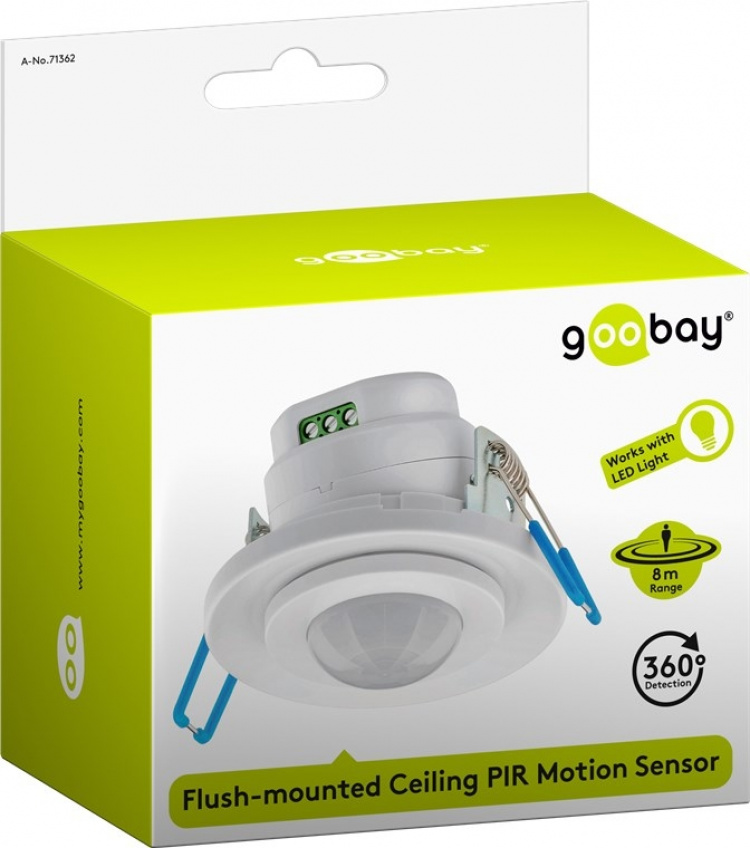

Goobay Infraröd rörelsedetektor för infälld montering i taket, 360°-detektion, 8 m räckvidd, för inomhusbruk (IP20), LED-anpassad
