unshielded
Förpackning: Bulk
- For tool-free assembly by solderless, screwless and stripping-free connection technology IDC mounting)
- Patch panel incl. fixing screws for mounting on wall and desktop
- CAT 6 distributor for cable diameters of up to 7.0 mm (AWG 22-24)
- With a clear plastic display to label the individual connections for a perfect cable management.

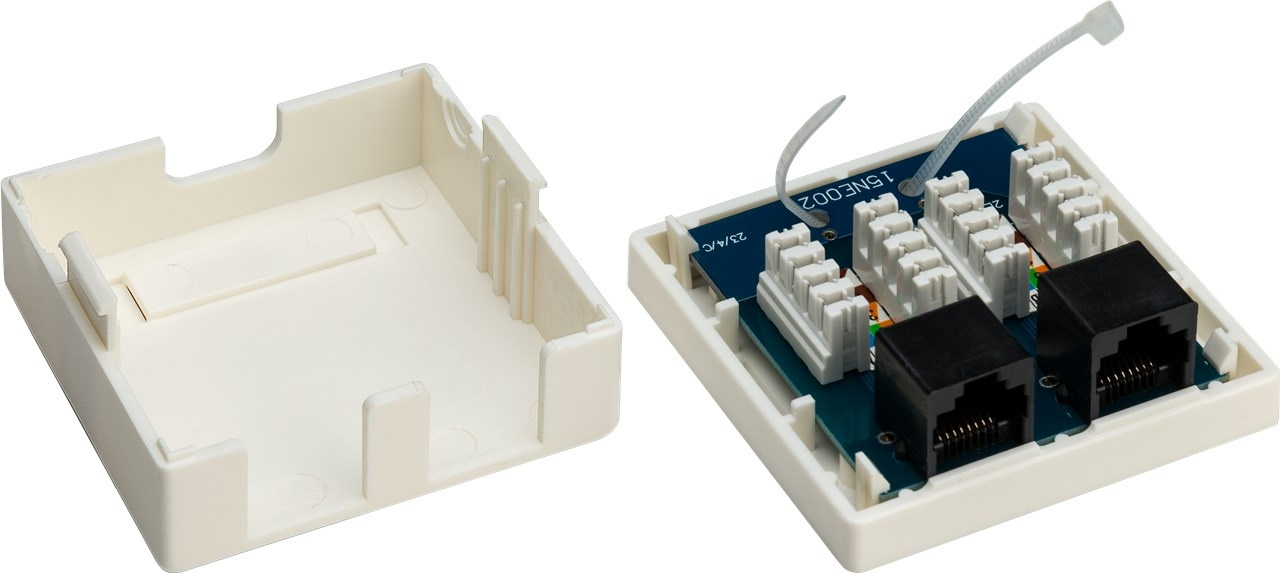

- Terminal strips with colour coding according to TIA 568B for an easy and correct connection

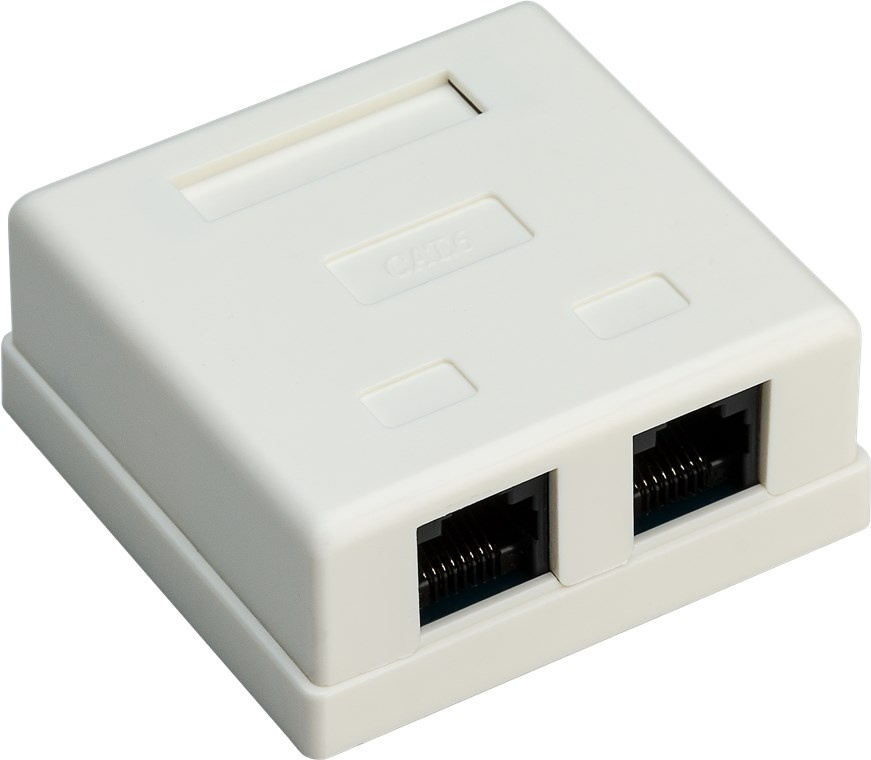

- 2-port patch panel with RJ45 sockets for connecting terminated CAT 6 network cables
Specification: CAT 6
Shielding class: UTP
Device Connections: 2
Markings: WEEE, CE
depth: 26.5 mm
Height: 59.8 mm
Width: 62.2 mm
max. bandwidth: 250 MHz
Connection, type: 2x RJ45 female (8P8C)
Connection 2, type: for IDC connection (toolless)
Color: white
Color version: white
Consumption Unit: 1 pc. in polybag
Assembly Material: screws
4040849776335EAN:
