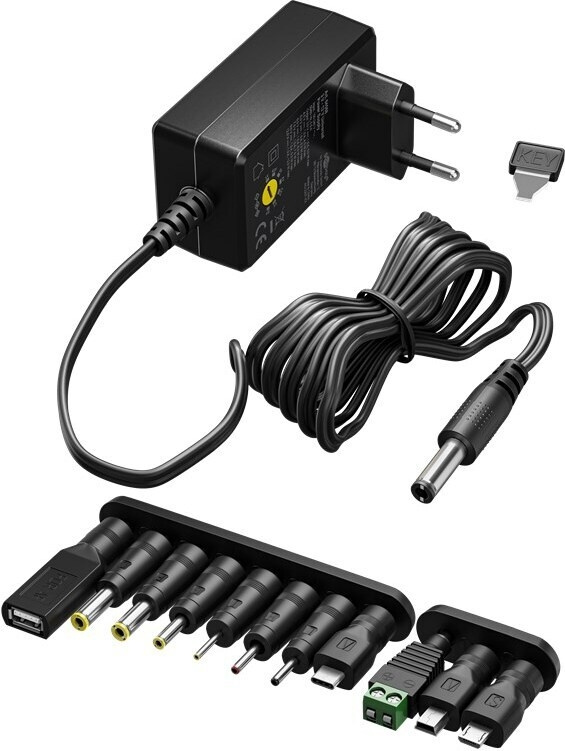

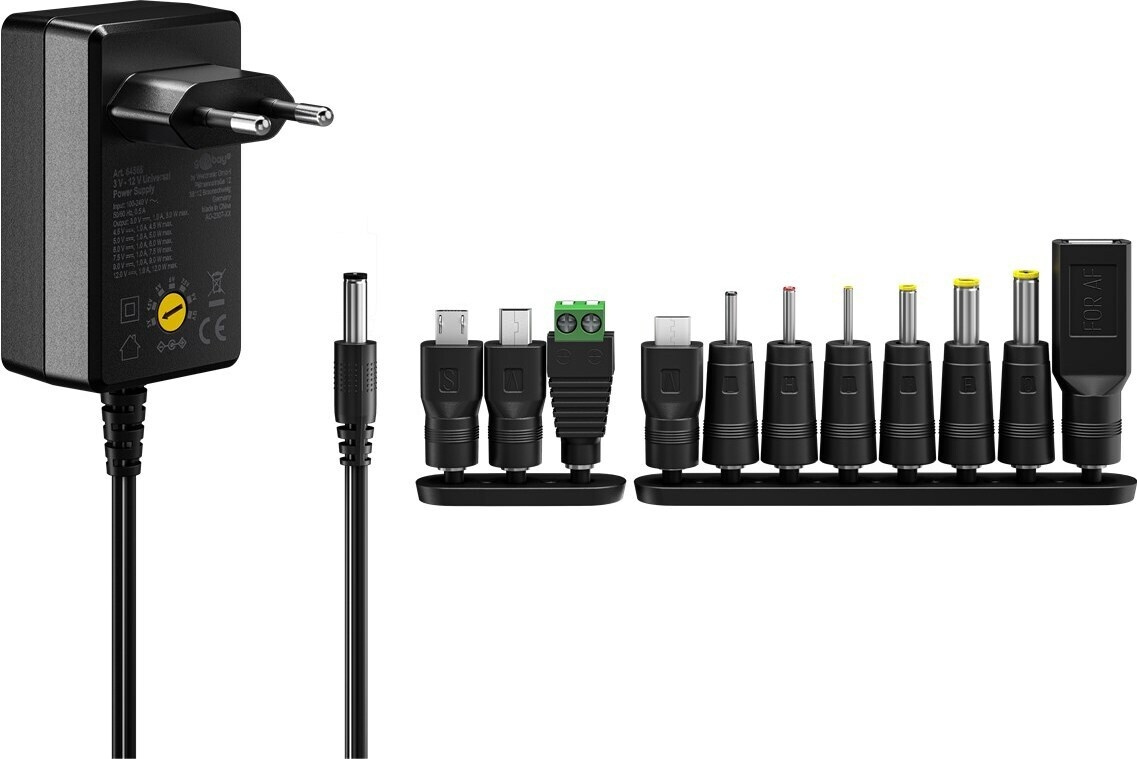

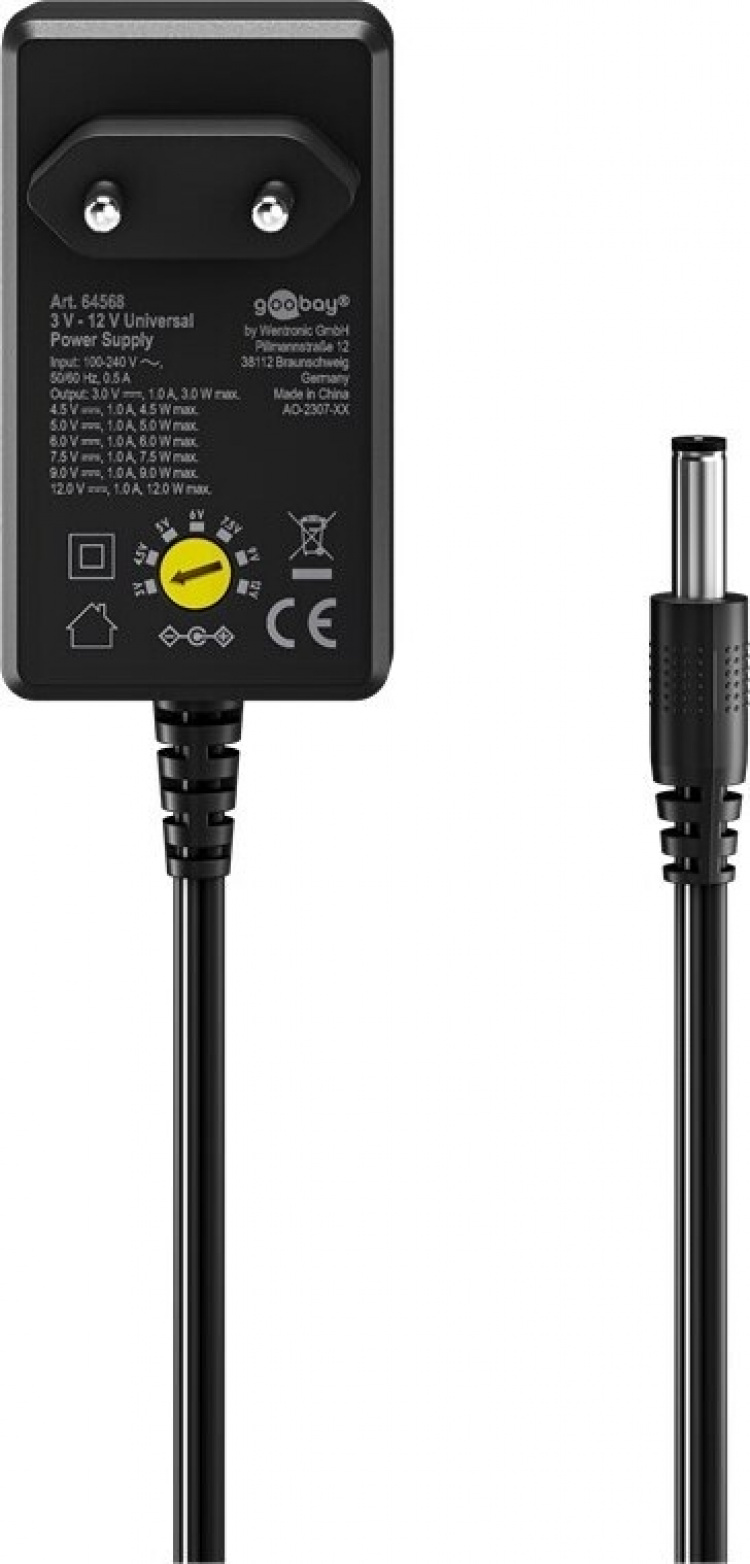

Goobay universal power supply, 3-12 V DC, 1000 mA. High quality, compact and low power consumption power supply for mobile devices with up to 1000 mA input current and 3-12 V selectable voltage. Based on chipper technology, the model is very compact and low power consuming. The power consumption in standby mode without load is only 0.09 W. The redesigned model now also includes a USB-C adapter for a wider range of compatible devices.
Features:
- Power supply with adjustable voltage. Suitable for electronic devices such as media amplifiers, LED light strips, toys and cameras.
- The output voltage can be easily changed from the power supply with the supplied rotary key.
- The USB-C adapter makes the power supply more compatible than before.
- Fuses protect the device against short circuit, overload, overvoltage and overcurrent.
Technical specifications:
- Output voltage: selectable 3 V, 4.5 V, 5 V (USB voltage), 6 V, 7.5 V, 9 V and 12 V
- Maximum output current: 1000 mA
- Includes 11 different types of inverters
- Overload and short-circuit protection
- Cable length: 1.8 m
- Dimensions: 76.4 x 44.0 x 69.2 mm
- Power supply weight: 105 g
- IP20 - for indoor use only
- Power consumption without load: 0.09 W

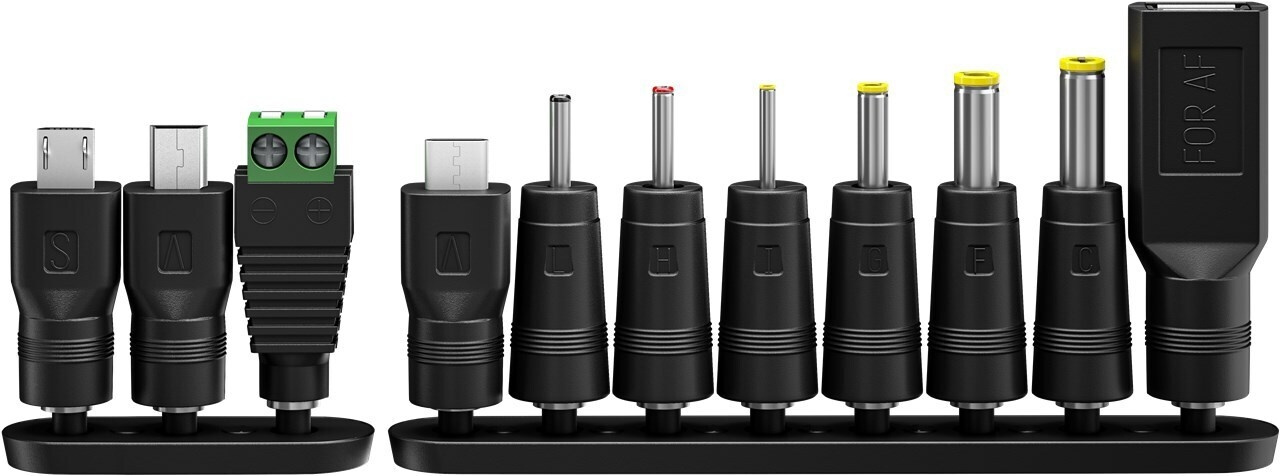

Supplied with connectors:
- Micro-USB connector
- USB Mini-B connector
- USB-A connector
- USB-C connector
- Screw terminal connector
- 3.0 x 1.1 mm DC plug
- 3.5 x 1.35 mm DC plug
- 2.5 x 0.7 mm DC plug
- 4.0 x 1.7 mm DC plug
- 4.8 x 1.7 mm DC plug
- 5.5 x 2.5 mm DC plug
Before connecting the power supply, check the operating voltage and polarity of the device to be powered. Incorrect voltage and/or polarity may damage equipment.
- Power max. 12 W
- 11 adapters included
- Overload and short-circuit protected
- Now also includes USB-C adapter
- For small devices, indoor use
This text was automatically translated, errors may be present.
