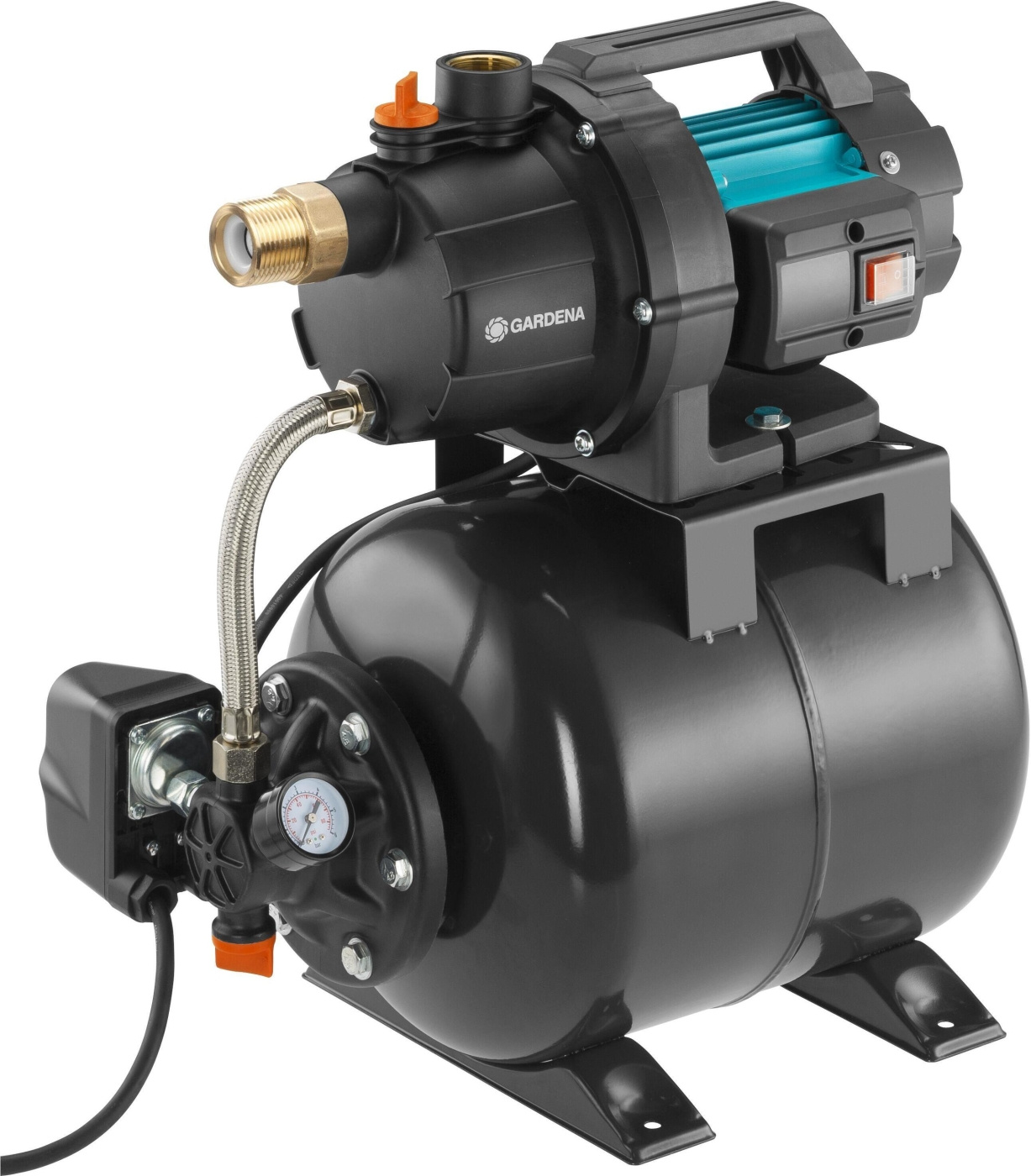

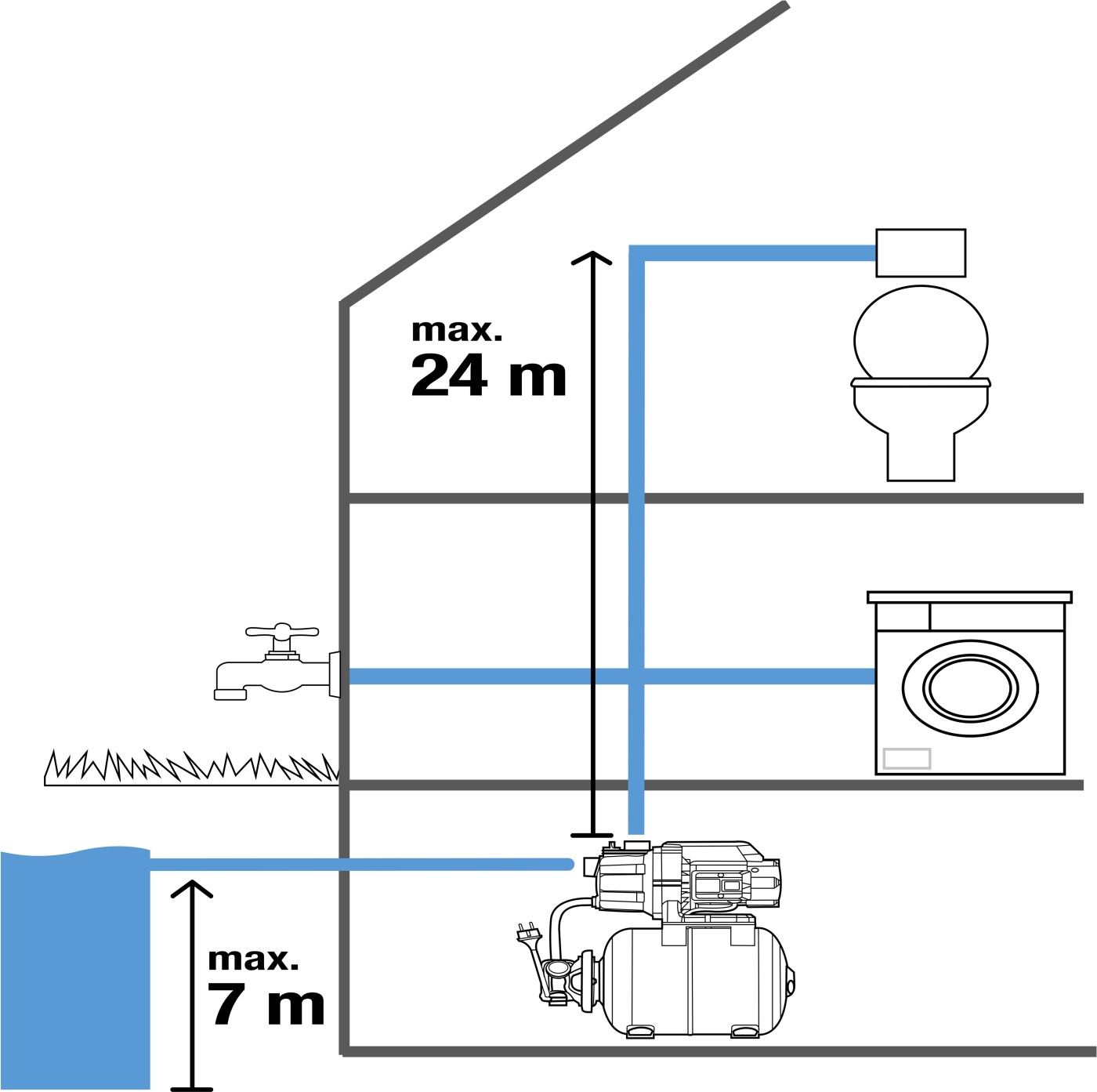

Gardena Classic 3600/4 eco - Pressure water unit for automatic water supply in the home and garden. It supplies low-cost rainwater from rainwater barrels, wells or water tanks, for example, fully automatically to the house and garden, e.g. for flushing the toilet, washing machine and garden irrigation. Nominal power 800 W and maximum supply capacity 3 600 l/h.
The pressurised water unit starts and stops automatically, making it very economical to operate. If the pump gets hot when the liquid flow stops, an automatic safety shut-off function protects against excessive heat load. The large 19-litre tank is maintenance-free for 5 years. During this period, there is no need to replace the membrane or add air. An integrated pre-filter protects the pump from dirt and sand.
A large filling opening and drain valve ensure quick and trouble-free start-up. Self-priming is optimised by manual check valve adjustment. In addition, a thermal protection switch monitors the continuous trouble-free operation of the maintenance-free capacitor motor.
The pump is drained before freezing by means of a drain valve. The pressure gauge and pressure switch are integrated into the structure in a space-saving and clear design. Not to be used for pumping salt water, corrosive and flammable substances or foodstuffs. Maximum pressure/lift: 4,0 bar/40 m, connection thread: 33,3 mm (G1).
Technical data:
- Rated power 800 W
- Maximum output 4000 l/h
- Maximum pressure 4 bar
- Maximum self-priming suction 8 m
- Maximum lift height 40 m
- Maximum liquid temperature 35 °C
- Weight 14 kg
- Cable length 1.5 m
- Power cable type H05 RNF
- Electrical protection class IP X4
- Power 800 W
- Maximum output 4000 l/h
- Maximum pressure 4 bar
- Maximum lifting height 40 m
- Maximum fluid temperature 35 °C
