Complete kit with everything you need for your Lines design.
Screen Mirror
Sync Your Lights to Your Screen
Immerse yourself in an all new gaming and movie night experience. Watch the colours from your screen explode onto your Lines while the heads of your enemies do the same.
Modular Backlit Illumination
Design your own unique layouts, then sit back and enjoy the stunning futuristic ambient glow.
16M+ Colours
Get all the colours you could ever dream of, create all the cool Scenes you could ever think of. Go nuts!
Works as a Thread Border Router
Get instant reliable control of your Thread-enabled devices, like Nanoleaf Essentials Bulbs and Lightstrips, with no additional hubs.
LayoutDetect
Patented technology automatically registers your layout for a smooth multi-directional flow of colours.
Voice Control
Hands-free control through your smart home voice assistants. Activating different Scenes and features couldn't be easier
Specifications:
Luminous Flux Per Panel
20 lumens
Lifetime
25,000 hours
Communication Protocol
WiFi (2.4 GHz b/g/n)
NOTE: 5 GHz networks are not compatible with Nanoleaf products.
Dimmability
Yes (via Nanoleaf App, Voice, Controller)
Mounting Type
Via included double-sided tape or screw mounts (screws and anchors not included)
The Nanoleaf Apps
Control via Nanoleaf App (Android & iOS) for mobile/tablet or The Nanoleaf Desktop App (Windows & Mac).
Thread Compatibility
Yes, Lines work as Thread Border Router
Compatibility
Apple HomeKit, Amazon Alexa, Google Assistant, IFTTT, SmartThings, Razer Chroma
Usage
Indoor Only
IP Rating
IP20
Color
Colour Temperature
1200K – 6500K
Colour Channel Configuration
RGBW
Max Colours
More than 16 million
Colour Zones
2 colour zones per line
Colour Rendering Index (CRI)
>80
Dimensions:
Lines
Height: 0.31 in (0.80 cm)
Width: 11 in (27.85 cm)
Depth: 0.78 in (2 cm)
Weight: 0.08 lb (39g)
Connector
Height: 0.85 in (2.16 cm)
Width: 1.57 in (4 cm)
Depth: 1.36 in (3.46 cm)
Weight: 0.03 lb (15g)

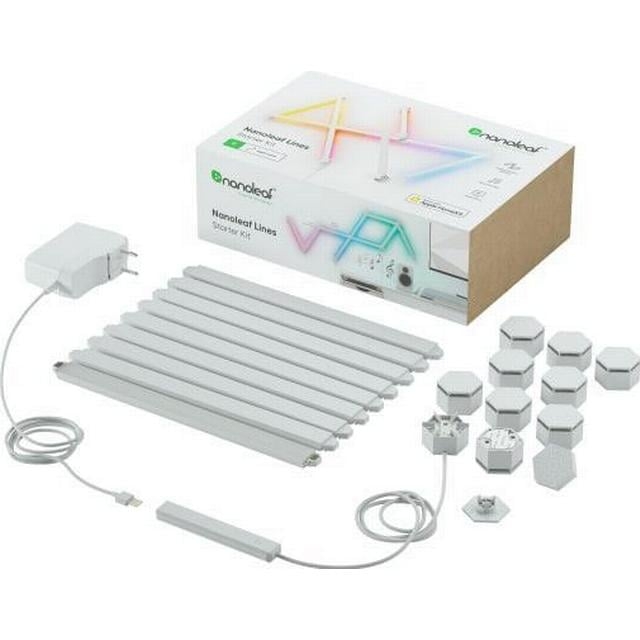

In The Box
15x Light Lines
15x Mounting Connectors & Caps
1x Controller
16x Mounting Plates & Tape
1x Processor & Power Connector
1x Power Supply (100vac ~ 240vac)
1x Plug Type C (EU)
1x Quick Start Guide
