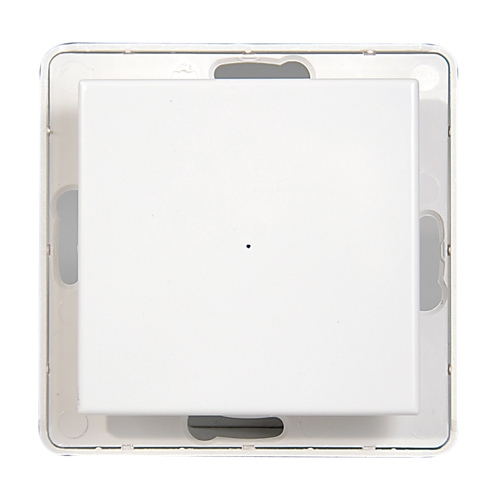

WTE-1 Wireless wall transmitter 1-channel
WTE-1 is a wireless wall transmitter for controlling all receivers in System Nexa Pro and System Nexa at 433.92 MHz. Compatible frames: ELKO RS-16 and ELKO-Plus & Schneider Exxact series (transmitter delivered without frame).
Compatible with Nexa Bridge.
WTE-1 can be placed optionally via the supplied screws or with double-sided tape.
Features
WTE-1 is a 1-channel transmitter that can be linked / control the receivers WRR-1 and WDR-1 with functions such as ON / OFF and dimmer as well as built-in receiver and receiver for plug-in within System Nexa. The learning method allows easy programming and eliminates interference from similar devices. Red LED in the center of the rocker indicates signal transmission, the transmitter allows max 10 sec transmission to save energy / battery operation. The transmitter supports stepless dimmer function / control against WDR-1.
- 433.92 MHz
- Fits in ELKO RS-/, ELKO PLUS-/ Schneider Exxakt frames
- Self-learning code system
- 1-channel transmitter / switch
- Wireless control of lighting load, ON / OFF / DIMMER
- Stepless dimmer function, from Max to Min, and Min to Max (does not loop)
- LED indication on signal transmission.
- IP rating: IP20
- Battery: CR2032
- E: Number: 1709348
