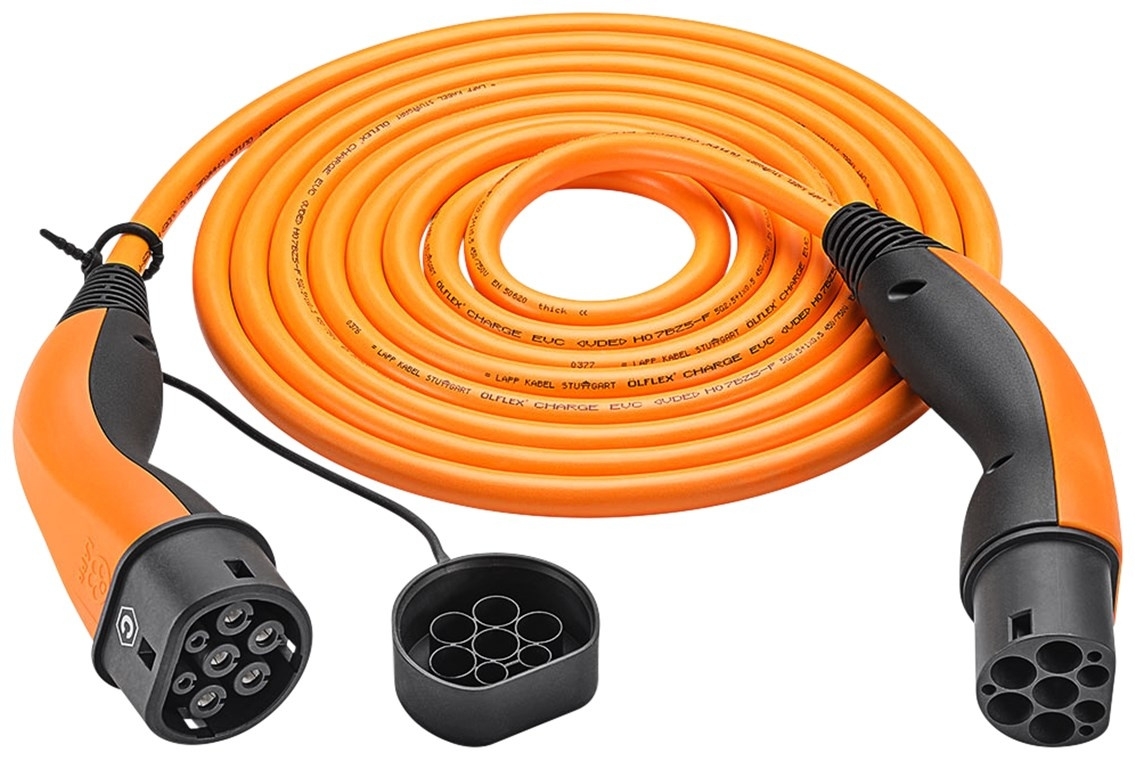

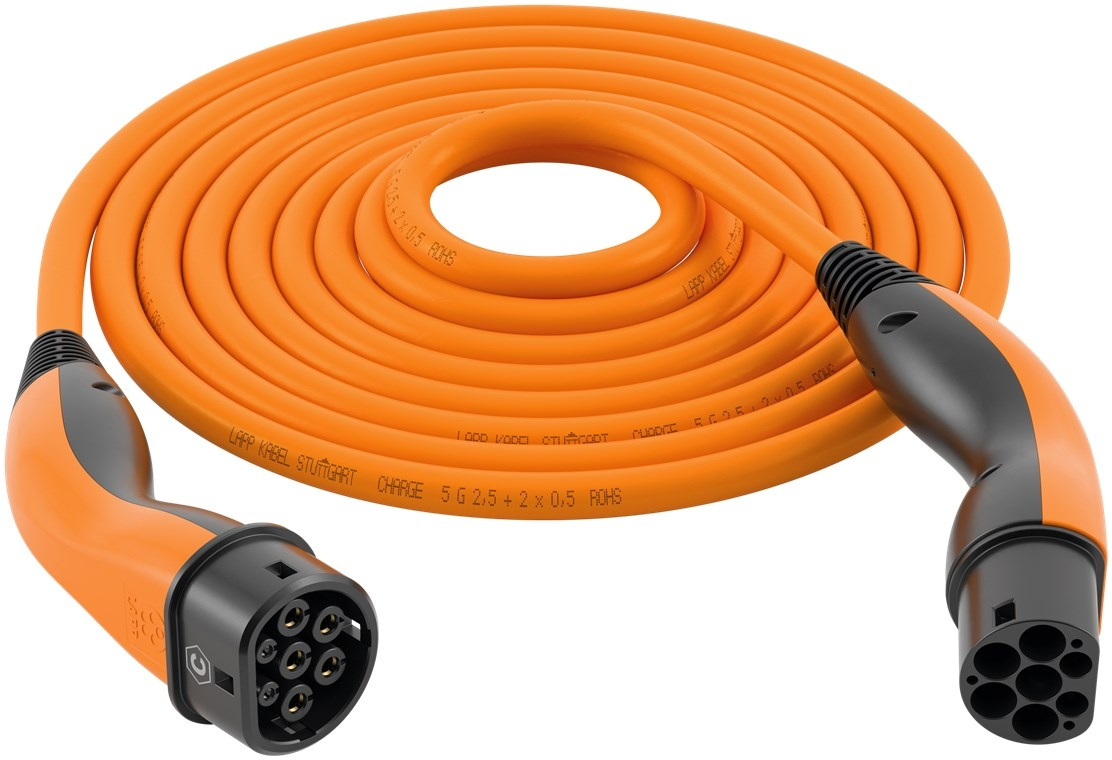

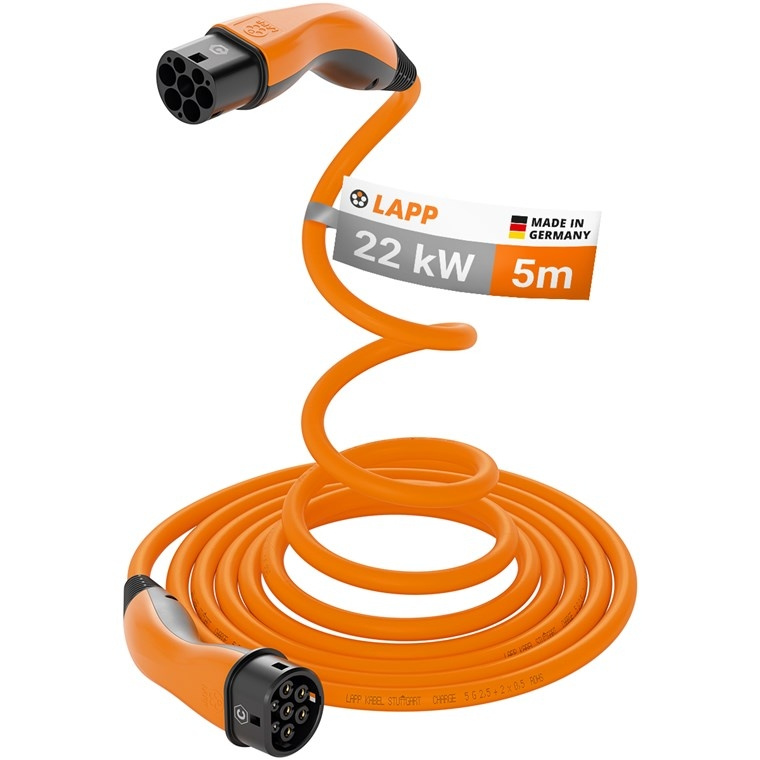

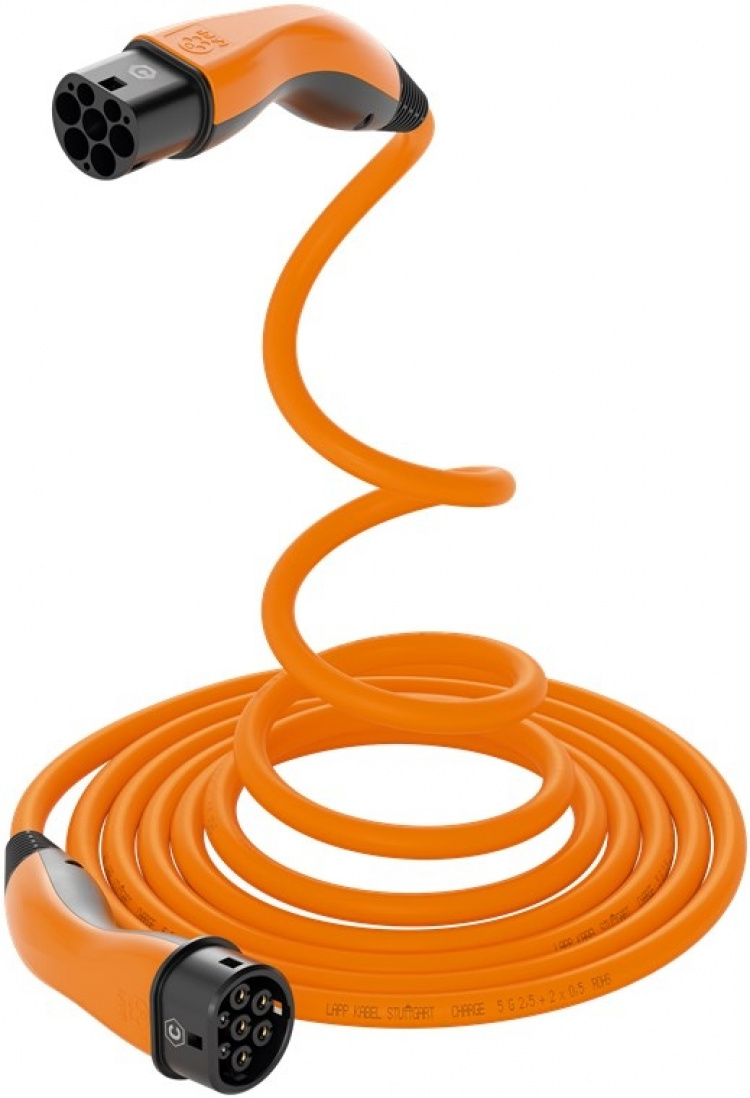

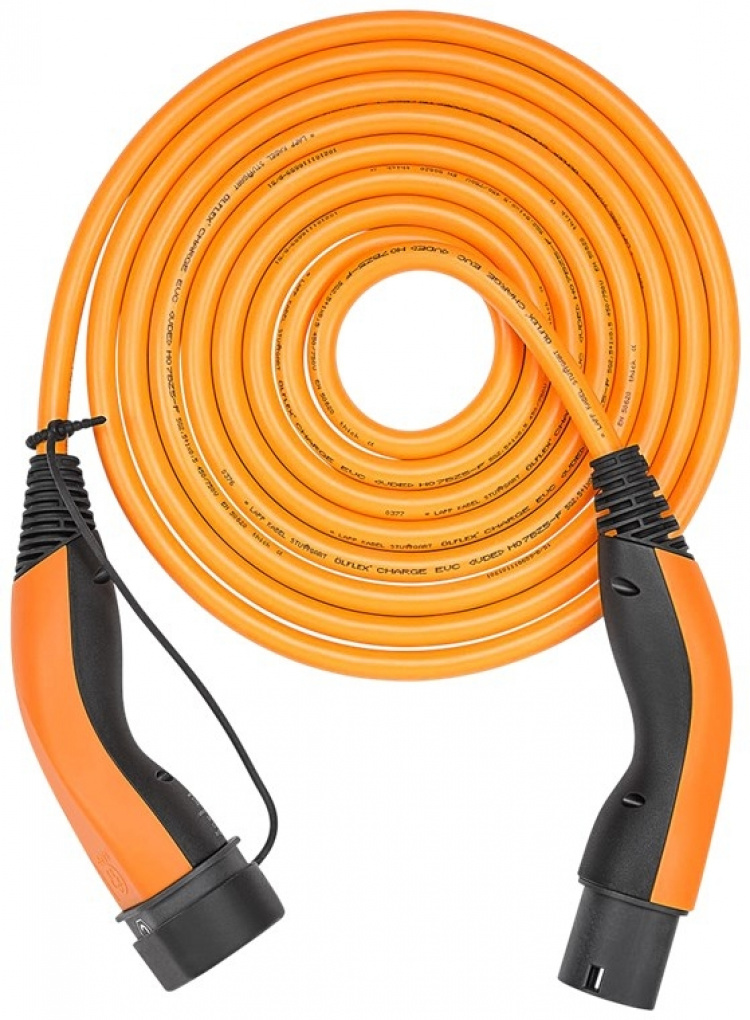

(5555935015) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

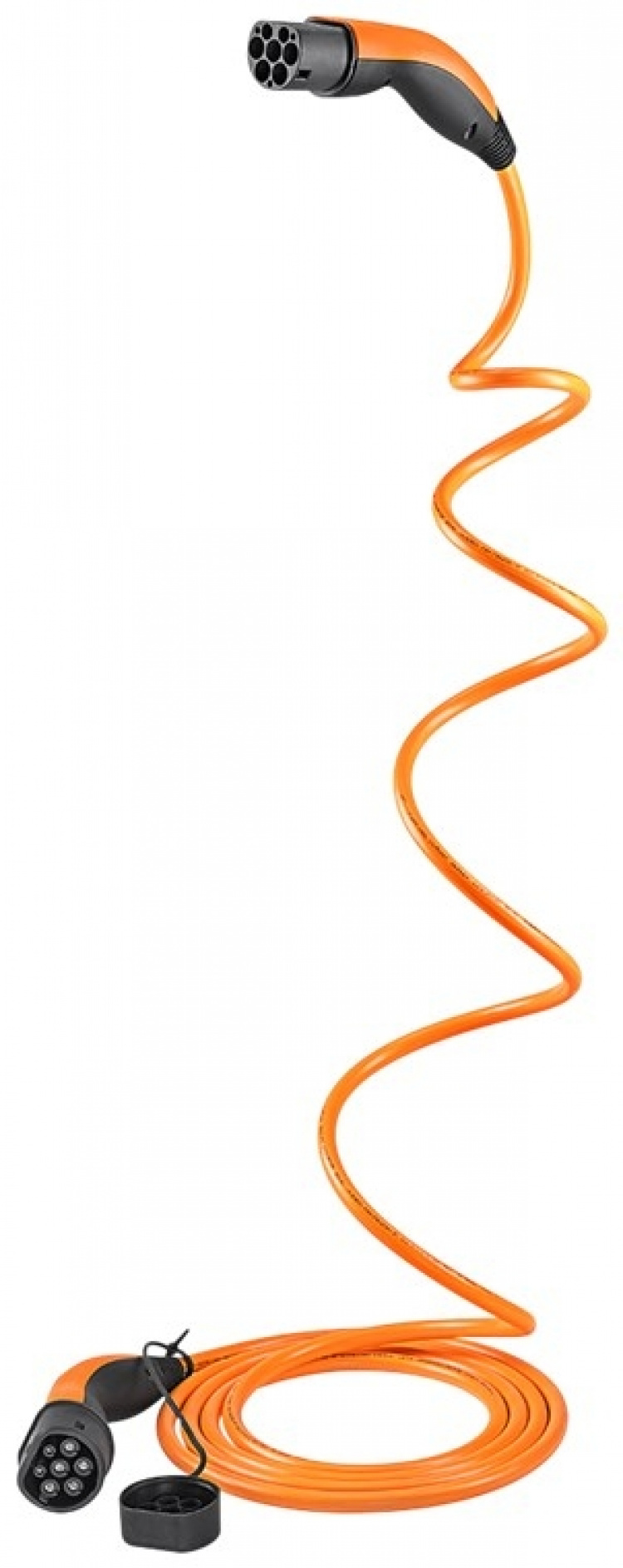

- Patented, self-retracting cable with shape memory that rolls up in a helical shape after use and is quickly stored away - without tangling
- The Type 2 charging cable from LAPP allows easy and fast charging with up to 22 kW at a public or private charging station or wallbox.
- High compatibility: In addition to 3-phase charging with 11 kW, the cable also supports 1-phase charging with 7.4 kW and 3.7 kW
- Highly robust, vehicle-resistant cables and plugs with silver-plated contacts provide extra durability
- Oil-resistant and longitudinally watertight EV charging cable with high moisture protection according to IP55, operating temperature -40 °C to 50 °C
- The Type 2 to Type 2 EV charging cable is space-saving and easy to handle thanks to its light weight.
- Mode 3 charging cable manufactured according to current IEC and EN standards, compatible with European vehicles and charging stations as well as with CCS connections (Combo 2)
Inner conductor cross-section: 6 mm²
max current capacity: 32 A
Number of phases: 3
Markings: WEEE, CE
Manufacturer designation: 5555935015
Model designation: 5555935015
Operating temperature up to: 50 °C
Operating temperature from: -40 °C
protection class: IP55
Weight: 3172 g
Loading capacity up to: 22 kW
Charging mode: Mode 3
Rated voltage: 440 V (AC)
CAS no.: 7439-92-1
4064727469928EAN:
