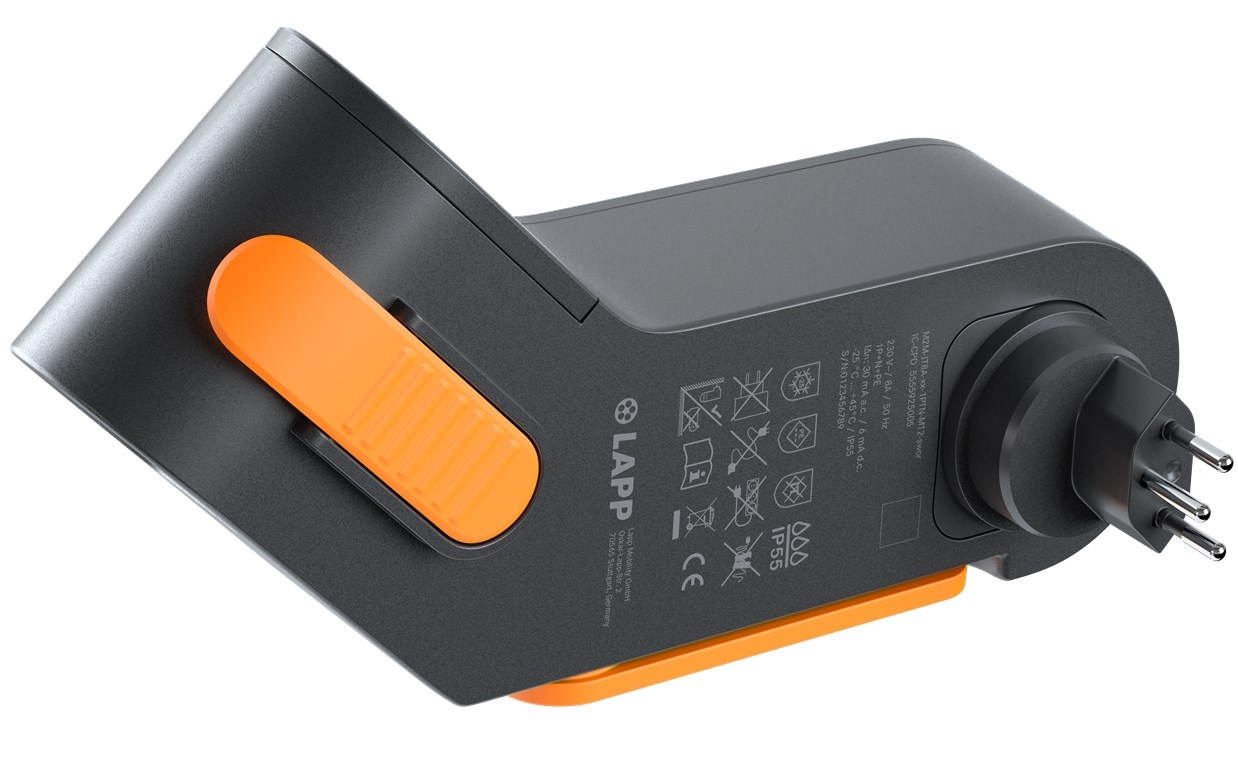

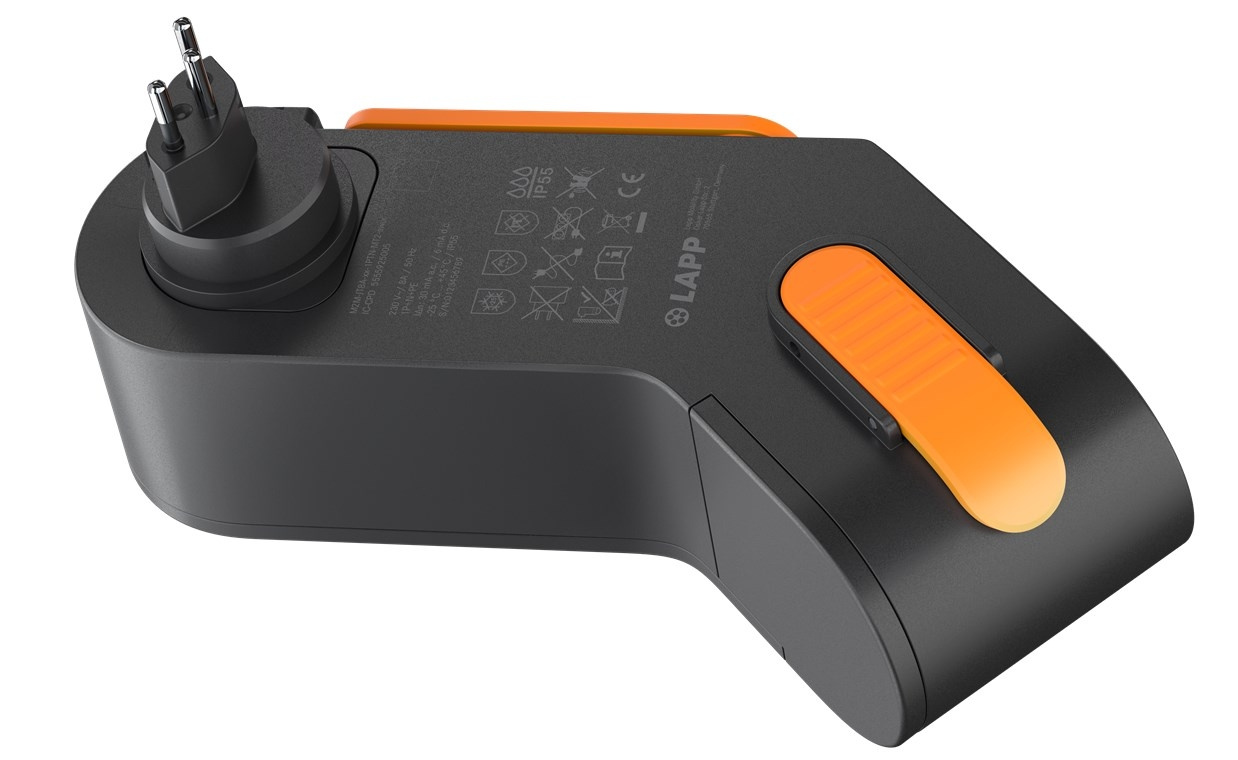

(5555925005) up to 1.8 kW, 8 A, 1 phase, for mobile charging of hybrid and electric cars with Type 2 connection
Förpackning: Retail Box

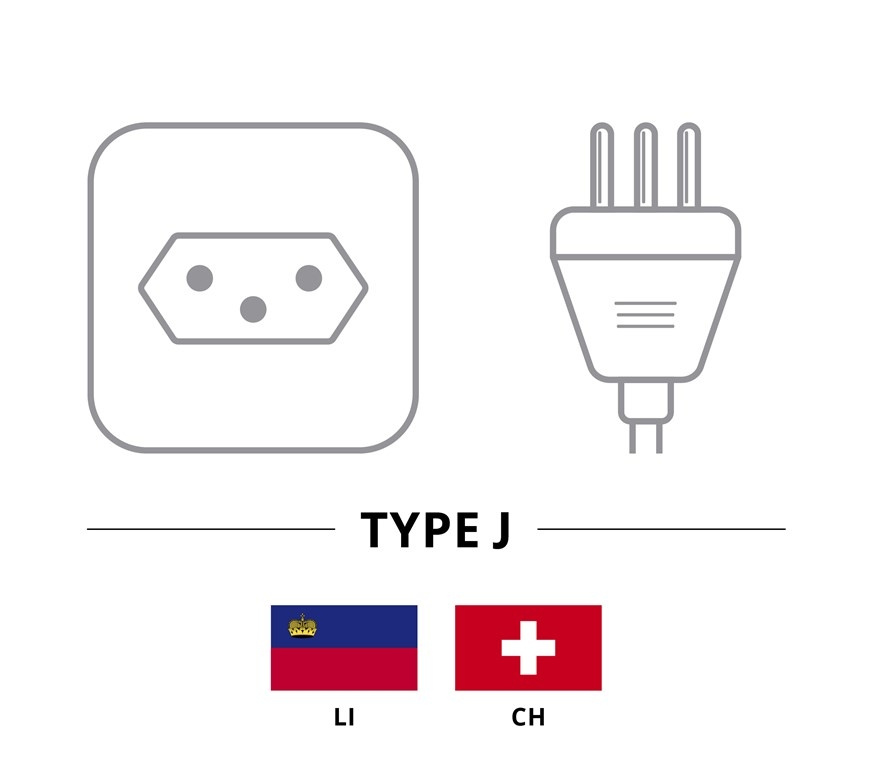

- The LAPP charger for simple, mobile charging via Swiss standard sockets (plug type J) is ideal for on the road or in the garage at home
- The space-saving charging station for Mode 3 cables can easily be stored in the boot thanks to its compact design of 255 mm x 135 mm x 114 mm.
- The EV emergency charger is oil-resistant and supports a charging power of up to 1.8 kW at a nominal voltage of 230 V, operating temperature is -25 °C to +45 °C

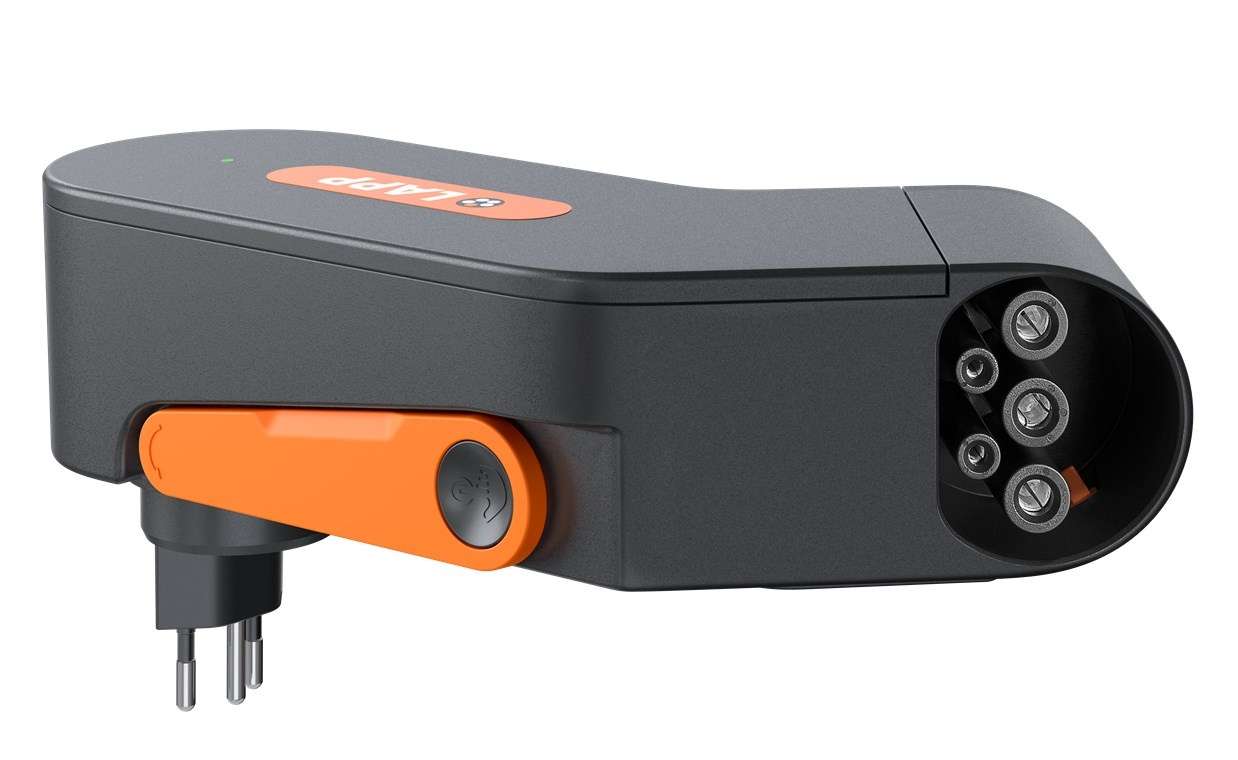

- The integrated lever releases the connected Type 2 cable after the charging process with just one simple movement.

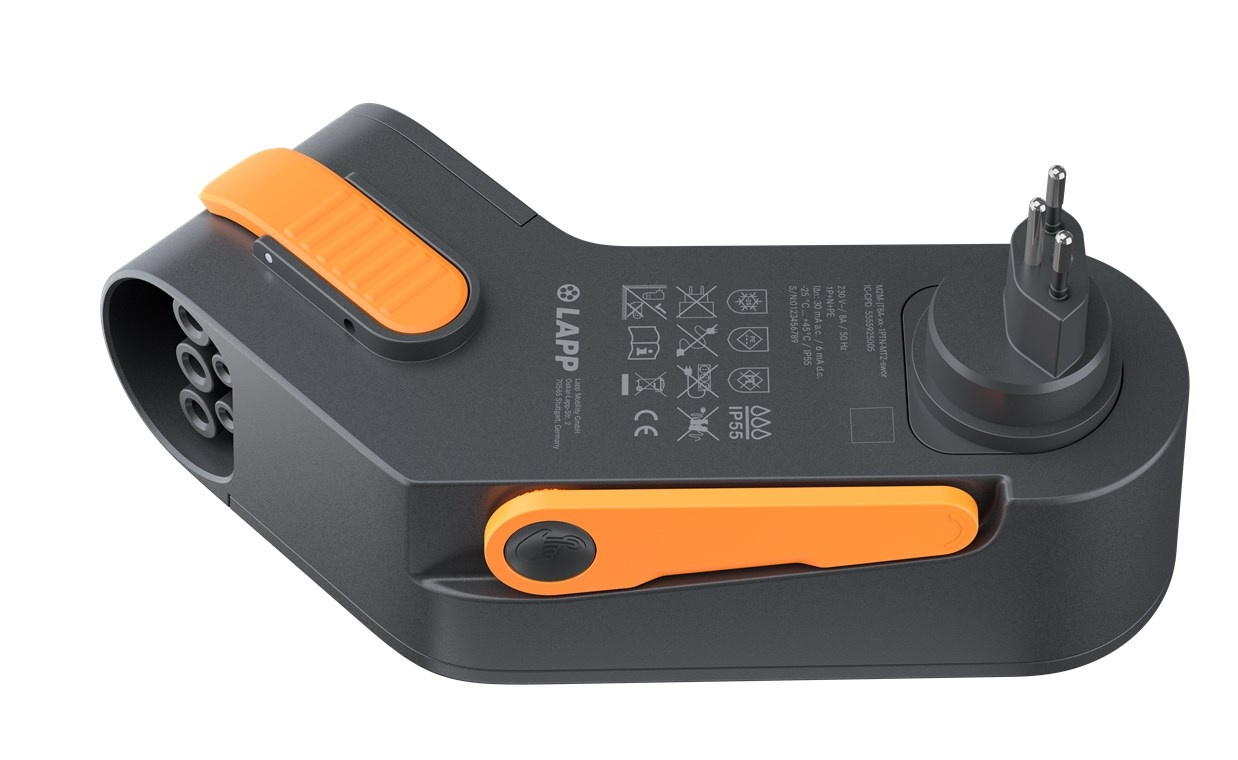

- Fold-out torque support for bracing against the wall reduces the weight of the dock and cable on the connected outlet.

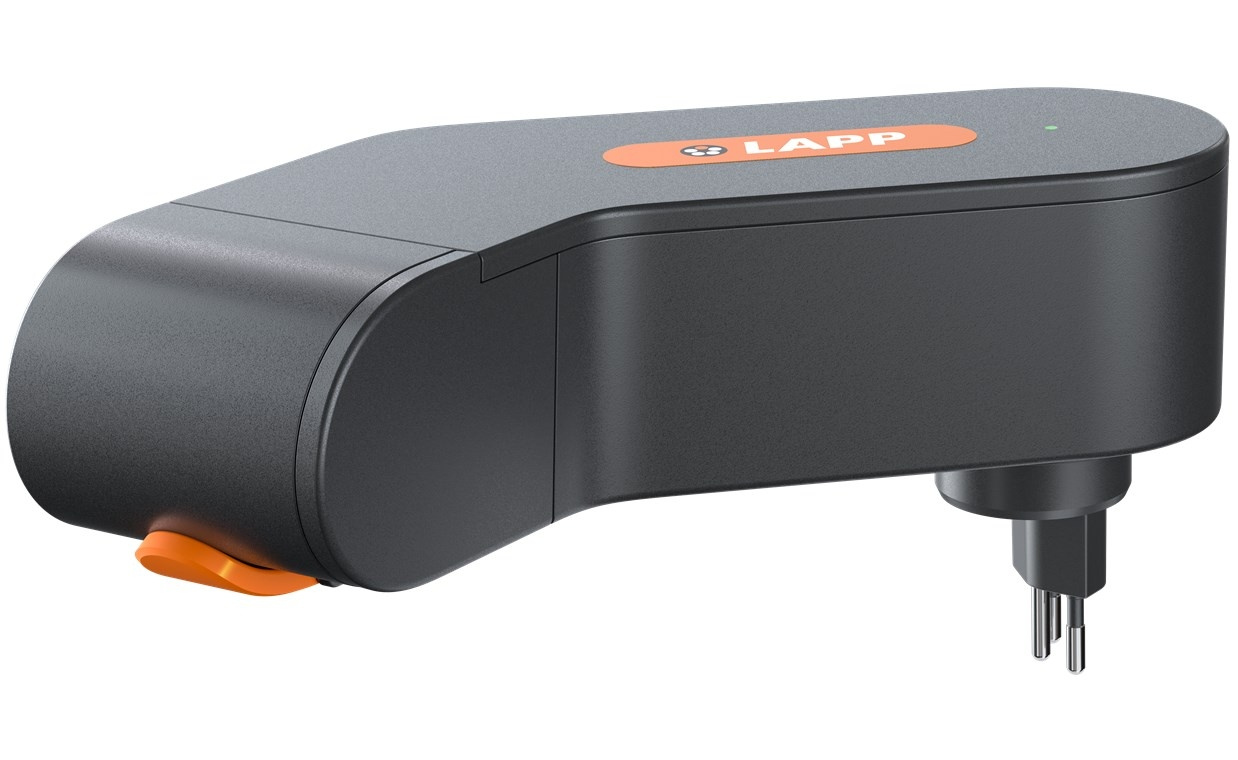

- The car charger is equipped with a convenient LED indicator lamp in the housing.
- The EV charger is particularly safe thanks to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB).
Number of phases: 1
Markings: WEEE, CE
depth: 114 mm
Height: 255 mm
Manufacturer designation: 5555925005
Model designation: 5555925005
Operating temperature up to: 45 °C
Operating temperature from: -25 °C
protection class: IP55
Weight: 750 g
Width: 135 mm
Loading capacity up to: 1.8 kW
Charging mode: Mode 2
Rated voltage: 230 V (AC)
4064728065341EAN:
