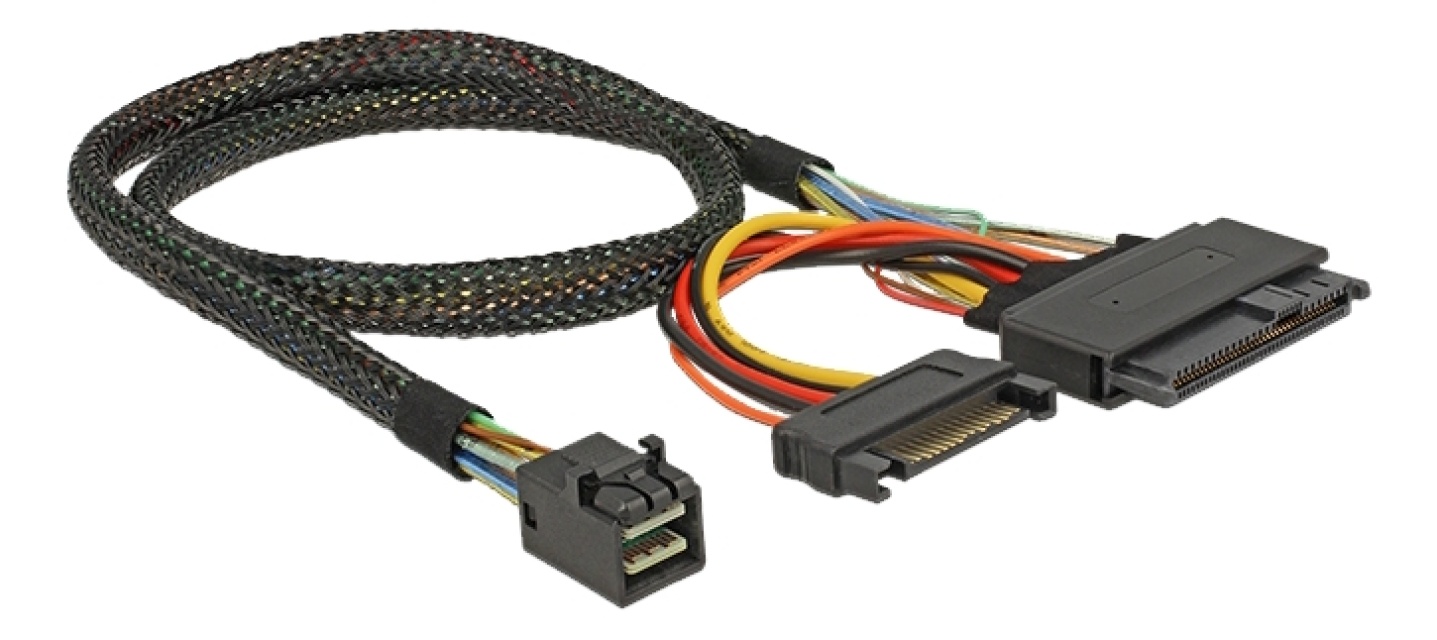

DeLOCK Cable SFF-8643 male > U.2 SFF-8639 female + SATA power connector

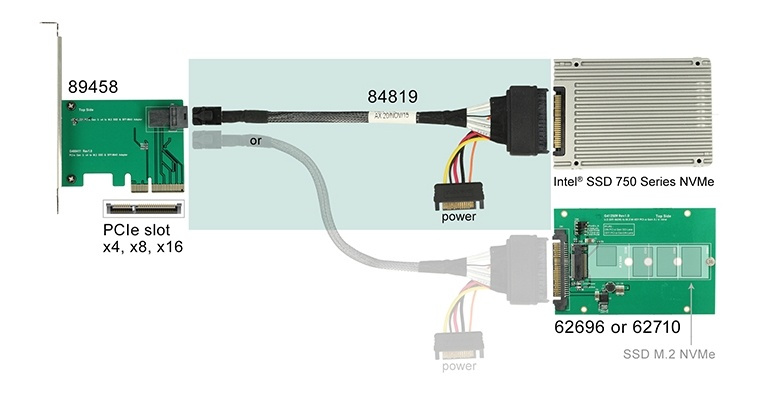

The cable enables the connection between e.g. an SSD with U.2 interface and an M.2 NGFF converter equipped with a SFF-8643 port.
• Supports NVM Express (NVMe)
• Cable gauge: 30 + 32 AWG data line, 18 + 24 AWG power line
• Length without connectors: Data cable ca. 50 cm, power cable ca. 10 cm
• Connectors: 1 x SFF-8643 male > 1 x U.2 SFF-8639 female, 1 x SATA 15 pin power plug
• Data transfer rate up to 2 GB/s (PCI Express rev. 2.0) resp. 4 GB/s (PCI Express rev. 3.0)
System requirements
• A free SFF-8643 interface
• SSD with U.2 port
Package contents: U.2 SFF-8639 cable.
4043619848195EAN:
