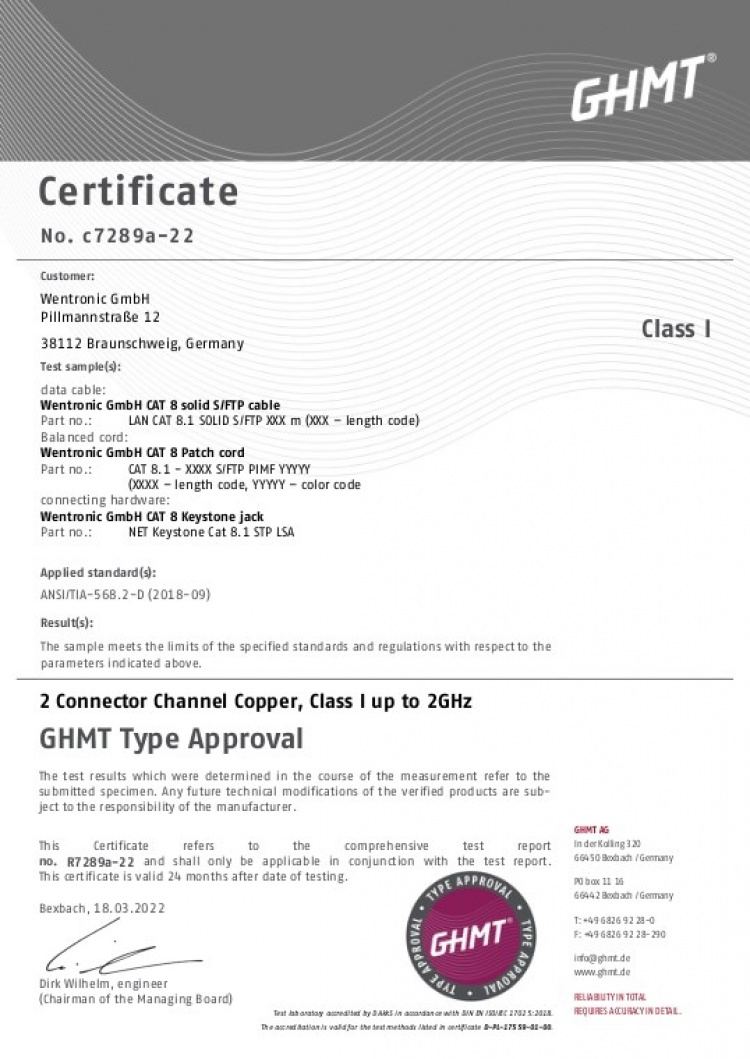

Reliable performance of the network cable in CAT 8.1 channels is best ensured when combined with the GHMT-certified components listed below.Cable transmission characteristics were tested in a 2-connector channel over a transmission distance of 24 m for compliance with the specifications for Class I up to 2 GHz according to ANSI/TIA-568.2-D (2018-09): 2 Connector Channel Copper, Class I up to 2 GHzGHMT Type Approval Balanced cord: Wentronic GmbH CAT 8 patch cordPart no.: CAT 8.1 - 100 m S/FTP PiMF yellowCertified patch cables: 61091, 61092, 61093, 61094, 61095, 61102, 61103, 61104, 61105, 61106, 61113, 61114, 61115, 61116, 61117Certified installation cables: 61126, 61127, 61128Certified Keystone coupler: 61145

copper conductor (CU), AWG 22/1 (solid), halogen-free (LSZH) Cable length 100 m

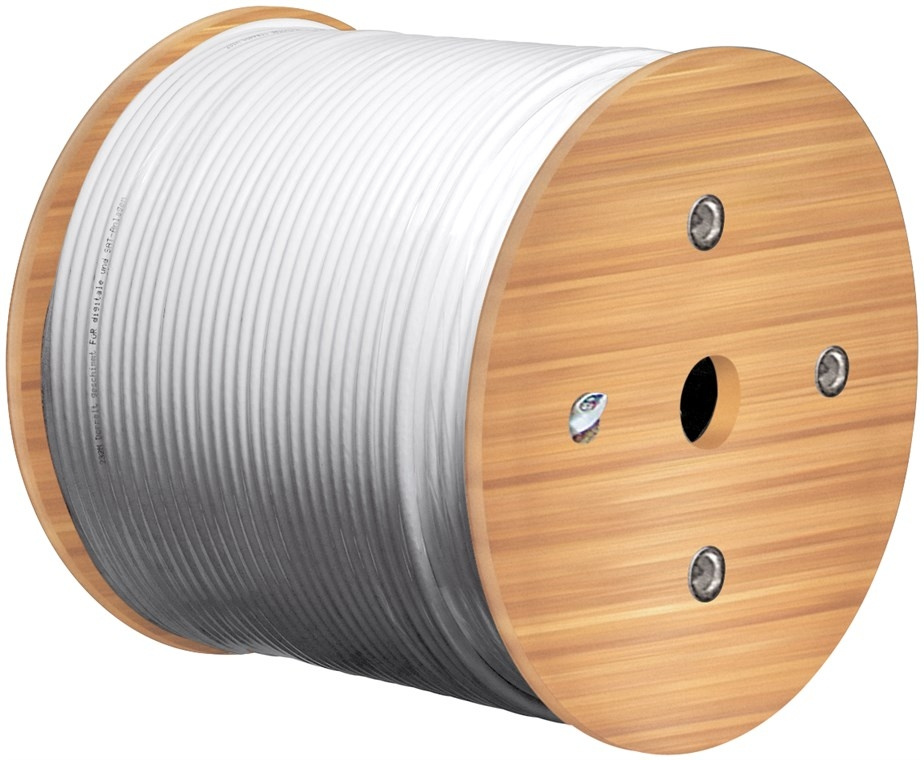

Förpackning: wooden drum

LAN cable for setting up a CAT 8.1 channel
GHMT-certified for a transmission distance of 1x 24 m installation cable plus 2x 3 m patch cord in a 2-connector channel (8.1 Standard Class I with an operating frequency of up to 2 GHz)
Suitable for 25GBase-T and 40GBase-T Ethernet networks (40-gigabit capable) and backward compatible with 10BASE-T, 100BASE-TX, 1000BASE-T
With a transmission bandwidth of up to 2,000 MHz, the Ethernet cable has 4 times the bandwidth of CAT 6A cables

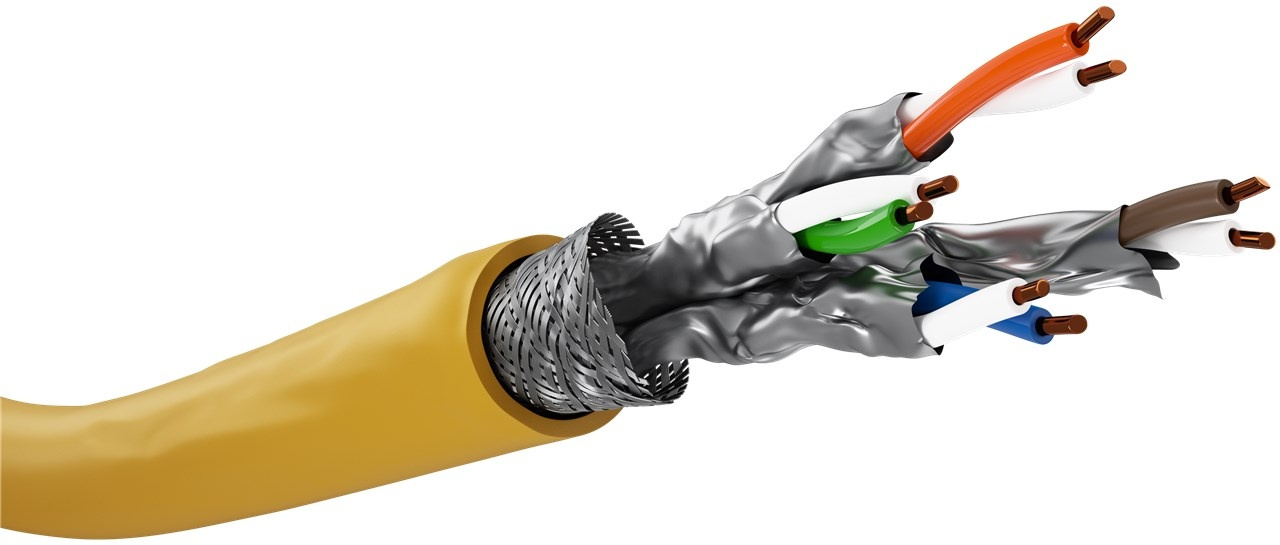

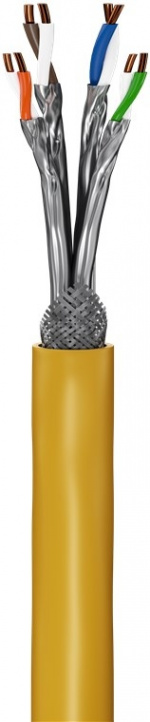

Equipped with wire pairs with an aluminium foil screen (PiMF) and an S/FTP overall screen made of aluminium braid for a loss-free signal transmission
Low-smoke and halogen-free network cable for structured indoor installation
Complies with the Construction Products Regulation (CPR) and Dca fire protection class.

AWG: 22/1 (solid)
Specification: CAT 8.1
Cable sheath diameter (approx.): 8.3 mm
inner conductor, core diameter: 0.6 mm
Diameter of insulated conductor: 1.6 mm (+/-0.05)
Shielding class: S/FTP (PiMF)
Number of shieldings: 2 x
Markings: CE, GHMT Premium Verification Programm
Impedance: 100 Ω
max. bandwidth: 2000 MHz
Cable type: Cat 8.1 raw cable
Material cable sheath: LSZH
Inner conductor material: CU (copper)
LSZH compliant: yes
Type 1, shielding: foil (alu) PiMF

4040849611285EAN:

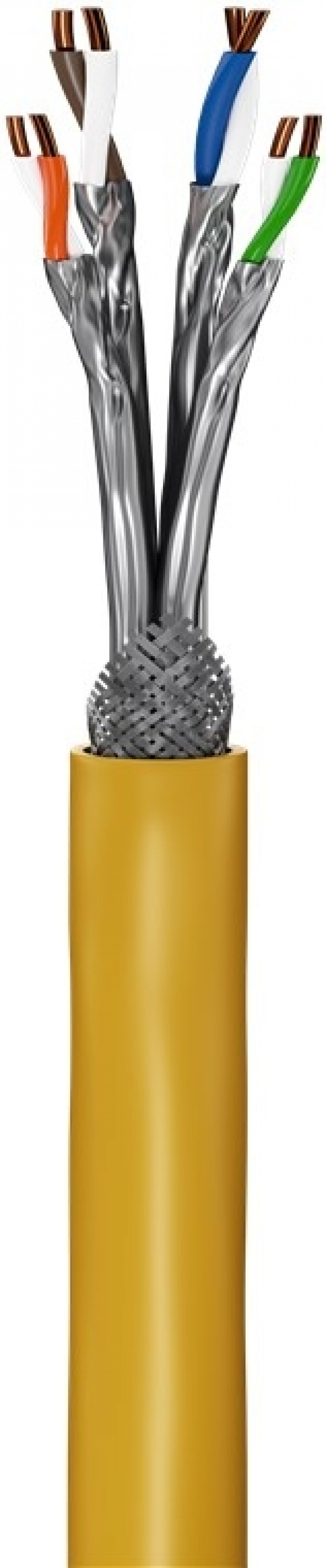

Goobay GHMT-certified CAT 8.1, S/FTP (PiMF), Network Cable yellow copper conductor (CU), AWG 22/1 (solid), halogen-free (LSZH), 100 m
