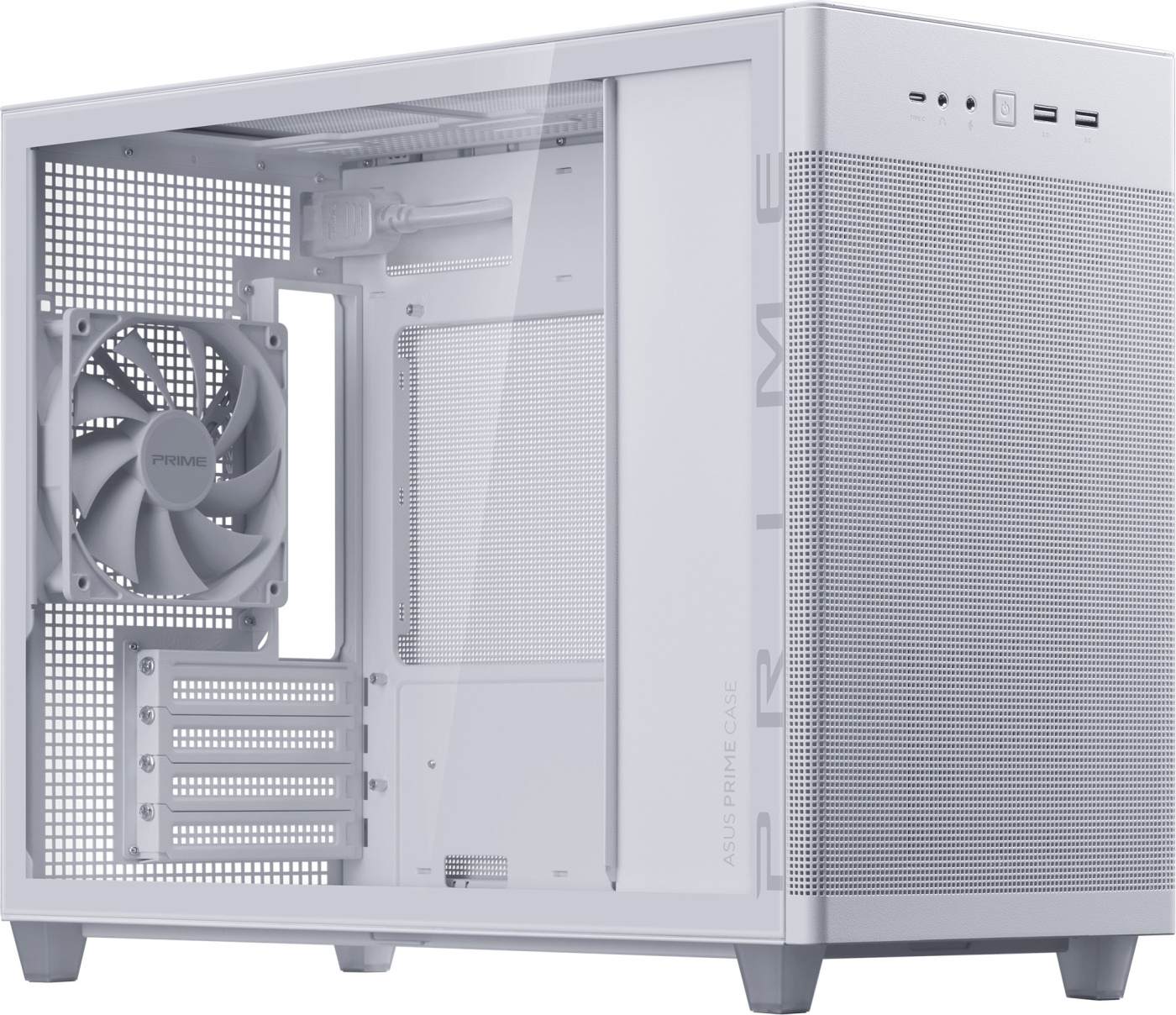

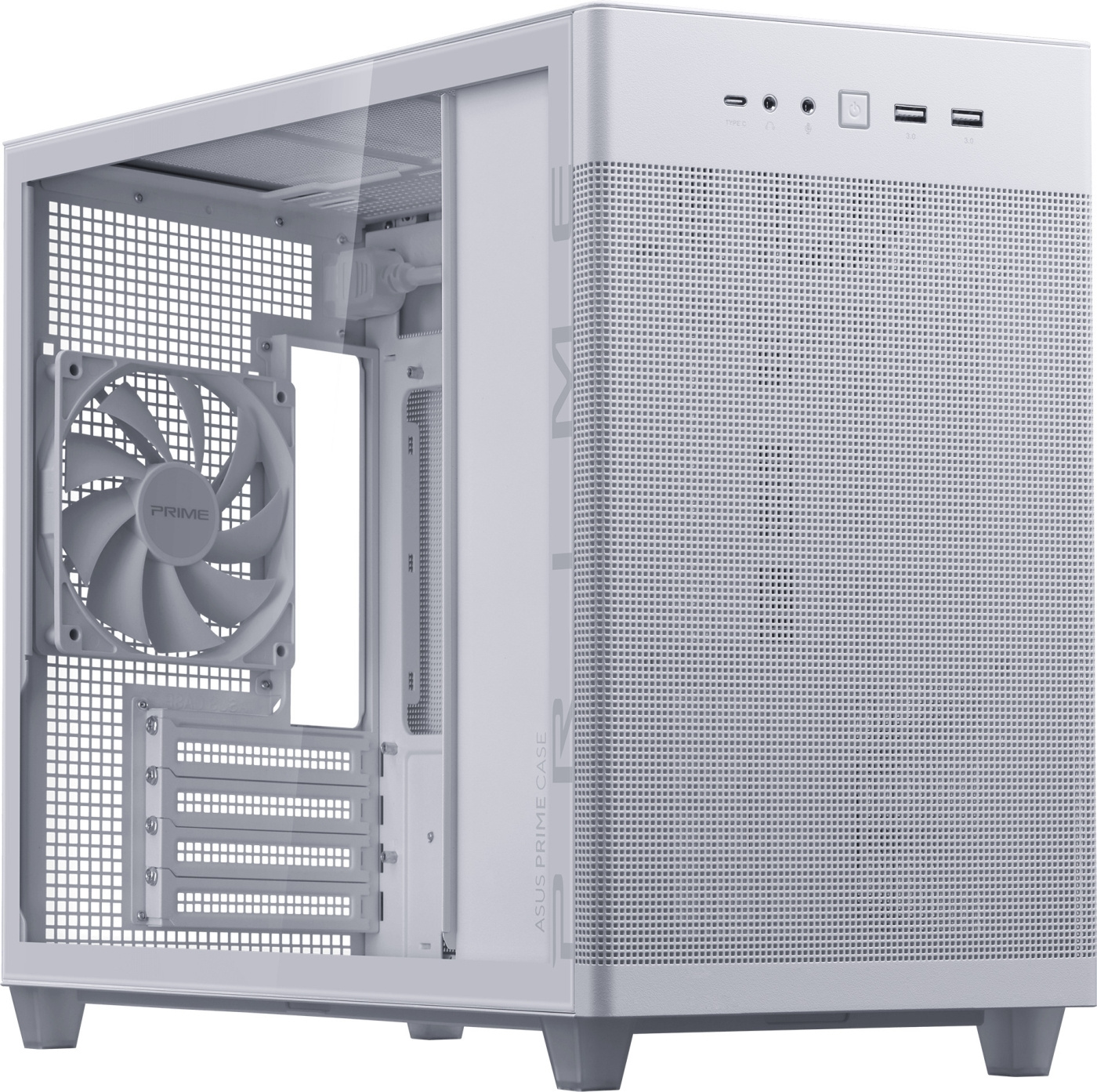

The ASUS Prime AP201 is a breakthrough in microATX case design, providing a high-performance platform for 360mm AIO coolers and up to 338mm graphics cards - all in a compact 33-litre size.

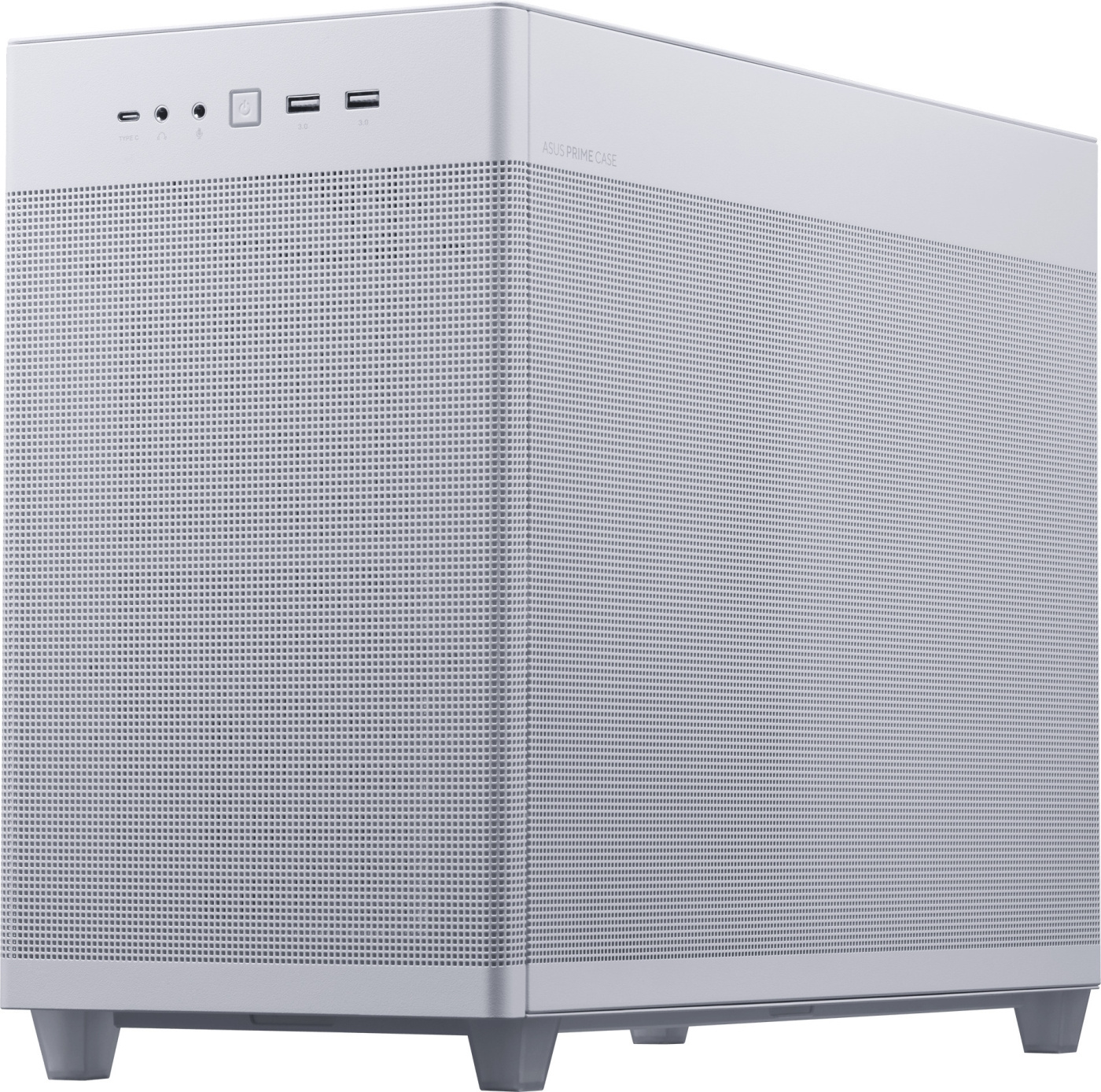

Tool-less removable side panels provide quick and easy access to the interior, and the Quasi-Filter Mesh panel surrounding the entire enclosure is designed for improved airflow. All these features complement the Prime AP201's sleek minimalist aesthetic.

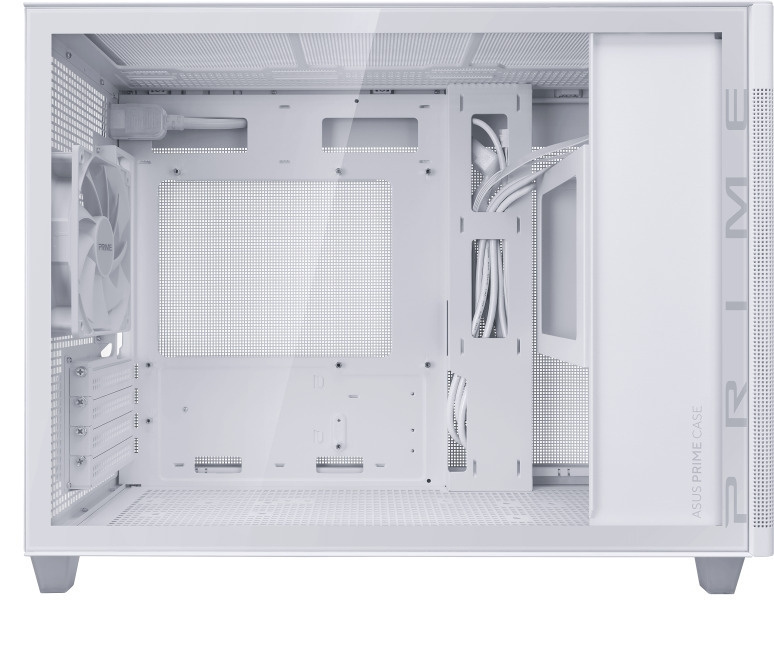

Quasi-Filter Mesh panels and glass side panel. Koteo's second side panel, made of tempered glass, provides a good view of the components inside.
Optimised for cooling: the AP201 supports 280 and 360 mm radiators and up to six fans, making it ready to handle the thermal stress of high-performance components.
Despite its 33-litre capacity, the AP201 supports ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling and a variety of storage devices.

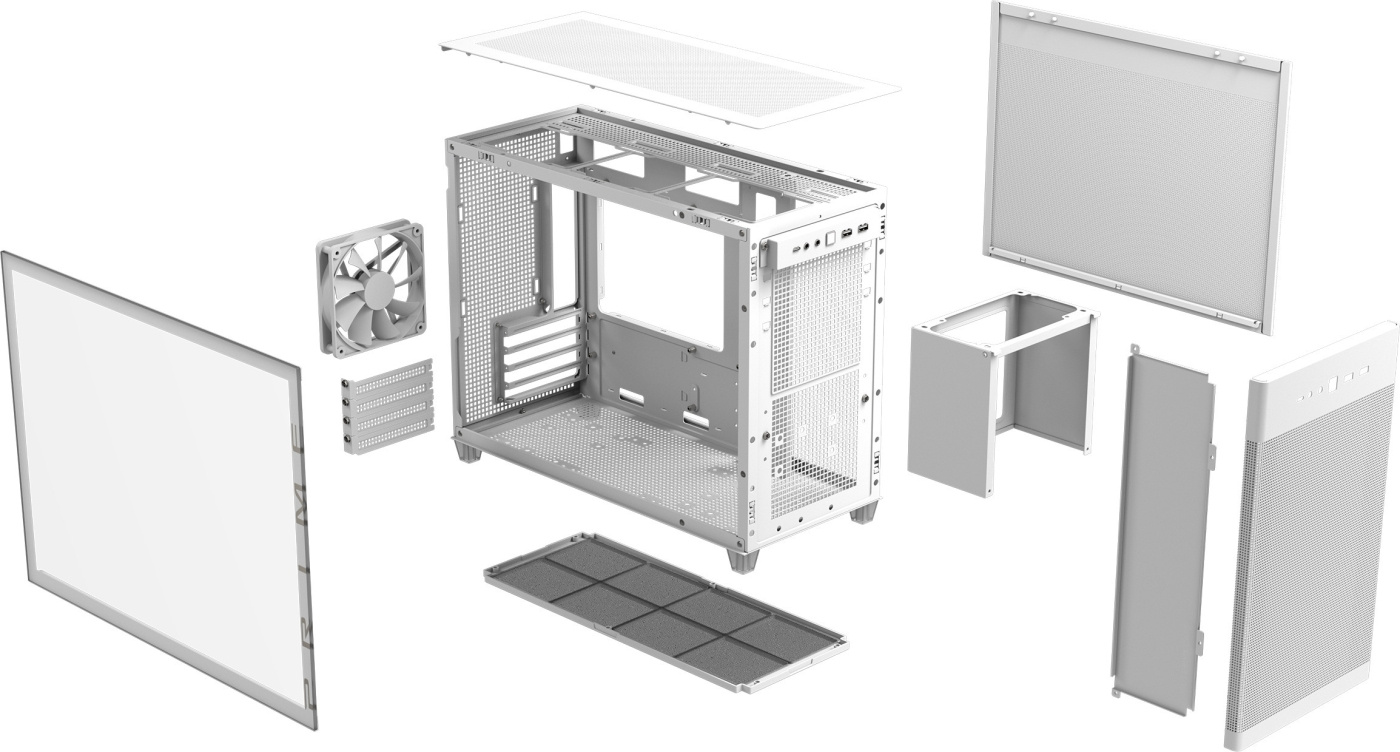

Tool-free side panels: a simple but secure clip mechanism allows the chassis side panels to be easily removed and resists accidental detachment.

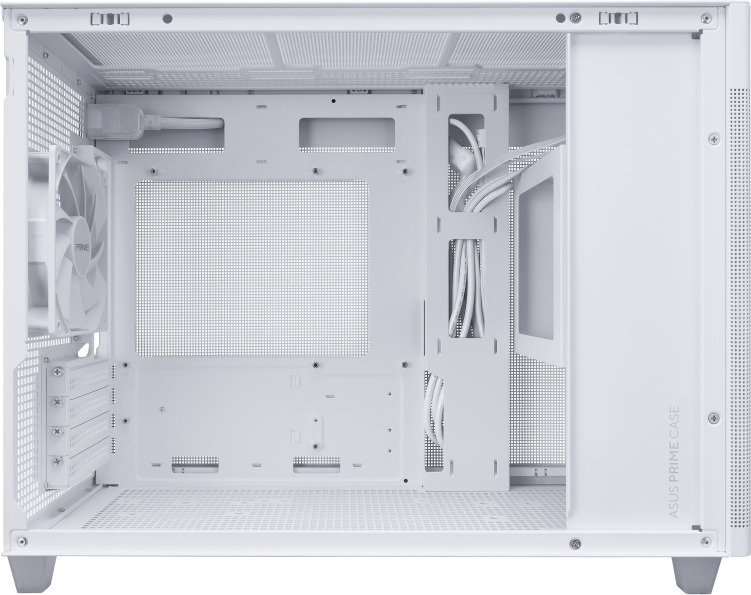

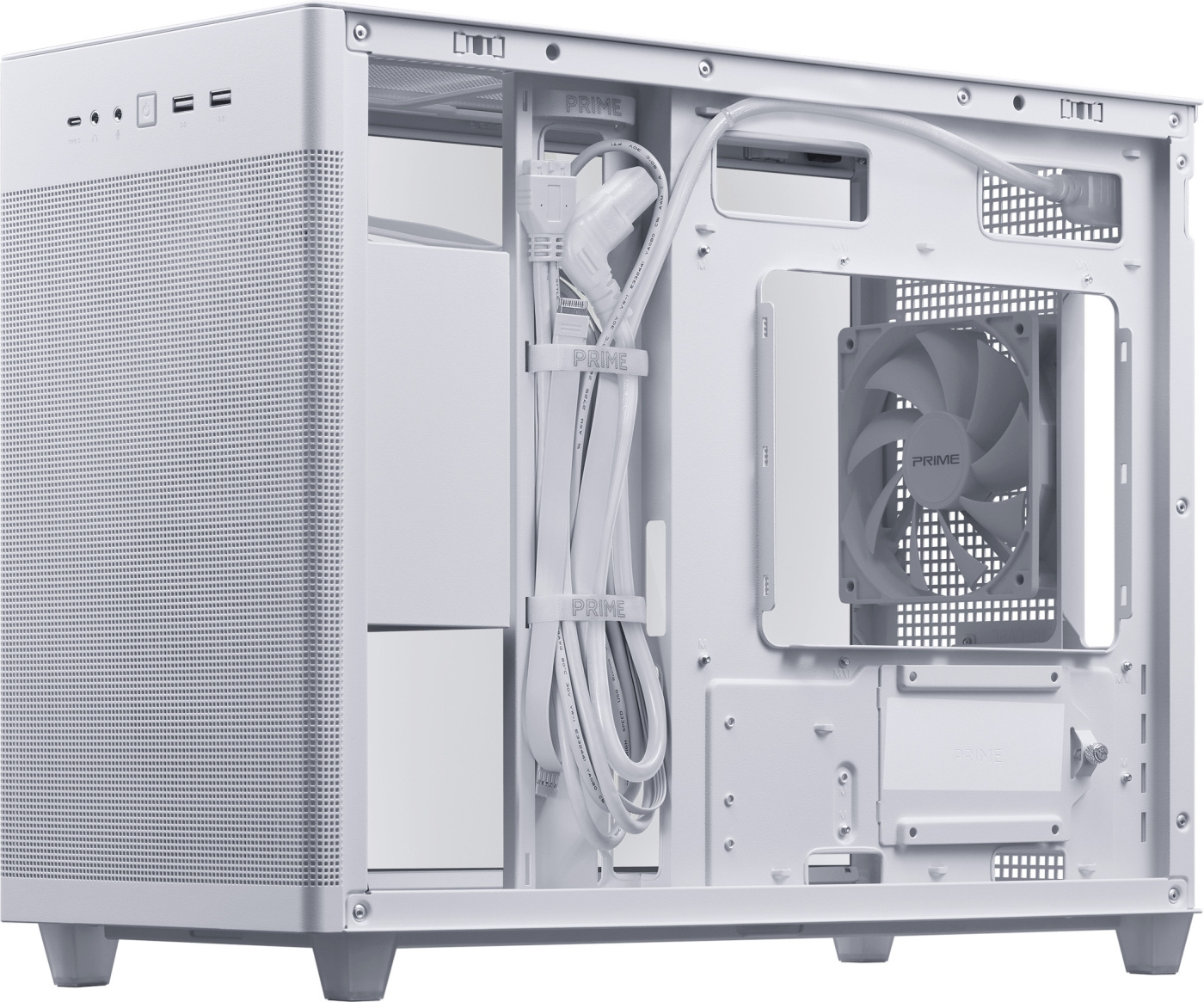

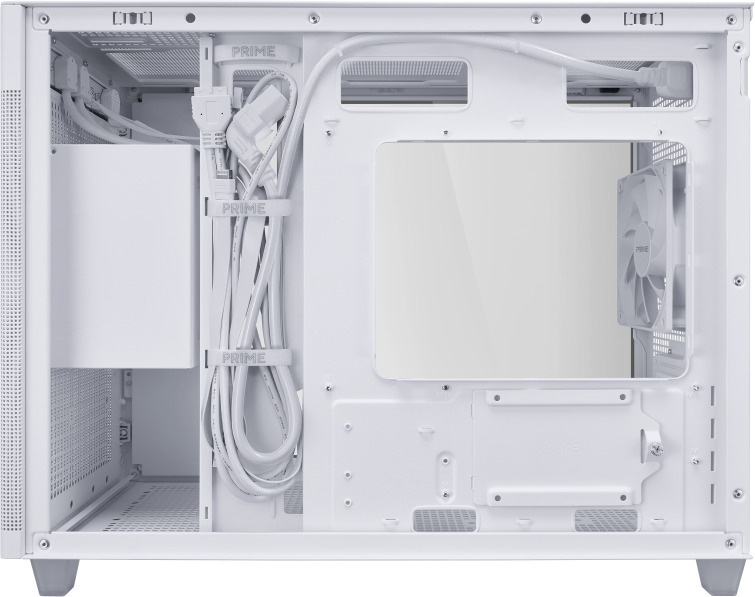

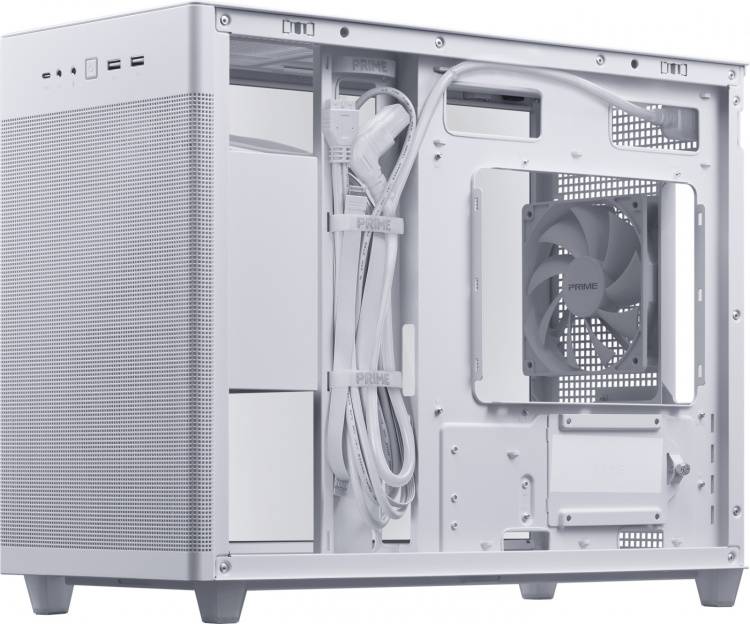

Powerful cable management: the AP201 features an extended motherboard chassis with strategically placed slots and a 32 mm slot for hiding cables.

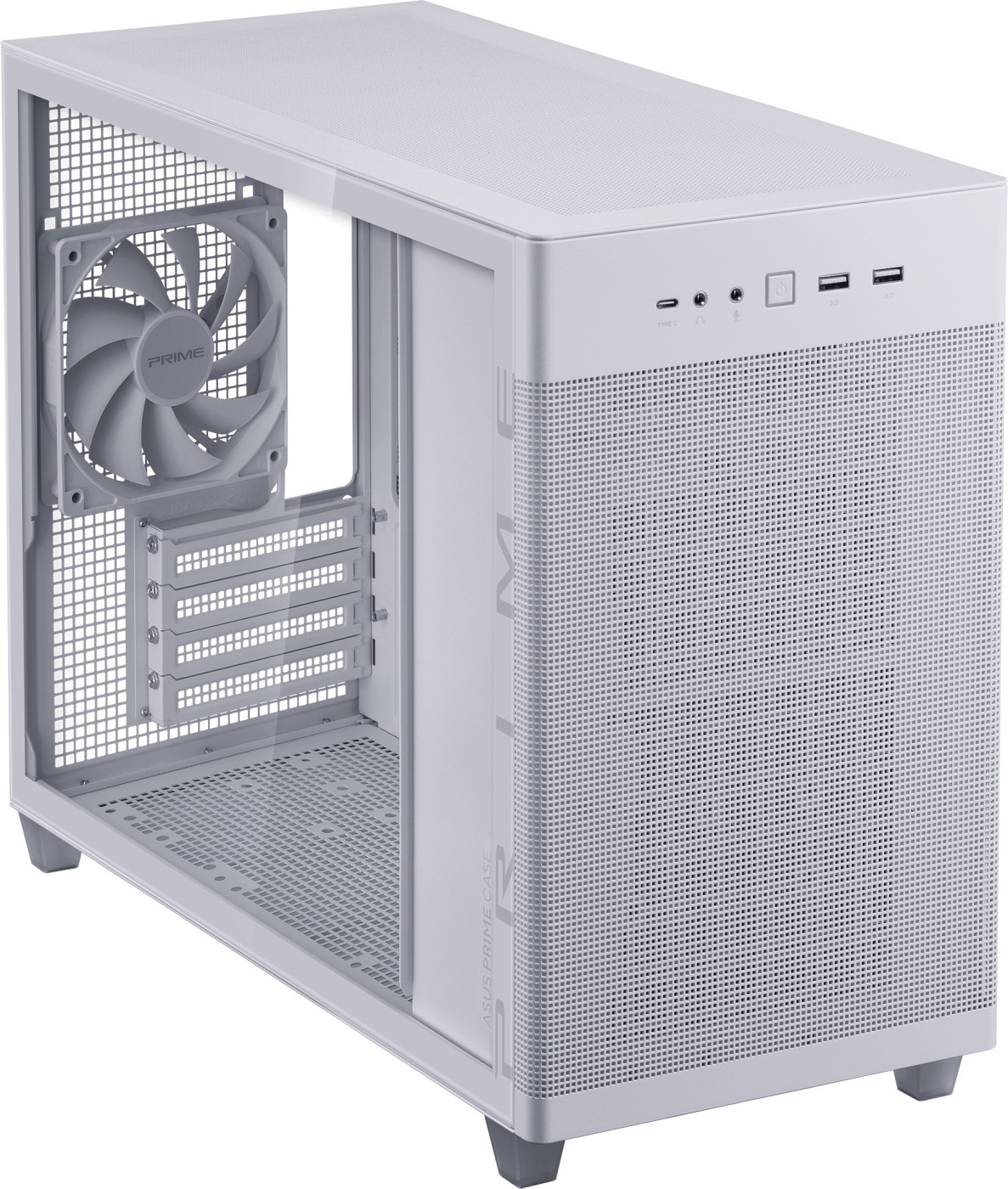

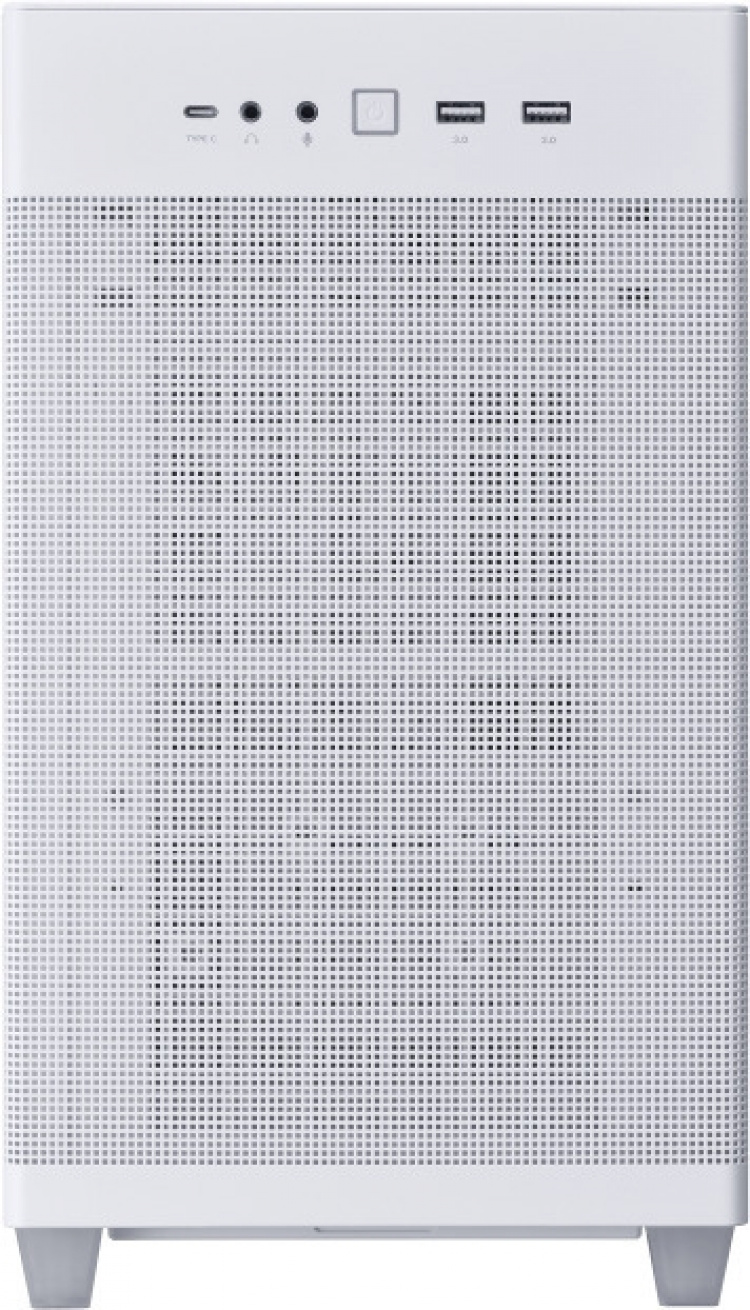

Front panel USB Type-C support: the front panel features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.
Features:
- Case type: small tower
- 2.5" internal slots: 1
- 2.5"/3.5" internal slots: 3
- Internal 5.25" slots: -
- Front panel: 1 x headphone, 1 x microphone, 2 x USB 3.2 (Gen1), 1 x USB 3.2 Type-C (Gen2), power
- Additional card slots: 4
- Maximum height of processor cooler: 170 mm
- Maximum display driver length: 338 mm
- Maximum power supply length: 140 - 180 mm (ATX)
- Dimensions: 205 x 350 x 460 mm
- Weight: 6.3 kg
- Motherboard support: Micro-ATX, Mini-ITX
- Cable management: 32 mm space
- Dust filter on the bottom
- Includes 1 x 120 mm pre-installed fan at the rear
Fan slots:
- Ceiling: 3 x 120 mm / 2 x 140 mm
- Rear: 1 x 120 mm (included)
Cooling support:
- Ceiling: 120 / 140 / 240 / 280 / 360 mm
- Rear: 120 mm
- mATX / Mini ITX case
- Glass side panel
- Compact but spacious design
- Optimized for cooling
- Efficient cable management
