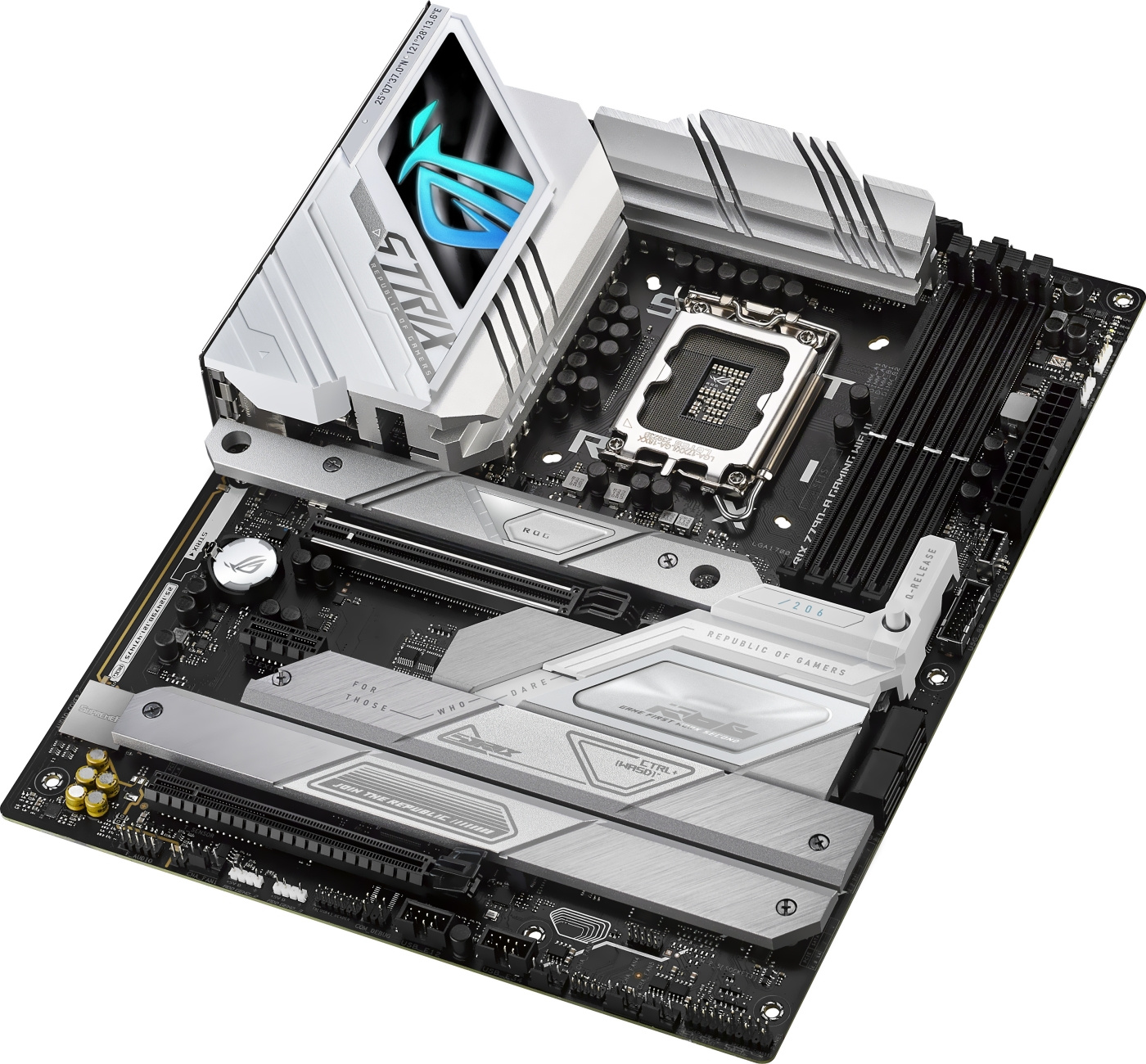

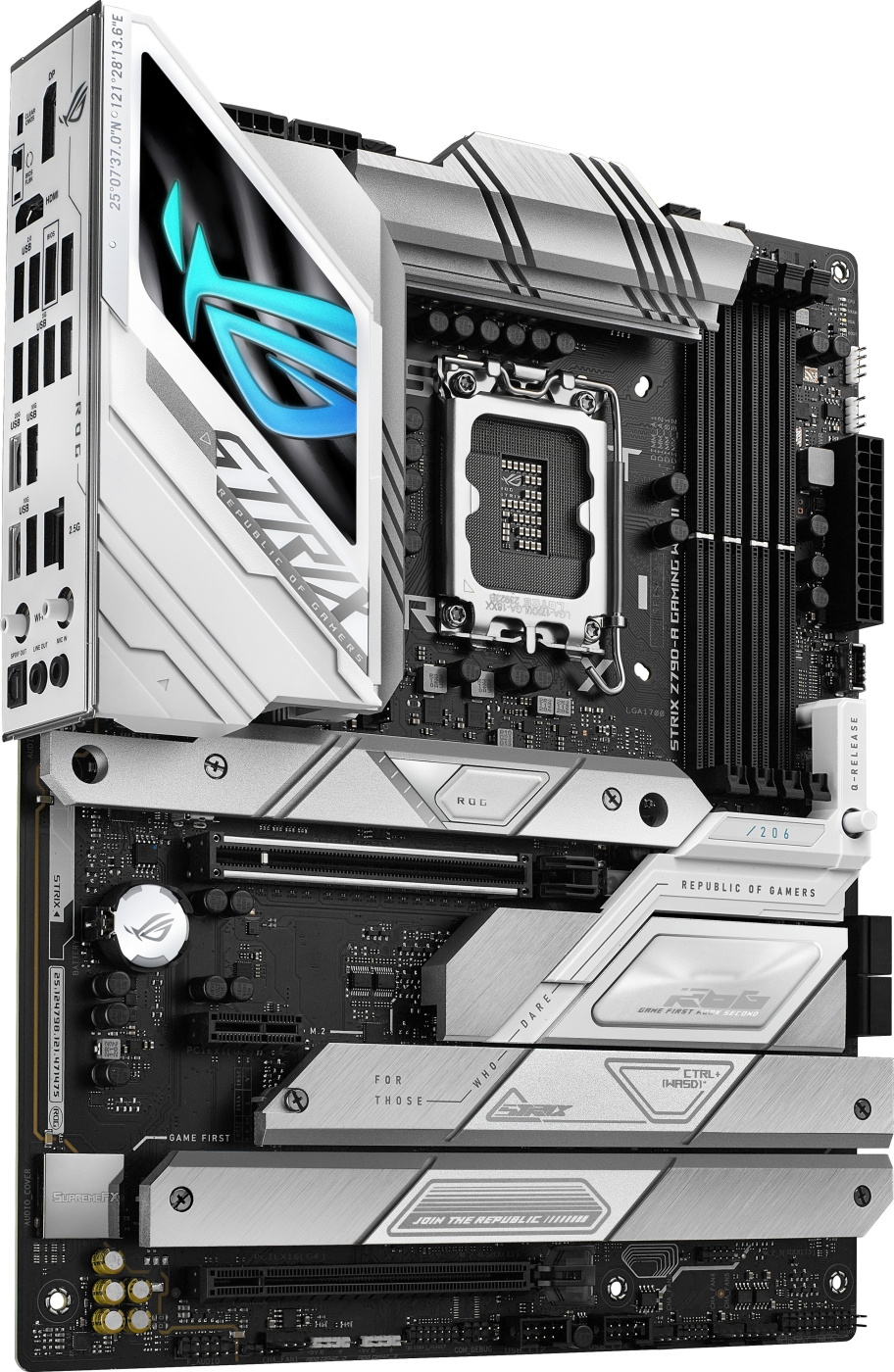

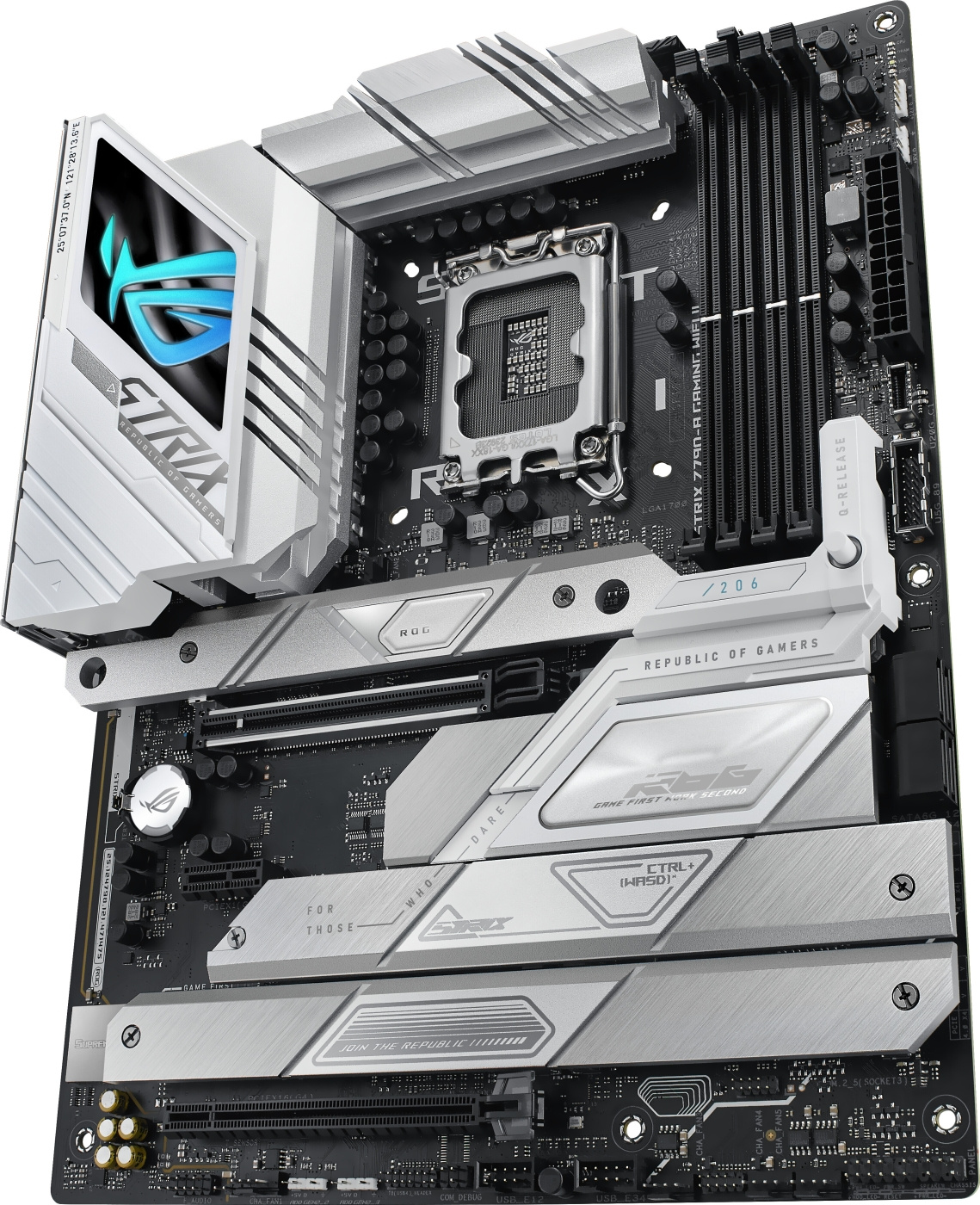

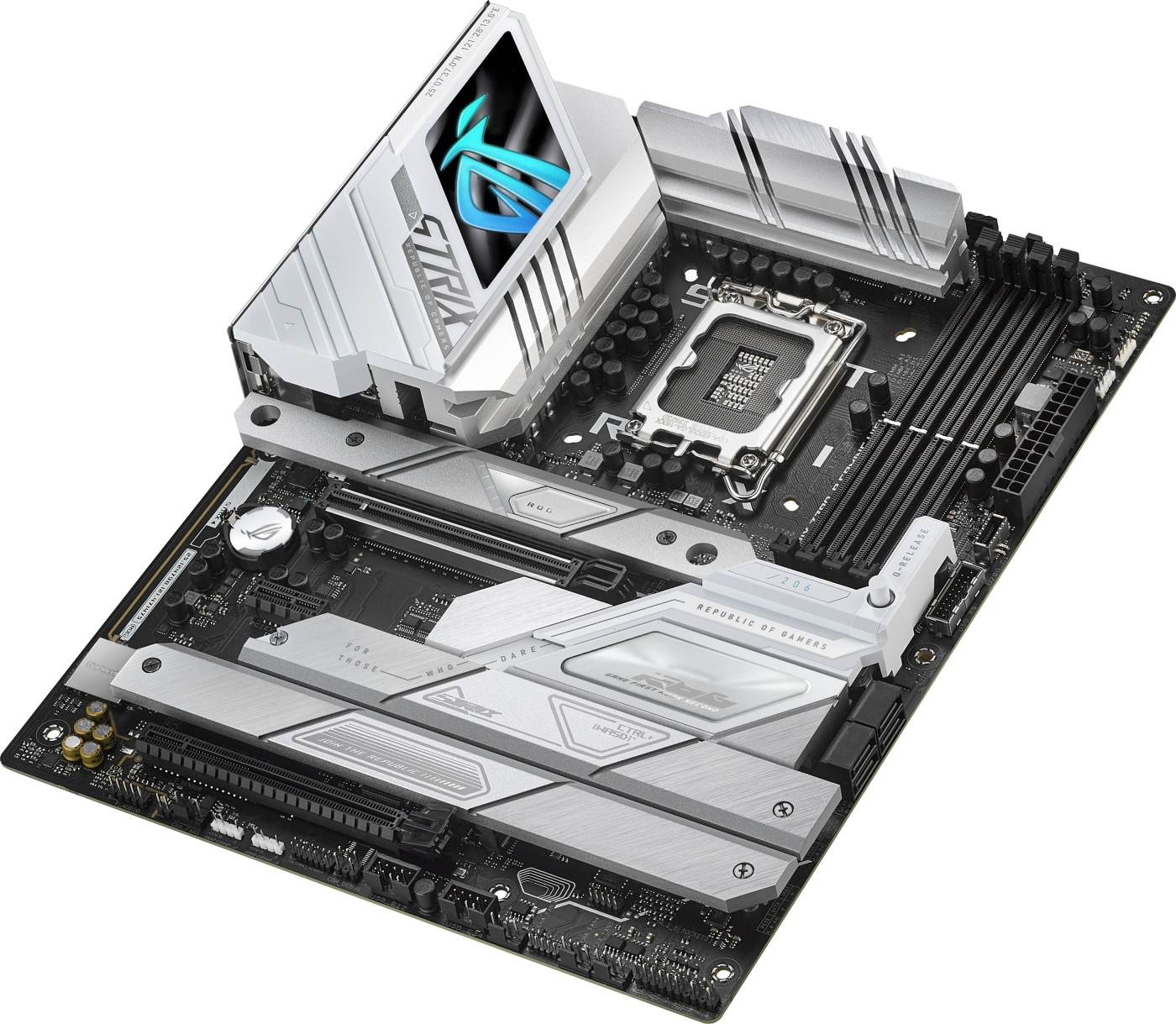

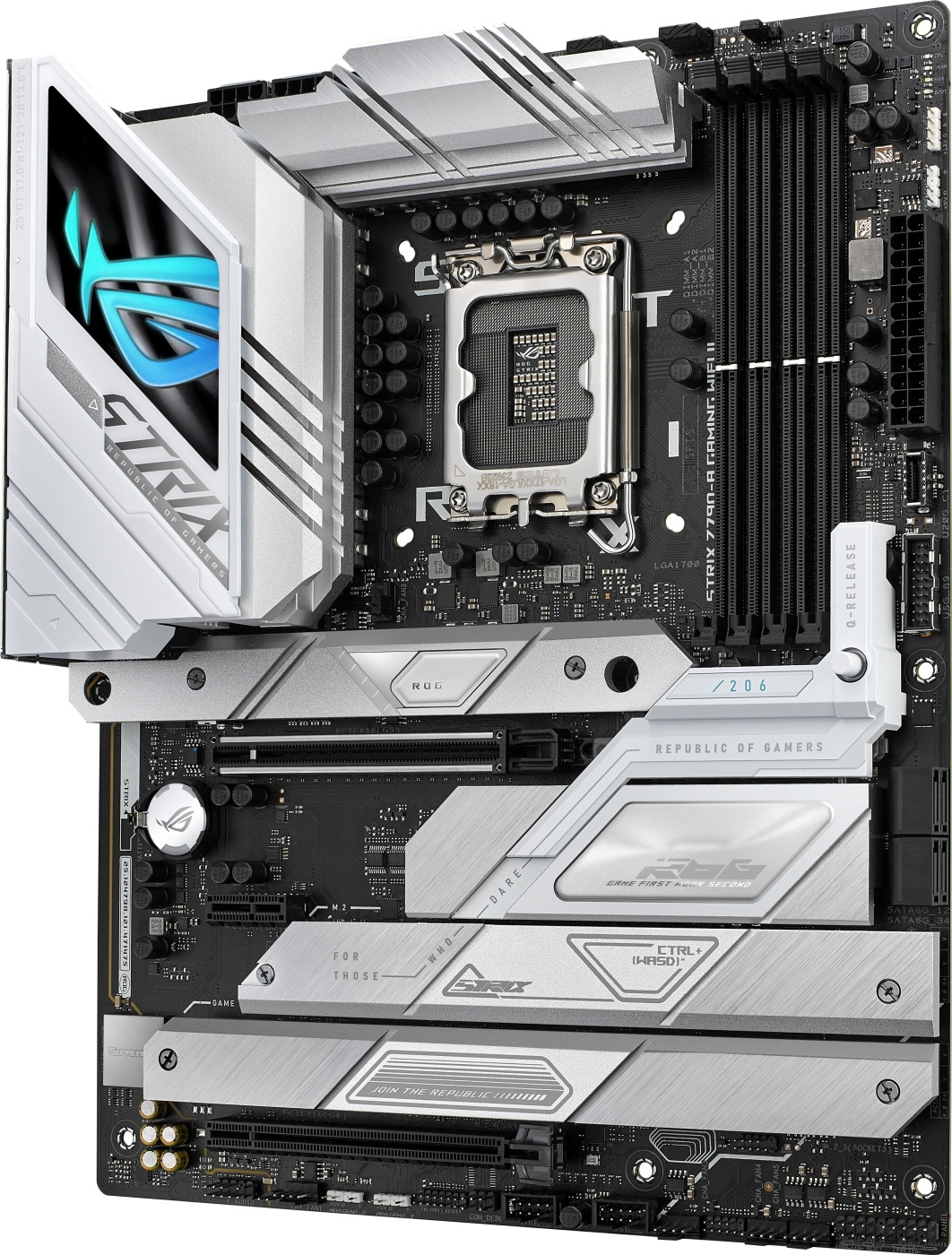

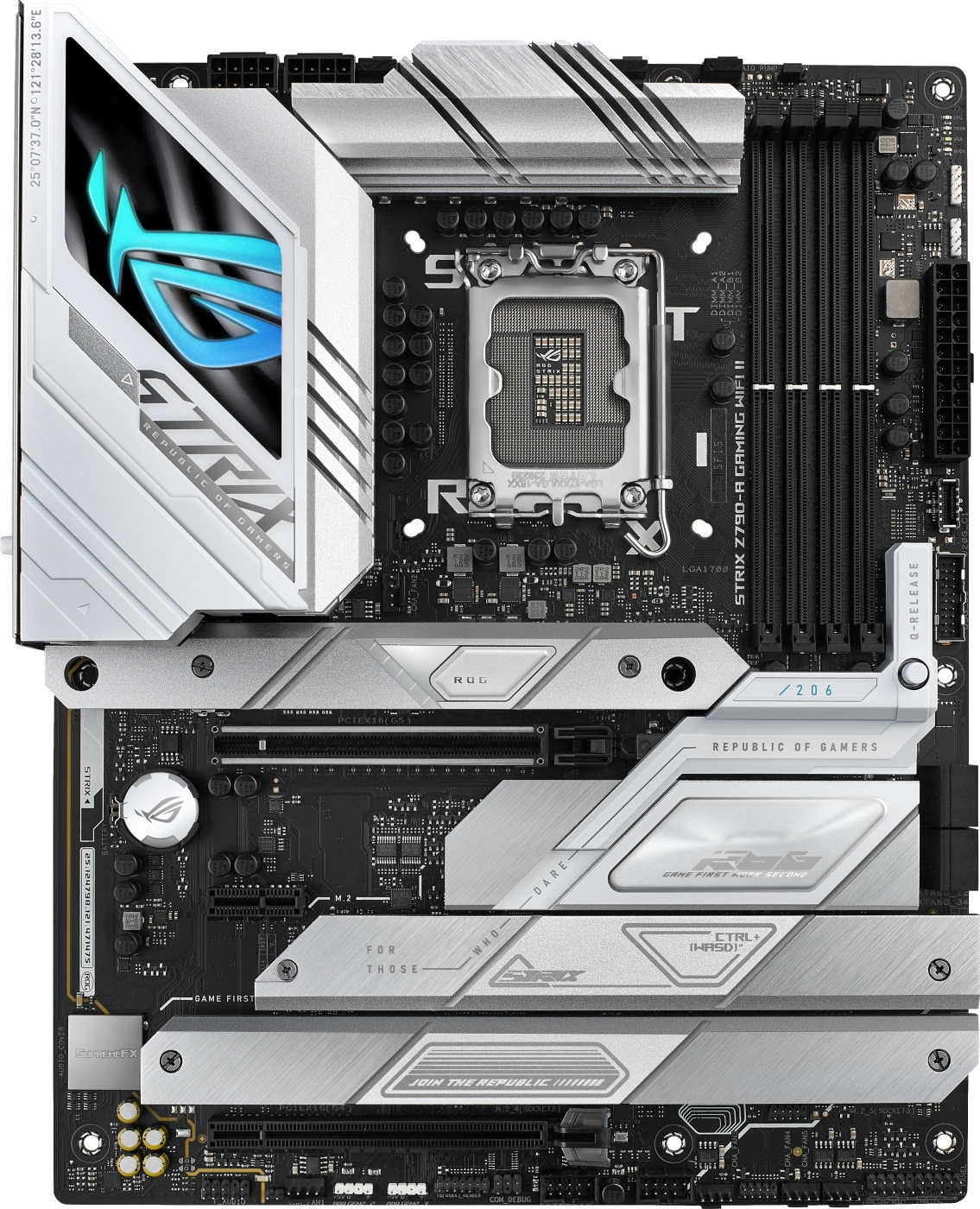

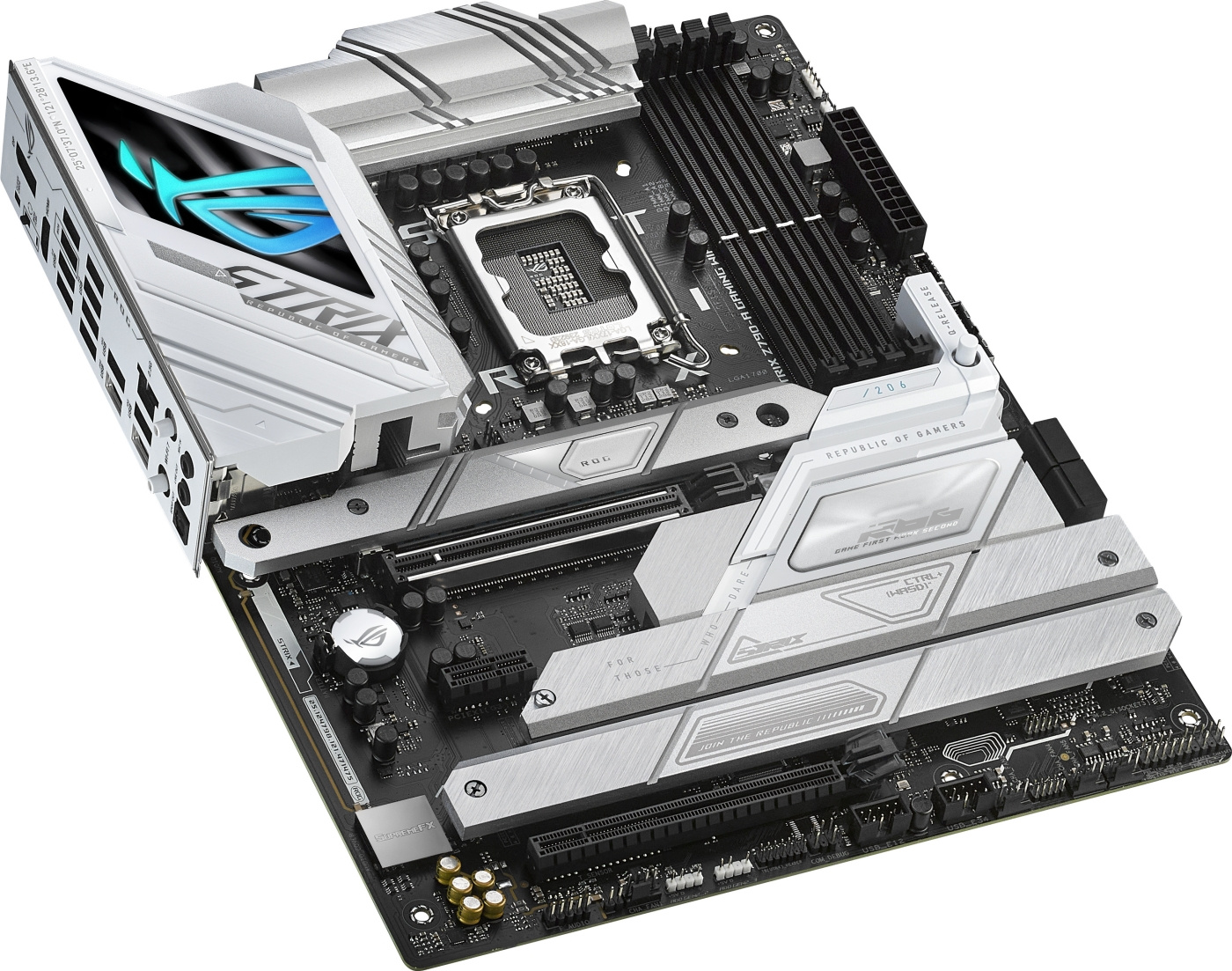

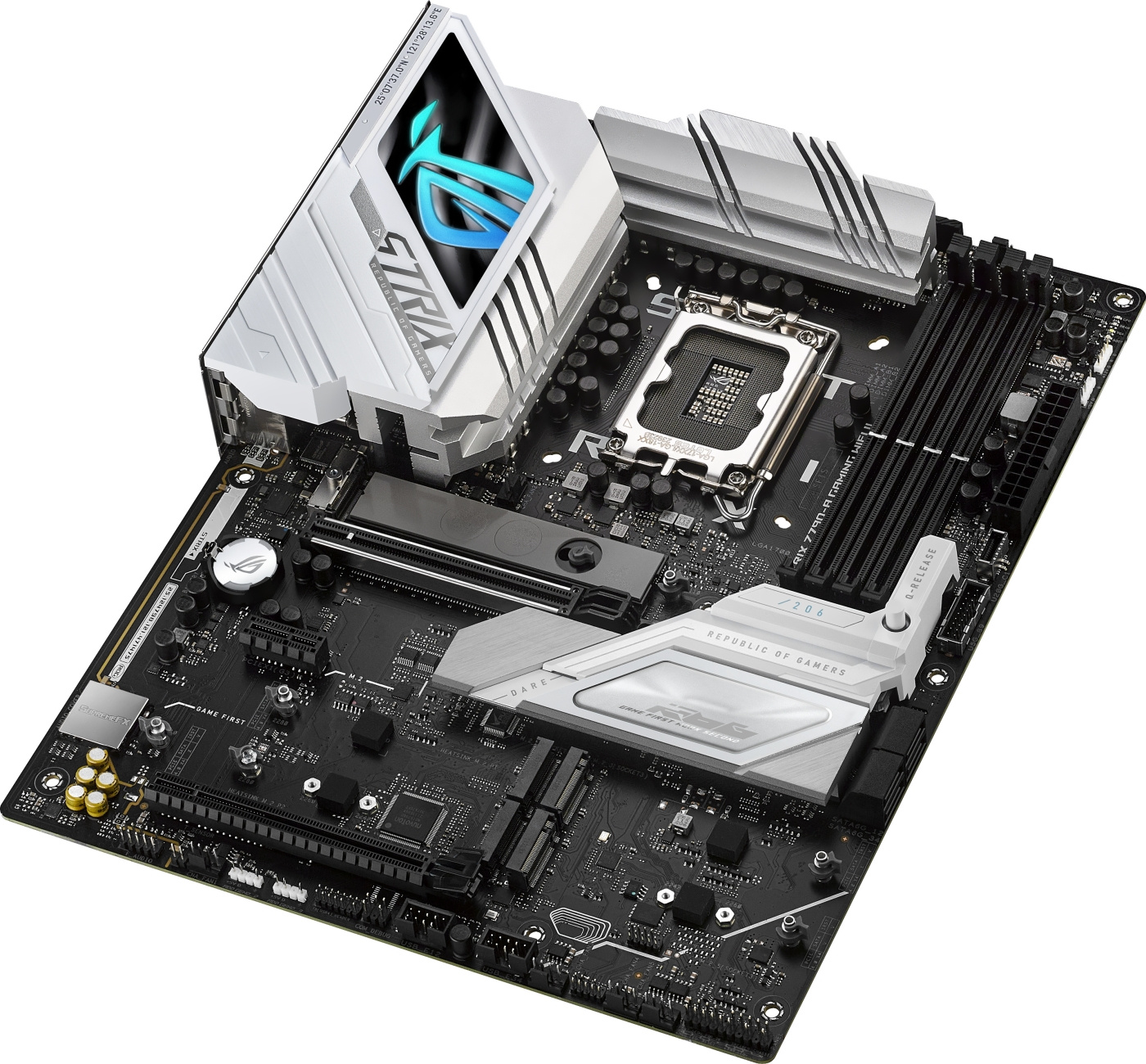

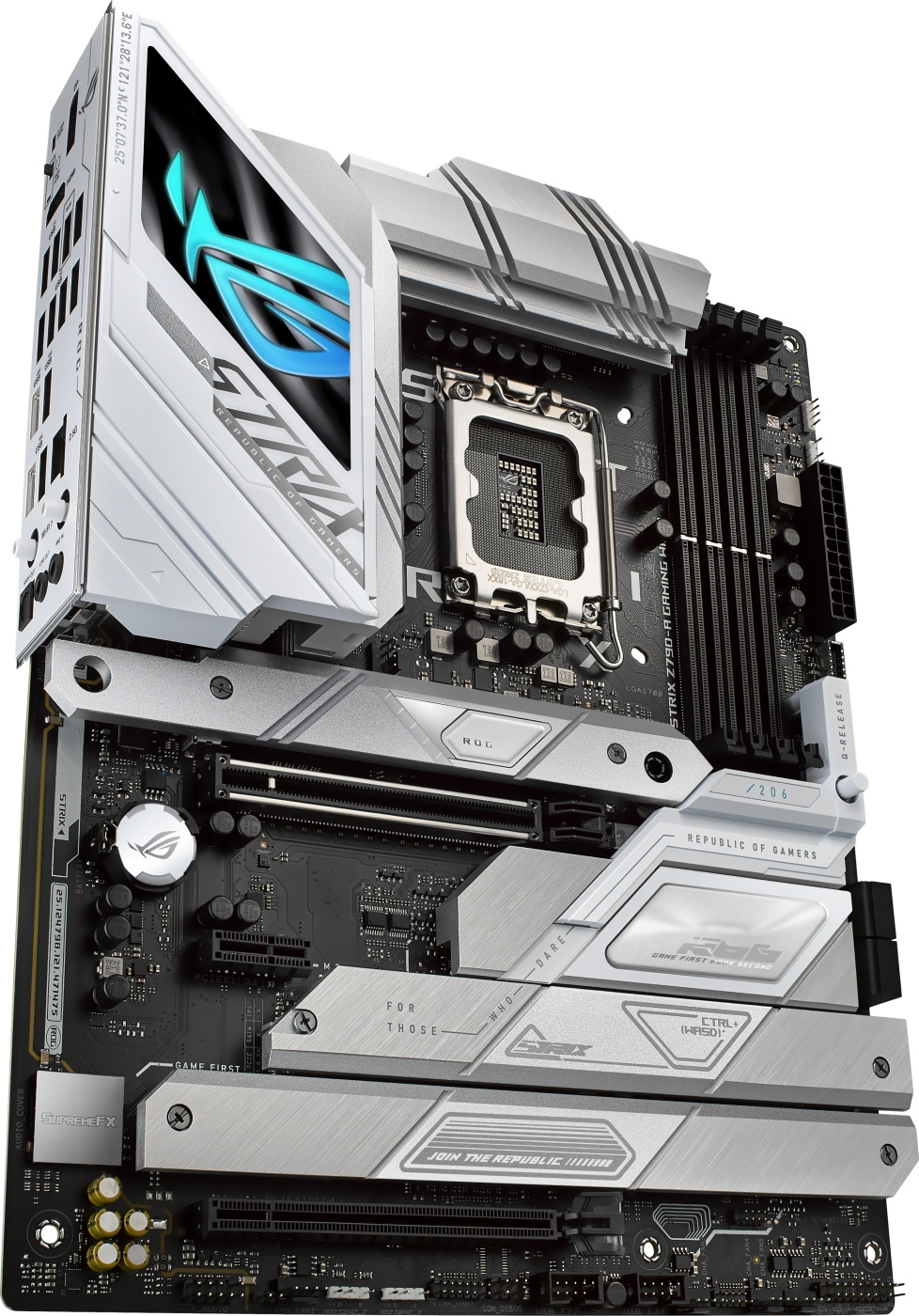

ASUS ROG Strix Z790-A Gaming WiFi II ATX motherboard

The ROG Strix Z790-A Gaming WiFi II brings a boost to your setup with a powerful 16-phase power supply, fast DDR5 memory and great connectivity. It features five M.2 slots with heatsinks, USB 20 Gbps support, next-generation Wi-Fi 7 and Aura Sync RGB lighting. The ROG Strix Z790-A Gaming WiFi II is fully ready for 14th generation Intel processors.

Specifications:

• Chipset: Intel Z790
• Processor core: LGA1700
• Processor support: 14th and 13th generation Intel Core, 12th generation Intel Core, Pentium Gold, Celeron series
• Motherboard size: ATX, 30.5 cm x 24.4 cm
• Memory slots (pcs): 4
• Muistityyppi: DDR5 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Maximum memory (GB): 192
• Network interfaces: Wi-Fi 7 2x2 (802.11be), 1 x Intel 2.5 Gb Ethernet
• Bluetooth: 5.4
• Sound card: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Expansion sites

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 3.0 x1 slot

Hard disk interfaces

• 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Rear panel interfaces

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal connections

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• Storage related
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD)
• 1 x USB 5Gbps header supports 2 additional USB 5G ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

• LGA 1700 ATX motherboard
• Intel Z790 chipset
• 5 x M.2 slots, 4 x SATA
• 2.5Gb LAN, Wi-Fi 7, BT 5.4
• For Intel 14th generation processors
