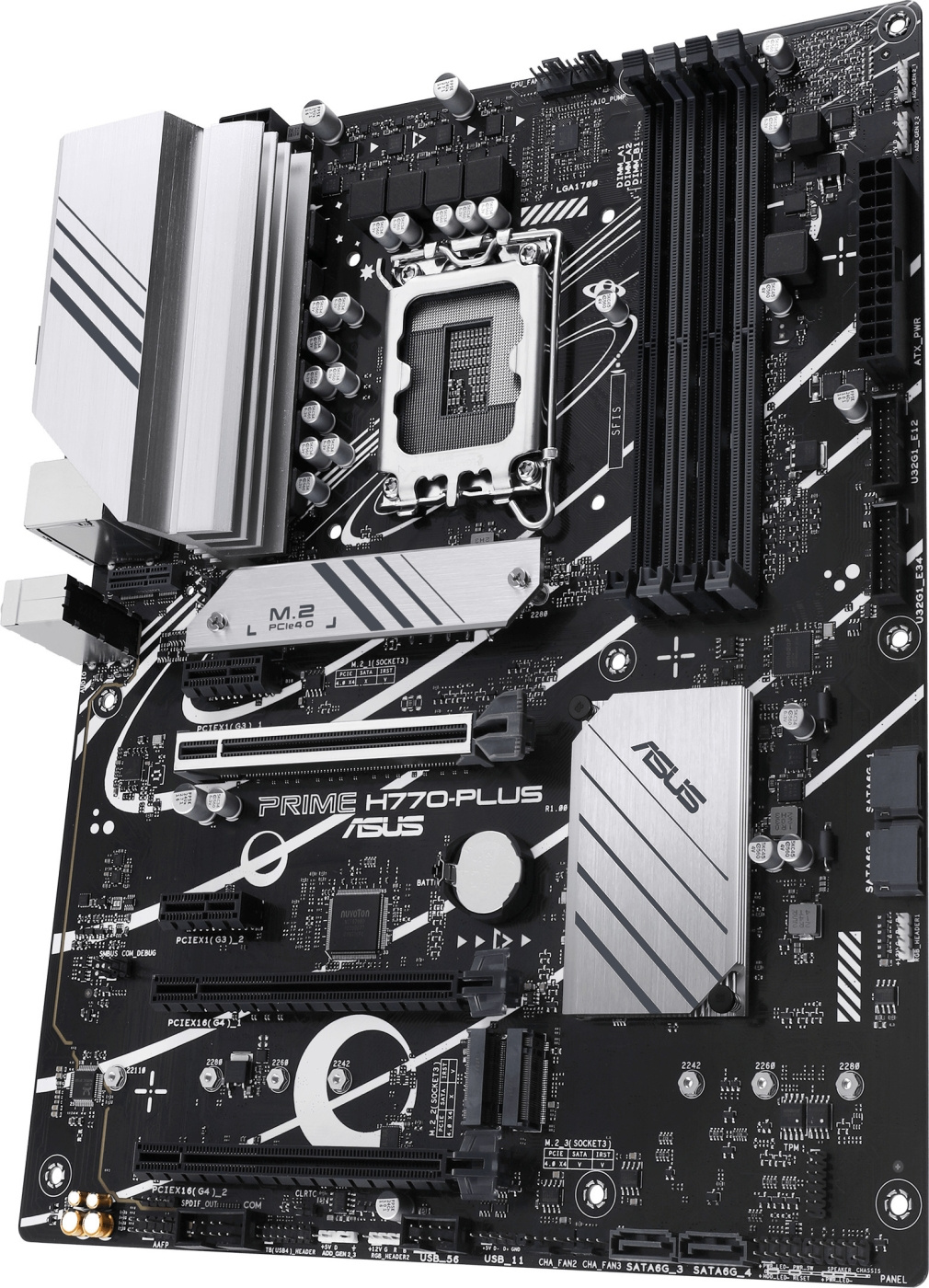

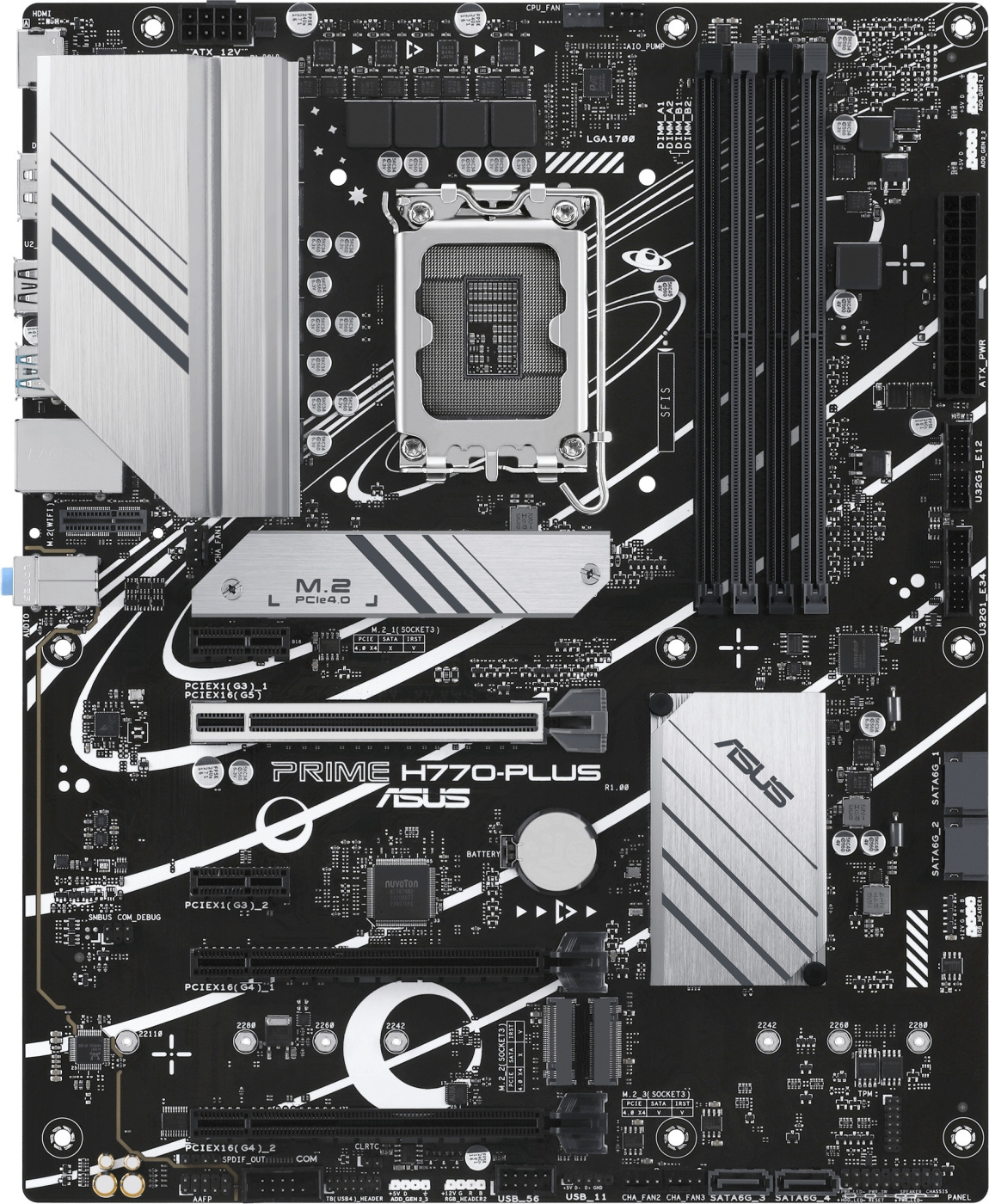

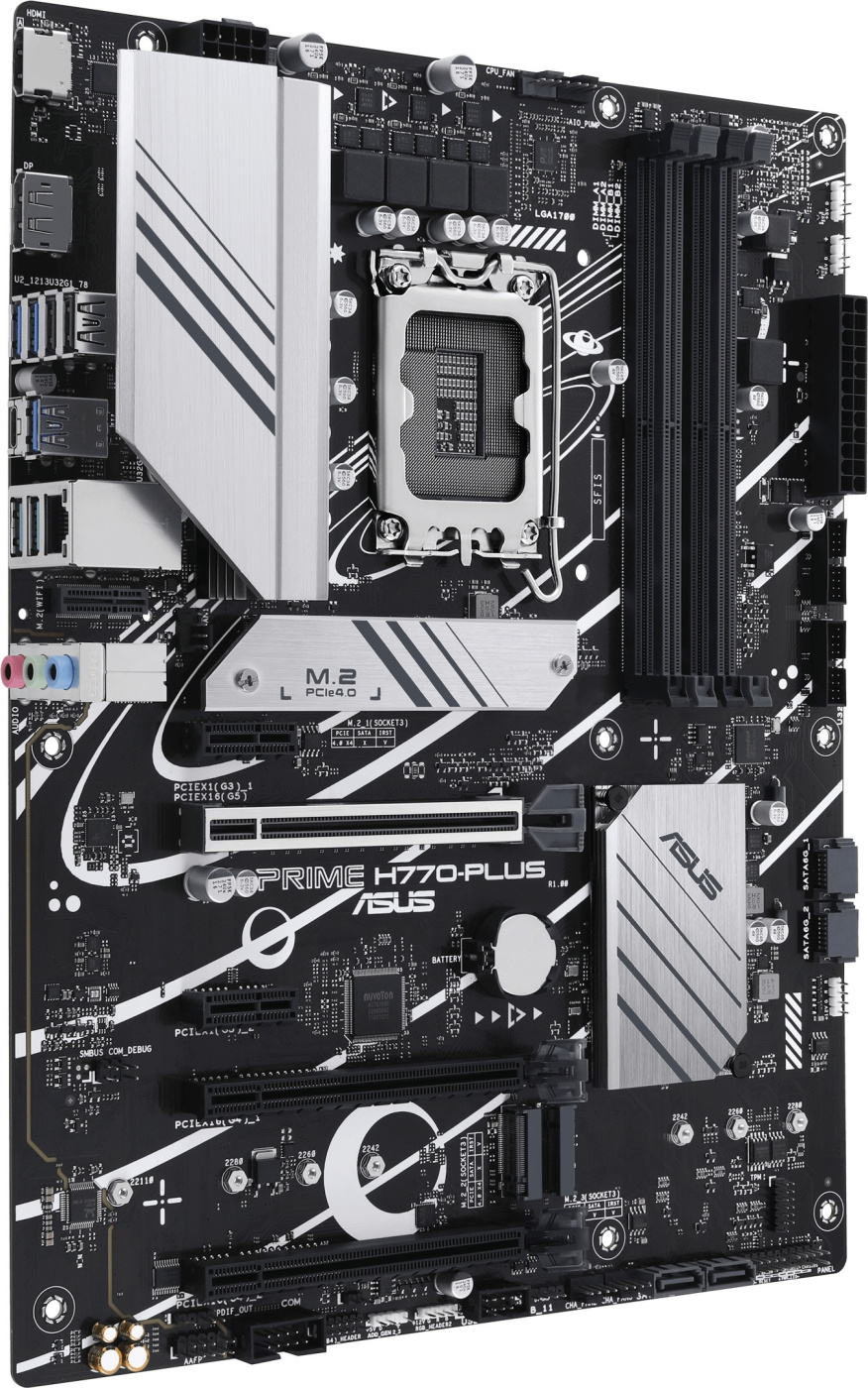

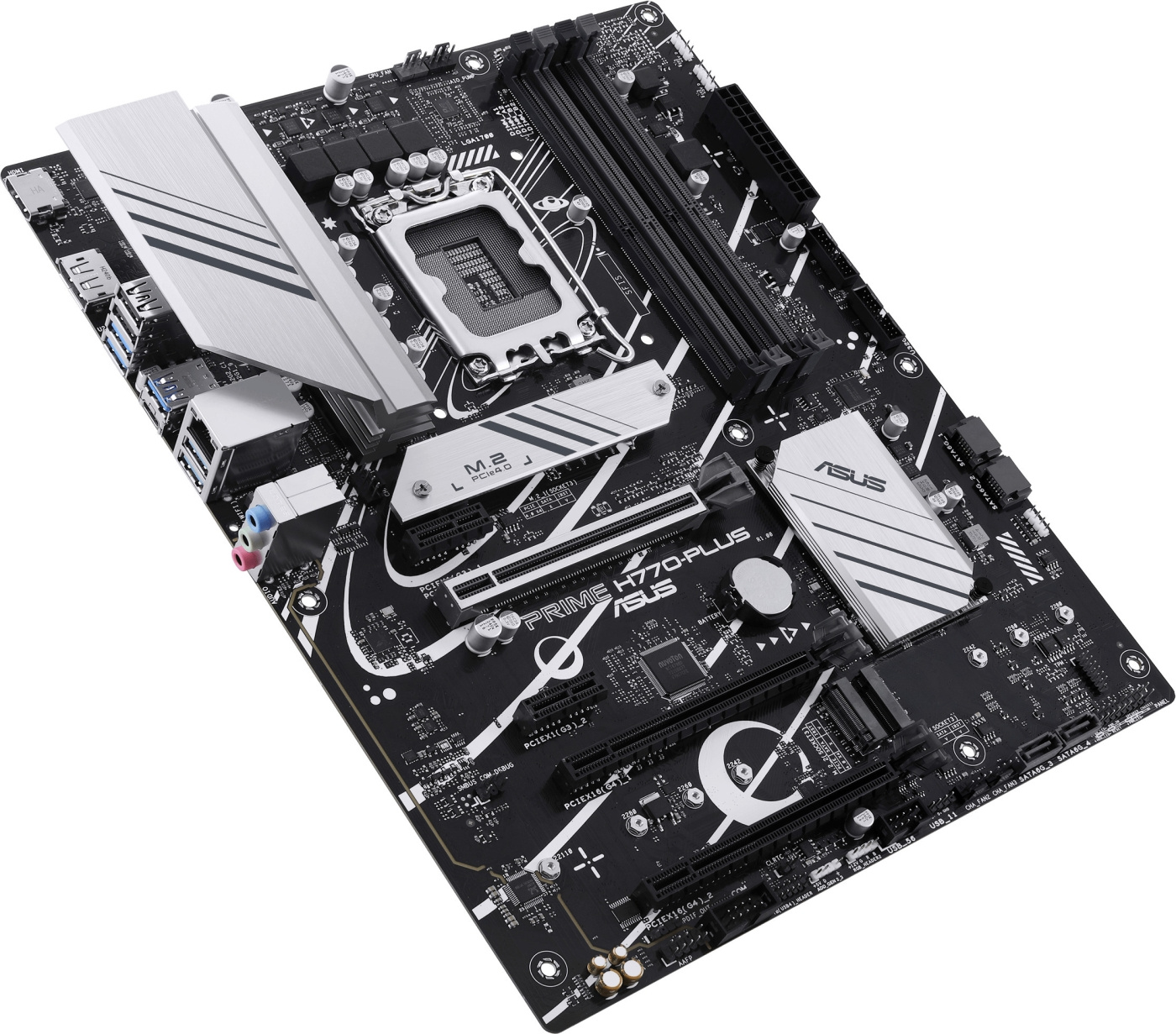

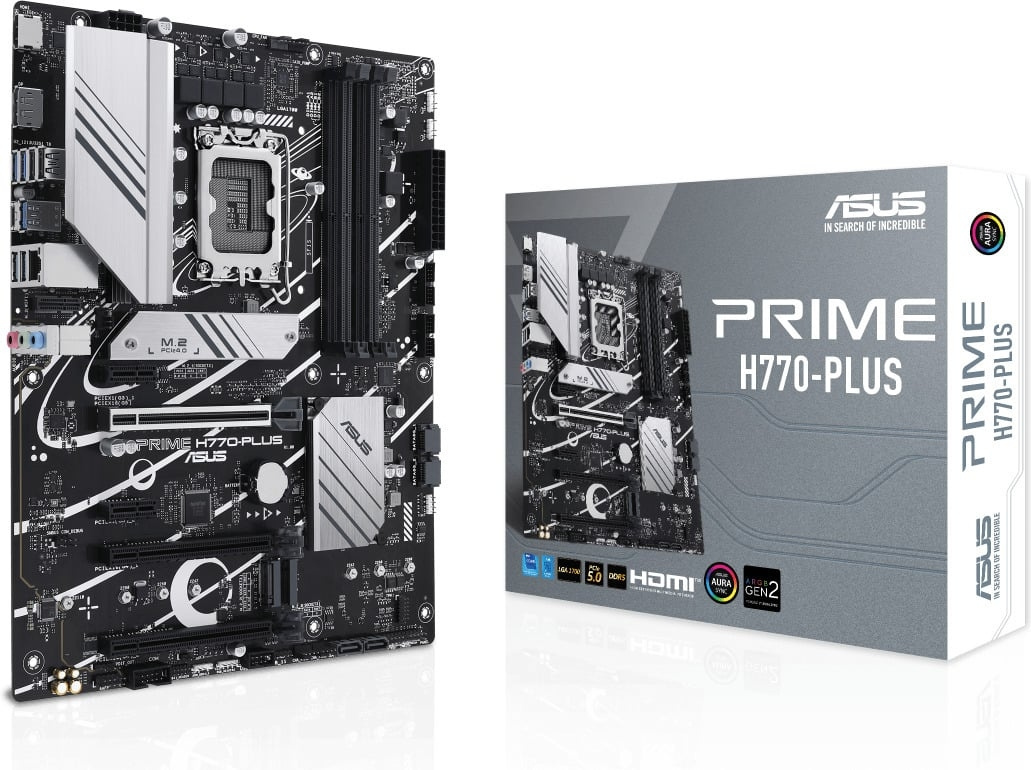

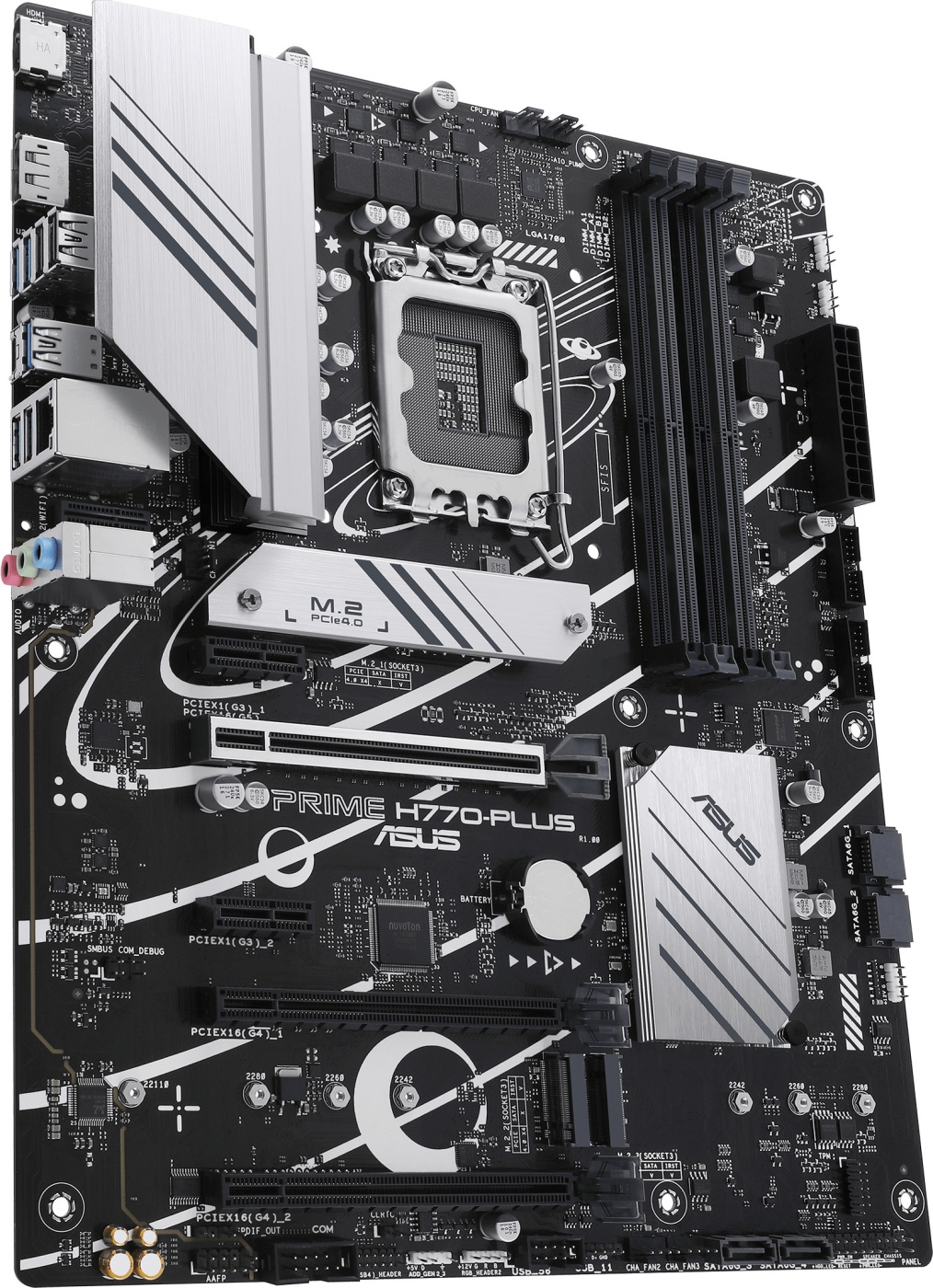

The PRIME series motherboards are expertly designed to deliver the full potential of 14th generation Intel Core processors. The Asus PRIME H770-PLUS motherboard boasts a chunky power design, comprehensive cooling system and smart customisation options. It offers both everyday users and do-it-yourself PC builders a wide range of powerful tuning options with intuitive software and firmware features.
Asus Prime series motherboards offer the key features for building a quality configuration at an affordable price. PRIME motherboards are well suited for gaming and work applications, providing high quality power for even the most powerful Intel Core processors.
Intel LGA 1700: for 14th, 13th and 12th Gen Intel processors.
Ultra-fast connectivity: DDR5 support, PCIe 5.0, three PCIe 4.0 M.2 interfaces, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) interface support.
Comprehensive cooling: VRM, M.2 and PCH heat sinks, hybrid fan connectors and Fan Xpert 2+.
ASUS OptiMem: Careful routing of vias to maintain signal integrity and improve memory stability.
Aura Sync RGB Lighting: Built-in Addressable Gen 2 headers and Aura RGB headers for RGB LED stripes, easily synchronizable with Aura Sync compatible hardware.
Two-Way AI Noise Cancellation.
Features:
- Chipset: Intel H770
- Processor core: LGA 1700
- Processor support: 12th/13th/14th generation Intel Core, Pentium Gold and Celeron
- Motherboard size: ATX (30.5 cm x 24.4 cm)
- Memory slots (pcs): 4
- Memory type: DDR5 (7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz), Non-ECC, Un-buffered, Dual Channel
- Maximum memory (GB): 192
- Network interfaces: 1 x Intel 2.5Gb Ethernet
- Sound card: Realtek 7.1 Surround Sound High Definition Audio CODEC
Expansion sites
- 1 x PCIe 5.0 x16 slot
- 2 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots
Hard disk interfaces
- 4 x SATA 6Gb/s ports
- 3 x M.2 slots
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

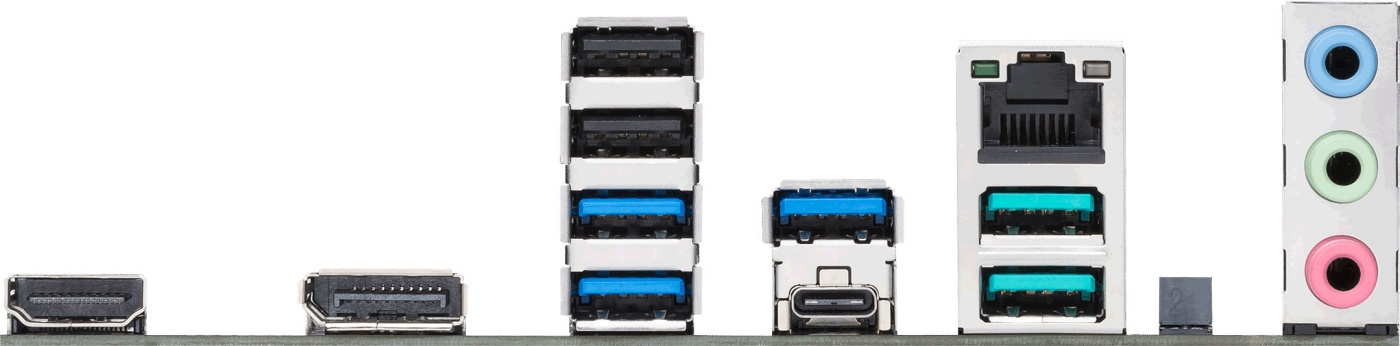

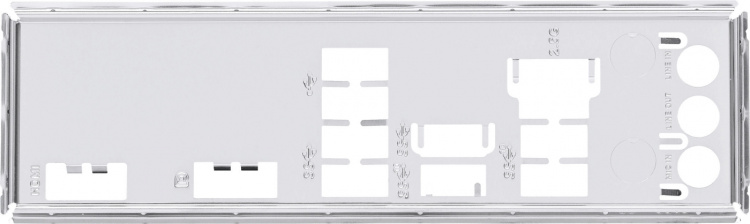

Rear panel interfaces
- 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
- 3 x USB 3.2 Gen 1 ports (3 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Vertical M.2 slot (Key E)
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio jacks
Internal connections
- Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers - Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector - Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports - USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports - Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
- LGA 1700 ATX motherboard
- Intel H770 chipset
- Three M.2 interfaces
- 2.5G Ethernet LAN
- DDR5 support
