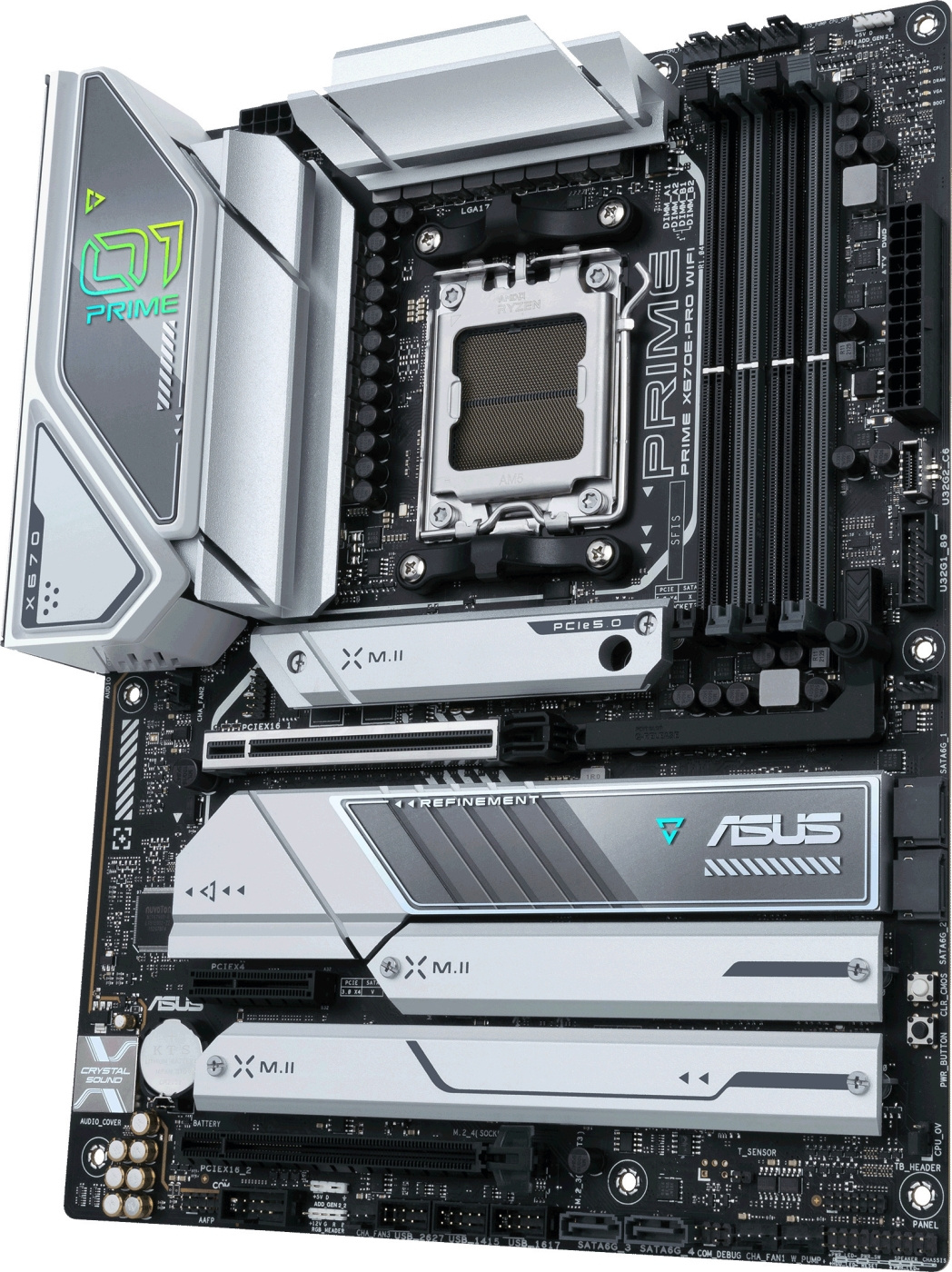

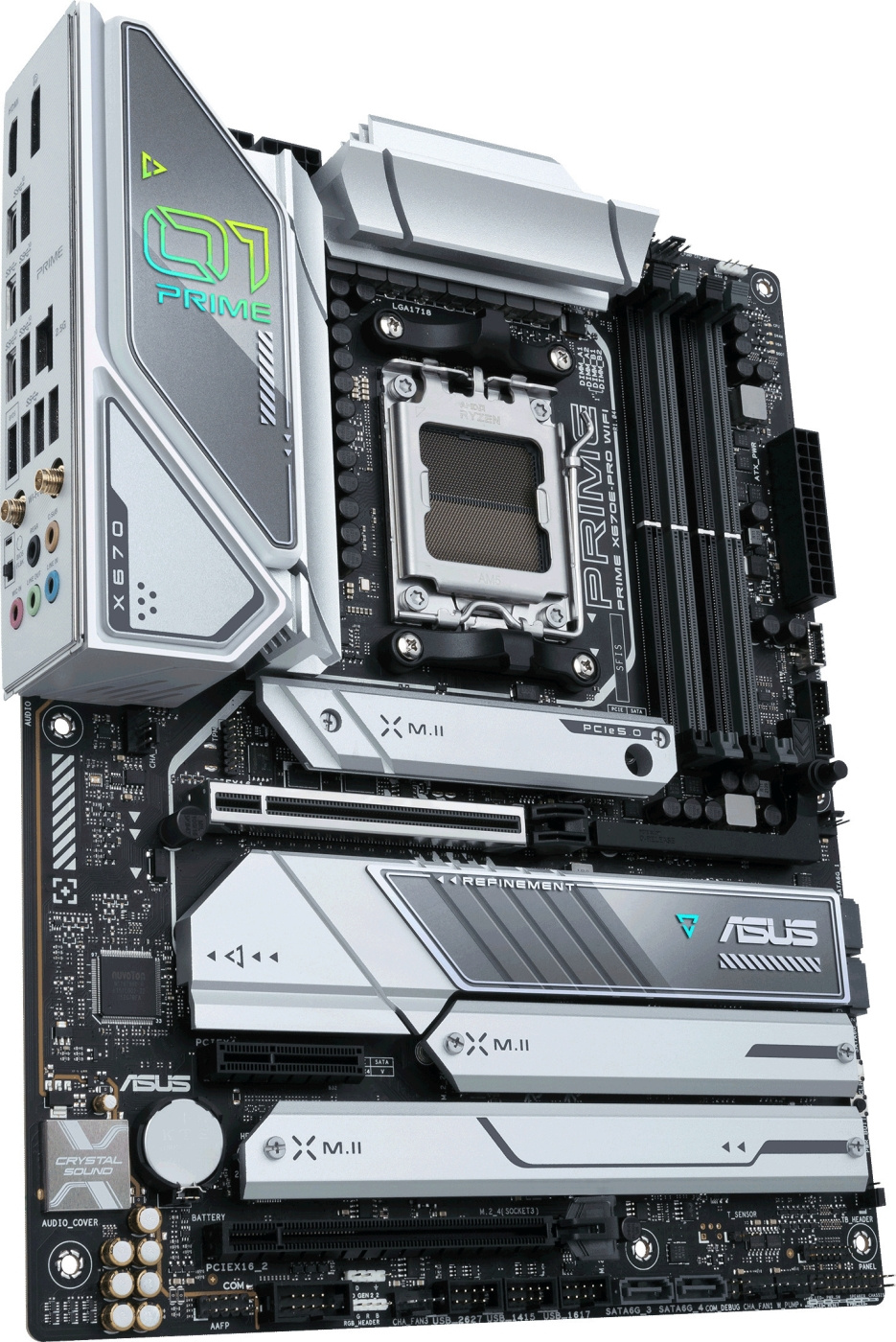

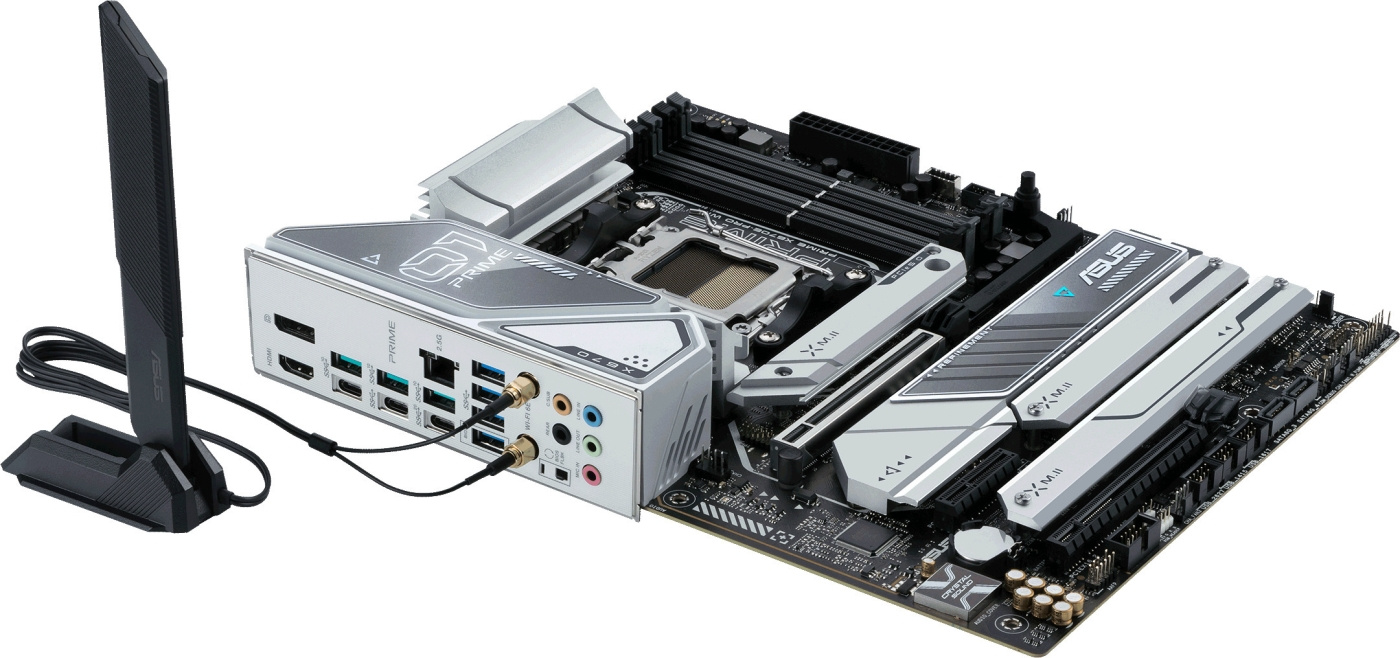

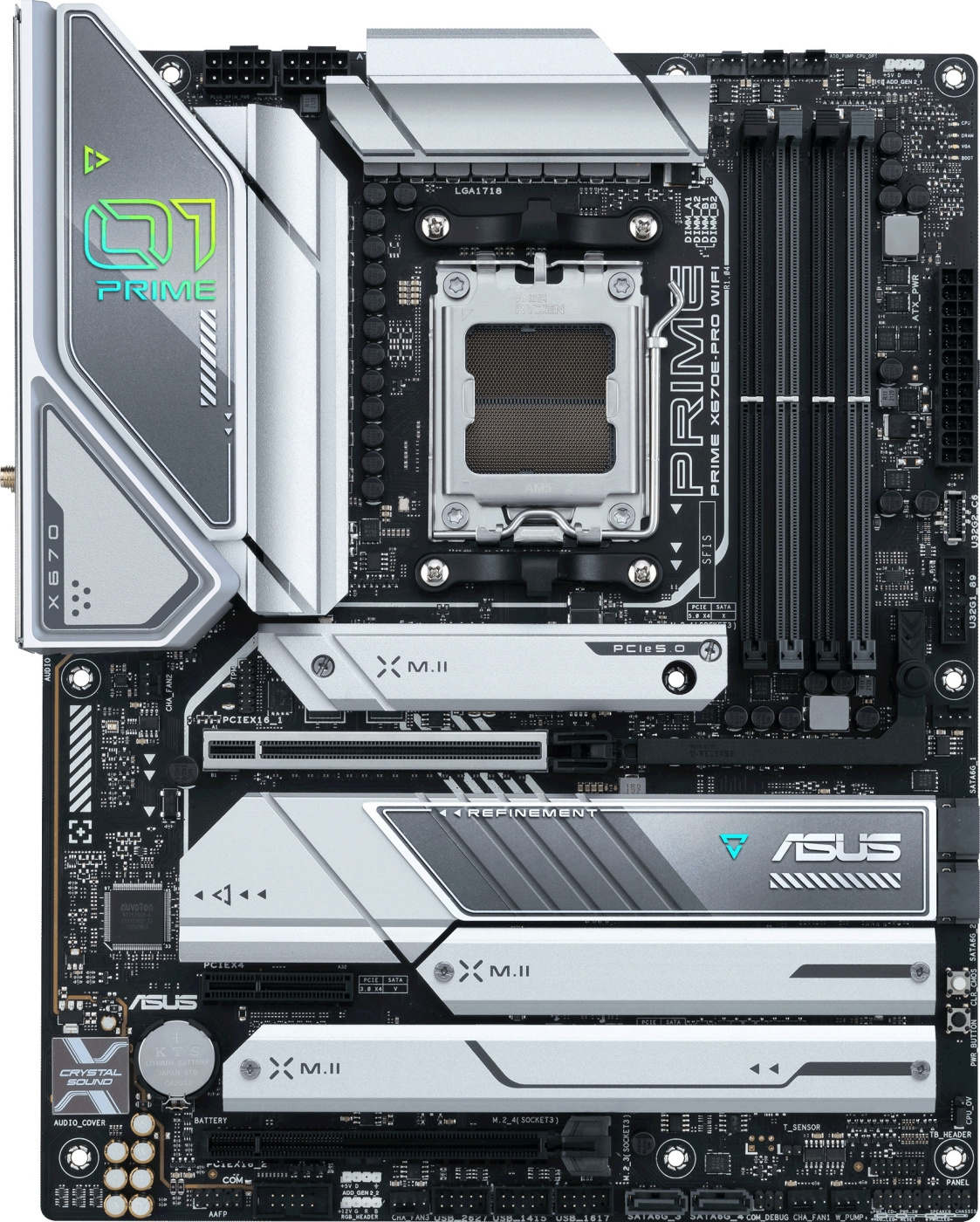

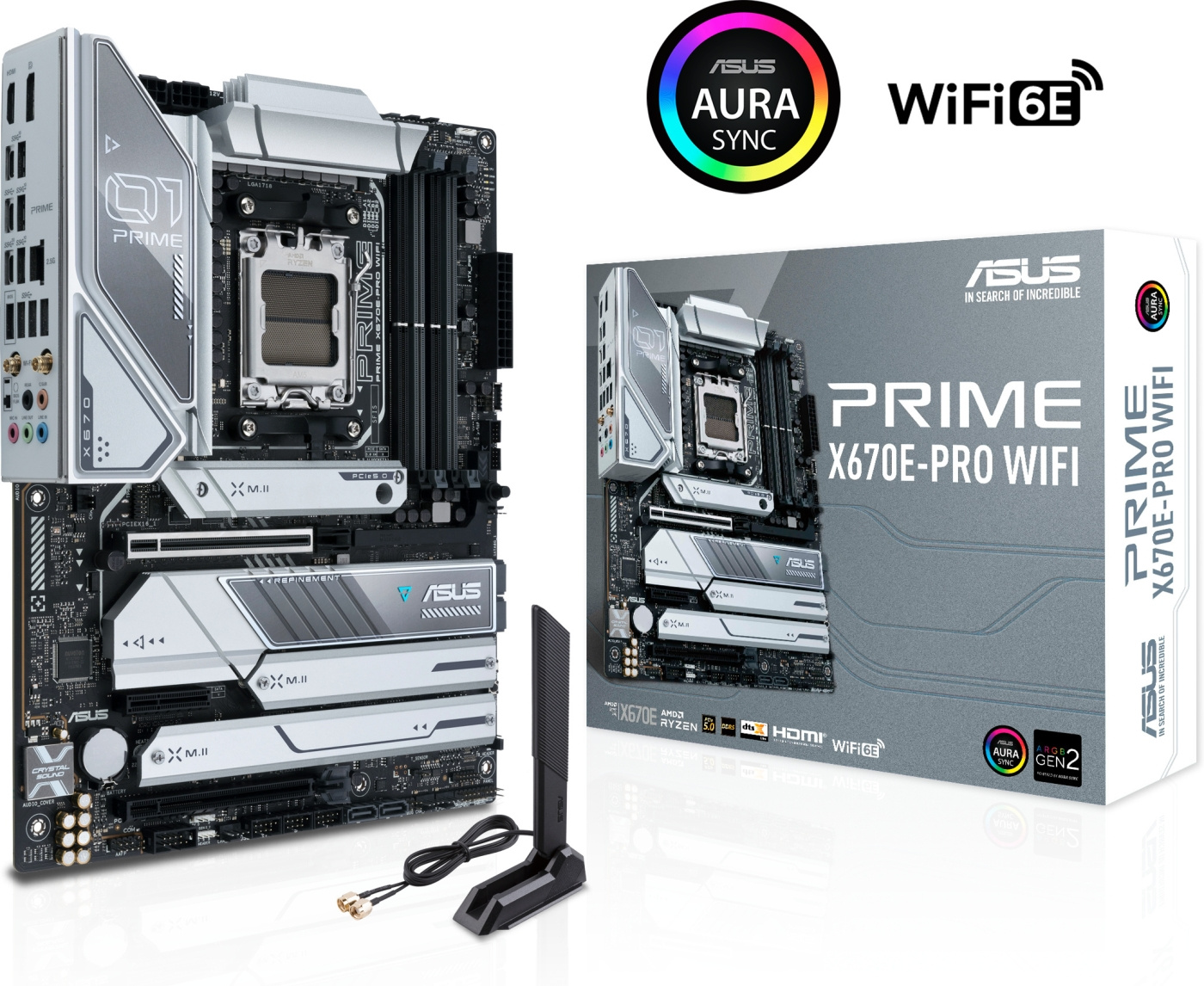

The ASUS PRIME X670E-PRO WIFI is an AM5-based ATX gaming motherboard for Ryzen 7000 series processors with PCIe 5.0, four M.2 slots, 2.5 Gb Intel LAN, Wi-Fi 6E, DDR5 memory support, Asus Aura Sync lighting and plenty of interfaces for your various needs.
ASUS Prime Series motherboards are expertly designed to unleash the full potential of the latest AMD Ryzen 7000 series processors. Offering robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X670E-PRO WIFI provides users and DIY builders with multiple performance optimizations through intuitive software and firmware features. All this in a sleek, futuristic-looking package with a spacecraft design aesthetic, silver nameplate and chipset cover.
Features:
- Chipset: AMD X670
- Processor core: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: ATX
- Memory slots(s): 4
- Memory type: DDR5
- Maximum memory capacity(GB): 128
- Network connectivity: 2.5Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2x2 Dual Band, Bluetooth v5.2
- Sound card: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Dimensions: 30.5 x 24.4 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 5.0 x16
- AMD X670 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x4 slots
Graphics:
- 1 x HDMI, max 4K 60Hz
- 1 x DisplayPort, max 8K 60Hz
Hard disk interfaces:
- 4 x SATA 6Gb/s ports
- 4 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD X670 Chipset: M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

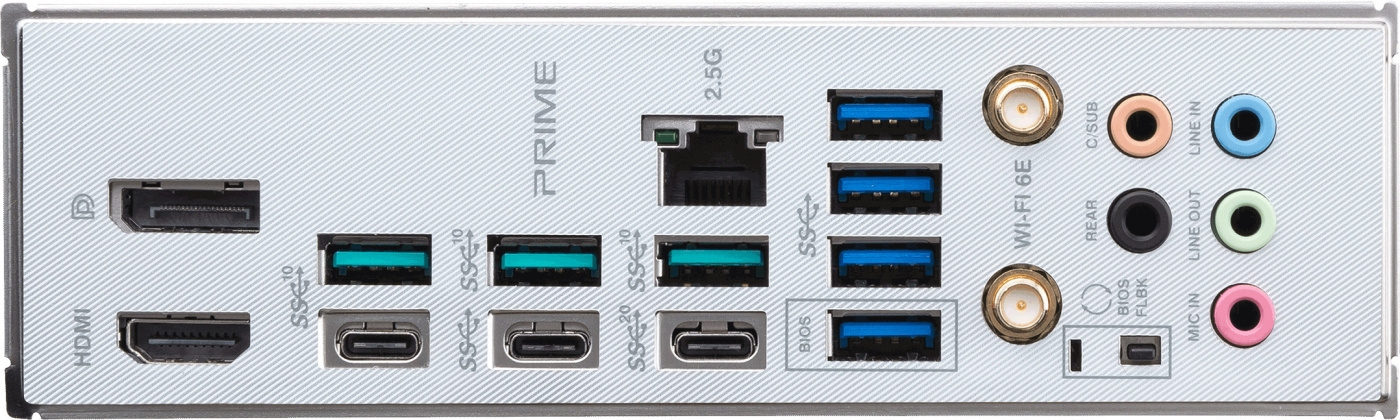

Rear panel interfaces:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
- 4 x USB 3.2 Gen 2 port(s) (3 x Type-A, 1 x USB Type-C)
- 5 x USB 3.2 Gen 1 port(s) (5 x Type-A)
- 1 x DisplayPort
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x audio jacks
- 1 x BIOS FlashBack button
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- 1 x W_PUMP+ header(s)
- Power related
- 1 x 24-pin Main Power connector
- 2 x 8-pin +12V Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 3 x USB 2.0 headers support additional 6 USB 2.0 ports
- Miscellaneous
- 3 x Addressable Gen 2 headers
- 1 x Aura RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x CPU Over Voltage jumper
- 1 x Front Panel Audio header (AAFP)
- 1 x Power button
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
- 1 x Thermal Sensor header
- 1 x Thunderbolt header
- AMD AM5 ATX motherboard
- AMD X670 chipset
- Four M.2 slots, WI-Fi 6E
- DDR5 support, PCIe 5.0 expansion slot
- Supports Ryzen 7000 series CPUs
