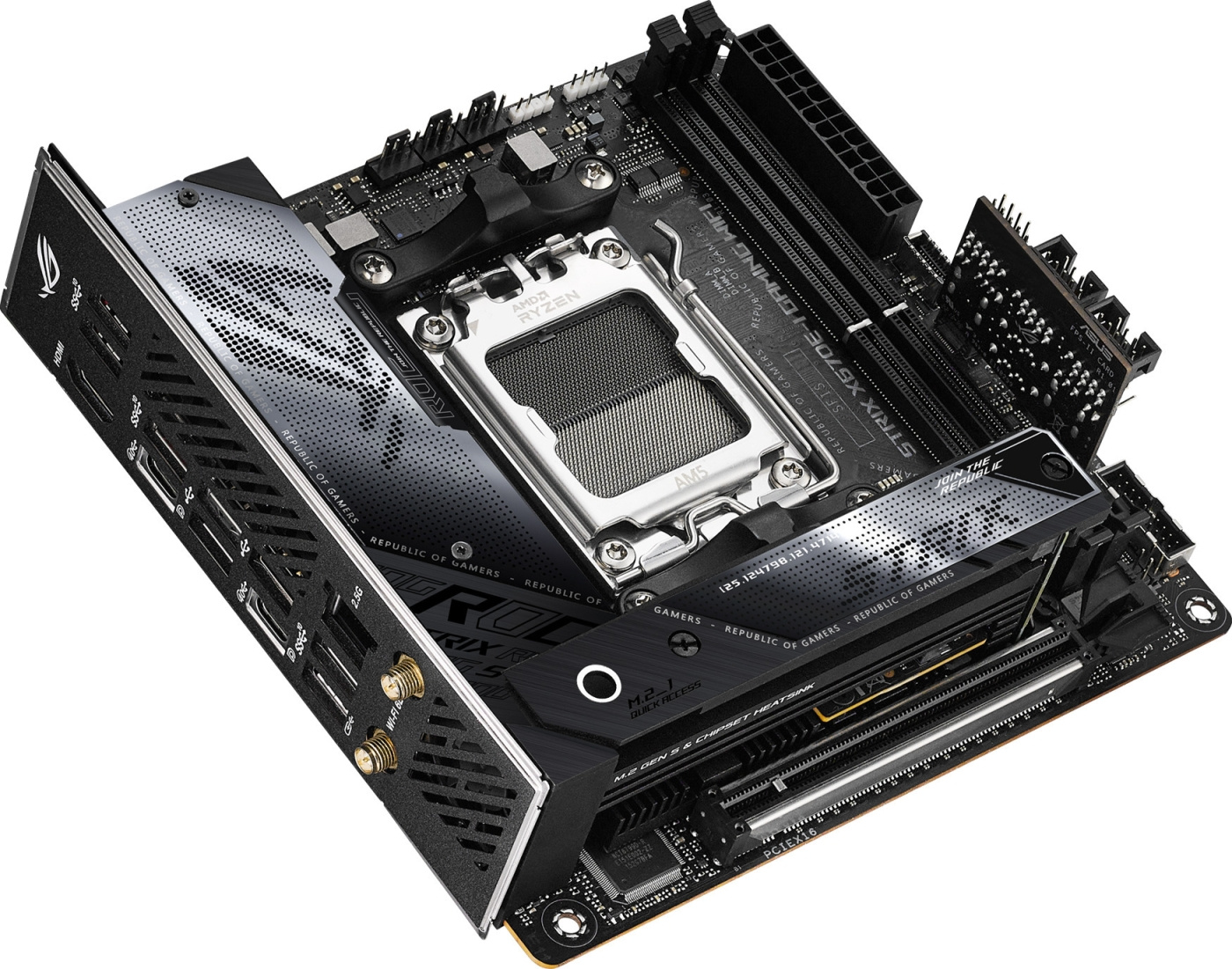

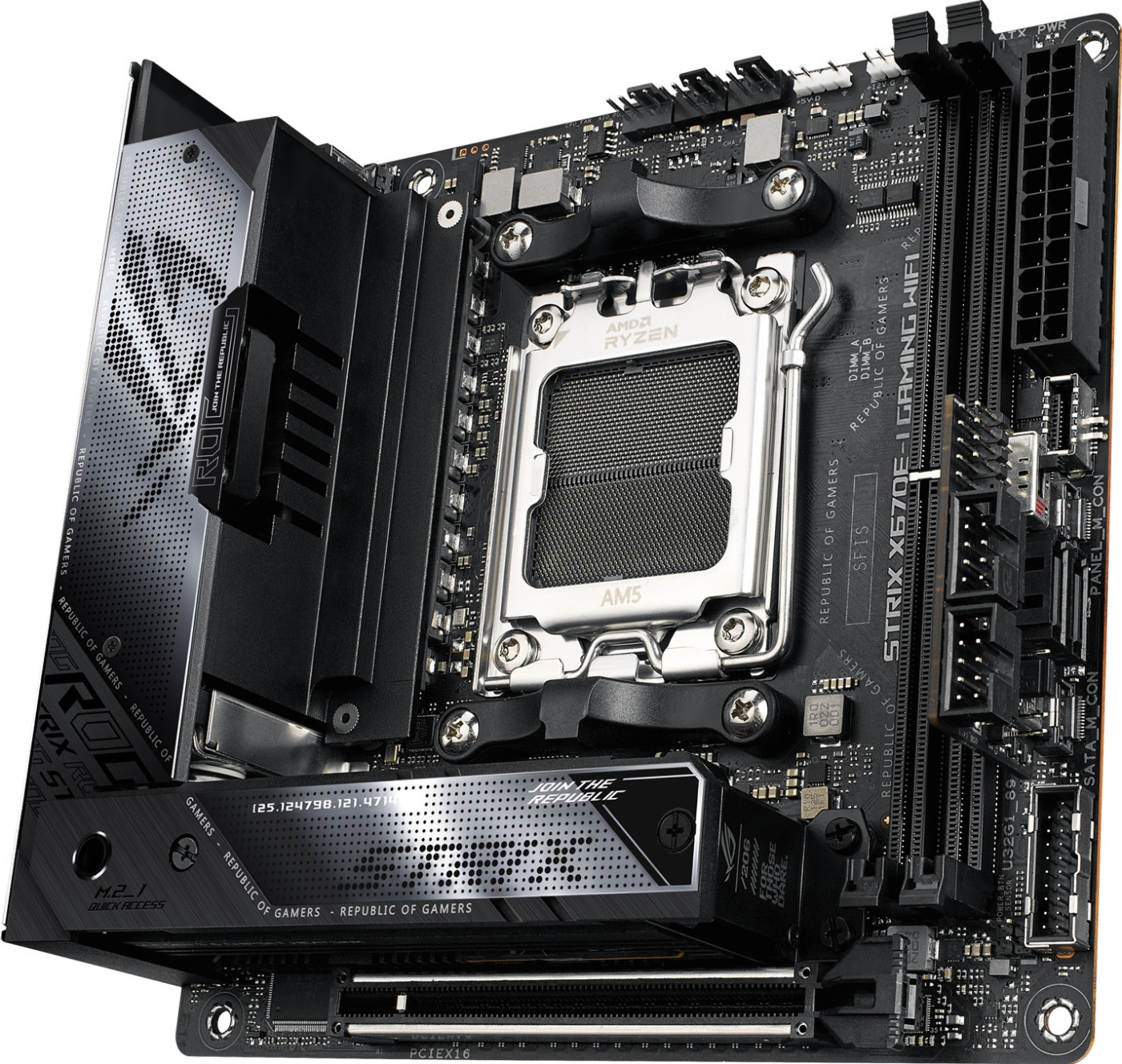

ASUS ROG STRIX X670E-I GAMING WIFI is an AM5-based mITX gaming motherboard for Ryzen 7000 series processors with PCIe 5.0, two M.2 ports, 2.5 Gb Intel LAN, WiFi 6E, DDR5 memory support and a wide range of interfaces to meet your needs.

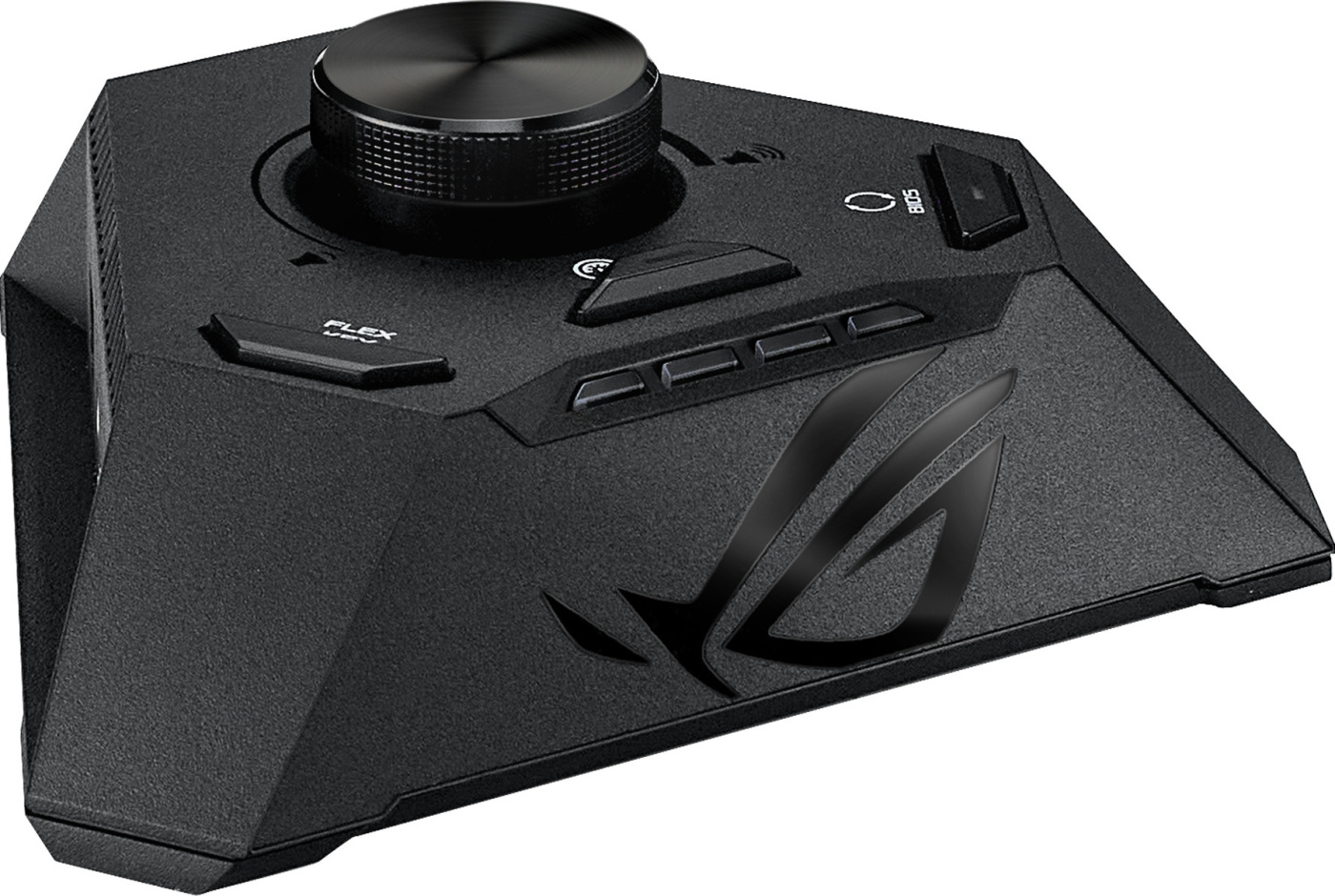

The ROG Strix X670E-I motherboard packs the latest technology into a small mini-ITX form factor, and the ROG Hive puts vital controls and I/O at your fingertips. At the motherboard level, PCIe 5.0 slots for graphics and storage run alongside dual-channel DDR5 cards, bringing high bandwidth to games and CPU-heavy workloads. The heavy power supply and vertically stacked heatsinks crush heat and provide a powerful foundation for ROG's overclocking tools to push performance limits.
Features:
- Chipset: AMD X670
- Processor Base: AM5
- Processor support: AMD Ryzen 7000 series
- Motherboard size: Mini ITX
- Memory Slots(s): 2
- Memory type: DDR5
- Maximum memory capacity(GB): 64
- Network connectivity: 2.5Gb Intel LAN, Wi-Fi 6E (802.11a/b/g/n/ac/ax) 2x2 Dual Band, Bluetooth v5.2
- Sound card: ROG High Definition Audio CODEC
- Dimensions: 17 x 17 cm
Expansion slots:
- AMD Ryzen 7000: 1 x PCIe 5.0 x16
Graphics:
- 1 x HDMI, max 4K 60Hz
- 2 x USB4® ports support USB Type-C® display outputs
Hard disk interfaces:
- 2 x SATA 6Gb/s ports
- 2 x M.2 slots
- AMD Ryzen 7000: M.2_1 slot (Key M) type 2280 (supports PCIe 5.0 x4 mode)
- AMD X670 Chipset: M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

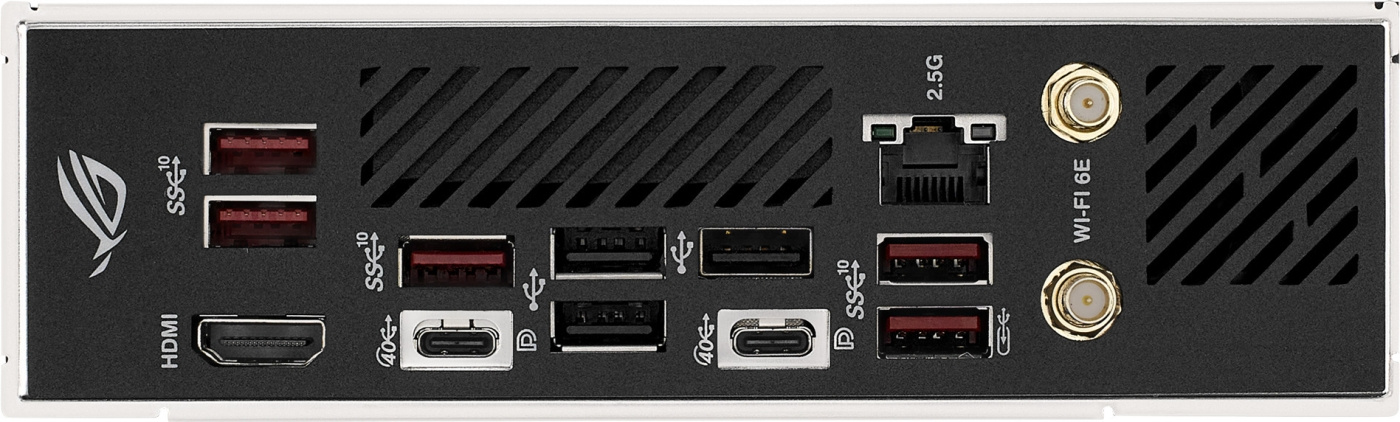

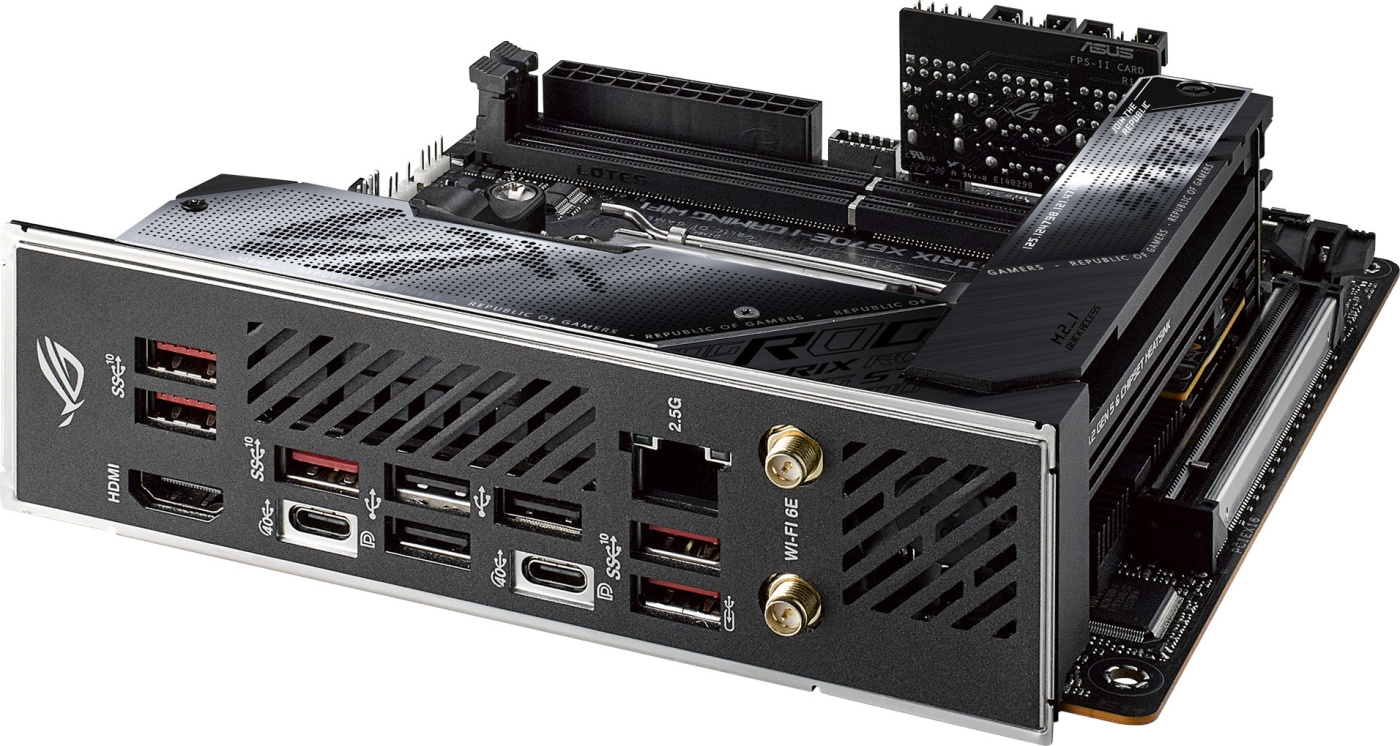

Rear panel interfaces:
- 2 x USB4 port(s) with Intel JHL8540 USB4 controller (2 x USB Type-C)
- 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1 port supports ROG STRIX HIVE)
- 3 x USB 2.0 ports (3 x Type-A)
- 1 x HDMI port
- 1 x Wi-Fi module
- 1 x Intel I225-V 2.5Gb Ethernet port
Internal connections:
- Fan and Cooling related
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin AIO Pump header
- 1 x 4-pin Chassis Fan headers
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 2 x M.2 slots (Key M)
- USB
- 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
- Miscellaneous
- 1 x Addressable Gen 2 header
- 1 x Aura RGB header
- 1 x RTC Battery header
- 1 x Thermal Sensor header
- 1 x 2 pin Power_BTN header

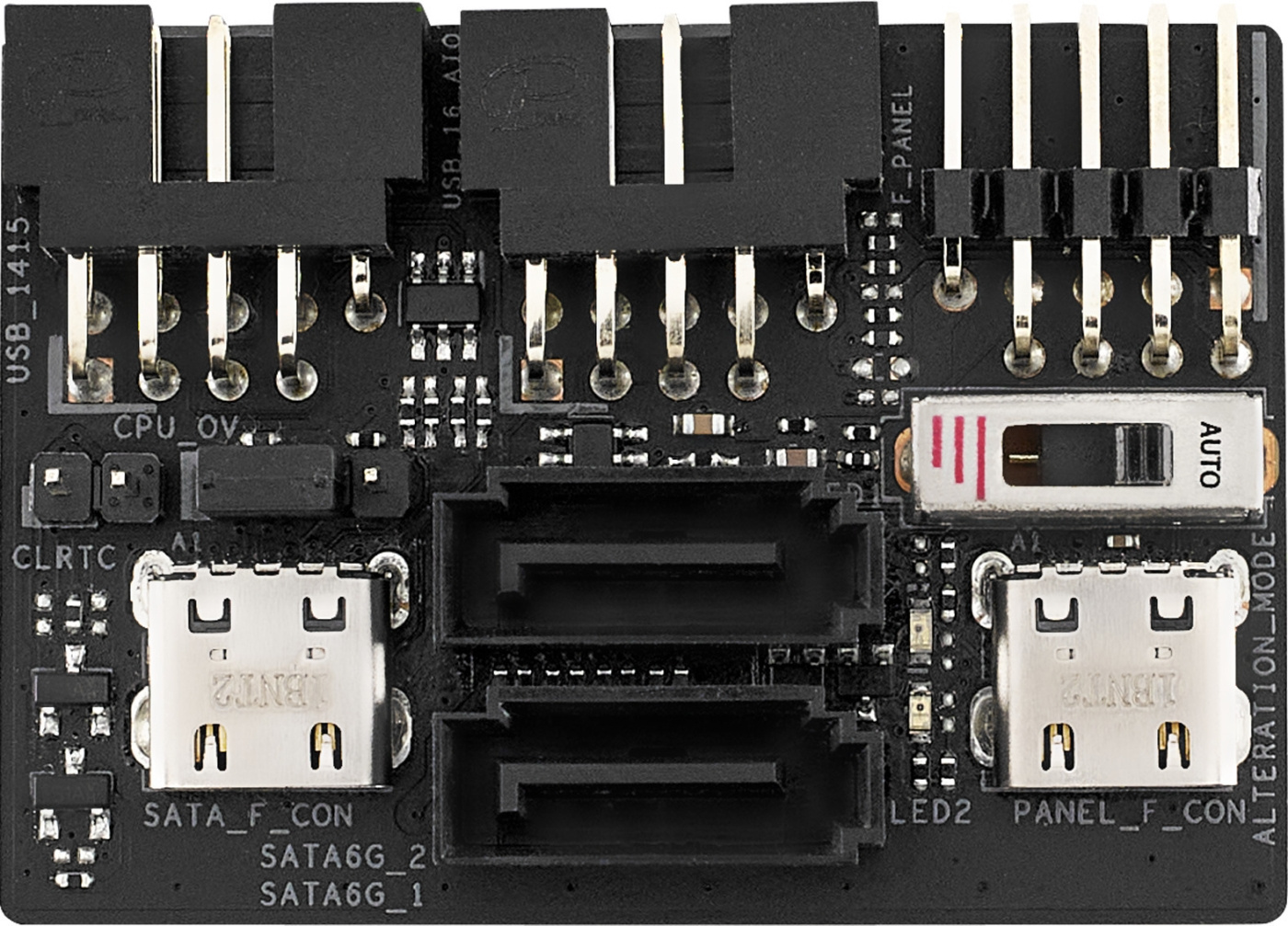

- 2 x USB Type-C® connectors to Install ROG FPS-II card
- ROG FPS-II card
- 2 x SATA 6Gb/s ports
- 1 x CPU Over Voltage jumper
- 1 x Clear CMOS header
- 1 x Front Panel header
- 1 x Alteration mode switch
- 2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports
- AMD AM5 mITX motherboard
- AMD X670 chipset
- Two M.2 slots, Wi-Fi 6E
- DDR5 support, PCIe 5.0 expansion slot
- Supports Ryzen 7000 series CPUs
