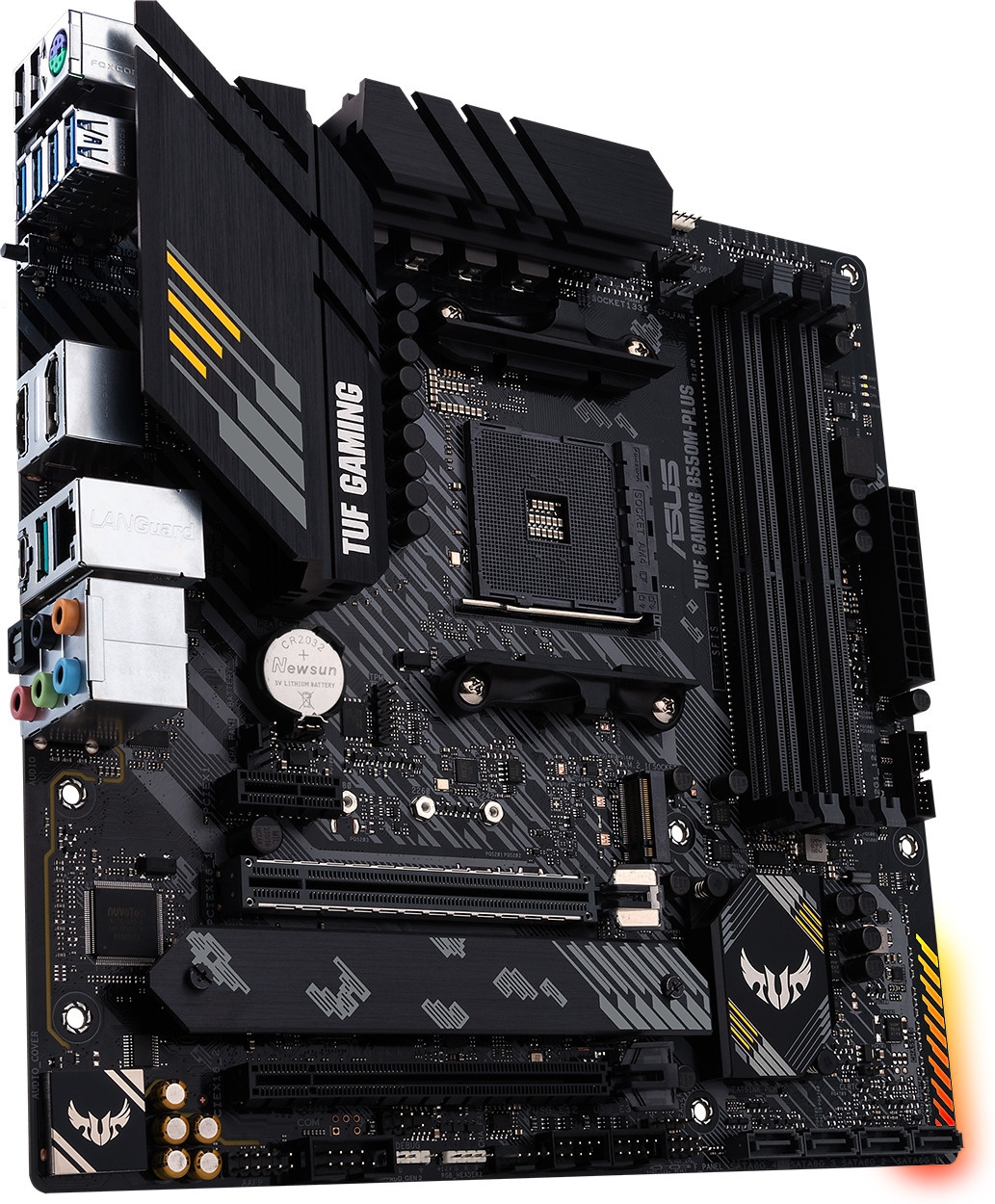

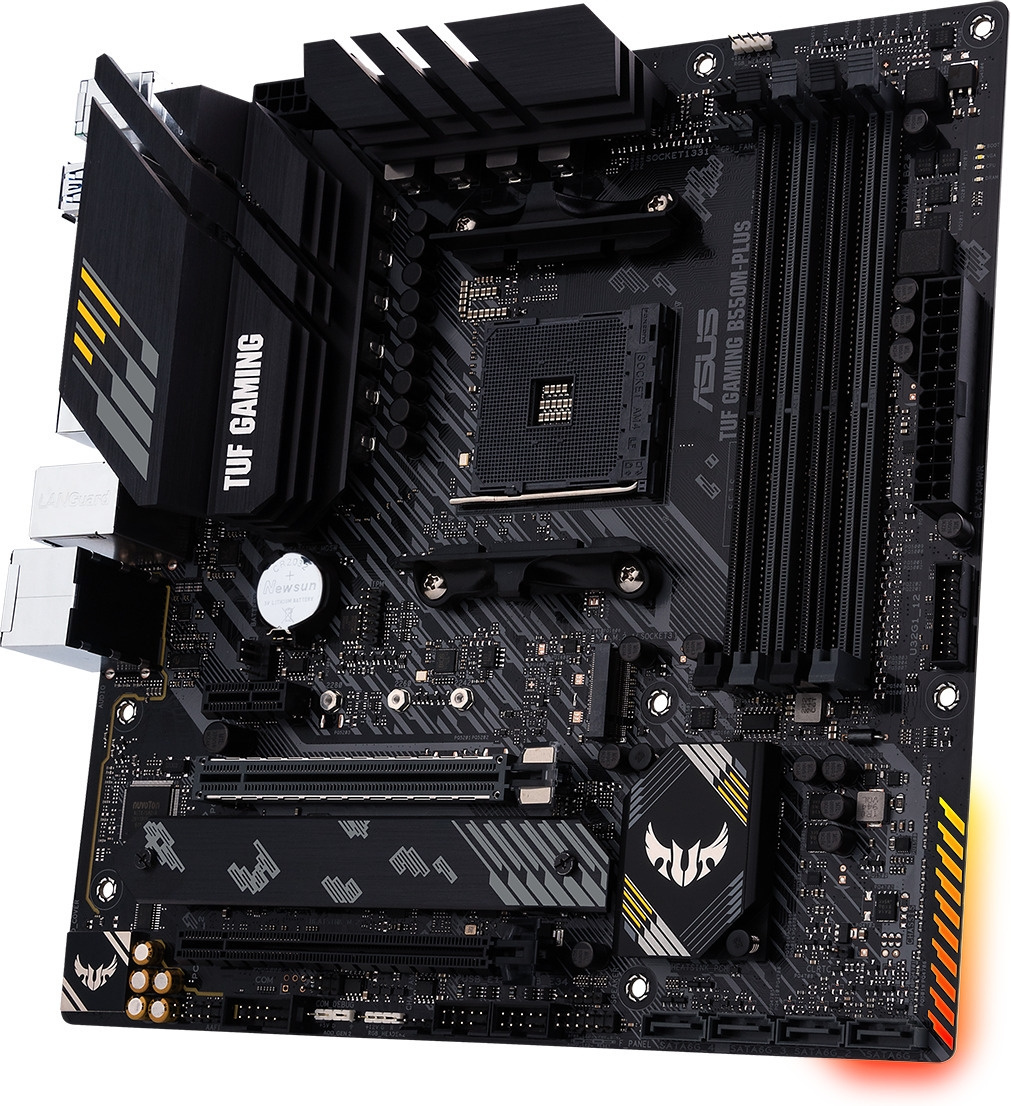

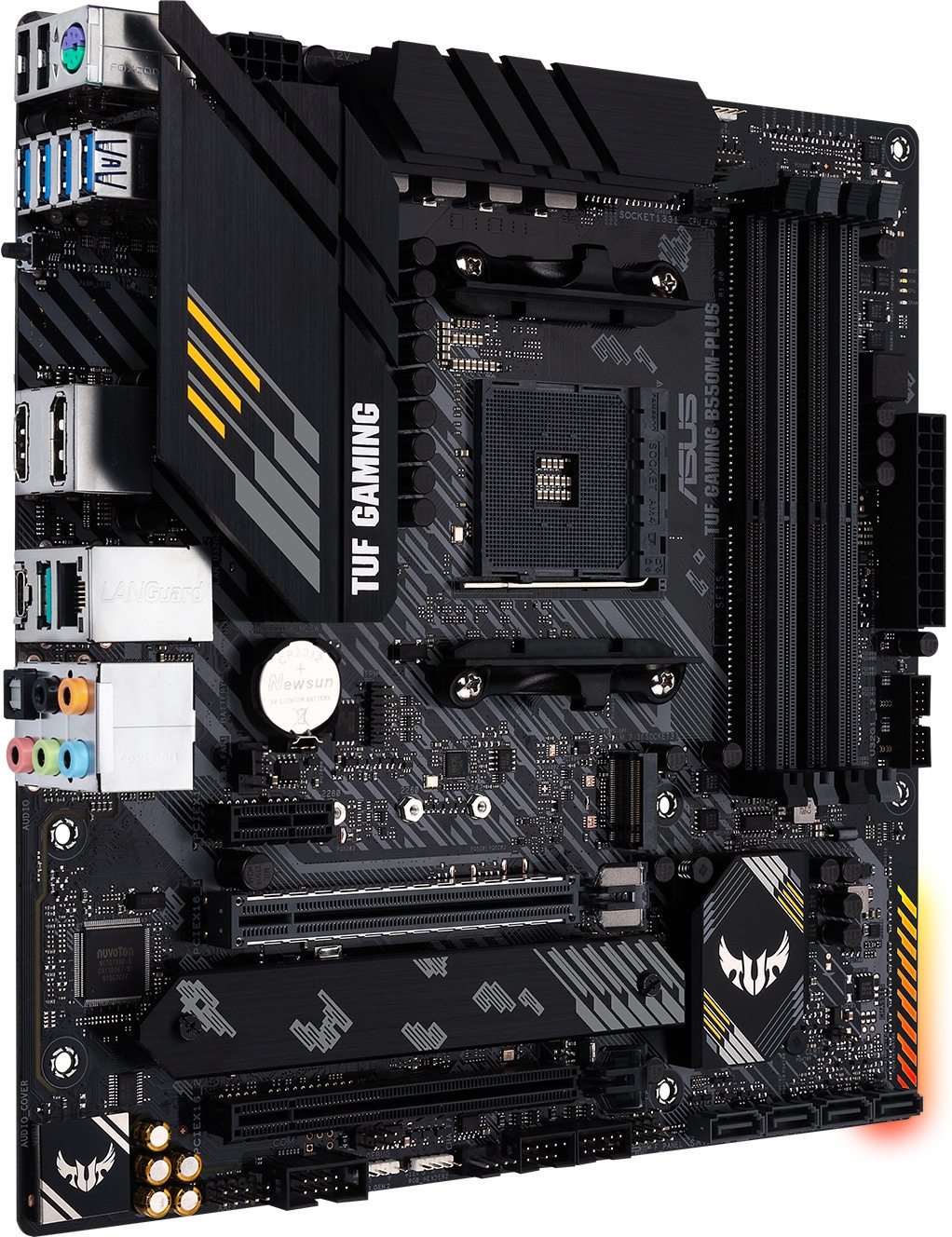

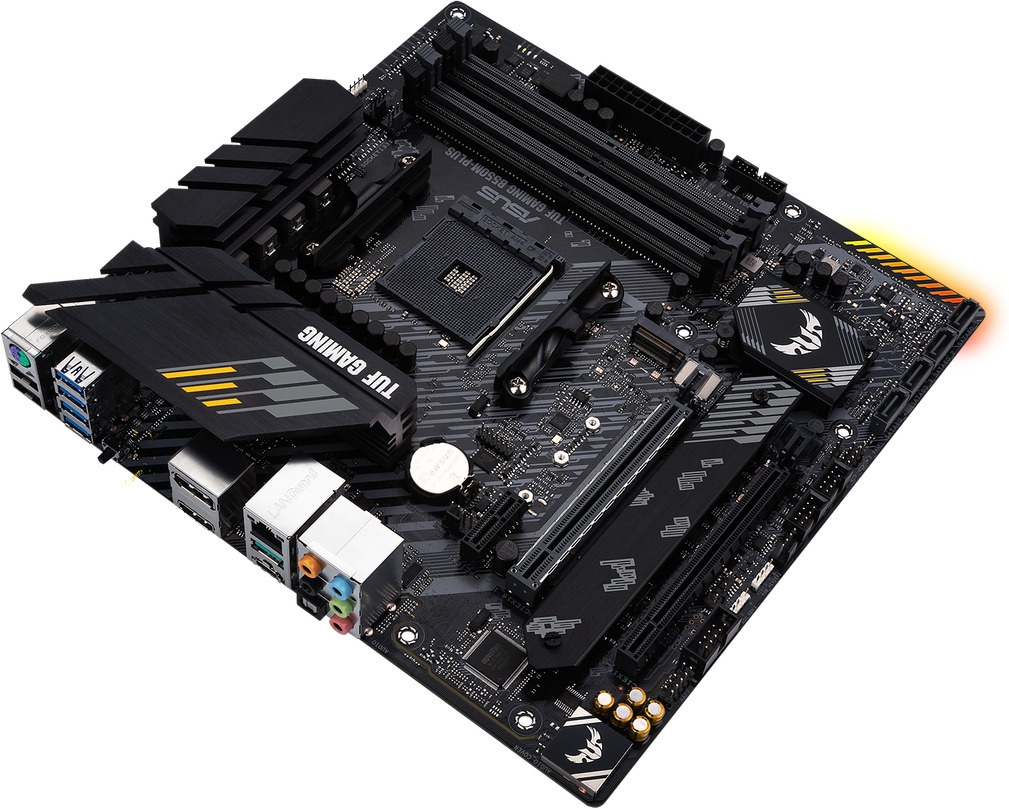

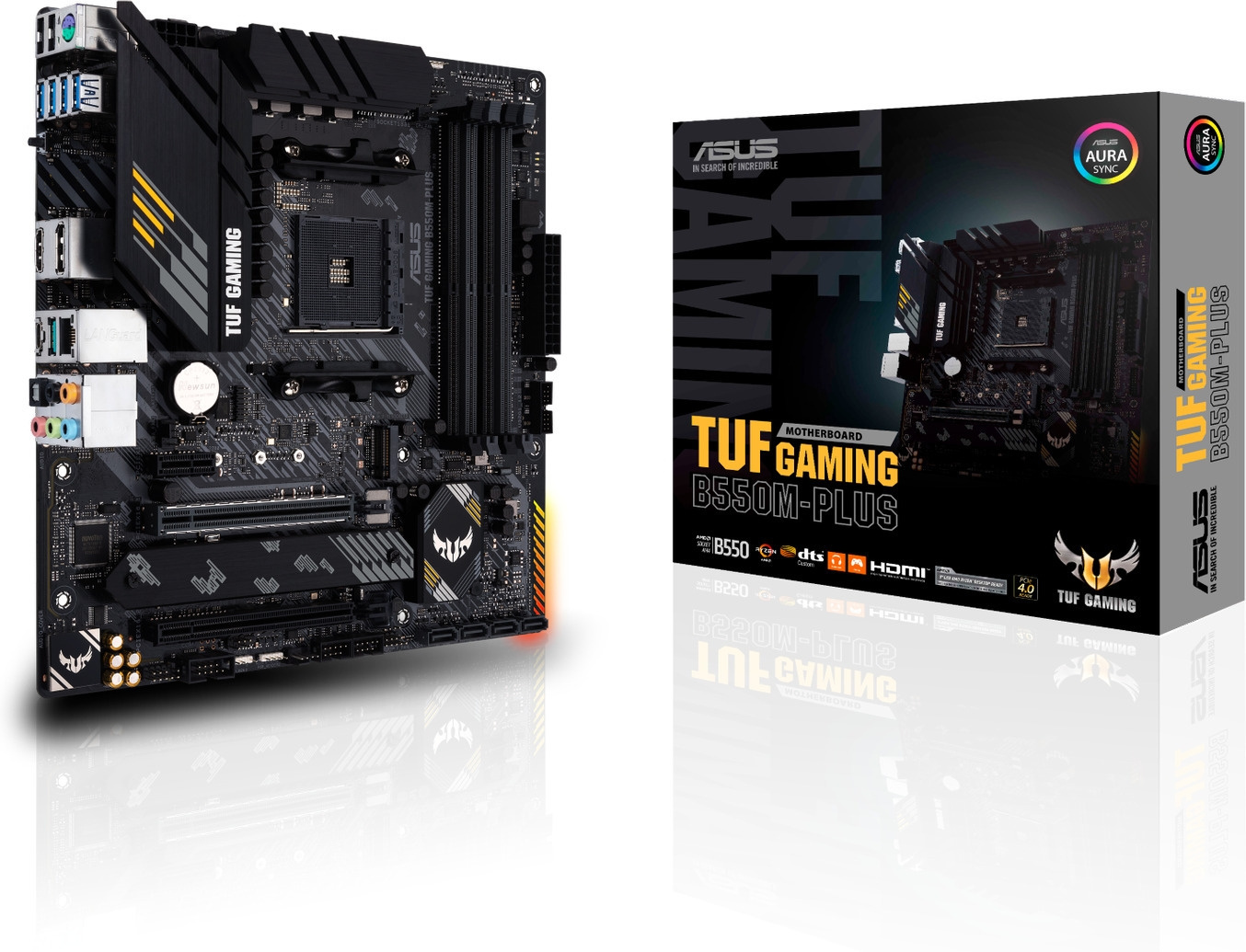

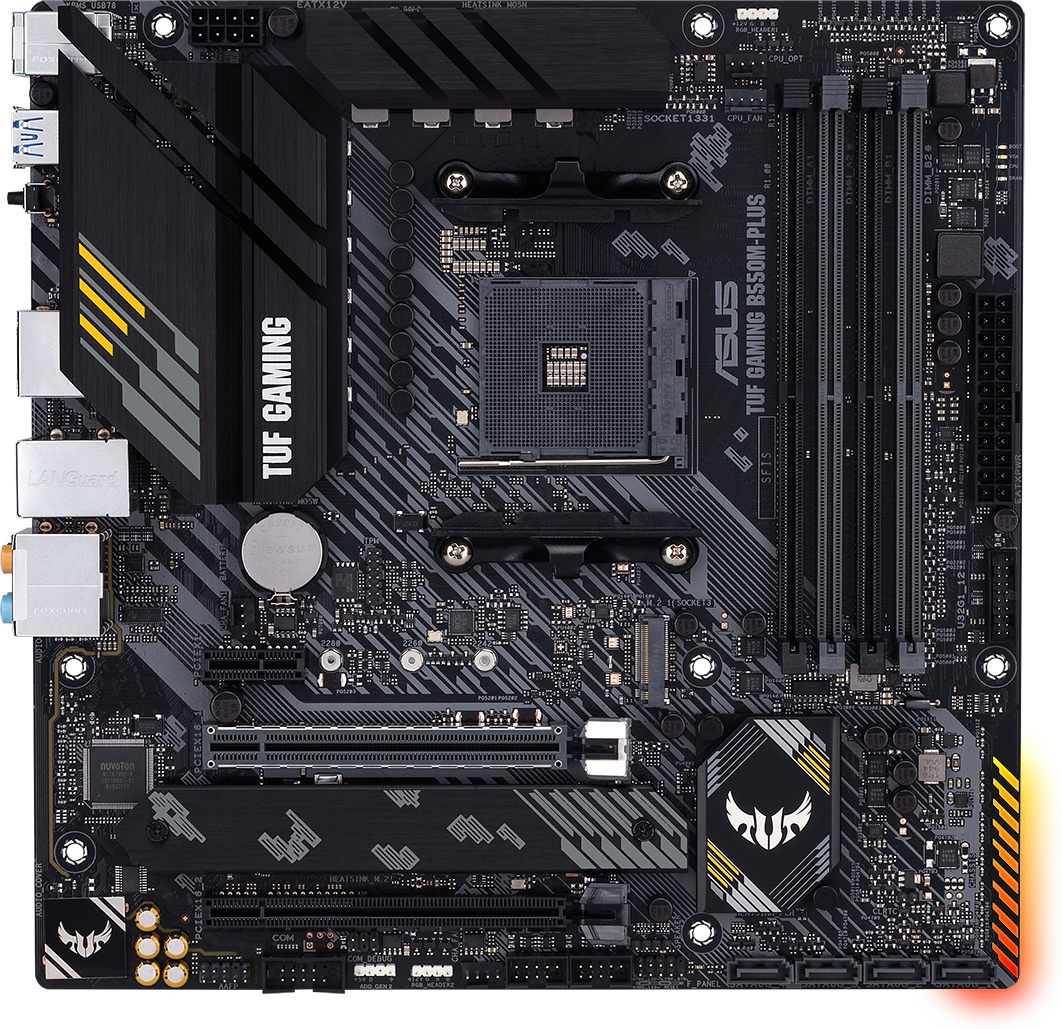

ASUS TUF GAMING B550M-PLUS AM4 microATX motherboard

Asus TUF GAMING B550M-PLUS is an AM4 motherboard with AMD B550 chipset for 3rd generation AMD Ryzen processors. The motherboard also supports future generation AMD Ryzen processors with BIOS update. B550 chipset PCIe 4.0 support provides the necessary bandwidth for high-speed SSDs and next-generation graphics cards!

Asus TUF Gaming B550 series motherboards are designed with durability and the latest features in mind. High-quality power supply and cooling allows overclocking of even the most powerful AMD Ryzen processors, and a dedicated power connector provides power for both AIO water cooling kits and custom kits.

Features:

• Chipset: AMD B550
• Processor core: AM4
• Processor support: 3rd generation Ryzen series CPUs
• Motherboard size: microATX
• Memory slots(s): 4
• Memory type: DDR4
• Maximum memory capacity(GB): 128
• Network interfaces:Realtek RTL8125B 2.5Gb Ethernet
• Sound card: Realtek ALC S1200A
• CrossFireX support: yes
• SLI support: No

Expansion slots

• 1 x PCIe 4.0 x16 (x16 mode)
• 1 x PCIe 3.0 x16 (x4 mode)
• 1 x PCIe 3.0 x1

Hard disk interfaces

• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• 4 x SATA 6Gb/s port(s)

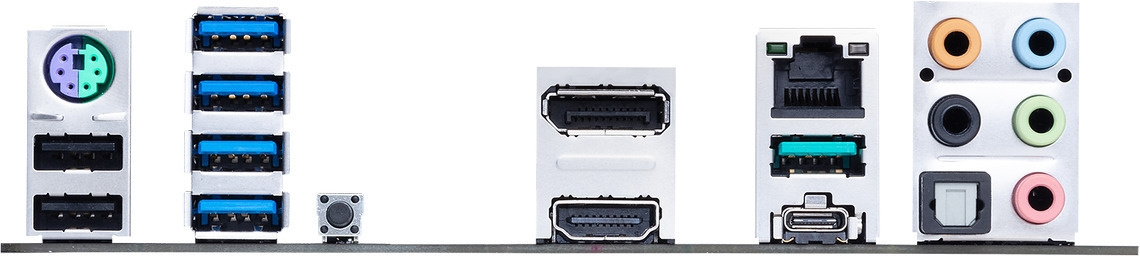

Rear panel interfaces

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (2.5G) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x audio jack(s)
• 1 x BIOS FlashBack button(s)

Internal connections

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x SPI TPM header
• 4 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header
• 1 x Speaker connector

• AM4 microATX motherboard
• AMD B550 chipset
• Two M.2 slots
• Comprehensive features for gamers
