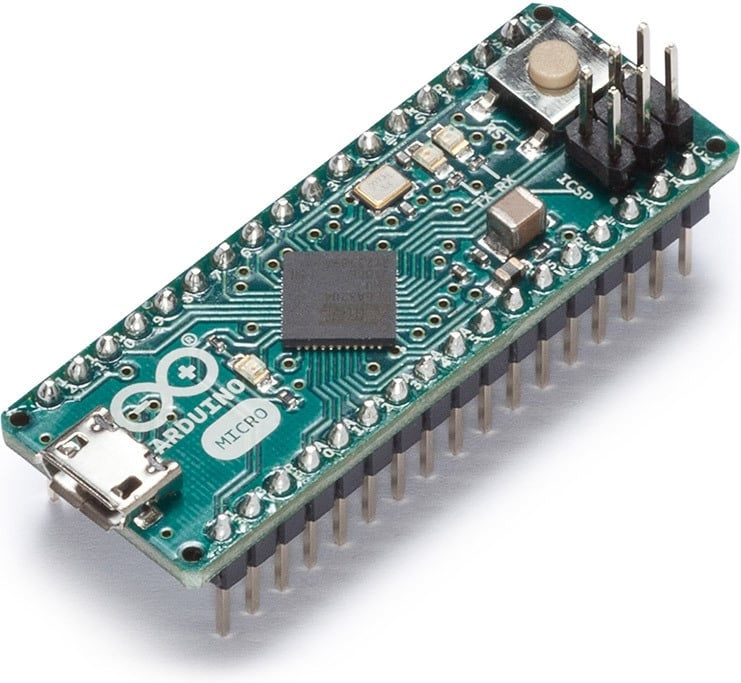

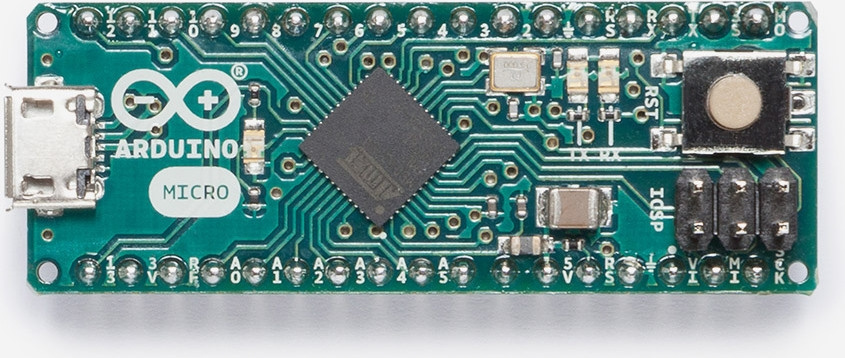

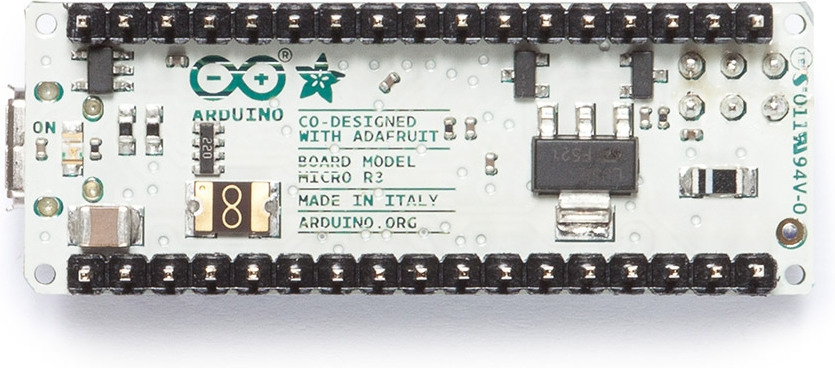

Arduino Micro is a development platform based on the ATmega32u4 processor. The board has 20 digital inputs/outputs (7 of which can be used as PWM outputs and 12 as analog inputs), a 16 MHz oscillator, an ICSP header, a reset button, a microUSB interface and a power connector.
Arduino-the concept is a versatile open development platform. Getting started is easy: just download the ready-to-use development environment (Win, Mac, Linux) and plug the Arduino card into the USB port of your PC.
Technical specifications:
- Processor: ATmega32u4
- Operating voltage: 5 Vdc
- Digital outputs: 20, maximum current 40 mA per output
- Analog inputs: 12, maximum current 50 mA per input
- Flash memory: 32 kB, of which 4 kB reserved for bootloader
- SRAM: 2,5 kB
- EEPROM: 1 kB
- Clock frequency: 16 MHz
- Dimensions only 48 x 18 mm, weight 13 g
This text was automatically translated, errors may be present.
8058333491134EAN:
