| Accessories: | Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket |
| Audio: | Realtek ALC897 7.1 CH HD Audio Codec |
| CPU: | Supports 13th Gen & 12th Gen and next gen Intel® Core™ Processors (LGA1700) |
| Certifications: | FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required) |
| Form factor: | Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |

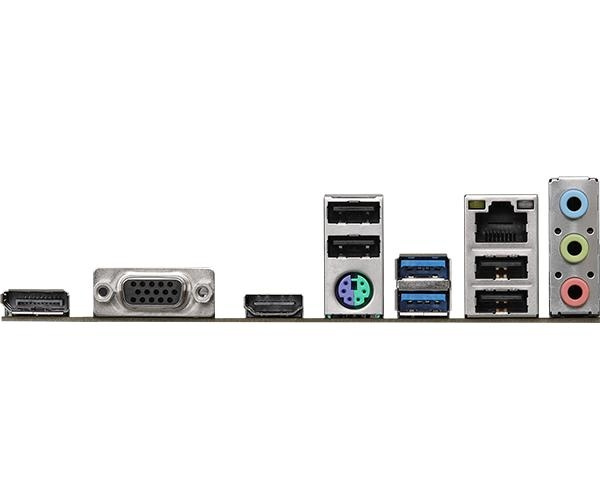

| Graphics Output Options: | D-Sub, HDMI 2.1, DisplayPort 1.4 with DSC (Depends on CPU) |
| M.2 Slots: | 1x Ultra M.2 (PCIe Gen3 x4) - Supports ASRock U.2 Kit |
| Networking: | Realtek RTL8111H Gigabit LAN |
| PCIe Slots: | 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 |
| RAM: | Supports DDR4 3200MHz |
| SATA ports: | 4x SATA3 |
| USB: | 4x USB 3.2 Gen1 (2 Rear, 2 Front), 6x USB 2.0 (4 Rear, 2 Front) |
| VRM: | 6+1+1 Phase Power Design |
4710483939860EAN:
